Bhagyanagar India Limited SP Road, Secunderabad, Telangana

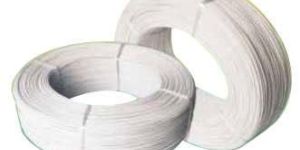

SUBMERSIBLE WIRES : IS-8783 (PART 4 SEC 3) Bhagyanagar India Ltd is privileged to add one more Product of Poly Wrapped Winding Wires and commonly known as Submersible Wires Raw Material Inputs: Copper Wires ranging from 0.80 to 1.20mm Polyster Tape White Tape Nylon Tape PROCESS The main Raw material input is 99.90% Copper wire of various gauges and to that the All the input Tapes of Polyster ,white tape and followed by Nylon tapes are mounted on the winding machine and Bare copper bobbin is mounted on the payoff side and an empty bobbin is mounted on the take up side to get the Poly wrapped winding wires. Application Used in Submersible pumps motors of all sizes for Domestic and Industrial applications.   SPECIAL SALIENT FEATURES Each coil tested at 3500V Heat Shock Test : at 150 °C -180°C Energy Saver Tear resistant Easy Winding SIZES AND PACKING Available in different standard sizes with 99.90% copper purity and also according to customer's requirement in coil form with suitable length as per size, in polythene cover and packed corrugated boxes.

Avail from us Submersible Wire that is known for the excellent strength. The clients can avail the Submersible Wire from us in varied sizes and lengths as per the requirement.

Avail from us Submersible Wire that is known for the excellent strength. The clients can avail the Submersible Wire from us in varied sizes and lengths as per the requirement.

We are integrated manufacturers of the solar absorber right from the stage of melting copper cathodes. Oxygen free copper has superior thermal properties for making solar absorbers. We use ultrasonic welding to bond between solar copper fin and tube for the best thermal conductivity.

Number Of Flower : Flat plate solar fin

Material : Copper

Certification : ISI Certified

Application : FPC collectors

Availability : 0.420 grams

Feature : Eco Friendly

Condition : New

Capacity : 10-15Ltr

Automatic Grade : Semi Automatic

Power Source : Solar Energy

Installation : Not our scope

Total Carbohydrate : 2Year

Country of Origin : India

Brand Name : Bhagyanagar

Pressure : 5 bar

Pipe Material : Copper

SPECIFICATION: IS-12933 -2003 PART(3) Bhayanagar India Ltd Flat Plate Collector 100/200 Litre Solar Heater Specs   PROCESS Frame Making Backsheet Fitting Absorber with 9 solar fins Assembly .Assembly of box with Rockwool insulation and toughened glass fitment with retainer PACKING Corrugated Packing of each Flat Plate Collector

Total Carbohydrate : 1 yr

The clients can avail superior quality Solar Copper Fins from us. Made using the latest technology and by using quality material, the Solar Copper Fins, we offer, are suitable for making the collectors. These Solar Copper Fins are made as per the set industrial standards and are greatly demanded by the clients for the hi-tech features. The clients can avail the Solar Copper Fins from us in varied specifications and at affordable price. Sizes : 1923 x 1900 x 115 x 0.12mm. Product Details : Absorber fin material : Copper Ultrasonic Welding

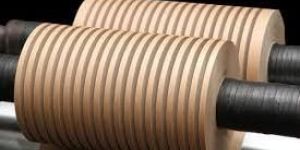

Bhagyanagar is known for the diversity in its product offering. PICC (Paper Insulated Copper Conductor) is offered as paper insulated copper strip as well as paper insulated copper wire. Paper covering used is of highest quality and according to customer specifications. The thickness of covering and the number of paper layers is easily varied to specific customer requirement. PICC is one of the most commonly used wires for winding coils of transformers and other electrical equipment.

Number Of Flower : Paper Insulated Copper Wire

Certification : ISO-9001: 2008

Application : Electric Conductor

Conductor Material : Copper

Insulation Material : Kraft paper

Grade Standard : IS-7404

Conductor Type : Solid

Thickness : 1.2mm - 6mm

Bhagyanagar is known for the diversity in its product offering. PICC (Paper Insulated Copper Conductor) is offered as paper insulated copper strip as well as paper insulated copper wire. Paper covering used is of highest quality and according to customer specifications. The thickness of covering and the number of paper layers is easily varied to specific customer requirement. Applications PICC is one of the most commonly used wires for winding coils of transformers and other electrical equipment.

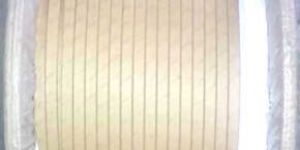

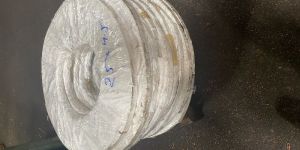

We specialize in the production of copper strips, which are covered with paper. The thickness, width and diameter of Paper Covered Copper Strips are as per the standards in the industry. These Paper Covered Copper Strips perform the best in insulating oil owing to their paper covering. Because of this property, they are used for oil-filled transformers and switchgears. The mechanical, chemical as well as thermal properties of the paper types help in analyzing the behavior of the conductor. Why Our Paper Covered Copper Strips? Dimensionally accurate Excellent strengthAvailable in different widths, thicknesses and other specifications

Bhagyanagar is known for the diversity in its product offering. PICC (Paper Insulated Copper Conductor) is offered as paper insulated copper strip as well as paper insulated copper wire. Paper covering used is of highest quality and according to customer specifications. The thickness of covering and the number of paper layers is easily varied to specific customer requirement.

PICC (Paper Insulated Copper Conductor) is offered as paper insulated copper strip as well as paper insulated copper wire. Paper covering used is of highest quality and according to customer specifications. The thickness of covering and the number of paper layers is easily varied to specific customer requirement. PICC is one of the most commonly used wires for winding coils of transformers and other electrical equipment.

Raw Material Inputs: Copper Tubes Nicrome wire Insulation Powder (MgO) Brass Flanges, Screws and Nuts PROCESS Cut length copper tube Nicrome wire is wound like a coil on the coiler and terminal pins are spot welded on both ends The Coil is stretched inside the copper tube co-axial to the copper tube and cap is provided at one end and placed on to the filling machine and Insulation powder is filled through and the other end is closed with plastic cap and all pipes are removed in a batch. Squeezing Hot Annealing Bending Brass Flange Brazing Cleaning and Boring Nickle Plating Assembly Quality tests PACKING Each Heating element is wrapped in polythene cover and packed in a corrugated box and as per customer requirement

Bhagyanagar is known for supplying copper wires and rods that have high electrical conductivity (min 100 IACS), good forming properties, tight dimensional tolerances and excellent surface quality. Our customers of copper wires and rods are well reputed throughout India and many of them have been with us for more than a decade.High conductivity copper wires & rods have numerous applications including power distribution, power generation, semiconductors, electronic applications and automobiles.

SPECIFICATION: AS PER CUSTOMER DRAWINGS Conductor Raw Material: Copper with 99.90% Raw material Specifications: Field Coil Division is Harinam Wires is a unit of Bhagyanagar India Ltd and started in the year 1998 and is an ISO - 9001 - 2008 certified Company and we are GREEN BELT suppliers to our major customer Lucas TVS, Chennai. We supply around forty models of field coils which is a part of stator in DC and AC motors. And Armature pins is a part of the Rotor part in DC and AC motors. PROCESS The main input of Flats come in Bobbins with sizes as per customer requirements Flat conductor is cut to size in the auto cutting machine as per the required lengths. The cut length is wound into coils as per required no of turns in clock and counter clockwise as per drawing. Machine Tapping is done with the cotton tape followed by hand tapping. Radius forming as per drawing. Twisting operation. Spot welding of all the four coils as per the drawing Inspection Visual Dimensional Mechanical tests Hardness testing in HV Elongation Weld strength test   PACKING Each model is packed in a plastic Container boxes as per the kanban system of batch quantities

Diameter: 1.1mm - 100mm Bhagyanagar is known for supplying copper wires and rods that have high electrical conductivity (min 100 IACS), good forming properties, tight dimensional tolerances and excellent surface quality. Our customers of copper wires and rods are well reputed throughout India and many of them have been with us for more than a decade. We are also in the process of establishing a tinning plant for our copper products which should go live by end of August 2016. APPLICATIONS High conductivity copper wires & rods have numerous applications including power distribution, power generation, semiconductors, electronic applications and automobiles

PROCESS Copper Tube Production UPCAST plant, high purity copper cathodes are melted in protective atmosphere in the induction furnaces. Molten metal, transferred into holding and casting furnaces via the atmosphere controlled launders, is cast into tubes with standard diameters of 33 mmx5mm thickness. Final products are produced in different finishing lines according to the type of final shape. Copper Tube MaterialCu-DHP (99,90% Cu min. and 0,015-0,040 % P) Product TypeStraight Length TemperHard drawn StandardsDIN EN 12449, TS EN 12449, DIN EN 1057, EN 12735, ATMB B 280, ASTM B 68, ASTM B 75, ASTM B 88,IS-12444-1988 Packing Straight Tubes

Earthing strips

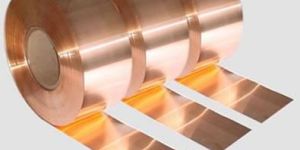

Backed by a team of skilled employees, we are engaged in manufacturing and supplying high quality Copper Sheets. The Copper Sheets are manufactured using high quality Copper as per the set standards of the industry. Reckoned for the properties like high mechanical strength, easy to bend and fold, the Copper Sheets supplied by us are demanded for varied industrial and engineering applications. These Copper Sheets are offered by us in different thickness and specifications to meet the diverse requirements of the clients. Used For : Craft work Sculpture work Home décor

Shape : Rectangular

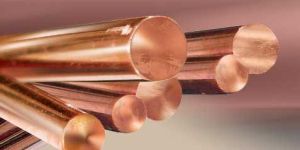

We offer Copper Rod in the market that is made as per the set standards of the industry and are demanded by varied manufacturers. The Copper Rod can be availed from us at reasonable price.

We offer Copper Rod in the market that is made as per the set standards of the industry and are demanded by varied manufacturers. The Copper Rod can be availed from us at reasonable price.

Number Of Flower : Copper Rods

Material : Copper

Shape : Round

Certification : ISI Certified

Length : 2000-3000mm

Feature : Perfect Shape

Finishing : Non Polished

Textures : Solid

Country of Origin : India

Brand Name : Bhagya

Application : earthing

Country of Origin : 220

Condition : solid

After-Sales Service Provided : yes

20kg PACKING Ø 44 lb (20 kg) in plastic bucket Ø 1100 - 2200 lb (500 - 1000 kg) in wooden box Ø 1100 - 2200 lb (500 - 1000 kg) in steel barrel Ø 2200 lb (1000 kg) in big bag As per customer requirement 20kgs in plastic Corrugated boxes Nuggets Ø 12mm x 12mm Ø 16mm x 16mm Ø 20mm x 25mm Ø 25mm x 25mm or customer requirement Sphere or Ball Ø 16mm, Ø 25mm, Ø 28mm, Ø 38mm, Ø 50mm and Ø 55mm or customer requirement

Country of Origin : India

Number Of Flower : Nuggets

Certification : ISO9015

Packaging Size : 20kg/box

Bhagyanagar is one of the few companies in India that has design, development, maintenance and production of copper foils under one roof. Not only does this enable us to practice stringent quality measures but also makes our product price competitive and allows us to have one of the shortest lead times for copper foils in the country. We have multiple state of the art cold rolling machines that enable us to manufacture quality copper sheets that have the required thickness according to customer specifications. The raw materials used for making copper foils are pure copper cathodes purchased from Hindalco and Sterlite with copper purity of 99.99%. Our high grade raw material enables us to manufacture quality copper foils that meet international specifications. Our copper foils are characterized by excellent conductivity, exceptional dimensional controls for superior contacts, crack free bends, remarkable brightness and high copper purity. APPLICATION Copper Foils are extensively used in printed circuit board, heat exchangers, radiators, switchgear industry, transformers, cable Industry among many other applications.

The raw materials used for making copper foils are pure copper cathodes purchased from Hindalco and Sterlite with copper purity of 99.99%. Our high grade raw material enables us to manufacture quality copper foils that meet international specifications. Our copper foils are characterized by excellent conductivity, exceptional dimensional controls for superior contacts, crack free bends, remarkable brightness and high copper purity.
