APPLICATIONS:
For General Chemical & Industrial Services
Pressure Rating: 1000 PSI WOG (NON-SHOCK)
Steam Rating: 150 PSI WSP
Temperature Range: -29°C - +200°C
SPECIFICATIONS:
Rising Stem
Body: ASTM A351 GR. CF8M/CF8
ASTM A 216 GR. WCB
Bonnet: ASTM A 315 GR. CF8M/CF8
ASTM A 216 GR. WCB
DISC: Renewable ASTM A 315 GR. CF8M
Stem: S.S. 316
End Type: Flange End Class ASA-150
Test Standard: API 598
Pressure & Temperature: Ratings in Accordance with ASME/ASTM B 16.34
...more
Stainless Steel/cast Carbon Steel 150 Lbs Flanged End Globe Valve
APPLICATIONS:
For General Chemical & Industrial Services
Pressure Rating: 1000 PSI WOG (NON-SHOCK)
Steam Rating: 150 PSI WSP
Temperature Range: -29°C - +200°C
SPECIFICATIONS:
Rising Stem
Body: ASTM A351 GR. CF8M/CF8
ASTM A 216 GR. WCB
Bonnet: ASTM A 315 GR. CF8M/CF8
ASTM A 216 GR. WCB
DISC: Renewable ASTM A 315 GR. CF8M
Stem: S.S. 316
End Type: Flange End Class ASA-150
Test Standard: API 598
Pressure & Temperature: Ratings in Accordance with ASME/ASTM B 16.34
Features:
High durability
Strong construction
Trouble free performance
User friendly
Application specific structure
Corrosion Resistance

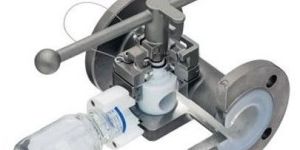

Easy Collection of Sample for sampling
BODY MATERIAL:
Ductile Iron ASTM A216 Gr. WCB
ASTM A351 Gr.CF8 / AISI S.S. 304
ASTM A351 Gr.CF8M / AISI S.S. 316
Features:
High durability
Strong construction
Trouble free performance
User friendly
Application specific structure
Corrosion Resistance
Easy Collection of Sample for sampling
BODY MATERIAL:
Ductile Iron ASTM A216 Gr. WCB
ASTM A351 Gr.CF8 / AISI S.S. 304
ASTM A351 Gr.CF8M / AISI S.S. 316
Application : Sampling,Corrosion Resistance
Feature : High Durability,Strong Construction,Trouble Free Performance
Longer functional life
Sturdy construction
Low fluid friction loss
Anti-corrosive
MATERIAL LIST: (Compare with Diagram)
Material 216 Grade WCB PFA/FEP/PVDF/PP Lined
Size 15NB-200NB
Model SILPL
Brand Super Industrial Lining
Pressure 150#
Temperature Res PFA-200 Degree Celcius,FEP/PVDF-140 Degree Celcius
Media Chemical
Port Size 15 NB TO 150 NB
I deal in New Only
Flange End Size 15 NB TO 150 NB
Number Of Openings Two
STD Testing Hydro , Spark Testing
Material Grade 216 Grade WCB
Face To Face STD ANSI B 165
Operator Lever,Pneumatic
We have become a most trusted manufacturer, supplier and exporter of PTFE Lined Plug Valves. Under the assistance of our highly qualified professionals who are well versed with wide experience in this domain, allows us to develop the these valves with precision and accuracy. With our transparent business dealings, we have garnered a large clientele from all across the globe.
Longer functional life
Sturdy construction
Low fluid friction loss
Anti-corrosive
MATERIAL LIST: (Compare with Diagram)
Material 216 Grade WCB PFA/FEP/PVDF/PP Lined
Size 15NB-200NB
Model SILPL
Brand Super Industrial Lining
Pressure 150#
Temperature Res PFA-200 Degree Celcius,FEP/PVDF-140 Degree Celcius
Media Chemical
Port Size 15 NB TO 150 NB
I deal in New Only
Flange End Size 15 NB TO 150 NB
Number Of Openings Two
STD Testing Hydro , Spark Testing
Material Grade 216 Grade WCB
Face To Face STD ANSI B 165
Operator Lever,Pneumatic
We have become a most trusted manufacturer, supplier and exporter of PTFE Lined Plug Valves. Under the assistance of our highly qualified professionals who are well versed with wide experience in this domain, allows us to develop the these valves with precision and accuracy. With our transparent business dealings, we have garnered a large clientele from all across the globe.
We are a trustworthy supplier of a superior quality Slip on Flange. A flange is a plate that is basically used for covering or closing the end of a pipe. In order to manufacture this flange in tandem with set industry standards, our vendors’ brilliant professionals make use of premium quality raw material and cutting-edge technology. Beside this, we provide this Slip on Flange in numerous dimensions and shapes at market leading rates within the promised time span.
We are a trustworthy supplier of a superior quality Slip on Flange. A flange is a plate that is basically used for covering or closing the end of a pipe. In order to manufacture this flange in tandem with set industry standards, our vendors’ brilliant professionals make use of premium quality raw material and cutting-edge technology. Beside this, we provide this Slip on Flange in numerous dimensions and shapes at market leading rates within the promised time span.
We have marked a distinct position in the domain by supplying a comprehensive range of Short Neck Pipe End. Primarily used for plumbing purposes, this product is manufactured at our vendors’ well-equipped manufacturing unit using the finest quality raw material and ultra-modern technology at par with predefined industry standards. Our offered product is highly applauded for its durable finish standards and application specific design in the market. Moreover, offered Short Neck Pipe End can be easily availed from us at pocket friendly prices.
We have marked a distinct position in the domain by supplying a comprehensive range of Short Neck Pipe End. Primarily used for plumbing purposes, this product is manufactured at our vendors’ well-equipped manufacturing unit using the finest quality raw material and ultra-modern technology at par with predefined industry standards. Our offered product is highly applauded for its durable finish standards and application specific design in the market. Moreover, offered Short Neck Pipe End can be easily availed from us at pocket friendly prices.
We are instrumental in offering a comprehensive range of premium quality P. P. View Glass. Available in different sizes, lengths and thickness, our range has gained popularity among our countrywide clients. Our product range finds its wide application in various industries for different purposes.
We are instrumental in offering a comprehensive range of premium quality P. P. View Glass. Available in different sizes, lengths and thickness, our range has gained popularity among our countrywide clients. Our product range finds its wide application in various industries for different purposes.
Fostered with a team of highly qualified professionals, we have been able to supply a broad range of Long Neck Pipe End. Our offered product is extensively demanded for plumbing purposes due to its salient features given below. Available in different dimensions and shapes to meet clients’ specific requirements, this product is manufactured with high precision using quality tested raw material and the latest technology under the vigilance of deft professionals at vendors’ end. Our honorable clients can get this Long Neck Pipe End from us at nominal prices.
Fostered with a team of highly qualified professionals, we have been able to supply a broad range of Long Neck Pipe End. Our offered product is extensively demanded for plumbing purposes due to its salient features given below. Available in different dimensions and shapes to meet clients’ specific requirements, this product is manufactured with high precision using quality tested raw material and the latest technology under the vigilance of deft professionals at vendors’ end. Our honorable clients can get this Long Neck Pipe End from us at nominal prices.
With a rich experience and industry knowledge in the domain, we are able to supply our clients an extensive array of Blind Flange. The flange provided by us is manufactured utilizing supreme grade raw material and pioneering technology under the strict surveillance of our vendors’ skilled professionals. Our offered flange is primarily used for piping and plumbing purposes owing to its flawless finish. Moreover, this Blind Flange is made available in different dimensions and shapes at pocket friendly prices.
With a rich experience and industry knowledge in the domain, we are able to supply our clients an extensive array of Blind Flange. The flange provided by us is manufactured utilizing supreme grade raw material and pioneering technology under the strict surveillance of our vendors’ skilled professionals. Our offered flange is primarily used for piping and plumbing purposes owing to its flawless finish. Moreover, this Blind Flange is made available in different dimensions and shapes at pocket friendly prices.
Super provides Lind Swing check Valves from 80 NB to 300 NB
Lind Ball Check Valves can be Lined With PFA/FEB/Antistatic PFA/PP/HDPE/PVDF
MOC of the body and END piece is CS/SS+3MM THK 3MM. PFA/FEP/Antistatic FEP /PP/HDPE/PVDF Lined.
This valve are tested visually /dimensionally /Hydro test(Body Test, Sheet Test)/Spark Test at 15 KVA
Super provides Lind Swing check Valves from 80 NB to 300 NB
Lind Ball Check Valves can be Lined With PFA/FEB/Antistatic PFA/PP/HDPE/PVDF
MOC of the body and END piece is CS/SS+3MM THK 3MM. PFA/FEP/Antistatic FEP /PP/HDPE/PVDF Lined.
This valve are tested visually /dimensionally /Hydro test(Body Test, Sheet Test)/Spark Test at 15 KVA
Actuator MountingMounted With Actuator As Per Client Request
Lining MaterialPFA, FEP, PVDF

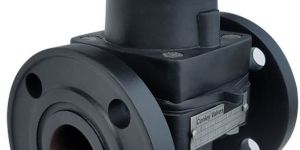

Super provides Diaphragm Valves from 15 NB to 200 NB
Lined Diaphragm canlinedin PFA/FEP/Antistatic PFA/PP/HDPE/PVDF
Lined Diaphragm Valves are mounted with Actuator as per client Request
MOC of the body is WCB/ CS/SS + PFA/FEP/PVDF Lined. Lining Thickness: min. 3 MM
We are offering Handle/Gear/Actuator Valves as per Clients Request.
This valve are tested visually /dimensionally /Hydro test(Body Test, Sheet Test)/Spark Test at 15 KVA
Super provides Diaphragm Valves from 15 NB to 200 NB
Lined Diaphragm canlinedin PFA/FEP/Antistatic PFA/PP/HDPE/PVDF
Lined Diaphragm Valves are mounted with Actuator as per client Request
MOC of the body is WCB/ CS/SS + PFA/FEP/PVDF Lined. Lining Thickness: min. 3 MM
We are offering Handle/Gear/Actuator Valves as per Clients Request.
This valve are tested visually /dimensionally /Hydro test(Body Test, Sheet Test)/Spark Test at 15 KVA
MaterialDuctile Iron ASTM A395,Cast Steel ASTM A216 Gr. WCB
Lining MaterialPFA,PTFE
WorkforceTechnically Expert
Valve TypeBall Valves
KEY FEATURES:
High strength
Application specific structure
Withstand high pressure
Rust resistance
BODY MATERIAL:
Ductile Iron ASTM A395
Cast steel ASTM A216 Gr. WCB
Cast Iron IS2108 FG 260
ASTM A351 Gr.CF8 / AISI S.S. 304
ASTM A351 Gr.CF8M / AISI S.S. 316
We have technically expert workforce to provide the clients with high quality PFA Lined Ball Valves.
KEY FEATURES:
High strength
Application specific structure
Withstand high pressure
Rust resistance
BODY MATERIAL:
Ductile Iron ASTM A395
Cast steel ASTM A216 Gr. WCB
Cast Iron IS2108 FG 260
ASTM A351 Gr.CF8 / AISI S.S. 304
ASTM A351 Gr.CF8M / AISI S.S. 316
We have technically expert workforce to provide the clients with high quality PFA Lined Ball Valves.
Material : Ductile Iron ASTM A395,Cast Steel ASTM A216 Gr. WCB
We are amongst the most renowned entity, widely engrossed in supplying the finest quality P.P Non Return Valve. Widely used in machines and boilers in order to cut-off the flow of air or liquid automatically at a certain pressure, the valve provided by us is intricately manufactured under the direction of our vendors skilled professionals using premium quality raw material and sophisticated technology in tune with market quality standards. Besides, clients can easily avail this P.P Non Return Valve from us at market leading prices.
We are amongst the most renowned entity, widely engrossed in supplying the finest quality P.P Non Return Valve. Widely used in machines and boilers in order to cut-off the flow of air or liquid automatically at a certain pressure, the valve provided by us is intricately manufactured under the direction of our vendors skilled professionals using premium quality raw material and sophisticated technology in tune with market quality standards. Besides, clients can easily avail this P.P Non Return Valve from us at market leading prices.
Special FeaturesCorrosion Resistance, High Tolerance Level, Customizable
We are engaged in offering an extensive range of P. P. Foot Valve Screwed End. Made of quality assured raw material like neoprene and polypropylene, these valves are highly acknowledged for their excellent corrosion resistance and durability. These valves have high tolerance level thus suitable for all adverse conditions. Our clients can also avail these products in customized forms.
We are engaged in offering an extensive range of P. P. Foot Valve Screwed End. Made of quality assured raw material like neoprene and polypropylene, these valves are highly acknowledged for their excellent corrosion resistance and durability. These valves have high tolerance level thus suitable for all adverse conditions. Our clients can also avail these products in customized forms.
ApplicationChemicals Industry,Pharmaceuticals Industry
TechnologyHigh-end Technologies
Raw MaterialQuality-tested Raw Material
We are a reputed wholeseller of optimum quality P. P. Foot Valve Flanged Fie. These products are designed using high-end technologies and quality-tested raw material by our vendors. Our excellent range of P. P. Foot Valve Flanged End finds its usage in industries like chemicals, pharmaceuticals, petrochemicals, fertilizer, sugar, and oil refineries.
Features:
PP (Polypropylene)
PVDF (Polyvinylidene Fluoride
We are a reputed wholeseller of optimum quality P. P. Foot Valve Flanged Fie. These products are designed using high-end technologies and quality-tested raw material by our vendors. Our excellent range of P. P. Foot Valve Flanged End finds its usage in industries like chemicals, pharmaceuticals, petrochemicals, fertilizer, sugar, and oil refineries.
Features:
PP (Polypropylene)
PVDF (Polyvinylidene Fluoride
Application : Chemicals Industry,Pharmaceuticals Industry
We are a reputed wholeseller of optimum quality P. P. Foot Valve Flanged Fie. These products are designed using high-end technologies and quality-tested raw material by our vendors. Our excellent range of P. P. Foot Valve Flanged End finds its usage in industries like chemicals, pharmaceuticals, petrochemicals, fertilizer, sugar, and oil refineries.
We are a reputed wholeseller of optimum quality P. P. Foot Valve Flanged Fie. These products are designed using high-end technologies and quality-tested raw material by our vendors. Our excellent range of P. P. Foot Valve Flanged End finds its usage in industries like chemicals, pharmaceuticals, petrochemicals, fertilizer, sugar, and oil refineries.
To cater to the growing requirements of Industrial Valves and Pipe Fittings, we, 'Industria Needs', have aligned our production methodologies and business norms for producing highest standards products in the industry. Founded in 1986, we have build our reputation through the provision of quality products at market leading prices. Operating in a dynamic market place with evolving technologies, we are recognized as one of the noted Dealer, Channel Partner, Distributors, suppliers & traders amidst our competitors. Banking on valuable contribution of reliable vendors, we are able to showcase a quality range of products such as Industrial Control Valves, Cocks and Pipe Fittings.
