Kiran Udyog Ramgopalpet, Secunderabad, Telangana

We are offering silicon elastomer coated fiberglass sleeving. Class 200°c • silicon elastomer coated fiberglass sleeving for high temperature applications. ul recognized component 600v - 200°c grade a vw-1 file # e324343. it is comprised of specially formulated high-temperature silicon elastomer continuously applied over electrical grade braided fiberglass. It maintains its flexibility & electrical insulation properties over a wide temperature range from 40°c through its continuous operating temperature of 180°c. It offers superior coating adhesion to the fiberglass braid in comparison with extruded type. It has an excellent feature of expandability. product name : silicon elastomer coated fiber glass sleeving class type: ´h´ working temperature : -60°c to 200°c characteristics: good flexibility expandability chemical resistance abrasions resistance self extinguishable features : silicon fiberglass sleeving has especially good radiation resistance in addition to resistance to ozone, moisture, corona, weathering, fungus and chemical attack where resistance to failure on push-back is required, we recommend silicon rubber-coated fiberglass sleeving typical applications: dc motor lead protection alternators high voltage transformers wind generators inner diameter: 0.5mm to 40 mm wall thickness: we offer customized thickness as per customers technical requirements break down voltage range: from 1kv to 12 kv color: natural, white, black, red & other colors available on special order subjected to factory´s acceptance standards: bs-2848, 1973 is-11654 iec- 60684-3

We are offering polyester fiber woven tape polyester fiber woven tape. Is woven using polyester yarn for higher heat resistance and insulation. The tape is very useful for binding of coils for electrical machinery and appliances. polyester fiber woven tapes can be produced in various thickness and weave density. product name : polyester fiber woven tape. characteristics: good chemical resistance, lightweight polyester material makes this tape easily comfortable to every shape features : excellent patterns quality polyester good chemical resistance excellent di-electric properties typical applications: this product is used for binding coils for electrical machinery and appliances. our woven tapes find applications in rotating machines, transformers and power cables. inner diameter: 0.09mm to 0.23mm wall thickness: we offer customized thickness as per customers technical requirements. length : core size and tape length are as per customer requirement. color: white applicable specification: astm d2000

Brand Name : Kiran Sleevings

We are into manufacturing of non alkali varnished fiberglass cloth for f insulation. this product adopts paraffin wax emulsion to be it’s its infiltrate and processed by surface treatment. it is widely known by our clients for features such as dimensional stability, low coefficient of friction and conductivity, making handling easy. widely used in industrial thermal insulation and composite materials. Good transparency and high strength of composite. our product posses high density, high intensity, with a soft and loose structural weave with a soft and loose structural weave with a good texture. product name : non alkali fiberglass cloth. class type: "f" working temperature :155°c characteristics: our product posses high tensile strength and heat resistance . modified heat resistant and insulating character. features : low fuzz, fast wet out and even thickness. good mold ability resulting in high productivity. high temperature insulation safety clothing typical applications: it is applicable for use as a higher reinforced material in machinery. fiberglass cloth is used as heat insulation material and an excellent substitute for asbestos cloth over door sealing pipe wrapping welding blanket and curtains length : continuous or one meter length. yarn type : e glass. various sizes available : 5mil, 1mil, 10mil. inner diameter: .5mm to 6mm in 40´´ width. wall thickness: we offer customized thickness as per customers technical requirements. break down voltage range: from lkv to 3kv. color: white or transparent applicable specification: astm d2000

Brand Name : Kiran Sleevings

Fiberglass manufactured by us posses high tensile strength and reinforcing quality. The chemical stability and no oxygenated property of fiberglass make the tapes have superiority that other material. Our product maintains excellent flexibility. Glass tapes are suitable upto class C , have high dimensional stability and are incombustible. Product Name : Fiberglass tapes. Class Type : 'C' Working temperature : 500°C Weaving types : Plain weave and twill weave upon request. Characteristics: High dimensional stability Reinforcing quality Features : High tensile strength Incombustible Excellent flexibility Typical applications: Used in a wide range of industrial fields Used in ovens, furnaces and boilers as a door seal Used in pollution control equipment and pipe wrap Transformers, Electrical motor rewinding Inner Diameter: 1mm – 6mm Thickness: 0.09mm to 0.23mm, higher thickness available upon request. Color: White, Transparent.

Brand Name : Kiran Sleevings

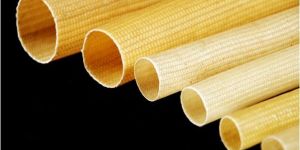

We are offering fiberglass sleeving fiberglass sleeving impregnated with polyurethane (kpg-301) fiberglass sleeving impregnated with polyurethane varnish is used where reliable heat resistance & dielectric strength is required, fiberglass braiding is coated with multiple layers of polyurethane. varnish & then cured at high temperature to form fiberglass sleeving coated with polyurethane. Polyurethane coated fiberglass sleeving is thermoset to provide safety. It provides excellent wiring insulation and softness for f grade electrical appliances, electrical instruments, and domestic appliances. product name : fiber glass sleeving impregnated with polyurethane working temperature : 155° c characteristics: combustible in nature good compatibility with class f impregnation varnishes resistance to oils excellent resistance to ageing typical applications: electro mechanical industries wiring harness electrical instruments electrical class ´f´ motors inner diameter: 1mm to 40 mm. wall thickness: we offer customized thickness as per customers technical requirements break down voltage range: from lkv to 4 kv color: natural, black, yellow, red & blue , other colors available on special order subjected to factory’s acceptance length : continuous or one meter length standards: bs-2848, 1973 is-11654 eec 60684-3 shelf life: 2 years maximum

We are offering fiberglass sleeving coated when higher dielectric properties and fail safe performance is needed, fiberglass sleeving coated with polyvinyl chloride resin provides the solution. Fiberglass sleeving coated with polyvinyl chloride resin is a fiberglass braided sleeving, which is first coated with a layer of polyvinyl. chloride resin and then thermo set to provide b grade insulating sleeving. This kind of fiberglass sleeving is fiberglass sleeving coated with polyvinyl chloride resin, with very good dielectric features , and widely used for motor , electrical appliance. product name : fiberglass sleeving coated with polyvinyl chloride resin class type: "b" working temperature : from -20°c to 130°c characteristics: very flexible provides good insulation good mechanical resistance soft material typical applications: domestic appliances motor rewinding "b" class electrical motors inner diameter: 1mm to 40 mm wall thickness: we offer customized thickness as per customer’s technical requirements break down voltage range: from lkv to 3kv color: available in all colors length : continuous or 1 meter length. standards: bs-2848, 1973 is-11654 iec 60684-3

Brand Name : Kiran Sleevings

We are offering fiberglass sleeving coated fiberglass sleeving coated with acrylic resin (kpg-701) it is a flexible class "f" insulating sleeving i.e. Fiberglass coated with acrylic resin. Used for fractional & integral horse power motors on leads & crossovers, dry end oil filled transformers. Fiberglass coated with acrylic resin provides excellent resistance to oil & benzene making it ideal for use in hazardous areas. It also possesses longer shelf life. Acrylic sleeving is recommended as a universal coated sleeving for all thermal requirements from class 30°c to class 155°c. product name : fiberglass sleeving coated with acrylic resin class type: "f" applicable specifications : astm d372 working temperature : from 30°c to 155°c, peak to 180°c for few hours characteristics: good mechanical resistance longer shelf life good compatibility with class "f" impregnation varnishes good behavior with soldering iron very flexible typical applications: acrylic sleeving is widely used in fractional and integral horsepower motors on leads and crossovers. also used in dry and oil-filled transformers, radio and television circuits, welding apparatus and many others. automobile harnessing. features: compatible with most magnet wire coatings such as polyester, acrylic, polyamide, epoxy and phenolic. inner diameter: 1mm to 40 mm. wall thickness: we offer customized thickness as per customer´s technical requirements. break down voltage range: from l kv to 3kv. color: natural, white & black, other colors available on special order subject to factory´s acceptance. length : continuous or one meter length. standards: bs-2848, 1973 is-11654 iec 60684-3

Brand Name : Kiran Sleevings

We are offering fiberglass flat hose fiberglass flat hose is a hollow tube designed to carry fluids from one location to another. Fiberglass flat hose is flexible in nature. fiberglass hose are also used to convey pressure or vacuum signals to control circuits or gauges, as well as conveying vacuum to heating, cooling, brake and locking systems. silicon fiberglass hoses provide ventilation and fume removal in temperature from -75f to 600f. glass tapes are suitable upto class c , have high dimensional stability and are incombustible. there are two types of hose : one – ply hose 2ply hose product name : fiberglass flat hose working temperature : 180° features : outstanding workmanship continuous and assured quality typical applications: hot gas and cool air transport thermal insulation and cover tubes heating equipment break down voltage : 1.5kv to 4.0kv resistance to flame : vw-1 inner diameter: 0.5mm – 30.0mm thickness: 0.6mm and 1mm, special specifications can be customized according to customers requirement. color: available on special order subjected to factory’s acceptance. applicable specification : astm –d-578.

Brand Name : Kiran Sleevings

We are offering fiberglass cords fiberglass cords (kpg-fc-001) we use e type of fiberglass yarn for manufacturing these fiberglass cords. Fiberglass cords offered by us posses high strength and excellent resistance against heat. fiberglass cords are also known as optical fiber cable. these are also known as glass filled cords when braided. product name : fiberglass cords class type : 'e' working temperature : 500°c weaving types : glass filled and braided rope type braided type characteristics: high strength excellent resistance features : we offer fiber glass cords that are with high mechanical strength excellent di-electric properties typical applications: our product is used in various rotator machines like generators, electrical motors and transformers. inner diameter: 3mm – 40mm wall thickness: we offer customized thickness as per customers technical requirements. length : continuous length wound on wooden reels. color: white or transparent applicable specification: astm d2000
