Length50, 100, 500 Meters or as per Customer Request
Polyester Non Adhesive Tapes are manufactured from Polyester yarn. These Polyester woven tapes will not burn or smoulder and retain as much as 25% of its tensile strength at 1550 C..
They exhibit a high strength-to-weight ratio while maintaining excellent flexibility.
Free of environmentally contaminating and hazardous chemicals.
Able to withstand assembly handling, cut-through and mechanical stress.
Polyester Non Adhesive Tapes are manufactured from Polyester yarn. These Polyester woven tapes will not burn or smoulder and retain as much as 25% of its tensile strength at 1550 C..
They exhibit a high strength-to-weight ratio while maintaining excellent flexibility.
Free of environmentally contaminating and hazardous chemicals.
Able to withstand assembly handling, cut-through and mechanical stress.
Length50, 100, 500 Meters or as per Customer Request
Number Of FlowerPlain Weave and Twill Weave upon Customer Request
Thermal Class“E” Class
Thermal Temperature155° C
Fiberglass Tapes are narrow woven fabric made of Non-alkali E-glass fibers with a strong selvage edge. This prevents fraying and unraveling of fabric at the edges. The narrow widths eliminate the cutting of wider fiberglass fabrics down to size and increases accuracy and productivity. The tightly woven tapes offer more uniformity and are highly drapable.
Free of environmentally contaminating and hazardous chemicals.
Able to withstand assembly handling, cut-through and mechanical stress.
Fiberglass Tapes are narrow woven fabric made of Non-alkali E-glass fibers with a strong selvage edge. This prevents fraying and unraveling of fabric at the edges. The narrow widths eliminate the cutting of wider fiberglass fabrics down to size and increases accuracy and productivity. The tightly woven tapes offer more uniformity and are highly drapable.
Free of environmentally contaminating and hazardous chemicals.
Able to withstand assembly handling, cut-through and mechanical stress.
Width : 1/4 Inch to 6 Inches
Thickness : 1/4 Inch to 6 Inches
Length : 50, 100, 500 Meters or as per Customer Request
Number Of Flower : Plain Weave and Twill Weave upon Customer Request
Fiberglass Braids are made from high temperature fiberglass yarn with low thermal conductivity. The rope and braid are designed as gasket or seal for various industrial applicationst
Free of environmentally contaminating and hazardous chemicals.
Extremely flexible.
Able to withstand assembly handling, cut-through and mechanical stress.
Fiberglass Braids are made from high temperature fiberglass yarn with low thermal conductivity. The rope and braid are designed as gasket or seal for various industrial applicationst
Free of environmentally contaminating and hazardous chemicals.
Extremely flexible.
Able to withstand assembly handling, cut-through and mechanical stress.
Number Of FlowerGlass Filled Type and Braided Type
Thermal Class“E” Class
Thermal Temperature+550° C
Outer Diameter1.0mm to 40mm
Length25, 50, 100, 500 Meters and As per Customer Request
Fiberglass braided Cords are intended for high-temperature applications up to 550ºC. The Cord consists of fiberglass yarn core with a fiberglass braided jacket to form an exact diameter for controlled compression seals. Larger diameters have a “Braid-Over-Braid” or “Yarn- Filled -Braid” jacket for durability and precise gasket dimensions.
Cords are available in many sizes and manufactured to fit Customer Specifications for Roundness and Softness.
These Cords are suitable for all types of sealing applications where High Temperatures upto 550ºC are needed.
Cords are the best choice for new or alternative gaskets for boilers, fireproof safe applications, flanges, furnaces, gas fireplaces, glass manufacturing, ovens, pipe wraps, thermal insulation.
Free of environmentally contaminating and hazardous chemicals.
Able to withstand assembly handling, cut-through and mechanical stress.
Fiberglass braided Cords are intended for high-temperature applications up to 550ºC. The Cord consists of fiberglass yarn core with a fiberglass braided jacket to form an exact diameter for controlled compression seals. Larger diameters have a “Braid-Over-Braid” or “Yarn- Filled -Braid” jacket for durability and precise gasket dimensions.
Cords are available in many sizes and manufactured to fit Customer Specifications for Roundness and Softness.
These Cords are suitable for all types of sealing applications where High Temperatures upto 550ºC are needed.
Cords are the best choice for new or alternative gaskets for boilers, fireproof safe applications, flanges, furnaces, gas fireplaces, glass manufacturing, ovens, pipe wraps, thermal insulation.
Free of environmentally contaminating and hazardous chemicals.
Able to withstand assembly handling, cut-through and mechanical stress.
Number Of Flower : Glass Filled Type and Braided Type

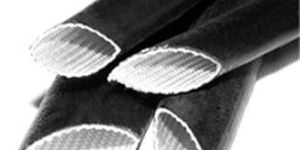

Expandable Silicon Elastomer coated Fiberglass Sleeving is appropriate for sleeving applications that require a snug fit over irregular shapes. The two-component silicon application process allows the sleeving to be expanded to over twice its relaxed diameter, while retaining physical and electrical properties over a wide range of temperature (-60°C to 200°C).
Expandable Silicon Elastomer coated Fiberglass Sleeving is appropriate for sleeving applications that require a snug fit over irregular shapes. The two-component silicon application process allows the sleeving to be expanded to over twice its relaxed diameter, while retaining physical and electrical properties over a wide range of temperature (-60°C to 200°C).
Packaging TypeAvailable in different colors on request
LengthContinuous or Customized cut lengths
available on request.
Thermal Class“F” Class
Thermal Temperature-30° C to +155° C
Sizes2.0mm to 20.0mm
Grade
&
Dielectric StrengthA – Above 7000 Volts
B – 4000 Volts
C – 2500 Volts
C1 – 1500 Volts

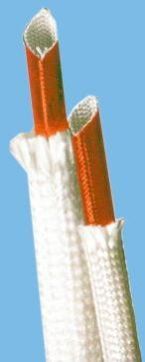

Acrylic Coated Fiberglass Braided Sleeving are precisely engineered sleeving are flexible with an outer layer of E glass Fiberglass braid. The outer fiberglass braid is lightly treated with acrylic resin to prevent fray, improve abrasion resistance and allow coating by the VPI resin.Applications which require VPI processes and higher temperatures. It can be used for high voltage transformers as well as for aerospace and aircraft wiring leads. VPI-155 sleeving allows for expansion to fit over difficult joints and terminals
KIRAN VPI – 155 with an over braided glass jacket.
Lightly treated with acrylic resin to prevent end fray and improve abrasion resistance.
Resistant to most acids and most organic solvents.
Acrylic Coated Fiberglass Braided Sleeving are precisely engineered sleeving are flexible with an outer layer of E glass Fiberglass braid. The outer fiberglass braid is lightly treated with acrylic resin to prevent fray, improve abrasion resistance and allow coating by the VPI resin.Applications which require VPI processes and higher temperatures. It can be used for high voltage transformers as well as for aerospace and aircraft wiring leads. VPI-155 sleeving allows for expansion to fit over difficult joints and terminals
KIRAN VPI – 155 with an over braided glass jacket.
Lightly treated with acrylic resin to prevent end fray and improve abrasion resistance.
Resistant to most acids and most organic solvents.
Packaging Type : Available in different colors on request
Length : Continuous or Customized cut lengths
available on request.
