Unique Engineering Enterprises Pvt Ltd Rani Gunj, Secunderabad, Telangana

  Unique offers size range from 200tons to 500tons Unique also offers custom engineered travelling blocks for special application Unique travelling blocks is designed and rated in with API standards Unique travelling equipment can be provide with third party certifications ABS,DNV HOISTING SHEAVES Unique Sheaves are available in sizes that range from 12" to 72" The bore can be made to accommodate tapered roller bearings, bronze bushings, snap rings to customer specification. Unique also manufacturer sheaves to industry standards such as API 8A & API 8C. Unique sheaves are flame hardened to minimum 35HRC an each bore is concentric to the groove.

Unique under takes complete design, engineering supply, fabrication and testing of storage Tanks for various applications like DM Tanks, Fuel Oil tanks, Service water Tanks etc. Salient Features: Design, analysis of large storage Tanks based on API-650 Design of Low pressure storage tanks based on API-620 Fabrication of tanks by Qualified welders approved by BHEL & DNV Our design & fabrication assures mechanical integrity of our storage tanks for following type of flaws, Generalized corrosion, Localized corrosion thinning, blisters, Laminations, Bulges, Gouges, dents etc.

SPECIAL APPLICATION VALVE DESIGN:AS PER CUSTOMER SPECIFICATION/APPLICATION ACTUATION:HYDRAULIC,PNEUMATIC,SOLENOID MOC:S.S ,C.S,ALLOY STEEL SIZES UPTO:24"

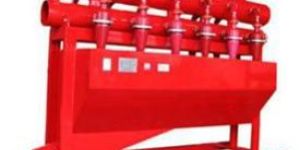

  Unique series Desilter is the third phase solid control equipment to treat the drilling fluids. According to the size of the cone diameter they are divided into desander and disilter. Usually the cone diameter is less then 6" is called desilter, Desilter are used as the third control equipment in drilling operation. We commonly use 5" cone to separate solid phase particle size 15-47 microns. Based on customer requirement and capacity, we can select groups of cone into desilter.

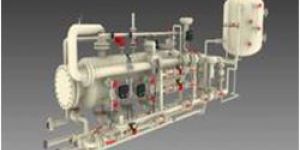

SEPERATORS CODE OF CONSTRUCTION AS PER ASME SEC VIII DIV.1 DUAL PHASE AND THREE PHASE HORIZOTAL AND VERTICAL INTERNALS : BAFFLES , WEIR PLATES , DEMISTER PADS ETC CUSTOM DESIGNED AND HIGH PRESSURE SEPERATORS

Unique manufacturer pressure vessels tanks, as per international codes like ASME/PED/DIN/IS or as per customer requirement. We are in the process of obtaining 'U' Stamp certification. These vessels are designed by using latest software, we have excellent welding facilities and skilled work force to fabricate quality equipment in different material of construction like carbon steel, Low alloy steel and stainless steel. We manufacture pressure vessels for all kinds of process industries. Such as Fertilizers project, Oil & Gas applications, Refinery, Chemical Plant, Cement and steel Plant. We have supplied range of Pressure Vessels to renowned public sectors like BHEL & ONGC.

PRESSURE RELIEF VALVE TYPE:SPRING LOADED ANGLE TYPE DESIGN STANDARD:API RP563 MOC:S.S AND C.S SIZES UPTO 12" CONNECTIONS:FLANGED/SCREWED/BUTT-WELD/SOCKETWELD

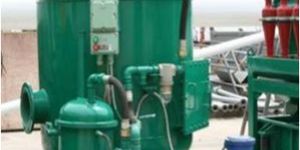

Oilfield-Sold Controls Vaccum Degasser   UNIQUE degassers have a relatively more efficient vertical tank design than traditional horizontal degassers, offering more than 200%surface area than alternative designs. This enhanced capacity facilitates in reduction in vessel size, tank space requirements, unit weight, or reconfiguration of pit arrangements. A vacuum pump, capable of pulling 29" Hg, draws mud into the degassing chamber where reduction in pressure causes gas bubbles to surface from the fluid more rapidly. A stacked, corrugated fiberglass leaf arrangement and multiple feed ports provide higher fluid impact, thinner layers of mud dispersion, and greater turbulence for more efficient gas removal. UNIQUE degassers offer convenient access to the leaf assembly and float mechanisms (without having to remove the vessel lid) through an oversized access door. This feature significantly reduces downtime and maintenance costs compared to other units.

Unique offers a complete line of drilling Rotary Table that range from 17 �" to 60 1/2". Unique Rotary Table are fabricated from special grade steels and cranes with heavy duty main thrust bearing and precision machined spiral, Bevel Gear that results in superior strength, toughness and durability.

PISTON HUB Piston hubs are Manufactured from AISI 510 heat treated forged alloy steel machined on modern CNC lathe to exact dimensions. They meet all API tolerances and different temperature applications. They are available is size 3"-8" in series A.K.B and L with types of duplex and triplex. PISTON ROD A full line of Piston Rods for various pumps they are made by alloy steel with Thermal Refining treatment, which result s in the excellent mechanical characteristic's. Duplex and triplex types are available. PISTON Pistons are made with tough and durable Rubbers for all pressures, available in single and double acting in variety sizes for most pumps. MUD PUMP LINER Liner is designed to fit most Mud Pumps Pipes. Triplex and Duplex both available in Hi-chrome Iron liner, Chrome plated liner and hardened steel liner combining with state of art manufacturing Unique liners can withstand Mud pressure up to 9000PSI. The life of our Hi-chrome liners Proved to generally reach a level of more then 8000Hours.

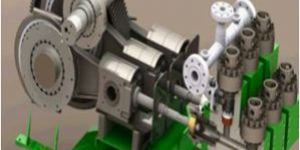

Oilfield-Mud Pump Repairs And Retrofits   Spares for Mud Pump Gear End Spares for Mud Pump Fluid End Conversion from chain drive to Belt drive Replacement of lubrication and flushing system Replacement of Chains Replacement of Bearings and Oil seals. Repair of Mud Pump housing. Replacement of Shell and Tube type Heat Exchanger.

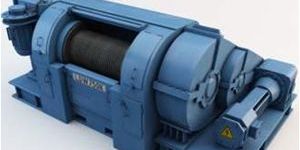

REPAIRS AND REPLACEMENT Retrofit with Hydraulic disk brakes Independent Rotary drive Replacement of chains Replacement of seals and bearings Repair of Draw works housing Replacement of bank brake system Replacement of greasing/oil system Replacement of locking system Repair/replacement of rotary counter shop Repair/replacement of brake water cooling system PARTS Stuffing box parts Brake parts Air and water parts

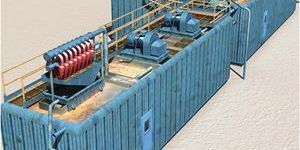

Oil Field System Mud Circulating Systems   Unique design concept of Mud Tanks consider two opposing criteria's i.e., for the transport tanks has to be small and light and on the other side they have to be strong and rugged enough to handle mud with a specific gravity of 24PPG. Unique can design and manufacture Mud Tank/Water Tank and Oil Tank according to customers requirement. The quality of Welding seams, surface treatment and special paint is essential features of Unique Tanks. We have designed standard Mud Systems for various sizes of Drill Rigs. We can use material from chosen manufacturers based on our experience so that the quality requirements are always fulfilled.

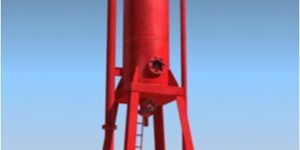

UNIQUE Mud/Gas Separators are designed for use where drilling is likely to encounter large volumes of gas. Unique Mud/Gas separators are designed in accordance with ASME Sec VIII Div.1 and NACE standards. The Unique design is especially advantageous in sour gas environments or when drilling with an underbalanced mud column. The Mud Gas/Separator is used primarily to separate and safely vent large pockets of free gas from the active mud system.

Oil Field System Hydraulic Systems   UNIQUE designs and manufactures wide range of HYDRAULIC SYSTEMS for various applications which include critical application like SNUBBING SYSTEM for mast raising. We can undertake manufacturing of any type of HYDRAULIC SYSTEM as per customers requirement.

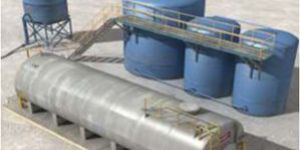

Oil Field System Diesel Systems   Consists of fuel tanks having total capacity as per customer requirement. Suitable diesel pumping unit is also provided with filters and associated piping.

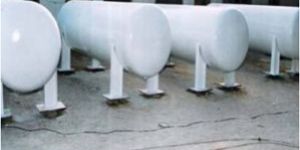

  Oil Field System Air Systems   Consists of 2 electrical driven compressors with working pressure of 150 psig. Free air delivery - 200 -250 CFM. Motor HP100. One diesel engine driven cold start air compressor . Air receivers of adequate capacity and quantity are also provided. A suitable air drier unit is also provided with the Air system.

Oilfield-Solid Controls Mud Desander   Unique Desander is compact desander designed for separation of solids from fluid such as the drilling mud also referred as drilling fluid. Unique series desander is the second phase solid control equipments in well drilling, the general cones are 8", 10" & 12" . Unique cone adopted 100% Polyurethane or abrasion-resistant Alloy material, it is the ideal products to match desander and desilter.

Oilfield-Sold Controls Mud Agitator   UNIQUE mud agitators include an explosion-proof, "motor, reduction gearbox (helical-bevel for horizontal agitators or all helical for vertical units), impeller, and shaft with assembly bushings. Motors range from 5 to 30 HP and may be supplied in several power configurations. Fixing the motor directly inline to the gearbox prevents misalignment that can result in premature bearing failure and provides 95 percent efficiency in power transfer to the impeller. This Improved design surpasses standard worm drive gear assemblies by 30 percent, allowing UNIQUE agitators to do the same work at far less horsepower. By unitizing the motor and gearbox, weight and space requirements are reduced. Horsepower, mechanical configuration, impeller diameter, and shaft length are customized to tank dimensions and maximum mud weights. Available horsepower ratings* are: 5, 7.5, 10, 15, 20, 25, and 30.

  Unique has the technical know how an infrastructure to cater the lube oil requirements for TURBINE,PUMP,FAN,COMPRESSOR ,GEAR BOXES/DRIVEN EQUIPMENTS. The complete package is designed as per API 611 OR API 614 OR TAILOR MADE AS PER CUSTOMER REQUIREMENT. OIL RESERVOIR CAPACITY:UP TO 45,000 LTRS FLOW :UPTO 3500 LPM PRESSURE :UPTO 35 BAR We have more than 100 man years of experience in Design, Manufacture and testing of lube oil systems. We have manufactured more then 250 systems in last 3 years

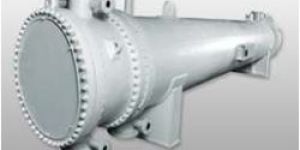

AS PER TEMA CLASS R,C&B TYPES:ONE PASS,DUAL PASS,DIVIDEDFLOW,REBOILER MOC:CARBON STEEL,ALOY STEEL,STAINLESS STEEL WORKING PRESSURE UPTO-200KG/CM

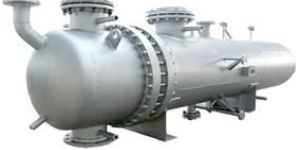

We manufacture and supply an extensive series of shell and Tube Heat exchangers adhering to TEMA/ASME Standards. These shell and tube heat exchangers are able to Handle high temperature and pressure applications that are suitable for various industrial applications. We manufacture these exchangers in a wide range of sizes and capacities catering to suit individual applications. TYPES:ONE PASS,DUAL PASS,DIVIDEDFLOW,REBOILER MOC:CARBON STEEL,ALOY STEEL,STAINLESS STEEL. WORKING PRESSURE UPTO-200KG/CM.

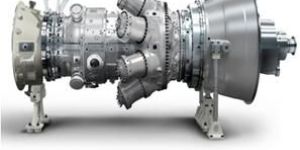

We offer unique Combination of responsiveness, dependability, and quality to our customers in the POWER GENERATION MARKET. We adopt Intricate engineering methods to ensure the dimensional and material integrity of the products we manufacture. UNIQUE Parts are reverse engineered in strict accordance to OEM Components and also enhanced where necessary. PRODUCTS COMBUSTION LINERS TRANSITION PIECES FUEL NOZZLES AND SWIRL TIPS GAS TURBINE HARDWARE

Gas Fired Power Plant Gas Turbine Spares We adopt Intricate engineering methods to ensure the dimensional and material integrity of the products we manufacture.
