Dyeing Machines Dealers in Udhna, Surat

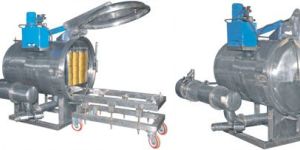

Salient Features • Loading capacity from 100kg to 1000kgs. • M/c can be loaded 50% & above at almost constant liquor ratio. • Automatic coupling system to increase batch capacity due to modular design. • Machine can be installed on a normal plain ground floor without special foundation. • Machine can be installed at mezzanine ceiling level, even at under ground pits. • Elimination of over head cranes for loading and unloading. • Low liquor ratio of 1:5 to 1:7 as per package density. • High flow rate due to axial flow pump design with inbuilt flow direction reversal system. • Perfect dyeing uniformity can be obtained even in large diameter package.     Applications • Yarn Packages. • Small Width Fabrics. • Zipper Tapes. • Muffs & Tops.     Standard Configuration (applicable To All Dyeing Machines) • All machines are available in semi-automatic & Automatic version. • All Machines are made from corrosion resistant stainless steel grade AISI-316 SS. • Pressure extraction system. • Package outer diameter 190 mm. • Die spring inside diameter 57 mm x 170 mm length. • Package weight depends on type of yarn. • Polyester FDY package weight will be approx. 1.5 kgs at package density 0.4 gms/cm3. • Cotton package weight will be approx. 1 kgs at package density 0.27 gms/cm3 . • Operating temperature 140°c maximum. • Operating pressure 4 kg / cm2 maximum.

Special Features Sturdy and rigid construction for vibration free operation. New concept of double deck frame both side to accommodate 8 drums per section, so substantial space saving on floor area. Machine is designed to wind cotton, staple and synthetic yarn to produce soft wound package. Universally approved "Metal Drums or Backlight Drums" . The accelerating pressure reduction of the package through dead weights compensates the increasing pressure of the package to the drum with increasing diameter and results in desired uniform density package. Spindle less cradle to hold s.s. dye spring and double arm package holder (mandrel) with bearings & rubber rings to prevent direct contact of metal on drum. Double disc yarn tension device with self threading guide wires and high quality ceramic. Two separate electric motors for independent drive of each side of machine to drive drum shaft and gearing system. The traverse motion is achieved through the drum shaft. Cradle can accommodate dye spring or perforated tube / cone.

RANGE OF PROCESSING & DYEING MACHINES HTHP "U" Tube Jet Dyeing Machines HTHP Long Jet Dyeing Machines Jigger Dyeing Machines HTHP Soft Flow Dyeing Machines Soflina Weight Reduction Machines Rotary Drum Washer Machines HTHP Beam Dyeing Machines Padding Dyeing Machine

We are a prominent Manufacturer and Supplier of Jet Dyeing Machine from India. The Jet Dyeing Machine is specially constructed using quality components. These Jet Dyeing Machines are known for their superior performance and longer working life. Moreover, these machines can be availed at market leading prices. Technical Data Max. Working pressure is 4 kg/cm. sq.Max. Testing pressure is 6 kg/cm. sq.barLiquor ratio is 1:10 Features Has a pressure control systemHas a changeable, fixing nozzle system. Nozzle pressure can be adjusted to the required valueManufactured from AISI 316 Ti stainless steelInterior main tank has a washing and spraying system for the upper sectionFabric delivery system is supplied with another nozzle additional to the interior haspelEquipped with fabric error, ball head finder and liter gauge sensorsHas a dye tank and chemical tankIs operated from floor level, therefore no additional platforms are requiredDesigned to prevent the twisting which can occur during the processCan work automatically or manuallyInterior haspel is inverter controlled to reduce friction

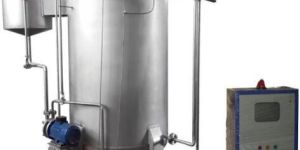

We are engaged in manufacturing, supplying of HTHP Cone Dyeing Machine / HTHP Cone Dyeing Yarn Machine is used for dyeing yarn at high temperature and high pressure. Our expert technicians ensure that it is manufactured using fine grade material, procured from the most authentic vendors of the industry. he body of the machine is fabricated using high grade stainless steel in order to assure durability and resistance to corrosion. We fabricate these machines using premium quality raw material that is procured from the most credible vendors of the industry.   Main Features:   Capacity from 30kg to 500 kg Very low liquor ratio from 1:3 to 1:5 Loading up to 50% possible Savings of water, chemical, heat & electrical energy Coil type heat exchanger for efficient and fast heat transfer Design ensures complete drain of liquor Pneumatic cylinder lift door with Heavy Clamp locking system Hydraulic safety locking for door Large Saving of capital and operational cost   Application:   Yarn Packages Zipper Tapes Small width Fabrics Warn Beams

Jet Dyeing Machine, Rotary Washe

Jet Dyeing Machine, Drum Washer, Cooking Pa

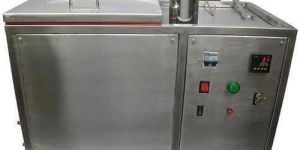

HTHP Beaker Dyeing Machine, Digital Ovens, Glassware, Lab Equipmen

Jet Dyeing Machine, Mill Deca Machin

Dew Drop Machine, Rubber Calender Machine, Portable Flocking Machin

Soft Flow Machines, Garment Finishing Machines, Hydro Extracto

Dyeing Machin

Dyeing Finishing Machine, Textile Machinery, Warping Machine, Warping Cree

Fabric Dew Drop Machine, Fabric Padding Mangle Machin

Dew Drop Machine, Standing & Pleating Machine, Hot Foil Printing Machin

Dyeing Machinery, Printing Machiner

Dyeing Machine, Dress Materials, Printing Machines, Saree

Jet Dyeing Machine, High Speed Fabric Folding Machin

Beam Dyeing Machine, Soft Flow Fabric Dyeing Machine, Jet Dyeing Machin

Beam Dyeing Machine, Economical Jet Dyeing Machin

Infra Red Beaker Dyeing Machine, Handy Reed Pick Glass, Yarn Strength Teste

Dew Drop Machin
