Dyeing Machines Dealers in Sachin, Surat

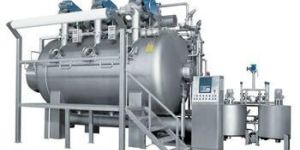

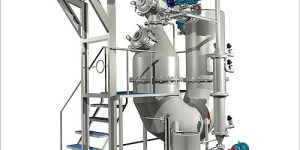

We are offering fabric dyeing machines. Our organization is a globally renowned manufacturer, exporter and supplier of fabric dyeing machines. The offered machines are manufactured using premium grade raw material and sophisticated technology as per the international quality standards. These machines are economical in their use of steam, chemicals, water, dyestuff, etc. Offered fabric dyeing machines are available in different specifications as per the need of clients at the most reasonable price.

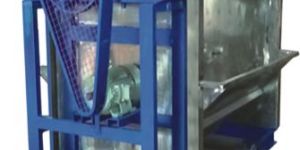

The Jigger machine is one of the most important machine for textile bleaching & dyeing . This machine use for fabric Desizing. Scouring. Bleaching. Dyeing & after treatment of fabrics. Today textile segment need low capital investment, low maintenance cost, low running cost machineries. We have develop the Jigger machine for consist result from batch to batch, month to month.Best quality material. The main rolls are made for stainless steel pipe for better life. Both side wall are made from stainless steel sheet. Tank is made from stainless steel 304 quality & 2.0 1.5 mm for low maintenance cost. The differential gear bevel in the gear box manufacturer special metal duly case hardened fitted with gun metal bush for long life. The floating device balanced with 2 SS guide roll running on Hylam-bush. Break drum specially metal ratchet brakes with proper brake liners control. Inverter drive for low running power saving. PLC Automation (Forward motion Reverse motion & Stop) - Optional

1) specially developed single tube double nozzle model in 400kgs 2) all pressure part will be made bt ss316316l as per din standard 3)specially developed heat exchanger design for quick heating and cooling 4)heavy duty low rpm pump which consume low power and high discharge of liquor 5)semi and fully automatic version with plc system 6)out finish shot blasted 7) all valves made by investment casting and ss316.

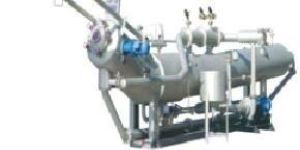

We are manufacturing jet dyeing machines, fabric dyeing machinery, jet dyeing machinery, fabric dyeing machines, jet dyeing machine. Jet dyeing machines, fabric dyeing machinery, jet dyeing machinery, fabric dyeing machines, jet dyeing machine. Request for Quote Features: Capacity: 200-250 Kg. (Single Tube) and 400kg double rope Liquor Ratio - 1:1 (Wet Fabrics) to 1:8 fabric to water ratio Dye - 30 To 450 Grms./Mtr. Sq. Fabrics (Polyester, Polyester blends, Woven & Knitted Fabrics) High Temp.- Up to 140 Deg C. Motor Depending on capacity 10 HP to 20 HP., With A.C. Drive Fabric Speed - 300 Mtrs.

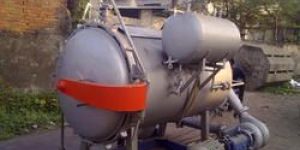

We are leading manufacturer and supplier of Beam dyeing machine.

RANGE OF PROCESSING & DYEING MACHINES HTHP "U" Tube Jet Dyeing Machines HTHP Long Jet Dyeing Machines Jigger Dyeing Machines HTHP Soft Flow Dyeing Machines Soflina Weight Reduction Machines Rotary Drum Washer Machines HTHP Beam Dyeing Machines Padding Dyeing Machine

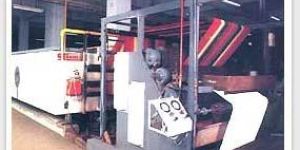

We are offering padding mangle.

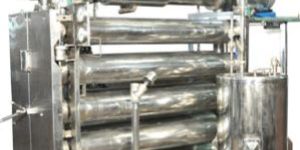

An ideal machine for low ceiling height. You do not require more than 3 mtrs. height hence installation cost is low compared to conventional vertical dyeing machine. Thanks to the design concept, there is no need of hoist for loading spindles. It can easily be done manually. Even the foundation is very simple and the machine can be installed at floor level.   Salient Features • Innovative, simple and operator friendly design. • Packages are treated horizontally. • The process ensures perfect dyeing evenness. • Dyeing is possible with low liquor ratio from 1:3 to 1:5. • It substantially saves water, chemicals, dyestuff & heat energy. • Perfect choice for quality dyeing of yarn at very competitive operational cost. • Option of very wide selection range, 1 tube to 30 tubes. • Suitable for polyester, cotton, viscose, nylon, wool and acrylic yarn in package form. • Variable loading, 50% and above is possible with almost same liquor ratio.   Application • Yarn Packages. • Small Width Fabrics. • Zipper Tapes. • Warp Beams.

Jet Dyeing Machine, Dyeing Machinery, Textile Dying Machin

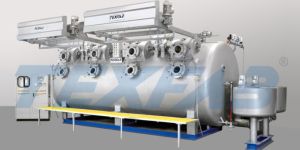

‘TEXFAB’ Soft to High Flow Fabric Dyeing Machine / Scouring Machine is laid out for the dyeing of light and heavy knitted fabric of cotton polyester and its blends and also suitable for scouring of light cotton woven fabric.Soft Flow Dyeing Machine offers new kind of technical advantage with regards to process times, total energy consumption and fabric appearance.Liquor ratio starts with 1:5 for polyester and 1:6 for cotton. Soft Nozzle and penetration pipe have been especially conceived for mild surface treatment of the material to be dyed.The special full-flooded nozzle can be use from 40 mm to 200 mm diameter.Rapid heating and cooling, over flow rinse and pump to drain.Power clean, highly efficient spray system for boil out for machine cleaningExcellent results are achieved in very short process to complete one turn, as one basket holding capacity is 150kg of fabric.Lifter reel driven by frequency inverter controlled motor, for fabric speed upto 250 Mtrs /Min. subject to quality of fabric.Heavy duty stainless steel centrifugal pump for optional dye liquor circulation. Thanks to turbo pump which consumes less power and high discharge of liquor.Pressure vessel and all wet parts of machine are fabricated from stainless steel AISI 316 / 316L highly corrosion resistance.All flanges, plaiter, take off roller is made out of stainless steel 304.Bigger capacity colour Kitchen tank is available with stirrer & valves.All safety devices required for a pressure vessel are incorporated with the machine.Magnetic level indicator with duly calibrated in terms of liter. Outer finish Shot Blasted. Optional: Feed pump to colour Kitchen Tank. Seam Detector. Fully automatic device with PLC and Pneumatic Operated Control Values

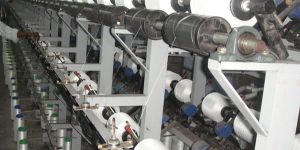

Special Features Sturdy and rigid construction for vibration free operation. New concept of double deck frame both side to accommodate 8 drums per section, so substantial space saving on floor area. Machine is designed to wind cotton, staple and synthetic yarn to produce soft wound package. Universally approved "Metal Drums or Backlight Drums" . The accelerating pressure reduction of the package through dead weights compensates the increasing pressure of the package to the drum with increasing diameter and results in desired uniform density package. Spindle less cradle to hold s.s. dye spring and double arm package holder (mandrel) with bearings & rubber rings to prevent direct contact of metal on drum. Double disc yarn tension device with self threading guide wires and high quality ceramic. Two separate electric motors for independent drive of each side of machine to drive drum shaft and gearing system. The traverse motion is achieved through the drum shaft. Cradle can accommodate dye spring or perforated tube / cone.

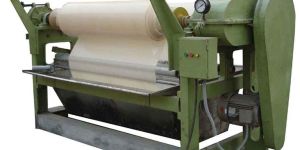

We provide Used Jumbo Jigger Machine that is mainly used in the Textile processing industry. Used Jumbo Jigger Machine, offered by us, runs on electricity and is widely used for dyeing of fabrics. We provide Used Jumbo Jigger Machine is an Open width dyeing machine that has 60� inch roller face width with S.S tank and S.S guide roll inside tank and main roll with ebonite coating. Used Jigger Machines are available in different capacities and thus serve several demands. Model/Type Available : 60� inch roller face width Capacity : 300 kg Technical specification : Machine with 5 hp a.c /960 rpm motor Price : 120000/Rs. ex. factory

We are a prominent Manufacturer and Supplier of Jet Dyeing Machine from India. The Jet Dyeing Machine is specially constructed using quality components. These Jet Dyeing Machines are known for their superior performance and longer working life. Moreover, these machines can be availed at market leading prices. Technical Data Max. Working pressure is 4 kg/cm. sq.Max. Testing pressure is 6 kg/cm. sq.barLiquor ratio is 1:10 Features Has a pressure control systemHas a changeable, fixing nozzle system. Nozzle pressure can be adjusted to the required valueManufactured from AISI 316 Ti stainless steelInterior main tank has a washing and spraying system for the upper sectionFabric delivery system is supplied with another nozzle additional to the interior haspelEquipped with fabric error, ball head finder and liter gauge sensorsHas a dye tank and chemical tankIs operated from floor level, therefore no additional platforms are requiredDesigned to prevent the twisting which can occur during the processCan work automatically or manuallyInterior haspel is inverter controlled to reduce friction

Jet Dyeing Machine, Drum Washer, Fabric Dyeing Machine, Hot Air Drye

Jet Dyeing Machine, Rotary Washe

Textile Dyeing Machines, Garment Finishing Machines, Hydro Extracto

Economical Top Tube Soft Flow Dyeing Machine, Relax Rotary Drum Washer Machin

Dyeing Machine, Screen Printing Machin

HTHP Beaker Dyeing Machine, Digital Ovens, Glassware, Glyceri

Soft Flow Dyeing Machine, Drum Washer, Conventional Rapid Jet Dyeing Machin
