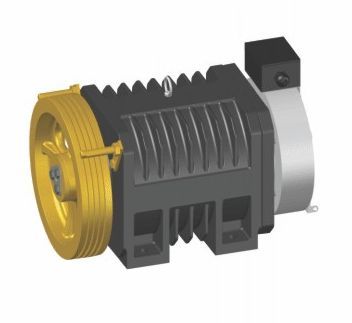

Elevators Traction Machine Dealers in Surat (3 products available)

• Country of Origin: India
• Type: Elevators Traction Machine
• Voltage: 380V
• Power: 3 Kw.
• Capacity: 408 Kg.
• Brand Name: Damork Drive
• Static Load: 1800 Kg
• Max Rise: G+8
• Speed Range (m/s): 1.00
• Rated Torque (Nm): 240
• Power Range: 3 Kw.
• Current (A): 8.4
• Brake Voltage: DC 110 V / 1.8A
• Main Sheave Diameter: 320 mm
• No. Of Groove: 8 mm , 4 Rope, 12 Pitch
• Pole: 20
• Motor Speed: 120 RPM
• Frequency (Hz): 20
• Weight of Machine- Without Base Plate: 190 Kg.

• DGM: Red
• 128: Black

capacity-408 kg. speed range (m/s)-1.00 / 0.66 gear ration-37:1 power range-4 kw. / 3 kw. current (a)-8.5 / 9 break voltage- dc110 v main sheave diameter-520 mm no. Of groove-13 mm , 3 rope, 20 pitch pole-4 motor speed-1360/960 voltage-380 v frequency (hz)-47/31 hz oil capacity-4.5 ltt weight of machine - without base plate-260 kg

Traction Elevator Machine, telescopic auto door, imperforated door
