PID Controllers Dealers

(2 products available)
  • Selec PID500-0-0-01 - PID Controller, Analog +2

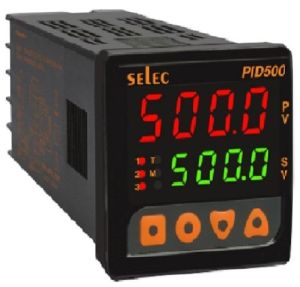

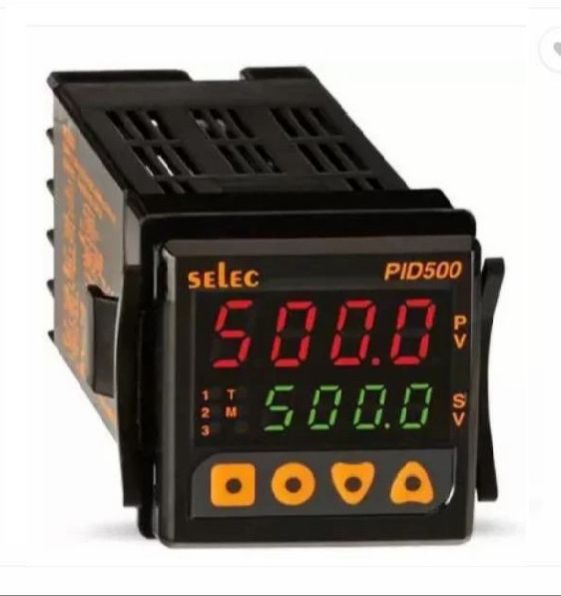

    Selec PID500-0-0-01 - PID Controller, Analog

    5,994 / piece
    • MOQ10 piece
    • Packaging TypeBranded Box packing
    • Brand NameSELEC
    • Materialprimarily made of plastic,plastic, specifically ABS plastic
    • Size48 X 48mm
    • Number Of Flower4-Digit Dual (Red+Green) Display PID Controller
    • Country of OriginIndia

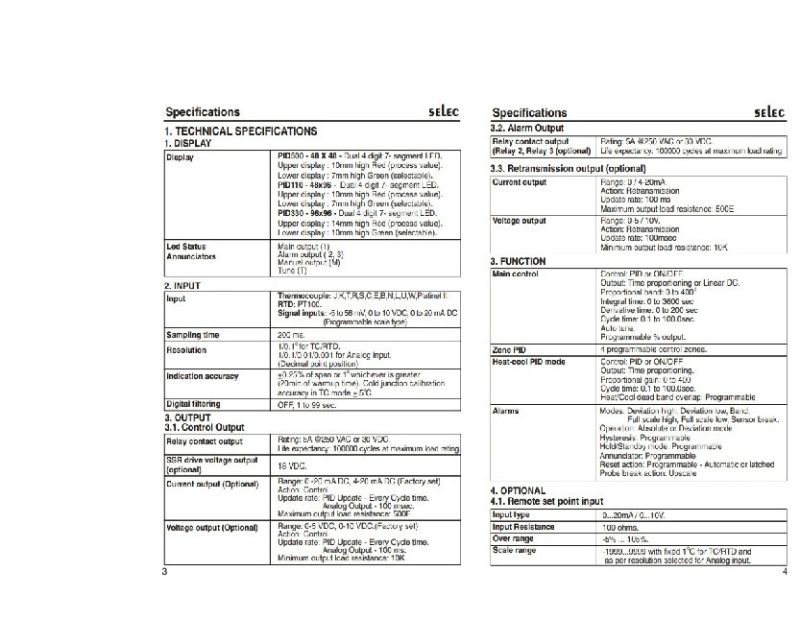

    • PID, Universal input, Analog/Relay/SSR output   Product: PID500   4 digit Dual bright display Advance PID temperature controller Universal Input (TC: J, K, T, R, S/ RTD: PT100) Signal input: (-5 to 56mV, 0 to 10V DC, 0 to 20 mA DC) ON-OFF/Auto tune PID control 3 set point 5A relay control output Dual Auxiliary 5A Relay output 48 mm x 48 mm size Single step Ramp-Soak function Panel mount 90 to 270V AC/DC supply voltage CE, RoHS certified   Brief Specifications Display Type 7 Segment LED Dual Display Display Configuration 4+4 digits Type of Inputs Thermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100, Signal Inputs: (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable) Resolution TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001 Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 Control Output Relay or SSR or Current : 4 to 20mA DC (max load 500E) or Voltage :0 to 10V DC(min load 10K) Auxiliary Output Relay Control Mode Autotune PID / ON-OFF Feature Single step ramp soak Communication RS485 MODBUS communication (optional) Supply Voltage 90V to 270V AC/DC Size 48 x 48mm Mounting Type Panel Mount Certification CE Optional specifications Serial communication Half duplex MODBUS RTU Transmission mode Transmission protocol 500 m maximum 9600, 4800, 2400, 1200, 600, 300 bits/ sec Transmission distance Transmission speed None, Odd, even 1 or 2 Parity Stop bits Response time 100 ms (Max and independent of boud rate)   The Selec PID500-0-0-01 is a 4-digit dual bright display PID temperature controller. It features universal input for thermocouples (J, K, T, R, S) and RTD (PT100), along with signal input options like -5 to 56mV, 0 to 10V DC, and 0 to 20mA DC. It offers both ON-OFF and auto-tune PID control, with three set points and a 5A relay control output.    Key Specifications:   Display: 4 digit, dual bright (Red + Green). Input: Thermocouple (TC): J, K, T, R, S. RTD: PT100. Signal Input: -5 to 56mV, 0 to 10V DC, 0 to 20mA DC. Control: ON-OFF / Auto-tune PID. Set Points: 3. Output: 5A relay control output, Dual auxiliary 5A relay output. Size: 48mm x 48mm. Mounting: Panel mount. Power Supply: 90 to 270V AC/DC. Certification: CE, RoHS. Functions: Single step Ramp-Soak function.    Contact Rating: 5A @ 250V AC or 24V DC Power/Voltage: 220V   Motor Voltage: 20 to 240V AC, 12 to 240V DC Switch Type: On Delay interval Timer
    ...more
    A S Enterprises
    Udhna, Surat
    GST 7 yrs
  • Digital PID Controller

    Digital PID Controller

    32 / unit
    • MOQ1 unit
    • Brand NameAutonics
    • Country of Origin120 V
    • Display TypeDual Display
    • PhaseSingle
    • Frequency50/60 Hz
    • ModelTK4S
    ...more
    Rapid Instrument And Control
    Bardoli, Surat
    9 yrs
