RUDRAKSH INDUSTRIES Udhna, Surat, Gujarat

Strainers "y" type end connetctions:- ansi b 16.5din 2501 bs 10 socket weld wnds:- ansi b 16.11 screwed ends:- ansi b 2.1 pressure ratings:- 0 to 600 psig sr.no description material 1. body astm a 216 gr wcb a 352 lcba 217 wc6a 351 cf8a351 cf8m a 351 cf3 a 351 cf3m is 210 gr.220 2. element aisi- 410 304316 3. top cover astm a 216 gr wcb a 352 lcba 217 wc6a 351 cf8a351 cf8m a 351 cf3 a 351 cf3m is 210 gr.220 4. gasket caf- 2059,spiral wound ss with graphite filler ptfe 5. stud , nut & washer zinc plated steel.

Swing check valves valve design:- bs 1868api 6d face to face:- ansi b 16.10 end connetctions:- ansi b 16.5 pressuretemperature ratings:- ansi b 16.34 testing standard:- api 598bs 6755 size range:- 15mm to 300 mm pressure ratings:- class 150 300 600 sr.no description material specifications 1. cover astm a 216 gr. Wcb a 352 lcb a 217 wc6 a 351 cf8 a 351 cf8m a 351 cf3 a351 cf3m is 210 gr. 220 2. stud and nut astm a 193 gr. B7 astma 194 gr. 2h 3. body astm a 216 gr. Wcb a 352 lcb a 217 wc6 a 351 cf8 a 351 cf8m a 351 cf3 a351 cf3m is 210 gr. 220 4. hinge pin aisi- 410304 316 5. seat ring aisi- 410304 316 6. arm astm a 216 gr. Wcb a 352 lcb a 217 wc6 a 351 cf8 a 351 cf8m a 351 cf3 a351 cf3m is 210 gr. 220 7. disc aisi- 410304 316 8. back seat bushing s.s. Aisi 410

Globe valves valve design:- bs 1873 face to face:- ansi b 16.10 end connection:- ansi b 16.5 pressure temprature ratings:- ansi b 16.34 tesing standard:- api 598 size range:- 15mm to 300 mm pressure ratings:- class 150 300 600 sr.no description material specifications 1. body astm a 216 gr. Wcb a 351 cf8 a 351 cf8m 2. seat ring aisi- 410 304316 3. disc aisi- 410 304316 4. spindle nut aisi- 410304 316 5. spindle aisi- 410304 316 6. gasket ss 304 spiral wound with graphite filler 7. bonnet astm a 210 gr. Wcb 8. back seat bushing s.s. Aisi 410 9. bonnet stud & nut astm a 194 gr. 2h. 10. bonnet stud astm a 193 gr. B7. 11. cross bolt and nut carbon steel 12. gland packing metallic wire reinforced graphited asbestos 13. gland s.s. Aisi 410 14. gland flange carbon steel 15. eye bolt & nut carbon steel 16. yoke nut ni-resists.g. Iron g.m. 17. handwheel cast malleable iron 18. washer carbon steel 19. handwheel nut carbon steel

Gate valves valve design:- api 600 face to face:- ansi b 16.10 end connetctions:- ansi b 16.5 pressuretemperature ratings:- ansi b 16.34 testing standard:- api 598 size range:- 15 mm to 300 mm pressure ratings:- class 150300 sr.no description material specifications 1. body astm a 216 gr wcb a 352 lcba 217 wc6a 351 cf8 a351 cf8m a 351 cf3 a 351 cf3m is 210 gr.220 2. bonnet astm a 216 gr wcb a 352 lcba 217 wc6a 351 cf8 a351 cf8m a 351 cf3 a 351 cf3m is 210 gr.220 3. seat 13% cr ssteel 4. wedge astm a 217 gr. Ca 15 or astm a 216 gr wcb with suitable seating surface 5. spindle aisi 410304316304l316l 6. back seat bush aisi 410304316304l316l 7. gland bush aisi 410304316304l316l 8. gland flower aisi 410304316304l316l 9. gland packing grafoil ptfe ropebraided asbestos or as per requirement 10. body gasket spiral wound s s 304 with caf or as per requirement 11. yoke sleeve al. Bronze ni resits 12. stud & nut astm a 194 gr. B7 astm a 194 gr. 2h 13. hand wheel is 210 1978 14. hand wheel nut carbon steel

Lobe valve (forged steel) valve design:- bs 5352 face to face:- ansi b 16.10 socket weld & threaded to:- ansi b 16.11ansi b 2.1 testing standard:- api 598bs 5146 size range:- 15 mm to 50 mm pressure rating:- class 800 sr.no part name material specifications 1. body astm- a 105 a 182f 304-316 2. seat ring aisi- 410304316 3. plug aisi- 410 304316 4. spindle aisi- 410304 316 5. gasket spiral wound ss304 filled asbestosgraphite 6. bonnet astm a 105a182f304-316 7. gland flower astm – a 105304 8. gland packing grafoil ring 9. gland bush aisi- 410304316 10. yoke sleeve ni- resist 11. handwheel c.i m.i 12. bonnet nut a 193 gr.b7 13. eye bolt carbon steel or aisi 410304 14. nut carbon steel or aisi 410304.

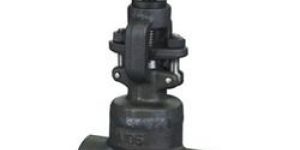

Valve design:- api 602 face to face:- ansi b 16.10 socket weld & threaded to:- ansi b 16.11ansi b 2.1 testing standard:- api 598bs 5146 size range:- 15 mm to 50 mm pressure rating:- class 800 sr.no part name material specifications 1. body astm- a 105 a 182f 304-316 2. seat ring aisi- 410304316 3. wedge aisi- 410 304316 4. spindle aisi- 410304 316 5. gasket spiral wound ss304 filled asbestosgraphite 6. bonnet astm a 105a182f304-316 7. gland flower astm – a 105304 8. gland packing grafoil ring 9. gland bush aisi- 410304316 10. yoke sleeve ni- resist 11. handwheel c.i m.i 12. bonnet nut a 193 gr.b7 13. eye bolt carbon steel or aisi 410304 14. nut carbon steel or aisi 410304.

Control valves pneumatic actuated globe type control valves actators direct acting(air to open, fail to close) reverse acting(air to close, fail to open), spring return diaphragm, spring return piston types two-way three-way mixing or diverting size 15 mm to 150 mm air pressure 25 to 60 psig duty on-off, regulating features:- size 15 mm to 150 mm end connection ansi b 15.5 din 2501 bs 10 body bonnet astm a gr 216 a 352 lcb a 217 wc6 a 351 cf8 a351 cf8m a 351 cf3 a 351 cf3m is 210 gr. 220 trims aisi- 410304 316 gasket spiral wound ss304 filled graphite, caf 59 gland grafoil ptfe rope braided asbestos valve plug characteristics to meet various flow control characteristics, following types of plug designs are available:- quick open plug, skirt guided for quick opening & closing valve. v port hollow skirt plug, skirt guided. This type of plug is having linear characteristics and is recommended for modulating type of controls. quick opening plug, top & bottom guided. v port hollow skirt plug, top & bottom guided. counter plug, top & bottom guided having linear or equal percentage characteristics.

Ball valves valve design bs 5351 face to face asme b 16.10 material of construction astm a 216 gr wcb a 351 cf8 a 351 cf8m a 351 cf3 a 351 cf3m trims aisi 304 316 types single piece design full bore ball valves two pice design full bore ball valves three piece design full bore ball valves three peice design reduced bore ball valves end connections flanged end:- ansi b 16.5-150# screwed end:- bsp or npt:- up to size 50 mm socket weld end:- ansi b 16.11:- up to size 50 mm types of operation manual- handle operated ball valves auto- rotary actuated ball valves size ranges 25 mm to 150 mm pressure ratings class 150300600 testing standards bs 5146 api 598.

Rotary actuated ball valves valve design bs 5351 face to face asme b 16.10 material of construction astm a 216 gr wcb a 351 cf8 a 351 cf8m a 351 cf3 a 351 cf3m trims aisi 304 316 types single piece design full bore ball valves two pice design full bore ball valves three piece design full bore ball valves three peice design reduced bore ball valves end connections flanged end:- ansi b 16.5-150# screwed end:- bsp or npt:- up to size 50 mm socket weld end:- ansi b 16.11:- up to size 50 mm types of operation manual- handle operated ball valves auto- rotary actuated ball valves size ranges 25 mm to 150 mm pressure ratings class 150300600 testing standards bs 5146 api 598.
