Laxman Machine Tools Wadhwan, Surendranagar, Gujarat

We offer tool & cutter grinder under the brand name of Laxman . Rigidness & versatility are the main feature of our Industrial Cutter Grinders machine which is capable of re sharpening a variety of jobs running from H.S.S. to carbide tip tools and cutters. Use Of Machine: To grind slide face & slitting cutter. To grind helical reamer. To grind hob, radius & teeth cutter. To grind taps. To grind woodruff-cutter. To grind end mill cutter. To grind taper shank drill, reamer & end mill cutter. To grind carbide tip cuter & end mill-cutter. etc. Special Accessories : Radius grinding attachment Universal machine vice Machine lamp Diamond wheel Taper mandrill hardened and ground Specifications: Largest diameter of cutter than be ground 250 mm. Maximum admit between centers 260 mm. Maximum length of cutting edges ground 150 mm. Grinding wheel speeds 4500 RPM. Swing diameter and standard center 250 mm. Working surface of table 450 x 120 mm. Longitudinal traverse 175 mm. Cross traverse 15o mm. Packing & Installation Parameters: Floor area occupied 690 x430 mm. Height of the machine 1375 mm. Weight of the machine with standard accessories 300 kg. Electric Motor 3 phase 0.5 H.P 2800 RPM. Standard Equipment: Steady with centers 2 Nos. Universal tilting head 1 Nos. Relieving attachment 1 Nos. Diamonds dressing stand 1 Nos. Grinding disc wheel-dia 1 Nos. Grinding taper cup wheel-dia 1 Nos. Threaded mandrill with sleeve and nu 1 Nos.

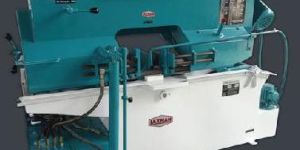

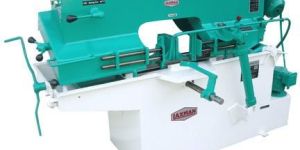

“Laxman” Semi Automatic Horizontal Metal Cutting  Band Saw Machine  Model  Semi BLMhs-1 Feeding of the job is done manually. Clamping & Declamping is Automatic. An auto switch is to be pressed in auto mode of machine. Machine automatically clamps the job. Swiveling arm starts running down on gravitational force for cutting operation. After cutting arm automatically goes up. Machine automatically declamps the job. An auto switch is again pressed and the cycle repeats. Feeding knob is given to get required feed of the arm coming down. Get the required speed of the blade by adjusting v-belt depending upon the material to be cut.

Number Of Flower : Metal Cutting Band Saw Machine

Brand Name : Laxman

Less power consumption compared to Hacksaw. Continuous cutting by means of circular endless blade. Smoother and faster cutting to Hacksaw. Swing cutting  option give 30% faster cutting from the regular cutting Easy and precise gravity mannual feed control. Makes optimum use of the blade due to rewelding of blade. Efficient self centering vice. optional swivel vice for 30/45/60 angular cutting. Special designed heavy duty gear box Blade guide made of bearing & carbide types Less material wastage due to lesser blade thickness. Good parallelism compared to hacksaw machine.

Application : Industrial

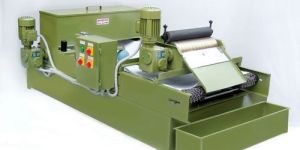

Number Of Flower : Coolant Filter Machine

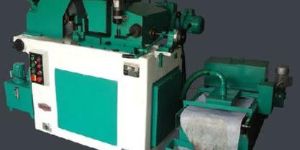

Model LM-3 have filmatic bearing type spindle or hydrodynamic bearing and hydrostatic lobe type bearing both model are available which can give high redial accuracy in jobs ,good Ra value in jobs compare to bearing And we also get very long spindle life compare to other bush or any ball and roller bearings.

Our Model LM-2 specially designed for low power consume, hi precision, compact, economical. Our Centerless Grinding machine model LM-2 has hydrostatic bush bearing and taper roller bearing both model available. It is very compact, high precision and economical model.Hydraulic dressing, micro feeding, Speed control AC drive and rpm read out in regulating wheel, auto plunge grinding, auto lubrication or hand pump lubrication, coolant filtration systems are available as extra accessories Our Centreless Grinders models L.M. 2 have been designed with the operator in mind. These are suitable for grinding work piece from 2 M.M. to 50 M.M. Diameters to very fine limits of accuracy. A wide Range of work can be ground including Plain, Cylindrical taper Shouldered Special comprise & grinding wheel, a Control wheel and a work rest. This arrangement provides a three points support. The Machines are meant for quality, quantity & efficiency.

Laxman Fully Automatic Horizontal Metal Cutting Band Saw Machine Model Auto BLMhs-1 An ample array of superlative Fully Automatic Bandsaw Machine is provided by us that are manufactured from the optimum quality raw materials. We are counted among the prominent Fully Automatic Bandsaw Machines manufacturers, based in India. Robust structure, high durability and excellent performance are some of the unique features of these Bandsaw machines.

Brand Name : Laxman

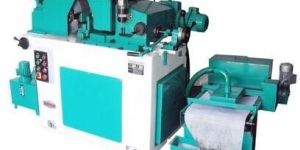

Our Model LM-2 specially designed for low power consume, hi precision, compact, economical.   Our Centerless Grinding machine model LM-2 have hydrostatic bush bearing , hydrodynamic bearings and cartridge precision bearing spindle all model available. Grinding wheel head spindle have oil safety feature   Main slide control by Roller LM guide way, Precision and ground ball screw, gear box and servo motor for rigid and accurately traveling   Regulating wheel head  control by high speed gear box with A/c variable speed control drive and bearing type spindle to get best grinding perforce and hi radial accuracy for every size of jobs   Grinding wheel dressing slide have 2 Axis servo motor and drive , LM Guide way and ball screw to get fine and long life dressing for good ra value in jobs, step dressing in grinding wheel  and  Auto compensate after dressing in main slide   Regulating Dressing slide Control by Gear Motor with A/c Variable speed control drive, LM Guide way and ball screw and  spring loaded temple dressing to get fine, long life and step dressing   Auto lubrication in slide, Continues pump lubrication in both spindle Entry and exit oil filters, oil level switch, oil pressures switch, oil circuit complete indication switch to get long life hi accuracy and maintenance free machine Magnetic coolant filter in coolant tank to achieve close tolerance in jobs   Mounted Electrical Control Panel for easy maintenance, operating and handling   Job loading and Unloading  control by pneumatic cylinder , solenoid valve , bowl feeder, plc to get fast and accurately loading and unloading is possible in auto plunge centerless grinding machine, to get unman work ** Auto whole feeder compensate after dressing in auto cycle** ** Auto Engage and disengage facility available with feeder** ** Possible to remove whole feeder from machine

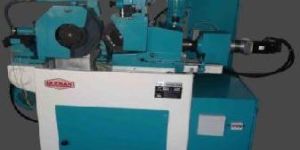

Our Centerless Grinding machine model LM-2 have hydrostatic bush bearing and cartridge precision bearing spindle both model available. Grinding wheel head spindle have oil safety feature   Main slide control by Roller LM guide way, Precision and ground ball screw, gear box and servo motor for rigid and accurately traveling   Regulating wheel head control by high speed gear box with A/c variable speed control drive and bearing type spindle to get best grinding perforce and hi radial accuracy for every size of jobs   Both Dressing slide Control by Gear Motor with A/c Variable speed control drive, LM Guide way and ball screw to get fine and long life dressing for good ra value in jobs   Auto lubrication in slide, Continues pump lubrication in both spindle Entry and exit oil filters, oil level switch, oil pressures switch, oil circuit complete indication switch to get long life hi accuracy and maintenance free machine   Magnetic coolant filter in coolant tank to achieve close tolerance in jobs   Mounted Electrical Control Panel for easy maintenance, operating and handling

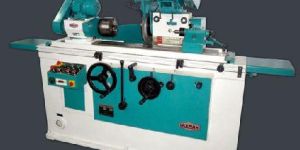

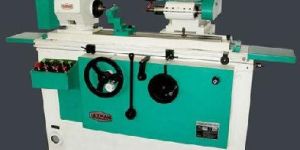

The base is made of close-grained cast iron and is well ribbed. It is made particularly heavy to prevent vibration and distortion the guide way-one side flat and the other V type are Tersite line coated   and precision hand scrapped and to match the corresponding surfaces of the table slides. Solenoid valve, van pump and proxy  operated  very smooth Hydraulic system,   Precision 2 or 4 bearing type spindle in work head,  Precision hydrostatic bearing, thrust bearing and flash type lubrication in main head spindle. Variable speed control drive in work head with RPM Read out is available: Manual Lubrication, Auto Lubrication, hand pump lubrication are available in lubrication system Micro feeding, Auto plunge cut cycle, coolant filter systems (paper band filter or magnetic seprator) are also available as extra accessories. Laxman auto plunge sizers is a combination theory of hydraulic cylinder and harden and tempered cam, which can give high precision in plunge cut. Auto plunge cut, CLM Model have a provision for adjust Grinding time, feeding cut and speed, rapid movement. Auto dressing in strait and radius PLC cycle type internal grinder is also available.

the base is made of close-grained cast iron and is well ribbed. It is made particularly heavy to prevent vibration and distortion the guide way-one side flat and the other v type are tersite line coated and precision hand scrapped and to match the corresponding surfaces of the table slides. solenoid valve and proxy operated very smooth hydraulic system, cartridge type precision 4 bearing type spindle in work head, cartridge type high speed precision bearing spindle in main head. variable speed control drive in work head with rpm read out is available. manual lubrication, auto lubrication, hand pump lubrication are available in lubrication system. micro feeding, auto plunge cut cycle, coolant filter systems (paper band filter or magnetic separator) are also available as extra accessories. laxman auto plunge sizers is a combination theory of hydraulic cylinder and harden and tempered cam, which can give high precision in plunge cut. Auto plunge cut, clm model have a provision for adjust grinding time, feeding cut and speed, rapid movement. auto dressing in strait and radius plc cycle type internal grinder is also available.

The base is made of close-grained cast iron and is well ribbed. It is made particularly heavy to prevent vibration and distortion the guide way-one side flat and the other V type are Tersite line coated and precision hand scrapped and to match the corresponding surfaces of the table slides. Solenoid valve and proxy operated very smooth Hydraulic system, Cartridge type Precision 4 bearing type spindle in work head, Cartridge type high speed Precision bearing spindle in main head. Variable speed control drive in work head with RPM Read out is available. Manual Lubrication, Auto Lubrication, hand pump lubrication are available in lubrication system. Micro feeding, Auto plunge cut cycle, coolant filter systems (paper band filter or magnetic separator) are also available as extra accessories. Laxman auto plunge sizers is a combination theory of hydraulic cylinder and harden and tempered cam, which can give high precision in plunge cut. Auto plunge cut, CLM Model have a provision for adjust Grinding time, feeding cut and speed, rapid movement. Auto dressing in strait and radius PLC cycle type internal grinder is also available.

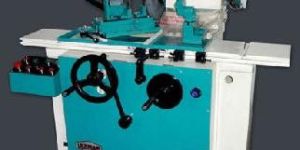

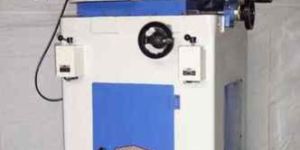

Our company manufactures and supplies a precisely designed range of Ball Point Grinders under the brand name Laxman. These grinding machines are used to grind different length and diameter of cylindrical jobs with accuracy in production. In ball point grinder, one can grind a ball at the end of cylindrical grinder. Minimum Length Of Job: 40Mm Maximum Length Of Job: 300Mm Min. Dia. Of Job: 3Mm Max. Dia. Of Job: 20Mm Grinding Wheel Size: 150Mm X 20Mm X 30Mm Floor Space: 600Mm X 600Mm

Laxman automatic plunge sizer is design for take high accuracy in plunge grinding.  It is a combination theory of hydraulic cylinder and cylindrical face cam. It has high accuracy harden came which can give ideal grinding feed by hydraulically operated solenoid valve without any wear and tear of lead screw and nut. It has precision control valve for adjust feed speed as per job requirement. We also adjust grinding depth of cut by proxy switches. It have also secondary solenoid valve for rapid approach and quick return. It has a timer to adjust spark out time in grinding process. It has many more function to gate perfect and accurate plunge grinding.
