Tensile and Elongation as per ASTM – D638/ASTM – D882/ISO 527
Flexural as per ASTM – D790/ ISO 178
Compression as per ASTM – D695
Reference Standards: ASTM, ISO, IS
Model: AE-UTM-1LC-FC
Specifications :
→ System Status: Computerized + Digital
→ Data Entry: All Data through software or From Console
→ Reports: Graphical + Data through software
→ Units: Kg, Newton, Pound, cm, mm & inch.
→ Data Merging Facility: Available
→ Load Cell: 1 no. (Others Optional)
→ Load Cell Supplied: 1000Kg with 100 grams resolution.
→ Resolution of displacement: 0.1 mm
→ Speed: 2 – 500 mm/min (others optional) ***
→ Machine Capacity: Up to 1000 Kg (Others Optional)
→ Tests: Tensile; Flexural; Compression
→ Reports Contain: Peak load, Break load, Elongation at peak load, Elongation at break load, Tensile strength at peak load, Tensile strength at break load, % elongation at peak load, % elongation at break load, Young’s modulus, Yield load, Yield stress, Flexural stress, Flexural modulus and Load Vs Elongation graph.
→ Accessories: Heavy Duty Grip for Tensile – 1 Pair Flexural Attachment – 1 No Compression Plate – 1 Pair
→ Supply: 220 VAC/50 Hz
→ Power: 2 KW
→ Paint: Powder coated
Tensile and Elongation as per ASTM – D638/ASTM – D882/ISO 527
Flexural as per ASTM – D790/ ISO 178
Compression as per ASTM – D695
Reference Standards: ASTM, ISO, IS
Model: AE-UTM-1LC-FC
Specifications :
→ System Status: Computerized + Digital
→ Data Entry: All Data through software or From Console
→ Reports: Graphical + Data through software
→ Units: Kg, Newton, Pound, cm, mm & inch.
→ Data Merging Facility: Available
→ Load Cell: 1 no. (Others Optional)
→ Load Cell Supplied: 1000Kg with 100 grams resolution.
→ Resolution of displacement: 0.1 mm
→ Speed: 2 – 500 mm/min (others optional) ***
→ Machine Capacity: Up to 1000 Kg (Others Optional)
→ Tests: Tensile; Flexural; Compression
→ Reports Contain: Peak load, Break load, Elongation at peak load, Elongation at break load, Tensile strength at peak load, Tensile strength at break load, % elongation at peak load, % elongation at break load, Young’s modulus, Yield load, Yield stress, Flexural stress, Flexural modulus and Load Vs Elongation graph.
→ Accessories: Heavy Duty Grip for Tensile – 1 Pair Flexural Attachment – 1 No Compression Plate – 1 Pair
→ Supply: 220 VAC/50 Hz
→ Power: 2 KW
→ Paint: Powder coated
We are leading VSP/HDT Tester – Analogue Type, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
VSP as per ASTM D1525 and HDT as per ASTM D648
Models: AE-VSPHDT-2S-D
Reference Standards: ASTM, ISO, IS
Technical Specifications :
→ Material of Construction: Inner – SS & Outer – MS with powder coated.
→ System Status: Analogue.
→ Stations: 02 No’s (others optional)
→ Temperature: Ambient to 300°C.
→ Temperature Ramp Rate: 50°C/hour to 120°C.
→ Dial Range: 0 – 10 mm with 0.01 mm resolution.
→ Weights: 1Kg, 5Kg for VSP; 5 to 2000 grams modular binary test weights for HDT
→ Paint: Powder coated
→ Supply: 230 VAC/50 Hz
We are leading VSP/HDT Tester – Analogue Type, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
VSP as per ASTM D1525 and HDT as per ASTM D648
Models: AE-VSPHDT-2S-D
Reference Standards: ASTM, ISO, IS
Technical Specifications :
→ Material of Construction: Inner – SS & Outer – MS with powder coated.
→ System Status: Analogue.
→ Stations: 02 No’s (others optional)
→ Temperature: Ambient to 300°C.
→ Temperature Ramp Rate: 50°C/hour to 120°C.
→ Dial Range: 0 – 10 mm with 0.01 mm resolution.
→ Weights: 1Kg, 5Kg for VSP; 5 to 2000 grams modular binary test weights for HDT
→ Paint: Powder coated
→ Supply: 230 VAC/50 Hz
Ring & Ball (Softening Point) Test Apparatus is used for determination of softening point of bituminous materials. Softening point is that temperature at which the specimen under test becomes soft enough to allow a steel ball of specific dimensions to fall a required distance under test conditions.
Ring & Ball (Softening Point) Test Apparatus is used for determination of softening point of bituminous materials. Softening point is that temperature at which the specimen under test becomes soft enough to allow a steel ball of specific dimensions to fall a required distance under test conditions.
We are leading Vibration Table, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
To check the impact effect on the seat surface of the plastic molded chairs.
Specifications :
→ It is designed to carry a load of 140 kg. The apparatus consists of a motor fitted with a Variable pitch pulley housed in a cabinet.
→ The vibrations are imparted by means of off-balance masses rotating on a shaft of a Vibrator clamped to the underside of the table top.
→ The table top is 50cm x 50cm. and has stops along its edges to prevent moulds from Walking off the table during vibration.
→ A cross arm adjustable on a vertical rod at the center of The table is provided to hold the moulds while operating the table.
→ The variable pitch pulley arrangement permits the frequency to be varied sleeplessly Between a maximum of 1400 vibrations per minute.
→ Digital Frequency Indicator + controller with resolution of 1 Hz
→ Digital indicator for amplitude measurement.
→ Electric Supply of 440 volts, 3 phase, 50 Hz
→ Vibrating Tables of table top size 50cm x 50cm as well as 1000cm x 100cm are also available. (OR as per customer’s choice.)
We are leading Vibration Table, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
To check the impact effect on the seat surface of the plastic molded chairs.
Specifications :
→ It is designed to carry a load of 140 kg. The apparatus consists of a motor fitted with a Variable pitch pulley housed in a cabinet.
→ The vibrations are imparted by means of off-balance masses rotating on a shaft of a Vibrator clamped to the underside of the table top.
→ The table top is 50cm x 50cm. and has stops along its edges to prevent moulds from Walking off the table during vibration.
→ A cross arm adjustable on a vertical rod at the center of The table is provided to hold the moulds while operating the table.
→ The variable pitch pulley arrangement permits the frequency to be varied sleeplessly Between a maximum of 1400 vibrations per minute.
→ Digital Frequency Indicator + controller with resolution of 1 Hz
→ Digital indicator for amplitude measurement.
→ Electric Supply of 440 volts, 3 phase, 50 Hz
→ Vibrating Tables of table top size 50cm x 50cm as well as 1000cm x 100cm are also available. (OR as per customer’s choice.)

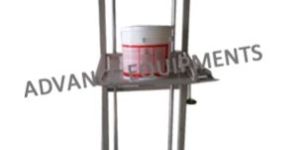

We are leading Vertical Impact Drop Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per IS, ISO & ASTM standards
→ Height : up to 3 metres with 0.5 metres droping distance slab.
→ Platform : Auto openable mechanically at height setted slab.
→ Movement : Vertical Up Down by hand operated wheel. (Electrical Optional) Bottom & corner drop facility on platform
→ Moc : Ms with paint.
→ Load : Testing load will be up to 30 kg. (Others optional)
We are leading Vertical Impact Drop Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per IS, ISO & ASTM standards
→ Height : up to 3 metres with 0.5 metres droping distance slab.
→ Platform : Auto openable mechanically at height setted slab.
→ Movement : Vertical Up Down by hand operated wheel. (Electrical Optional) Bottom & corner drop facility on platform
→ Moc : Ms with paint.
→ Load : Testing load will be up to 30 kg. (Others optional)

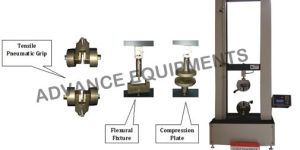

We are leading Universal Testing Machine, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.Tensile and Elongation as per ASTM – D638/ASTM – D882/ISO 527
Flexural as per ASTM – D790/ ISO 178
Compression as per ASTM – D695
Reference Standards: ASTM, ISO, IS
Model: AE-UTM-1LC-FC
Specifications :
→ System Status: Computerized + Digital
→ Data Entry: All Data through software or From Console
→ Reports: Graphical + Data through software
→ Units: Kg, Newton, Pound, cm, mm & inch.
→ Data Merging Facility: Available
→ Load Cell: 1 no. (Others Optional)
→ Load Cell Supplied: 1000Kg with 100 grams resolution.
→ Resolution of displacement: 0.1 mm
→ Speed: 2 – 500 mm/min (others optional) ***
→ Machine Capacity: Up to 1000 Kg (Others Optional)
→ Tests: Tensile; Flexural; Compression
→ Reports Contain: Peak load, Break load, Elongation at peak load, Elongation at break load, Tensile strength at peak load, Tensile strength at break load, % elongation at peak load, % elongation at break load, Young’s modulus, Yield load, Yield stress, Flexural stress, Flexural modulus and Load Vs Elongation graph.
→ Accessories: Heavy Duty Grip for Tensile – 1 Pair Flexural Attachment – 1 No Compression Plate – 1 Pair
→ Supply: 220 VAC/50 Hz
→ Power: 2 KW
→ Paint: Powder coated
We are leading Universal Testing Machine, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.Tensile and Elongation as per ASTM – D638/ASTM – D882/ISO 527
Flexural as per ASTM – D790/ ISO 178
Compression as per ASTM – D695
Reference Standards: ASTM, ISO, IS
Model: AE-UTM-1LC-FC
Specifications :
→ System Status: Computerized + Digital
→ Data Entry: All Data through software or From Console
→ Reports: Graphical + Data through software
→ Units: Kg, Newton, Pound, cm, mm & inch.
→ Data Merging Facility: Available
→ Load Cell: 1 no. (Others Optional)
→ Load Cell Supplied: 1000Kg with 100 grams resolution.
→ Resolution of displacement: 0.1 mm
→ Speed: 2 – 500 mm/min (others optional) ***
→ Machine Capacity: Up to 1000 Kg (Others Optional)
→ Tests: Tensile; Flexural; Compression
→ Reports Contain: Peak load, Break load, Elongation at peak load, Elongation at break load, Tensile strength at peak load, Tensile strength at break load, % elongation at peak load, % elongation at break load, Young’s modulus, Yield load, Yield stress, Flexural stress, Flexural modulus and Load Vs Elongation graph.
→ Accessories: Heavy Duty Grip for Tensile – 1 Pair Flexural Attachment – 1 No Compression Plate – 1 Pair
→ Supply: 220 VAC/50 Hz
→ Power: 2 KW
→ Paint: Powder coated

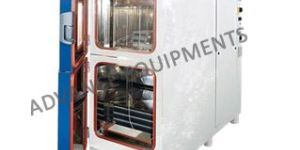

We are leading Thermal Impact Chamber / Thermal Shock Chamber, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per IS 9000, JSS 55555, JSS 50101, MIL STD 750, 810, 883, IEC - 60068
The extreme simulation of temperature is conducted in two zones of hot and cold that can be controlled independently and an optional third zone. The single basket product carrier moves vertically, from one zone to the other, subjecting the product to dramatic changes in temperature thus creating a temperature shock thereby detecting specimen flaws.
Features :
→ Vertical movement of basket with separate hot and cold temperature zones.
→ The Basket transition is done through a Robust Electro-pneumatic Method.
→ Mono-block design with integrated.
→ Non-CFC cascade refrigeration system.
→ DIGITAL Controller.
→ Castor wheels for easy movement of the chamber.
Models Available :
Models
AE-25-B2V
AE-64-B2V
AE-120-B2V
Basket/Test Space (W X D x H)
25L 250 x 250 x 400 (MM)
64L 400 x 400 x 400 (MM)
121L 550 x 550 x 400 (MM)
Zone1 Temperature
60°C to 200°C
Zone2 Temperature
0°C to -75°C
Basket Transition Time
5 to 30 seconds
Basket Movement
VERTICAL
We are leading Thermal Impact Chamber / Thermal Shock Chamber, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per IS 9000, JSS 55555, JSS 50101, MIL STD 750, 810, 883, IEC - 60068
The extreme simulation of temperature is conducted in two zones of hot and cold that can be controlled independently and an optional third zone. The single basket product carrier moves vertically, from one zone to the other, subjecting the product to dramatic changes in temperature thus creating a temperature shock thereby detecting specimen flaws.
Features :
→ Vertical movement of basket with separate hot and cold temperature zones.
→ The Basket transition is done through a Robust Electro-pneumatic Method.
→ Mono-block design with integrated.
→ Non-CFC cascade refrigeration system.
→ DIGITAL Controller.
→ Castor wheels for easy movement of the chamber.
Models Available :
Models
AE-25-B2V
AE-64-B2V
AE-120-B2V
Basket/Test Space (W X D x H)
25L 250 x 250 x 400 (MM)
64L 400 x 400 x 400 (MM)
121L 550 x 550 x 400 (MM)
Zone1 Temperature
60°C to 200°C
Zone2 Temperature
0°C to -75°C
Basket Transition Time
5 to 30 seconds
Basket Movement
VERTICAL
We are leading Tearing Strength Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per ASTM standards is suitable for most fabrics including woven, layered blankets, napped pile, blanket, and air bag fabrics.
This method covers the determination of the average force in grams per specimen required to propagate tearing through a specified length of plastic film or no rigid Sheeting. Two specimen are cited, a rectangular type and one with a constant radius testing length.
→ Grippers
→ 1600 Sector
→ Pointer
→ Sector Lock
→ Sturdy Base
→ Adjustable Footrest
→ Counter Weights
→ Scale
Significance :
This method is of value in ranking relative tearing resistance of various plastic films and thin sheeting of comparable thickness. Experience has shown the test to have its best reliability on relatively less extensible films and sheeting. Variable elongation and oblique tearing effects on the more extensible films preclude its use as a precise production control tool for these types of plastic.
→ Capacity : 1600gms; 3200gms; 6400 gms;
→ Clamping surfaces of each clamp : L-35.5mmxM-15.5mm
→ Distance between clamps : 2.5 +/-0.25mm
→ Tearing Distance : 43 +/0.15mm
→ Slit Size : 20mm
→ Scale Reading : 0 to 100% Range
→ Calibration check weight: At 1600gms: At 3200gms. : At 6400gms
→ Standards : D-689 ;BS 4153; ASTM D1424; DIN 53862; M&S 29
We are leading Tearing Strength Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per ASTM standards is suitable for most fabrics including woven, layered blankets, napped pile, blanket, and air bag fabrics.
This method covers the determination of the average force in grams per specimen required to propagate tearing through a specified length of plastic film or no rigid Sheeting. Two specimen are cited, a rectangular type and one with a constant radius testing length.
→ Grippers
→ 1600 Sector
→ Pointer
→ Sector Lock
→ Sturdy Base
→ Adjustable Footrest
→ Counter Weights
→ Scale
Significance :
This method is of value in ranking relative tearing resistance of various plastic films and thin sheeting of comparable thickness. Experience has shown the test to have its best reliability on relatively less extensible films and sheeting. Variable elongation and oblique tearing effects on the more extensible films preclude its use as a precise production control tool for these types of plastic.
→ Capacity : 1600gms; 3200gms; 6400 gms;
→ Clamping surfaces of each clamp : L-35.5mmxM-15.5mm
→ Distance between clamps : 2.5 +/-0.25mm
→ Tearing Distance : 43 +/0.15mm
→ Slit Size : 20mm
→ Scale Reading : 0 to 100% Range
→ Calibration check weight: At 1600gms: At 3200gms. : At 6400gms
→ Standards : D-689 ;BS 4153; ASTM D1424; DIN 53862; M&S 29

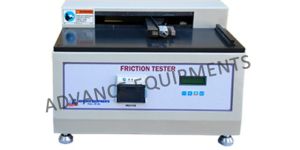

We are leading Static & Kinetic Coefficient Of Friction Tester - Digital With Printer, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per ASTM D-1894
To determine the coefficient of friction of plastic films and sheets
Model: AE-SK-DP
Reference Standard: ASTM
Specifications :
→ System Status : Digital + Printer.
→ Data Entry : Through alpha-numeric keys.
→ Result : Displayed on LCD & will be printed through printer.
→ Reports in Terms of : Peak load; Average load; Static friction; Dynamic friction.
→ Load Capacity : 0 – 9.999 kg.
→ Resolution : 1 gram
→ Weight of the Sled : 200 grams
→ Speed of Testing : 150 mm/min (others optional) ***
→ Sample Holding System : Spring loaded (other optional)***
Accessories: 3 no’s of aluminium anodised Templates
→ Supply : 230 VAC/50 Hz
→ Power : 120 Watts
→ Paint : Powder coated
We are leading Static & Kinetic Coefficient Of Friction Tester - Digital With Printer, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per ASTM D-1894
To determine the coefficient of friction of plastic films and sheets
Model: AE-SK-DP
Reference Standard: ASTM
Specifications :
→ System Status : Digital + Printer.
→ Data Entry : Through alpha-numeric keys.
→ Result : Displayed on LCD & will be printed through printer.
→ Reports in Terms of : Peak load; Average load; Static friction; Dynamic friction.
→ Load Capacity : 0 – 9.999 kg.
→ Resolution : 1 gram
→ Weight of the Sled : 200 grams
→ Speed of Testing : 150 mm/min (others optional) ***
→ Sample Holding System : Spring loaded (other optional)***
Accessories: 3 no’s of aluminium anodised Templates
→ Supply : 230 VAC/50 Hz
→ Power : 120 Watts
→ Paint : Powder coated
We are leading Seat Impact Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
To check the impact effect on the seat surface of the plastic molded chairs.→ A pneumatic cylinder of 400mm stroke and diameter of
40 mm.
→ Electrically operated solenoid valve will be provided to move the piston UP & DN
→ An 18 kg weight will be provided to check impact on furniture.
→ A counter will be provided to count the number of trials.
→ Four hard chrome plated shafts of 2.0 meter height will be provided.
→ A lock will be provided to adjust the height of box containing pneumatic cylinder and solenoid valve.
→ Impact Static weight: 25 kg.
→ Impact Cycles Range: 0 - 99999
→ Air Supply: 5 Kg/cmSq.
→ Supply: 230 VAC/50Hz
We are leading Seat Impact Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
To check the impact effect on the seat surface of the plastic molded chairs.→ A pneumatic cylinder of 400mm stroke and diameter of
40 mm.
→ Electrically operated solenoid valve will be provided to move the piston UP & DN
→ An 18 kg weight will be provided to check impact on furniture.
→ A counter will be provided to count the number of trials.
→ Four hard chrome plated shafts of 2.0 meter height will be provided.
→ A lock will be provided to adjust the height of box containing pneumatic cylinder and solenoid valve.
→ Impact Static weight: 25 kg.
→ Impact Cycles Range: 0 - 99999
→ Air Supply: 5 Kg/cmSq.
→ Supply: 230 VAC/50Hz

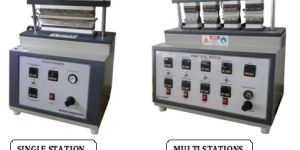

We are leading Sealing Machine, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
→ Model: AE-W20-L300-1
→ Mechanical-electrical integration of control system.
→ Sealing Area – 20 X 300 mm Flat ----- Single Part (others optional)
→ Seal temperature: Room temperature - +300°c
→ Accuracy: ±0.2°c.
→ Heating system for both jaws.
→ Pneumatic System for jaw pressure
→ Pressure: 0.05Mpa--0.7Mpa
→ Dwell time: 0.01s- 9.99 secs
→ P.I.D. temperature controller – 02 No’s.
→ Power: 1.5 Kw
→ Supply: 230 VAC/50 Hz
We are leading Sealing Machine, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
→ Model: AE-W20-L300-1
→ Mechanical-electrical integration of control system.
→ Sealing Area – 20 X 300 mm Flat ----- Single Part (others optional)
→ Seal temperature: Room temperature - +300°c
→ Accuracy: ±0.2°c.
→ Heating system for both jaws.
→ Pneumatic System for jaw pressure
→ Pressure: 0.05Mpa--0.7Mpa
→ Dwell time: 0.01s- 9.99 secs
→ P.I.D. temperature controller – 02 No’s.
→ Power: 1.5 Kw
→ Supply: 230 VAC/50 Hz
Engineers have many factors as consideration to choose material in mechanical engineering design, one of the most important factors is wear resistance. Wear resistance is the ability of a material to resist the gradual wearing away caused by abrasion and friction with another material.
Engineers have many factors as consideration to choose material in mechanical engineering design, one of the most important factors is wear resistance. Wear resistance is the ability of a material to resist the gradual wearing away caused by abrasion and friction with another material.
We are leading Sand Abrasion Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per ASTM/ ISO15527/IS standards
Wear Resistance
Engineers have many factors as consideration to choose material in mechanical engineering design, one of the most important factors is wear resistance. Wear resistance is the ability of a material to resist the gradual wearing away caused by abrasion and friction with another material.
Many methods used to measure material wear resistance, for thermoplastics wear resistance uses and slurry test by ISO15527 reference.
By sand slurry test method, specimens rotated at 200–2400 rpm for 3 hours inside test cup that containing slurry abrasive material (silica sand or aluminum oxide).
After testing, the loss in mass of the test specimens calculated and compared to another material specimen and specifies percentage of mass loss
We are leading Sand Abrasion Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per ASTM/ ISO15527/IS standards
Wear Resistance
Engineers have many factors as consideration to choose material in mechanical engineering design, one of the most important factors is wear resistance. Wear resistance is the ability of a material to resist the gradual wearing away caused by abrasion and friction with another material.
Many methods used to measure material wear resistance, for thermoplastics wear resistance uses and slurry test by ISO15527 reference.
By sand slurry test method, specimens rotated at 200–2400 rpm for 3 hours inside test cup that containing slurry abrasive material (silica sand or aluminum oxide).
After testing, the loss in mass of the test specimens calculated and compared to another material specimen and specifies percentage of mass loss
We are leading Rain Chambers, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per IS 10322 / IEC 60529 IPX3, IPX4, IPX5, IPX6
The apparatus will consist will consist of an oscillating pipe of stainless steel 304, formed in to semi-circle having radius of 900mm
The pipe will be oscillated so as to describe an angle of 60 deg and 90 deg max up to 150 deg. C from vertical line in both the direction. The duration will be about 2 to 4 seconds. The pipe will be provided with holes of 0.4mm dia at a pitch of 50mm. The pipe will be provided with end connections which will be mounted on suitable two horizontal pipes with coupling to circulate the water in the semi circular tube.
The driver will be through geared motor.
The pump with by-pass valve will be provided suitable to be used for both rain proof apparatus as well as jet proof apparatus as per IPX6.
A panel will be provided with gauge to indicate the water pressure.
Timer will be provided of 0 to 30 minutes to set spray time and ON/OFF switch also will be provided.
We are leading Rain Chambers, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
As per IS 10322 / IEC 60529 IPX3, IPX4, IPX5, IPX6
The apparatus will consist will consist of an oscillating pipe of stainless steel 304, formed in to semi-circle having radius of 900mm
The pipe will be oscillated so as to describe an angle of 60 deg and 90 deg max up to 150 deg. C from vertical line in both the direction. The duration will be about 2 to 4 seconds. The pipe will be provided with holes of 0.4mm dia at a pitch of 50mm. The pipe will be provided with end connections which will be mounted on suitable two horizontal pipes with coupling to circulate the water in the semi circular tube.
The driver will be through geared motor.
The pump with by-pass valve will be provided suitable to be used for both rain proof apparatus as well as jet proof apparatus as per IPX6.
A panel will be provided with gauge to indicate the water pressure.
Timer will be provided of 0 to 30 minutes to set spray time and ON/OFF switch also will be provided.

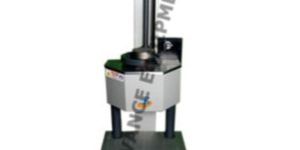

We are leading Plastic Testing Instrument, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
Specifications :
→ Temperature controller : Micro processor based PID controller with temperature range from ambient to 400ºC, resolution of 0.1ºC and accuracy of + 0.1ºC.
→ Timer : Digital presettable with a range up to 59 minutes, 59 seconds.
→ Sample cutting: Auto [Motorized]
→ Weights : 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg.
→ Accessories : Standard accessories*.
→ Paint : Powder coated.
→ Power : 230 Volts, 50 Hz, single phase.
We are leading Plastic Testing Instrument, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
Specifications :
→ Temperature controller : Micro processor based PID controller with temperature range from ambient to 400ºC, resolution of 0.1ºC and accuracy of + 0.1ºC.
→ Timer : Digital presettable with a range up to 59 minutes, 59 seconds.
→ Sample cutting: Auto [Motorized]
→ Weights : 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg.
→ Accessories : Standard accessories*.
→ Paint : Powder coated.
→ Power : 230 Volts, 50 Hz, single phase.
Plastic Testing Machines range is made using high-grade raw materials in compliance with industry standards, which is widely known for its functionality and optimum performance. these products find their relevance in packaging, ropes, textiles, stationery and other related industries.
Plastic Testing Machines range is made using high-grade raw materials in compliance with industry standards, which is widely known for its functionality and optimum performance. these products find their relevance in packaging, ropes, textiles, stationery and other related industries.
We are leading Pipe Imapct Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
AS PER IS: 4985-2000 & IS: 12818-1992 R-PVC Pipes
Features :
Support system for the micro duct at the base.
Paint : Powder Coated
Specifications :
→ Striker Weight : 1 Kg
→ Permissible Tolerance on mass of striker : ± 0.5 %
→ Impact Nose : 13mm radius Hemispherical (SS 316 Hardened one, Polished and free from indentations or other imperfections)
→ Rigid specimen support : 120 0 V Block.
→ Height of fall: 2 Meters.
→ Main frame with guide rails or tube with true vertical position to accommodate striker.
→ Drop weight solenoid release and automatically returned using pneumatically operated rod less cylinder.
→ Paint : Powder coated.
Applications :
→ In Plastic Industry/Polymer Industry
→ In Rubber Industry
→ In Textile Industry
→ In Packaging Industry
→ In Pharmaceutical Industry
→ In Electronic Industry
→ In Engineering Industry
→ In Automobile & Aerospace Industry
We are leading Pipe Imapct Tester, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
AS PER IS: 4985-2000 & IS: 12818-1992 R-PVC Pipes
Features :
Support system for the micro duct at the base.
Paint : Powder Coated
Specifications :
→ Striker Weight : 1 Kg
→ Permissible Tolerance on mass of striker : ± 0.5 %
→ Impact Nose : 13mm radius Hemispherical (SS 316 Hardened one, Polished and free from indentations or other imperfections)
→ Rigid specimen support : 120 0 V Block.
→ Height of fall: 2 Meters.
→ Main frame with guide rails or tube with true vertical position to accommodate striker.
→ Drop weight solenoid release and automatically returned using pneumatically operated rod less cylinder.
→ Paint : Powder coated.
Applications :
→ In Plastic Industry/Polymer Industry
→ In Rubber Industry
→ In Textile Industry
→ In Packaging Industry
→ In Pharmaceutical Industry
→ In Electronic Industry
→ In Engineering Industry
→ In Automobile & Aerospace Industry
We are leading Muffle Furnace, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
→ Models: AE-MF-S
→ Working Size: 4” X 4” X 9”
→ Temperature Controlling System: Microcontroller based PID
→ Temperature Range: Ambient – 1100°C ***
→ Temperature Resolution: 1°C
→ Accuracy: +/- 0.25% of the range in throughout the chamber
→ Safety Thermal Fuse Protection: Optional***
→ Safety MCB Protection: Available ***
→ Smoke Ventilation: Provided on backside
→ Accessories: Crucible; Long Twister
→ Supply: 230 VAC/50 Hz
→ Power: 1.5 KW
→ Paint: Powder coated
We are leading Muffle Furnace, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
→ Models: AE-MF-S
→ Working Size: 4” X 4” X 9”
→ Temperature Controlling System: Microcontroller based PID
→ Temperature Range: Ambient – 1100°C ***
→ Temperature Resolution: 1°C
→ Accuracy: +/- 0.25% of the range in throughout the chamber
→ Safety Thermal Fuse Protection: Optional***
→ Safety MCB Protection: Available ***
→ Smoke Ventilation: Provided on backside
→ Accessories: Crucible; Long Twister
→ Supply: 230 VAC/50 Hz
→ Power: 1.5 KW
→ Paint: Powder coated

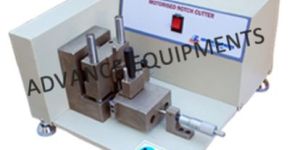

We are leading Motorised Notch Cutter - Analog, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
For making “V” notches in Izod/Charpy samples as per ASTM D256
→ Reference Standards: ASTM, ISO, IS
→ Models: AE-MNC-A
→ System Status: Analog
→ Range: 0 – 25.00 mm
→ Resolution: 0.01 mm
→ Cutting Angle of Tool: 45°C
→ Samples Notching: At a time 5 samples, having 3.5 mm thickness of each
→ Supply: 230 VAC/50 Hz
→ Power: 250 Watts
→ Paint: Powder coated
We are leading Motorised Notch Cutter - Analog, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
For making “V” notches in Izod/Charpy samples as per ASTM D256
→ Reference Standards: ASTM, ISO, IS
→ Models: AE-MNC-A
→ System Status: Analog
→ Range: 0 – 25.00 mm
→ Resolution: 0.01 mm
→ Cutting Angle of Tool: 45°C
→ Samples Notching: At a time 5 samples, having 3.5 mm thickness of each
→ Supply: 230 VAC/50 Hz
→ Power: 250 Watts
→ Paint: Powder coated
We are leading Moisture Analyzers, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
→ Temperature range: 50 - 160 °C
→ Minimum sample weight: 0.5 g
→ Maximum sample weight: 35 g
→ Readability moisture content: 0.01%
→ Readability: 1 mg
→ Temperature adjustment: Intervals of 1 °C
→ Results: Moisture and dry content in %, dry content in g, ATRO Dry, ATRO Wet
→ Drying programs: 1 (standard)
→ Switch-off criteria Fully automatic, manual, time controlled
→ Repeatability (s) (2 g sample): ± 0.15 %
→ Repeatability (s) (10 g sample): ± 0.05 %
→ Interface: RS232C
→ Display: LCD back-lit, blue on white background
→ Printer: External
We are leading Moisture Analyzers, Manufacturers, Suppliers & Exporters Located in Dombivli Dist. Thane, Mumbai India.
→ Temperature range: 50 - 160 °C
→ Minimum sample weight: 0.5 g
→ Maximum sample weight: 35 g
→ Readability moisture content: 0.01%
→ Readability: 1 mg
→ Temperature adjustment: Intervals of 1 °C
→ Results: Moisture and dry content in %, dry content in g, ATRO Dry, ATRO Wet
→ Drying programs: 1 (standard)
→ Switch-off criteria Fully automatic, manual, time controlled
→ Repeatability (s) (2 g sample): ± 0.15 %
→ Repeatability (s) (10 g sample): ± 0.05 %
→ Interface: RS232C
→ Display: LCD back-lit, blue on white background
→ Printer: External
Reviews & Ratings
Write a Review
Post Free Ad
