Bhartiya Industries Upvan, Thane, Maharashtra

The Pumps are designed and manufactured indigenously under strict quality control and also supported by a prompt after sales services. The Pump units are complete with Prime Mover (Electric Motor Diesel or Gas Engine), Speed Reduces (Pulley drive Gear Box), Control Panel, Standard accessories like relief valve, pressure gauge and regulating valves. Mountings either on Base plate Oil field Skid, or Trailers depending on customer requirements.

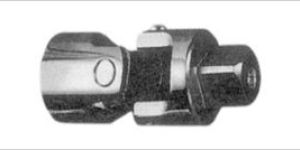

Our product Universal Joint is useful for tightening bolts or nuts located at congested areas & at different positions, which cannot be operated by standard tools.  Our product Universal Joint works as a interject for Bi-Hex and driving tool.

Turk Head Brush is use for removal of soft, light scale deposited in the tubes.  Brush Size – from 1”(25.4mm) to 6”(152.4mm).

We manufactured the System which is mounted on 4 wheels which can be easily carried out & movable on site. We have used latest technology in hydraulic pump supplied with hydraulic drive resulting in subcompact pump creating 100 bar pressure. A pressure setting pumps help in adjusting tube expansion process. Automatically the drive gets trips once the required wall thinning or expansion process is completed.

We manufacture tube plugs which are useful for closing the damage tubes or leaked tubes of Boilers, Condensers, Heat Exchangers & other process equipments. Available in One Piece & Two Piece.

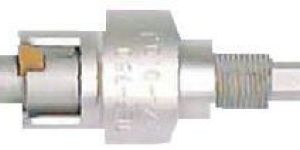

We manufacture Tools such as Tube End-Facers, Tube Sheet Grooving Tools, Serrating Tools, Tube Guide, Tube sheet Reamer, Tube Sheet Hole Brush, Belling Tools, Tube Facing Machines, Tube Beveling Machines & Tube Leak Detectors etc.

Feature : One size of tool is suitable for use on multiple tube thickness by interchanging pilot.

Industrial Tube Cleaners or Tube Cleaners required by Industries are essential to clean efficiency robbing deposits and maintain the heat exchange performance of tubes maximum in a variety of heat exchange environments. Tube Cleaning Applications include Fire Tube Cleaning, Boiler Tube Cleaning or Water Tube Cleaning, HVAC Chiller Tube Cleaning, Shell Heat Exchanger Tube Cleaning and Tube Heat Exchanger Tube Cleaning, Steam Condensers Tube Cleaning and Surface Condensers Tube Cleaning.

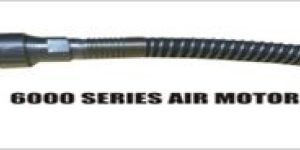

We manufactured most effective, highly efficiency, light weight air motor which is easy to handle for cleaning process in Boiler’s & Heat Exchanger’s. For cleaning of curved & bend tubes of boiler’s, turbine’s, heat exchanger’s pneumatic boiler tube cleaner is more effective, cost & time saving equipment. It is also know as Turbine Style tube Cleaner

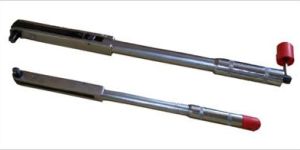

We manufactured Torque Wrenches which are useful for tightening bolts & Nuts in control manner to avoid under/over stressing. Our product comes in adjustable / preset type which are manufactured in ratchet & non ratchet types. Our products are light weight suitable in rugged working conditions for Indian Industries specially the automobile sector. Our product has vast demand in heavy industries all over India, automobile & vehicle industry uses Torque Wrenches in large scale.

YT’ Series are mainly used for bend & curved tubes. It is made of cutter head & pivoted arms which helps to reach all parts of tube due to centrifugal force. Used for tube Size(I.D) from32mm to 102mm.

‘T’ Series are mainly used in boiler, air heaters for cleaning curved & straight tubes. It is made out of three wheels, each one of straight teeth, right hand cut teeth, left hand cut teeth to avoid grooving of scale & rapid cleaning of tubes. Used for tube Size (I.D) from 31mm to 102mm.(2 layers & 3 layers tool head cutters are also available in ‘T’Series.

  ‘CT’ Series are used for removal of hard scale deposited in tubes. It is made out of 15 wheel cutter (right wheel 4, left wheel 4, straight wheel 4 & bevel wheel 3) self expanding & with loaded spring. Used for tube Size (I.D) from 31mm to 53 mm.

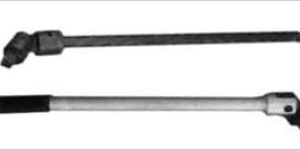

Swivel Handel is been used by the operator’s as a driving tool for manually operated sockets to tight bolts or nuts located at congested areas & out of reach by regular driving tools. To provide torque as per its size we have designed driving handles with sufficient length. Our products range :- sizes in 6.35mm(1/4”), 9.5mm(3/8”), 12.7mm(1/2”), 19mm(3/4:) 25.4(1”), Square Drive

  Square Drive Adaptors is a convertor to permit the use of sockets & driving tools of various sizes of square drive. The capacity of torque of adaptors is restricted to the capacity of smaller square drive. Our products range :- sizes in 6.35mm(1/4”), 9.5mm(3/8”), 12.7mm(1/2”), 19mm(3/4:) 25.4(1”), 38.1mm(1.1/2”) Square Drive.

For driving manually operated sockets Sliding T-Bar tool is been used. For application of the force without any distress a big leverage handle is been used.To restrict the movement of bar at any possessions a ball is been provided to Sliding T-Head. Our products range :- sizes in 6.35mm(1/4”), 9.5mm(3/8”), 12.7mm(1/2”), 19mm(3/4:) 25.4(1”), 38.1mm(1.1/2”) Square Drive.

Number Of Flower : SLIDING T-BARS

Material : Metal, Mild Steel, Silver, Zinc Alloy

Feature : Durable, Fine Finish, Long Lasting, Rust Proof

Condition : New

Finishing : Polished

Shoot Thru Brushes :- It is used for cleaning soft deposits in the tubes.   Brush Size- from 3/8 to 1.1/4

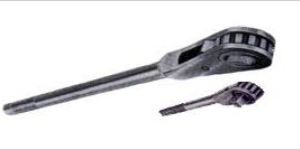

  Our product Reversible Ratchet Handle comes with excellent feature of reversing the position of operation without disconnecting the socket. Our product can be operated with right & left hand. Our products range :-  sizes in 6.35mm(1/4”), 9.5mm(3/8”), 12.7mm(1/2”), 19mm(3/4:) 25.4(1”), Square Drive

In this system of tube cleaning different type & diameter’s of shaft as per tube I.D. of h hollow air craft quality is used. The different type & diameter of shafts are coupled together to form required length of tube to be cleaned. A cleaning tool is attached to the hollow shaft & water flows through the tube & flushes out deposits loosened by the cleaning tools. For hard & chocked tubes carbide drills is been used, for light deposits brushes & for polishing buffing tools are used in the end. In this system the air motor’s rotation & water flow is controlled individually.

BPC-P is a easily movable machine, which can be carried from one place to other by Operator’s. The attached flexible shaft gets rotates at 1740 rpm speed, simultaneously water gets injected through the nylon casing to the tool attached at the tip of flexible shaft. The tool removes the deposits & water flushes through it. The water injects only when the machine is running it is ensure with help of Solenoid. BPC- P is a portable machine which can be carried by technician on the move. Flexible shaft rotates at speed of 1740 rpm and water gets injected simultaneously through the nylon casing to the cleaning tool. As the tool removes the deposits, the water flow flushes them out. A solenoid valve ensures that water flows only when machine is running. Following Specification are available with all Units:- 115 v 60 Hz, 115 v 50 Hz – 9 Amps. 220 v 60 Hz, 220 v 50 Hz – 4.5 Amps.

Portable Pneumatic Tube Cleaner Kit:- We supply below tools in a Handy Metal Box easy to carry. It consist of Drive(BC 20 or BC 330) 1 No., drive shaft hollow type 5 No., Shaft coupling 5 No., Drive coupling as per length of the tube to be cleaned & cleaning tools 20 No.(carbide drill, brushes, buffing tools)
