Crescendo India Palghar, Maharashtra

CRESCENDO make Vertical Laminar Airflow Benches are designed to provide Class 100 workstations for creation of a bacterial dust free air space. VLAFs are used for work with low risk substances and materials, when protection of working material from environment is necessary or the item requires a sterile working zone.             Technical Details SS 304 / CRCA powder coated construction except filters and motor-blower assemblies which will be in standard execution. Conventional Hepa Filter for supply which conforms to EU 12 Grade with an efficiency rating better than 99.97% for 0.3 µ. Also, Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3 µ at supply position can be used. Primary pre filter for suction, which conforms to EU 6 Grade, with efficiency of 95% down to 5 micron. These Filters are basically made from micro-Fibre-glass washable media. Motor, Blower provided are statically and dynamically balanced to supply air flow with sufficient capacity and static pressure for entire life of HEPA. Blower is high performance, noise abated and light weighted. Magnehelic Differential Pressure Gauge (0 - 25 mm or 0-50 mm) to monitor pressure drop across HEPA Filter with respect to ambient. Fluorescent Light (250 Lux) ON/OFF Switches for motor & lights. 5/15 Amp single-phase switch socket for external equipment DOP Test port at upstream of HEPA filter Soft wall curtain to make Laminar Airflow direct on the work table Site Requirements Client to provide layout drawings (with respect to unit location) with dimensional details to enable us to work out exact dimensions of the Laminar Flow Unit. Also following details will be required to enable us to calculate length of ceiling suspension members & Polycarbonate / Equivalentside panels :Floor to Main Ceiling heightFloor to False Ceiling heightFloor to work table height Client to confirm the preferred location of the Control Panel and ON/OFF switch. In case of wall mounted or remotely located control panel, provision of any electrical cabling required from unit to control panel & control panel to the ON/OFF switch will be in Client scope. Client to confirm the location of supply pendant to enable us to decide on the entry of main cable in the unit to avoid any loose from projecting out. Concealing of electrical cabling (if required ) is in Client's scope. Client to provide facility of 20 psig compressed air / nitrogen cylinder any compressed gas not harmful to personnel for carrying out the HEPA Filter Integrity Test. Test Carried Out At Site HEPA Filter Integrity Test Particle Count Test Air Velocity Measurement Test Smoke Profile Test (Video Shooting/ Photography to be arranged by client ) Performance Air cleanliness : ISO Class 5 Air Velocities : 90 ± 10 FPM Air Flow : Vertical Noise Level : Less than 65 dB when Ambient is not greater than 55 dB Vibration Level : Minimum Power Supply : 230 V AC 1-Ø 50HZ

CRESCENDO make Static Pass box is designed to minimize traffic and cross contamination between two areas; and at the same time transfer parts, tools, products, WIP etc. from one area to another area. Technical Details Double walled SS 304 / CRCA Powder Coated construction with glass view panels, SS handles, hinges & gasket. Mechanical / Electro - Magnetic Interlocking to ensure only one side door will be opened at a time. Indicating Lamp on both sides. Door release button on both sides. Fluorescent Light and UV Light as per requirement along with Hour Meter.   Power Supply : 230 V AC 1-Ø 50HZ Site Requirements Client to provide the cut - out in Wall / Panel for fixing the Pass Box. Client to provide mounting arrangement i.e. stand as per site requirement.

The wide range of AHUs manufactured in the production unit are with world class capabilities and special features like internal covings & thermal brake external frames.They are tailor made depending on the design, applications, availability of space and similar other parameters.

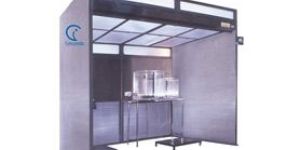

CRESCENDO make Reverse Laminar Airflow Bench finds a major application in sampling and dispensing. Majorly used for mixed airflow stream to control the hazardous emission of dust powder during dispensing or sampling process. Dust air particles are being filtered and clean air stream is provided in the zone of exposed product and the operator breathing zone. The RLAF is designed to provide Class 100 working environment at rest with built in scavenging system to ensure product, operator as well as surrounding environment protection. Technical Details SS 304 / CRCA powder coated construction except Filters and motor-blower assemblies which will be in standard execution. Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3 µ at exhaust position. Prefilter, which conforms to EU 4 Grade, with efficiency of 90% down to 10 micron. These Filters are basically made from micro-Fibre-glass washable media. Intermediate filters which conform to EU 7 Grade, with efficiency of 95% down to 3 micron. These Filters are basically made from micro-Fibre-glass media and are inherently washable. Motor Blower provided are statically and dynamically balanced to supply air flow with sufficient capacity and static pressure for entire life of HEPA. Blower is high performance, noise abated and light weighted. SS 304 Double Walled Side Panels. Magnehelic Differential Pressure Gauges (0 - 25 mm) to monitor pressure drop across intermediate filter & HEPA filter; and (0-10mm) to monitor pressure drop across Prefilter with respect to ambient. Fluorescent Light (250 Lux) ON/OFF Switches for motor & lights Electrical control panel mounted on the side panel of the unit. 5/15 Amp single-phase switch socket for external equipment. DOP Test port at upstream of HEPA filter to personnel for carrying out the HEPA Filter Integrity Test. Site Requirements Client to ensure that floor is properly leveled; so that the equipment is installed with covings flush with the floor to avoid any gap. The unit will be provided with 3 mtr. Long cable. In case of wall mounted or remotely located control panel, provision of any electrical cabling required from unit to control panel & control panel to the ON / OFF switch will be in Client's scope. Client to confirm the location of supply pendant to enable us to decide on the entry of main cable in the unit to avoid any loose from projecting out. Concealing of electrical cabling (if so required ) is in Client's scope. Any electrical cabling required between control panel to the supply point is in Client's scope. Client to provide facility of 20 psig compressed air / nitrogen cylinder any compressed gas not harmful to personnel for carrying out the HEPA Filter Integrity Test. Test Carried Out At Site HEPA Filter Integrity Test Particle Count Test Air Velocity Measurement Test Smoke Profile Test (Video Shooting/ Photography to be arranged by client ) Performance Air cleanliness : ISO Class 5 Air Velocities : 90 ± 10 FPM Air Flow : Vertical - Recirculatory Noise Level : Less than 65 dB when Ambient is not greater than 55 dB Vibration Level : Minimum Power Supply : 230 V AC 1-Ø 50HZ

Reverse Laminar Airflow Bench finds a major application in sampling and dispensing. Majorly used for mixed airflow stream to control the hazardous emission of dust powder during dispensing or sampling process.The unit will be provided with 3 mtr. Long cable. In case of wall mounted or remotely located control panel, provision of any electrical cabling required from unit to control panel & control panel to the ON OFF switch will be in Client's scope.

Introduction More precisely known as return air risers, which are used to collect the return air in a specific manner to maintain a perfect laminar flow.         Application They find a wide application in Pharmaceuticals and clean room industry where proper class of cleanliness is to be maintained. Return air risers are manufactured in the factory as per the design requirement. They are constructed in G.I. / S.S. or anodized aluminum and then powder coated for better aesthetic looks. Additional Features Like Prefilters alongwith front removable / accessible door can be provided as per requirement. (Any other accessories as per requirement can be provided.)

Introduction Also known as rough filters or coil protection filters. Available from EU-1 to EU-4 as per European standards. Application Filters particles down to 10 to 20 microns with an efficiency of 85% to 95%. Recommended for comfort and non-critical industrial applications. They can be installed directly in AHUs or mounted in banks. Media and Its Function Superior quality non-woven synthetic filter media, sandwiched between two layers of HDPE mesh which acts as a retainer and screens out large particles, thus, preventing them from being embedded in the media. The finer particles are filtered by the media. (Also available other filter media like woven HDPE, glass fibre etc.) Construction and Supports The pleating of the media enhances the filtration area for better efficiency. To eliminate the possibility of even a small amount of dirty air bypass, the media pack is securely bonded to the periphery of the enclosure frame using epoxy hardener. Available in M.S. / Aluminium construction, spray painted with synthetic enamel paints.

Suitable for supply and return for ceiling installations. Efficient draftless air distribution for all types of ceilings. Built in pattern controllers provide 1,2,3,4 way flow. Material Aluminium / Galvanised Steel / Stainless Steel     Finish Powder coated, natural anodized, colour anodized, primer coated, emulsion painted or buff finish.

High efficiency particulate Air Filters are also known as Absolute filters, which are the ultimate means of removal of submicron air borne particles and are widely used, HEPA filters assure a filter that is 99.97% efficient on particles of 0.3 micron in size or larger. Efficiencies of 50%, 65%, 95% are also available depending on the requirement.

Introduction Also known as fine filters or 5 micron / 3 micron filters, & are suitable for both EU-5 and EU-6 operations.       Application Filters particles down to 5 or 3 microns, with an efficiency of 99.9%. Recommended for industrial and class applications. These filters can be directly installed in AHUs or mounted in banks in separate single skin plenums. Media and Its Functions Superior quality non-woven synthetic filter media with regular labyrinthine structure being built of synthetic fibres, which are bonded together by a special resin. This media is sandwiched between two layers of HDPE mesh, which acts as a retainer. Construction and Support Large number of pleats of the media enhances the filtration area for better efficiency. To improve the efficiency of the filters, they are made 100% leak proof by securely fixing the media pack to the periphery of the enclosure frame using epoxy hardener. Available in M.S. / Aluminium construction with / without flange, and are spray painted with synthetic enamel paints.

Horizontal Laminar Airflow Bench (HLAF)     CRESCENDO make Horizontal Laminar Airflow Benches are designed to provide Class 100 workstations for creation of a bacterial dust free air space. HLAFs are used for work with low risk substances and materials, when protection of working material from environment is necessary or the item requires a sterile working zone.   Technical Details SS 304 / CRCA powder coated construction except Filters and motor-blower assemblies which will be in standard execution. Conventional Hepa Filter for supply which confirms to EU 12 Grade with an efficiency rating better than 99.97% for 0.3 µ. Also, Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3 µ at supply position can be used. Primary Pre filters for suction which confirms to EU 6 Grade with an efficiency rating better than 95% down to 5µ made from micro fiber glass washable media. Motor, Blower provided are statically and dynamically balanced to supply air flow with sufficient capacity and static pressure for entire life of HEPA. Blower is high performance, noise abated and light weighted. Magnehelic Differential Pressure Gauge (0 - 25 mm or 0-50 mm) to monitor pressure drop across HEPA Filter. Provision for Gas cock and Vacuum cock as per requirement. Fluorescent Light (250 Lux). ON/OFF Switches for motor & lights. 5/15 Amp single-phase switch socket for external equipment. DOP Test port at upstream of HEPA filter. Hour Meter to personnel fr carrying out the HEPA Filter Integrity Test. Site Requirements Client to ensure that floor is properly leveled; so that the equipment is installed with covings flush with the floor to avoid any gap. The unit will be provided with 3 mtr. Long cable. In case of wall mounted or remotely located control panel, provision of any electrical cabling required from unit to control panel & control panel to the ON / OFF switch will be in Client's scope. Client to confirm the location of supply pendant to enable us to decide on the entry of main cable in the unit to avoid any loose from projecting out. Concealing of electrical cabling (if so required ) is in Client's scope. Client to provide facility of 20 psig compressed air / nitrogen cylinder any compressed gas not harmful to personnel for carrying out the HEPA Filter Integrity Test. Test Carried Out At Site HEPA Filter Integrity Test Particle Count Test Air Velocity Measurement Test Smoke Profile Test (Video Shooting/ Photography to be arranged by client ) Performance Air cleanliness : ISO Class 5 Air Velocities : 90 ± 10 FPM Air Flow : Horizontal Noise Level : Less than 65 dB when Ambient is not greater than 55 dB Vibration Level : Minimum Power Supply : 230 V AC 1-Ø 50HZ

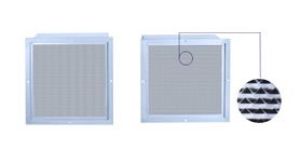

Introduction High efficiency particulate Air Filters are also known as Absolute filters, which are the ultimate means of removal of submicron air borne particles and are widely used for EU-13 applications.   Application All HEPA filters assure a filter that is 99.97% efficient on particles of 0.3 micron in size or larger. Efficiencies of 50%, 65%, 95% are also available depending on the requirement.   These filters find wide usage in all clean room and pharmaceutical applications where class of cleanliness and particle count is a must. Can be installed directly in AHUs or in a plenum or can be terminally mounted. Media Continuous sheet of non-combustible, water repellant, submicronic boro silicate glass fibre media. The radii edge configuration promotes maximum exposure of media surface to airflow. Types Deep Pleat Mini Pleat Super HEPA Construction and Support Pleated around radii edge corrugated aluminium separators. Available in aluminium filter frames with / without flange. However, S.S 304 filter frames are provided as per requirement. A fluid fire retardant adhesive is provided, which when dry hardened provides a positive seal between filter pack and rigid frame. Also, a closed cell neoprene gasket is provided for positive sealing.

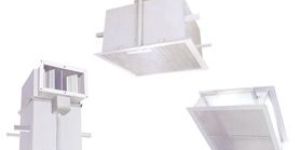

Meant for housing the HEPA filters to prevent any leakage damage.16G GI epoxy painted or MS powder coated complete with pressure plates, cleats, dampers etc.DOP Port provided depending on the requirement for more exhaustive HEPA BOXES.

Aerofoil louvers with 0 degree, 15 degree, 30 degree and 45 degree deflections. Suitable for side wall, floor, sill and ceiling mountings. Types Single deflection - Horizontal or vertical deflection. Double deflection - Front Horizontal / Vertical adjustable bars, Rear Horizontal / Vertical adjustable bars   Material Extruded aluminium, mild steel or stainless steel. Finish Powder coated, anodized, emulsion painted, primer coated.

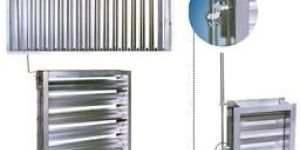

Dampers are devices incorporated into the system to have a proper control on airflow for better maintenance of conditions and better uniformity.Dampers are generally of galvanized iron make or anodized aluminium make. In order to avoid any leakage from the damper, it is provided with overlapping leafs, which can also be incorporated with compression and stop seals for more critical zones.

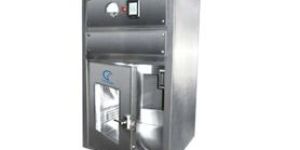

CRESCENDO make Dynamic Pass box is designed to minimize traffic and cross contamination between two areas; and at the same time transfer parts, tools, products etc. from one area to another area. Technical Details Double walled SS 304 / CRCA Powder Coated construction except Filters and motor-blower assemblies which will be in standard execution. Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3 µ at supply position. Return Air prefilter which conforms to EU 6 Grade, with efficiency of 95% down to 5 micron. These Filters are basically made from micro-Fibre-glass media and are inherently washable. Motor, Blower provided are statically and dynamically balanced to supply air flow with sufficient capacity and static pressure for entire life of HEPA. Blower is high performance, noise abated and light weighted. Magnehelic Differential Pressure Gauge (0 - 25 mm or 0-50 mm) to monitor pressure drop across HEPA Filter with respect to ambient. ON/OFF Switches for motor & lights. SS 304 double walled doors with glass view panels, SS handle, hinges, gasket & Automatic Door Bottom Seal as per application. Return Air Grills on side walls. Electro - Magnetic Interlocking to ensure only one side door will be opened at a time. Indicating Lamp on both sides. Door release button on both sides. DOP Test port at upstream of HEPA filter. Fluorescent Light and UV Light as per requirement along with Hour Meter. Site Requirements Client to provide the cut - out in Wall / Panel for fixing the Pass Box. The Pass Box will be provided with SS angle as per application, which will be grouted into the floor. Any civil work required for grouting the Pass Box & outer covings required is not in our scope. Client to provide facility of 20 psig compressed air / nitrogen cylinder any compressed gas not harmful to personnel for carrying out the HEPA Filter Integrity Test. Test Carried Out At Site HEPA Filter Integrity Test Particle Count Test Air Velocity Measurement Test Smoke Profile Test (Video Shooting/ Photography to be arranged by client ) Performance Air cleanliness : ISO Class 5 Air Velocities : 90 ± 10 FPM Air Flow : Vertical - Recirculatory Noise Level : Less than 65 dB when Ambient is not greater than 55 dB Vibration Level : Minimum Power Supply : 230 V AC 1-ø 50HZ

Horizontal Floor Mounted Type All major components are aligned to the base tray, thus making it maintenance and service friendly. Offers sturdy construction and flexible combination of various components like coils, filters etc. to suit specific applications. Vertical Double Skin Air Handling Units Designed to occupy lesser floor space in comparison with horizontal units. Panel opening in front of the fan section enables easy maintenance and serviceability of the unit. Ceiling Suspended Units As the name suggests, can be suspended from the ceiling, thus requiring zero floor space. Completely noiseless and can be tucked away above the false ceiling, or inside the conditioned area itself, thus reducing installation costs and giving flexibility to the design of the interior.

Types Square - Free four way distribution pattern. Rectangular - Free four way distribution system. Circular - 360 degree free air distribution patterns.             Features Designed to reduce ceiling smudging. Brings about proper airflow pattern and uniform air distribution.   Material Aluminium, mild steel, stainless steel. Finish Powder coated / anodized emulsion painted / buff or primer coated.

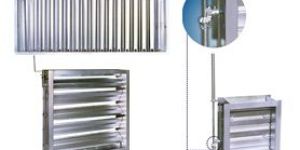

Introduction Basically classified into 3 types : Volume Control Dampers Fire Dampers Gear Dampers               Application Dampers are devices incorporated into the system to have a proper control on airflow for better maintenance of conditions and better uniformity. Construction and Functions Dampers are generally of galvanized iron make or anodized aluminium make. In order to avoid any leakage from the damper, it is provided with overlapping leafs, which can also be incorporated with compression and stop seals for more critical zones. In case of gear dampers, a specialized, lubricated gear mechanism is provided for easy and precision control. In case of fire damper, a fusible link along with a gear mechanism is provided, which shuts down the flow of air from one room to another during a fire hazard. Sizes Tailor made, as per the requirement of the design.

Introduction Most flexible type of filters manufactured as per customer's requirements and are suitable for EU-5 and EU-6 operations. Application Filters particles down to 5 or 3 microns, with an efficiency of 85% to 95%. Recommended for dust extraction applications. It can be installed directly in AHUs. Media Media is non-woven polyster fibres chemically bonded with scrim backing on the exit side. Other media can be provided as per reqirements. Construction & Support Electro galvanized steel rod grilles or anodized Aluminium grilles for bag support, which are sealed with the bags using polyurethane sealants. Bags are intra stitched to prevent bag ballooning and the holes are sealed using synthetic sealants. Standard Selection of Filters

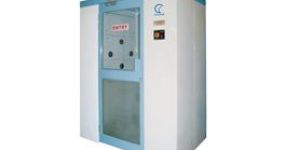

CRESCENDO make Airshower is designed and built to remove surface particles from personnel like lint, dirt, dust, etc.. from the personnel entering or exiting the clean room area. Technical Details SS 304 / CRCA powder coated construction except Filters and motor-blower assemblies which will be in standard execution. Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3 µ at supply position. Intermediate filter which conforms to EU 7 Grade, with efficiency of 95% down to 3 micron. These Filters are basically made from micro-Fibre-glass media and are inherently washable. Primary pre filter for suction, which conforms to EU 6 Grade, with efficiency of 95% down to 5 micron. These Filters are basically made from micro-Fibre-glass washable media. Motor, Blower provided are statically and dynamically balanced to supply air flow with sufficient capacity and static pressure for entire life of HEPA. Blower is high performance, noise abated and light weighted. SS 304 / CRCA powder coated Double Walled Side Panels. Magnehelic Differential Pressure Gauge (0 - 25 mm or 0-50 mm) to monitor pressure drop across HEPA Filter. Electrical control panel mounted on the side panel of the unit. Fluorescent Light (250 Lux) ON/OFF Switches for motor & lights DOP Test port at upstream of HEPA filter. Site Requirements Client to ensure that floor is properly leveled; so that the equipment is installed with covings flush with the floor to avoid any gap. Client to confirm the location of supply pendant to enable us to decide on the entry of main cable in the unit to avoid any loose from projecting out. Concealing of electrical cabling (if so required ) is in Client's scope. Any electrical cabling required between control panel to the supply point is in Client's scope. Client to provide facility of 20 psig compressed air / nitrogen cylinder any compressed gas not harmful to personnel for carrying out the HEPA Filter Integrity Test. Test Carried Out At Site HEPA Filter Integrity Test Particle Count Test Air Velocity Measurement Test Smoke Profile Test (Video Shooting/ Photography to be arranged by client ) Performance Air cleanliness : ISO Class 5 Nozzles Qty : 5 Nos on either side Air Flow : Horizontal cross flow with a duration of 12 seconds Noise Level : Less than 65 dB when Ambient is not greater than 55 dB Vibration Level : Minimum Power Supply : 230 V AC 1-Ø 50HZ

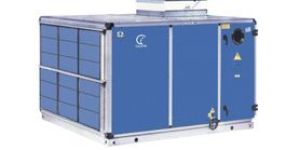

The wide range of AHUs manufactured in the production unit are with world class capabilities and special features like internal covings & thermal brake external frames. They are tailor made depending on the design, applications, availability of space and similar other parameters. The Air Handling Units can be broadly classified as : Single Skin Air Handling Units - for all Ventilation applications Double Skin Air Handling Units - for all Air-conditioning applications Single Skin Air Handling Units As the name suggests, has a single casing made of G.I. or of material as per requirement. Double Skin Air Handling Units As the name suggests, has an outer casing made of sandwiched panels with polyurethane foam acting as a thermal barrier for better insulation. Constructional Features (External Body & Framework) The rigid framework of the unit comprises an assembly of externally chamfered extruded anodized aluminium profiles and nylon glass fibre corner joints. This when incorporated with polyurethane foam, 25 mm / 43 mm, thick, pressure injected sandwiched panels, makes the entire unit anti-corrosive and sweat free. Also, the imported self drilling and self tapping galvanized sheet metal screws adds to the aesthetic beauty of the framework.

Inner Body & Components of the Unit The highly smooth inner surfaces of the panels along with internal covings, reduces drastically the risk of dirt and bacteria accumulation. There is no erosion of internal insulation material or any welding of the joints to provide an air steam with zero contamination. Drain Pan (for air-conditiong applications) The condensate drain pan is fabricated from 0.8 mm / 1 mm thick G.I. / SS304 depending on the application. This wider drain pan with differential slope assures quick and complete water drainage, thus avoiding migration of moisture, which is the major cause of microbiological growth. Filters The unit is provided with 10 / 20 micron, easily washable factory manufactured prefilters. These filters are generally confirming to EU-3 of EN-779 specifications. Also, depending on the requirement, microvee and HEPA filters can also be provided in the unit. Blower Usage of imported Kruger/Nicotra make (AMCA certified) blowers along with anti-vibration spring isolators and rubber mountings isolates the fan from the main structure, thus minimizing vibrations and hence low operating noise. The blowers are balanced after complete assembly to G2.5 level. Fans with the balance grade of G1.0 can be upon request. Cooling Coil The staggered tubes, corrugated plate fins and die formed channels form mild ripples of the flowing air, thus providing excellent heat transfer capability with low air side pressure drop. Mechanical expansion of copper tubes with aluminium fins assures tight bonding to enhance the heat transfer. Performance Standards Generally in accordance to : Fan : AMCA 210 Coils : ARI 410 Motors : S-325 Filters : BS-6540 / ASHRAE 52-76   Other filter sections can also be added depending on the requirement.Specification are subject to change without prior notice.
