Crystal Automation Private Limited Wagle Estate, Thane, Maharashtra

Applications: For size reduction and milling of products to very fine powders down to 10 microns Key Features: Robust construction with SS304 SS316 SS316L contact parts Capacities upto 1000 kghr depending on product bulk density and other properties Easy and rapid cleaning as per current International GMP requirements Tool free maintenance - opening, cleaning and changing of screen does not require any tools and can be done in less than 5 minutes Can be supplied with integral Powder Charging System Also available with VFD for achieving desired particle size vs screen size

Some powder raw materials have the characteristics of low density (low specific gravity) and bad flow ability. By using the Roll Compactor – dry granulation process, it will improve the above characteristics and result in bigger bulk density, higher specific gravity, good flow ability which improves and simplifies the dry process granulation. Applications: Pharmaceuticals: Free flowing granules for automatic packaging Compact granules to reduce package size. Dust free granules to facilitate handling Granules can be filled in smaller capsules Granules for tabletting Food Industry : Granules for compressed candies, chocolate, dairy products, seasoning etc. Chemical Industry : Catalyst, Fertilizers, pesticides, dyes, cosmetics and other chemicals.

For Vacuum Transfer of Powders, Granules, Sugar, Tablets and Pellets in Pharma and Food Industries Applications: For charging of RMG, Sifter, Mill, Mixer, Blender, Bin, Tablet Press or any other such equipment Key Features: Can be used for transfer of products having bulk densities upto 1.0gmcc Total Discharge no Retention No segregation or degradation of Product No tool required for opening & cleaning Available in three sizes for upto 300, 600 & 1200 kghr, depending on bulk density and nature of product Compact design, complying with current international gmp norms Universal adaptability can be easily installed on any receiving equipment like process tank, ibc, conical mill,pin mill, blender, tablet press etc. Adaptors provided to suit existing inter opening on user's equipment Economical and easy to install and operate All contact parts made of ss304 ss316 ss316l and Pharma grade gaskets seals No use of oil or grease in any of the contact parts Mobile trolley mounted version also available All validation documents like dqiqoq are supplied with the system

Applications: For prevention of dusting in plants by trapping of dust at various dust generation sources and collecting the dust at a centralized location Key Features: Compact and efficient hood design to suit the esthetics of the plant interiors No setting of dust in the ducts Facility for easy and quick cleaning of ducts Automatic pulse-jet of filter bags Complete system layout done to suit user's existing plant & equipment

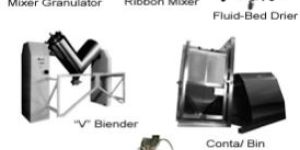

Applications: For uniform and efficient blending mixing of ingredients Key Features: Elegant design with matt finish from outside and mirror finish from inside Blender cones and discharge valves are carefully designed & gas purging facility provided for full discharge of materials Carefully designed and fully removable baffle for efficient and fast blending without damage to powders granules & easy cleaning Contact parts made of SS316, and Pharma grade gaskets seals Integrated Powder Charging System provided, for quick and automatic charging of blender, without manual handling.

Applications: For efficient elevating and loading of bottle crowns into the filler machine in soft drink beverage plants Key Features: Continuous flow of crowns to the filler machine hoppers, resulting in an increase in bottling efficiency by 7 to 10% Reduces uncrowned bottles. No relative motion between the crowns, thus preventing rubbing and hence rusting of crowns Eliminates manual handling of crowns - increases hygienic standards Level sensor logic provided

Applications: For easy lifting and tilting of FBD bowl Key Features: Fully automatic system, with hydraulic lifting and tipping arrangement for quick and easy handling Eliminates tedious and unhygienic manual handling of products. Quick fixing lever clamp provided on the cone to clamp FBD bowl with the system Available in standard capacities of 60kg, 100kg, 200kg, and 300kg.

Applications: For intermediate storage, formulation, blending and handling of products before, between and after various processes. Key Features: Designed with current international GMP guidelines - Without any nooks and corners for easy cleaning Mirror finish from inside and adequate hopper angle for easy and complete discharge of products Contact parts made of SS304 SS316 SS316L and Pharma grade gaskets seals Universal bin handling and stacking system for easy automated handling and stacking of bins Optionally available with castor wheels and wheel locking arrangement Matt finish and ground weld joints on outside with circular legs and frame without sharp corners to avoid water stagnation during washing Butterfly valve provided at bottom discharge HDPE Nylon pads at leg bottom Numbering and Bin Weight indication provided on every bin

Applications: For Granulation, Sizing, Milling in Pharmaceutical, Bulk Drug, Food, Cosemetic, Chemical Industries, etc. Key Features: Hygienic and compact design complying with current international GMP norms All contact parts made of SS304 SS316 SS316L and Pharma grade gaskets seals Sieve can be removed and replaced in less than 30 seconds Operational Interlocks for operator safety Variable Speed Drive for flexibility in having desired results with a wide range of productsc Capacities upto 1000 kghr depending on product bulk density and other properties Tool free maintenance - opening, cleaning and changing of screen does not require any tools and can be done in less than 5 minutes Sieves ranging from 0.25mm to 25mm can be used to achieve various degrees of capacities, granulation and sizing No heating of product during granulation sizing operation, due to better air circulation and lesser impact action. Also available with VFD for achieving desired particle size vs screen size

Applications: For efficient transfer and loading of caps to Filler Machine hopper in Soft Drink Beverage Mineral Water Pharma Food Industries Key Features: Compact design with stainless steel construction Built-in bowler and control panel UV radiation source provided for getting caps free of germs Permits easy loading of caps from cartons to filler machine hopper Automatic delivery of caps to the filling machine on demand Air suction filter provided to protects the caps from dust impurities Level sensor logic provided

Applications: For size reduction and milling of products to very fine powders down to 10 microns Key Features: Robust construction with SS304 SS316 SS316L contact parts Capacities upto 1000 kghr depending on product bulk density and other properties Easy and rapid cleaning as per current International GMP requirements Tool free maintenance - opening, cleaning and changing of screen does not require any tools and can be done in less than 5 minutes Can be supplied with integral Powder Charging System Also available with VFD for achieving desired particle size vs screen size

Applications: For uniform and efficient blending mixing of ingredients Key Features: Elegant design with matt finish from outside and mirror finish from inside Blender cones and discharge valves are carefully designed & gas purging facility provided for full discharge of materials Carefully designed and fully removable baffle for efficient and fast blending without damage to powders granules & easy cleaning Contact parts made of SS316, and Pharma grade gaskets seals Integrated Powder Charging System provided, for quick and automatic charging of blender, without manual handling.
