Dough Mixer Dealers in Thane

Planetary mixers are designed for mixing ointments, paste, wet mass, cream and dry powders. The rotation mixer uses gear transmission to drive two impellers rotating in the same directions, producing the interactive kneading, twisting and dispersing effects.

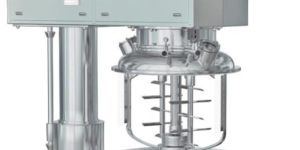

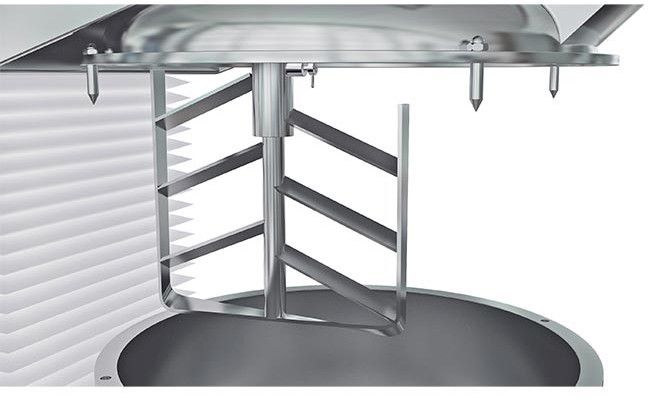

This article on Double Planetary Mixer details the design, construction and operation of double planetary mixer commonly used for mixing of high viscosity materials. The industrial application for which double planetary mixer is used are listed. Media : Solid Powders, Dough, Viscous Pastes Mode of Operation : Batch Mixing Design and Operation Mixing Vessel - The double planetary mixer consists of a vertical cylindrical vessel (referred to as the bowl) within which two mixing blades (referred to as beaters) rotate. The double planetary mixer belongs to the family of change can mixers. In change can mixers; there is a provision to remove the mixing bowl from the mixer assembly either by lowering the bowl from the mixer operating position, or by lifting the mixer drive system. The lifting and lowering is through hydraulic operation. A cylindrical cover is provided between the planetary head and the mixer bowl. Charging nozzles, liquid spray pipes, vacuum connections may be provided on the charging cover. Mixing Blades - The beaters rotate on their own axes, and at the same time they orbit the mixing vessel around the axis of the bowl. The clearance between the external periphery of the beaters and the internal walls of the bowl is generally in the range of 2 – 3 mm. Mixer Drive System – The double planetary mixer is powered by a drive system comprising of a motor and gearbox that drive the planetary head assembly of the mixer. The planetary head assembly consists of a gear train that causes the planetary motion of the beaters. Mixer Seals – The mixer shaft is provided with a sealing arrangement in the area where it exits the planetary head. The mixer seals in a double planetary mixer do not come in contact with the process material. Material Charging and Discharging – Material is loaded in the bowl directly, or may be charged through nozzles provided on the top cover. Discharge of material is generally through manual scooping of material from the top of the bowl.  Heat Transfer – Double planetary mixers are commonly provided with jackets for circulation of heating or cooling media.

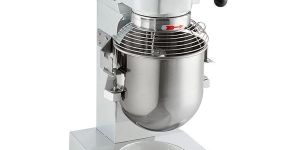

We are offering planetary mixer.we are instrumental in offering a comprehensive range of planetary mixer that is used for mixing of ointments, paste, cream, dry powders or wet mass. Fabricated from superior quality stainless steel, the planetary mixer has beaters that rotate in circular path in the bowl and enables faster and better mixing of materials. This range of planetary mixer is provided with three different speeds and is highly appreciated by the clients all across the globe. salient features low maintenance costhigh performancemaintenance freelonger working life used in pharmaceutical industry : for ointments, granulate masses, syrups, suppository masses, & simple emulsionscosmetic industry : for toilet creams milks, curds, hair conditioners, toothpastes, shaving creams, brilliantine, & shampoosfood industry : for mayonnaise, vegetables, fruit juices condensed milk and othersconfectionery : for almond paste, chocolates, pastries, biscuits and otherstextile, rubber & latex industry : for latex, vegetables oil emulsions sizes and otherschemical, paint & ink industry : for glues chemical products, colors and others

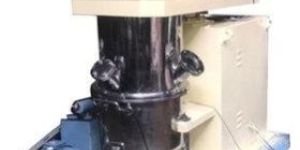

The Homogeneous Planetary Mixers manufactured and supplied by Shashvath Fabricators and Engineers at Thane, Maharashtra are robust and ideal to use in mixing both wet and dry ingredients. The planetary motion of this mixer allows for homogeneous mixing of varied ingredients. The unit can be run slowly to dry mix with almost no dust generation. It can also be run at faster speeds for wet mixing. It has a top mounted agitator that aids in better kneading motion and uniform mixing.   Features : All contact parts of both beater and bowl are made of high grade SS 316. Scrapping blades can be bought Manual lifting arrangement for agitators up to 50 liters Hydraulic Motorized lifting for capacities of 100 liters or more   Drive Mechanism For Beater : Consist of the following Suitable HP 1440/2880 RPM DUAL Sped TEFC Motor to work on 415 V, 50 c/s 3 Phase AC supply line, mounted on MS plate. Worm reduction gear box coupled to the motor through belt and pulley arrangement. Epicyclic gear box coupled to the motor through belt and EPICYCLIC gear train arrangement to achieve planetary motion. Suitable HP 1440 RPM TEFC motor to work on 415V 3 phase 50 C/s AC supply line for High Shear Emulsifier. ( optional ) The above item are assembled on the top plate which is supported on a Cast iron sliding sleeve with MS gussets.   Salient Features All contact parts of the Bowl and Beater are made of SS 316. Scrapping blades can also be provided. Mixing bowl can be jacketed for Electric / Steam / Thermic. Manual lifting arrangement for agitators up to 50 Lts, and Hydraulic Motorized lifting arrangements for capacities of 100 Lts and above. The Mixing bowl is provided with Castor wheels and Locking arrangement for Easy handling and VJHSE option also provided. Effective beater design speeding up the process of starch preparation. Surface finish of 0.3 Ra making the discharge of the binder paste easy. Flush Bottom Ball Valve with a clear 4 opening making the flow ability easy. Quick Release coupling with built in NRV installed on the machine.   Optional Features : Ac Frequency Variable Drive. Mixing bowl with heating / cooling jacket and insulated. No. of Mixing Blade : Single Blade/ Double blade/Triple Blade. Type of Blade: Paddle Blade/ Anchor type/Hart Shape Blade Centre located and top mounting high speed homogenizer.   Safety Features : Emergency stop button Limit switch at top lid Over load protection by relay.

Made from the corrosion resistant material, our Planetary Mixers are high in demand among the global buyers. We are prime Planetary Mixer Manufacturer, Exporter, Importer and Supplier. The product is suitable for mixing/ blending powders and thorough mixing of ointments, creams, lotions, ceramics, colors, pigments, rubber & other compounds. Customers are free to place orders for purchasing our high quality

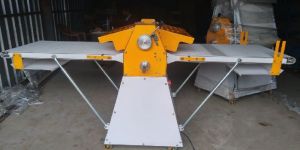

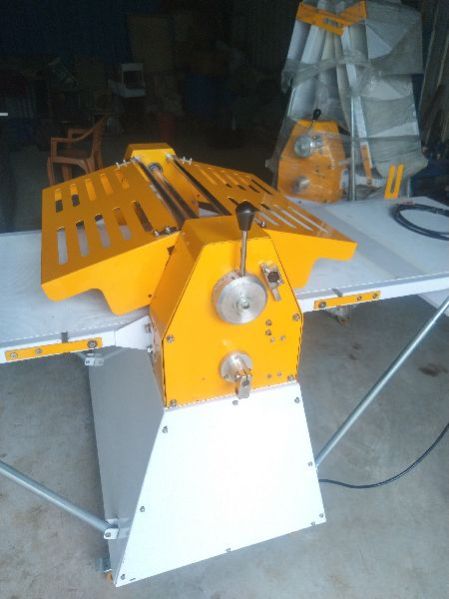

1Dough sheeter machine size height 1060mm, width 2370mm, breath 1070 mm, conveyor size 2300mm × 600mm ×2 mm 1 hp three phase gear moter Use for khari and pizza making

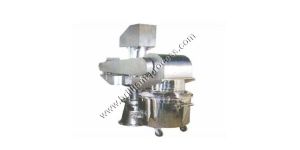

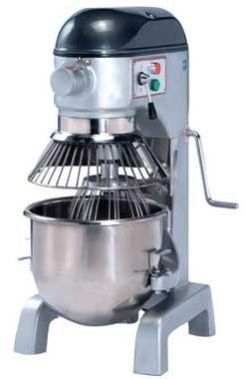

This equipment is basically a mixing assembly where the agitation pattern is of the planetary nature The beater or the agitation assembly rotate around itself as well as travel in a circle in the bowl thereby achieving intimate mixing. Because of special design feature of shifting the mass is uniformly and intimately mixed. Planetary mixer complete with S.S. removable bowl, S.S. blade having variable 3 different speeds and one neutral speed suitable for mixing and beating for viscous and pasty materials. The machine is designed for practical and easy operation and running is noiseless very easy to operate with minimum of attention, the machine is provided with a hand drive worm gear arrangement to lift and lower the bowl and is complete with 1phase/3 phase 400/440 volts, 50 cycles electric motor Features :- 1) Available in all grade of carbon steel and stainless steel 2) Optional Teflon coated internals for food and sticky material application 3) Jacketed construction available for steam and cooling application 4) Available in working capacities of 5 liter to 500 liter 5) Mixing bowl is made portable to facilitate comfortable transporting , washing etc. 6) Various types of beaters can be provided for different materials 7) Motorized , manual lifting and sliding arrangement possible for bowl 8) Flame proof construction optional

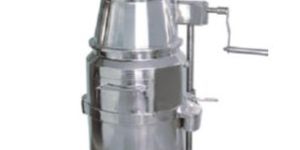

Mixing bowl can be retracted and made portable to facilitate comfortable transportation (of mixed   products), washing, cleaning etc. Optional accessories / attachments Tilting / sliding arrangement for bowl Inlet / outlet values in the bowl Jacketed bowls / vessels for heating or cooling of products during mixing to produce lustrous product. Under vacuum bowls / vessels Explosion / flame proof / hose proof motor Control Panel - Electrical control panel with back up fuses & indicator lamps for easy process control-optional. Scraper blade Stirrer / Homoginizer (as per specifications) Temperature / pressure gauge, side glass, etc.

Planetary Movement of beater (agitator) for intimate mixing a wide variety of materials has been employed with advantage in the industry.

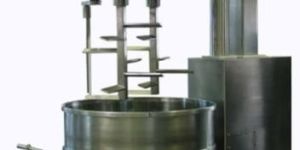

Planetary Mixer   Planetary Mixer is a vertical batch mixer ideally suitable for mixing of ointments, paste, cream, dry powders or wet mass.Planetary Mixer, as name suggests it has planetary type agitation pattern. The beaters rotate around itself as well as in circular path in the bowl; this enables faster and better mixing of materials at a considerably lesser time.     Features of Cylindrical Bowl Cylindrical bowl mounted on three castor wheels leads to easy loading and unloading. Bowl has torrispherical dished bottom covered by Jacket to operate on 1Kg/cm2 steam pressure. It is provided with steam inlet-outlet and cold-water inlet and outlet connections with standard fittings like pressure gauge, vent cock, release valve and drain.   Features of Agitator AssemblyHomogenizer : High speed mechanical and hydraulic shear forces are the real key to the success of this machine. Rotor and Stator generates a shearing action which insures high speed emulsification for homogeneous mixing. Centering Scraper : Anchor type agitator with Teflon scrappers sweep the entire circumference of the bowl and avoid localized heating/cooling and thus intimate mixing is accomplished in PLM. Beaters : Orbital motion of these beaters covers all portions of the bowl as well as it wipe each other, thus assuring no unmixed portions Special Features of Vats & Vessels Planetary Mixer The bowl fits tightly enough so that mixing can be achieved under Vacuum or pressure for Deaeration. All contact parts are made up of SS-316/SS-304. Electrical Control Panel with PLCs for easy process control. Capacity - 25 Ltr. to 2500 Ltr. Unit with FLP motors and FLP push button station available. MS parts shall be cladded with SS 304 Q sheet and SS parts will be polished to desired pharmaceutical finish

Planetary Mixer is ideal for mixing of wet / dry materials. It has a homogeneous mixing action. The planetary motion of the beater enables faster and better mixing of material at a considerably lesser time. Slow speed is used for dry mixing with less dust generation and faster speed for kneading operation during wet granulation portable mixing bowl with top mounted agitator has a dual advantage of material transfer and no risk of gland packing contamination.

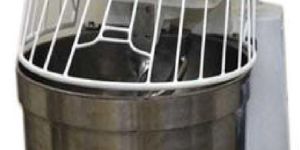

Spiral Dough Kneader, Bakery Oven, Bread Slicer, Planetary Cake Mixe

Planetary Movement of beater (agitator) for intimate mixing a wide variety of materials has been employed with advantage in the industry.
