DRYOFFSET ASIA Thane West, Maharashtra

THIS PRODUCT IS SUITABLE FOR PRINTING ON CYLINDRICAL & CONICAL WIDE MOUTH JARS, PLASTIC TUBES (RIGID&FLEXIBLE), CLOSURES(ALUMINUM & PLASTICS) UP TO 60 MM DIAMETER    FEATURES Mechanical auto loader Flame treatment with auto ignition 4 color / 6 color printing Instantaneous uv drying on mandrel Auto ejection on exit conveyor centralized auto lubrication system Auto Loading & Ejection on Conveyor Anti Static Device  4 color / 6 color printing Instantaneous UV drying on Mandrel Speed 60/Min  OPTIONAL FEATURES Mechanical auto loader Flame treatment with auto ignition 4 color / 6 color printing Instantaneous uv drying on mandrel Auto ejection on exit conveyor centralized auto lubrication system Corona Discharge & Gas Flame Treatment Auto Feeder Post UV Laquering with UV Dryer Instantaneous UV drying on Mandrel SPECIFICATIONS   Min. Dia. and Height 30mm * 50mm Max Dia. and Height 60mm * 200mm Max Print Area 180mm (L) * 195mm (H) Pneumatic Pressure @ 5-6 kg/cm2 Electric Motor Drive AC Gear Motor 3HP, 3phase, 50 Hz with inverter Air Consumption 8m3/hr

THIS PRODUCT IS SUITABLE FOR PRINTING ON THERMO FORMED H.I.P.S, P.P, ANY DISPOSABLE PLASTIC CUPS, INJECTION MOLDED WIDE MOUTH PLASTIC CONTAINERS UP TO 135 MM DIAMETER. ALSO ITS SUITABLE FOR METAL CANS.

PRINTER 6 COLOR DRY OFFSET PRINTING MACHINE TO PRINT FROM 1LT TO 25 LT (0.26 to 6.604 US Gallons) INJECTION MOLDED PLASTIC BUCKET CONTAINERS OF MAXIMUM DIAMETER 300M, Electric Motor Drive AC gear motor 5HP, 3phase, 50Hzs. with inverter for fine, Registration Motor 12HP, Single phase AC, 50Hz.

THIS PRODUCT IS SUITABLE FOR PRINTING ON THERMO FORMED H.I.P.S, P.P, ANY DISPOSABLE PLASTIC CUPS, INJECTION MOLDED WIDE MOUTH PLASTIC CONTAINERS UP TO 135 MM DIAMETER. ALSO ITS SUITABLE FOR METAL CANS.

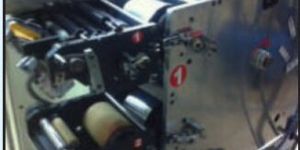

THIS PRODUCT IS SUITABLE FOR PRINTING ON LIQUOR CAP PRINTER, PLASTIC CORK PRINTER AND ALCOHOL CAP PRINTING MACHINE, CYLINDRICAL & CONICAL WIDE MOUTH JARS, (RIGID&FLEXIBLE), CLOSURES(ALUMINUM & PLASTICS) UP TO 60 MM DIAMETER  Auto Loading & Ejection Online UV Varnish  4 color  printing UV dryer Speed 60 Caps/Min  PLC with HMI  OPTIONAL FEATURES Mechanical auto loader Flame treatment with auto ignition 4 color / 6 color printing Instantaneous uv drying on mandrel Auto ejection on exit conveyor centralized auto lubrication system Auto Feeder SPECIFICATIONS   Min. Dia. and Height 28mm * 15mm Max Dia. and Height 50mm * 45mm Max Print Area 150mm (L) * 45mm (H) Pneumatic Pressure @ 5-6 kg/cm2 Electric Motor Drive AC Gear Motor 3HP, 3phase, 50 Hz with inverter Air Consumption 8m3/hr

Auto loading of containers on to the mandre, Flame treatment with auto ignitionl, Instantaneous UV drying, Auto ejection with exit conveyor, Lower ink consumption, Suitable for conical and cylindrical container. (wide mouth), AC motor with variable AC frequency inverter for variable peed, acceleration and deceleration control, Positive timing throughout our Machine, Auto Lubrication Systems.

SPF 400 Automatic Pneumatic screen printing machine with flip over device to print both opposite sides (i.e 180 degree ) of a crate in one color in one pass. (Printing graphics of both opposite sides should be same ) Loading and unloading of crate will be done manually. Machine equipped with one set of print accessories for one size of bottle crate including fixture ,1 set of screen , squeegee holder and flood bar. All pneumatics including Flip over device , cylinders , valves ,fittings, tubings are of FESTO make Max.speed : 10 impressions per minute and depends upon the speed of operator how fast the operator load and unload. Machine having following features : Pneumatic Squeegee head lifting arrangement for easy removal of screen. Individual squeegee /flood bar pressure adjustment with rotational knobs Screen adjustment knob along x,y.z axis movements with pre registered screen exposure. Printing stroke maximum 350mm duly adjustable by Pneumatic limit switch & shock absorber. Printing stroke speed duly controlled with flow control valves in bothForward & reverse direction. Robust construction with high reliability and consistent print results All pneumatics including cylinders , valves ,fittings, tubings are of FESTO make
