Dynatron Ghodbunder Road, Thane, Maharashtra

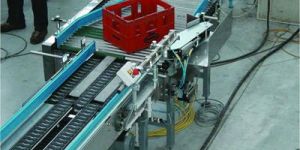

Salient Features Handle the widest variety of case and package sizes (ex. corrugated, shrink-wrapped, litho-packs). "Touch less" handling prevents product damage. Applicable to turn products to short-side-leading or long-side-leading. Applicable to where various products are handled and only select products require rotation.

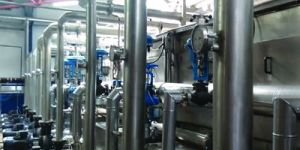

Salient Features Flexible in layout. Compact design, modular & clear-roof. Heat Exchanger at ground level. Easy maintenance from outside. Single deck, double tunell. Full access to the heating and cooling systems (heating exchangers, piping & valves). Stainless steel frame. Output up to 43,000 bpm for 650 ml. Modular designed for easy transportation, dismantling & assembly at site. Low heat, water & steam consumption.

Salient Features Touch screen operation interface with advanced diagnostics and messaging. Parallel infeed and discharged arrangement and compact foot print make efficient use of floor space. Heavy duty & robust construction. Different configuration can be done by just changing the selection switch. (Types of configuration to be done on PLC.) Convenient floor - level access. Pattern utility allows new pattern to be created and stored from the touch screen operation interface terminal (OIT). Devices are all electric or pneumatic (No Hydraulics) Counter weighted elevator table for stable transferred and reduce wear and eliminating stress on the drive motor for longer motor life. The vertical transport is powered by a servo variable frequency motor drive, which eliminate shock to the product by providing a soft start & stop during load transport. Palletizer operates at floor level, it accepts cases from any level. A mechanical row pusher with dual timing belt drive

Salient Features Automatic operation controlled by palletizer. Possibility of handling different size of pallets. Centering Mechanisam for Pallets. Manual operation through local pushbutton.

Incoming Pallet Conveyor Salient Features Pallet Roller Conveyors made with heavy duty pipes to take load up to 15 pallets. Sensor for indicating minimum pallets left for operator reload again for continuous operation. Rail Guides to align incomin pallets. Automatic lifting of Pallets for Pallet below to move ahead. Outgoing Pallet Conveyor Salient Features Conveyor made modular in structure in 3 sections. Speed control by induction motors of slow ramp down to avoid pallet from following at dispatch area. Roller driven with easy recoverable rollers for replacement of bearing, chain sporket.

Salient Features Suitable for low/medium speed applications. Suitable for both low level and high level palletization. Automated palletizer suitable for crates. Lay-out flexibility: In line / 90° outfeed configuration. Suitable for half and full depth crates. All pallet standards up to 1,250 mm. Quick adjustment for frequent changeovers (patterns and pallet sizes). Easy access on all sides and minimal floor space requirements. It can be easily fitted into existing lines. Simple design and standard parts.

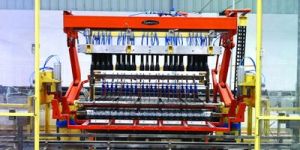

Accurate bottles feeding operations. Stainless steel structure. Smooth movement and reduced wear given by smart pneumatic cylinders. Flexible system for different bottle necks. Easy to and operator safety. Adjustable bottle guides that drive the bottles towards the pick-up heads. Adjustable vibrators to allow perfect bottle feeding. Includes bottles indicator that grants the bottle in right dosing.

Salient Features Output (depends on crate size) : 25-30 Crates/min. Complete structure in SS and main drive with VFD. Crate Washer is used for removing debris from inside the crate and cleaning it from all the surfaces. The crate is brought in vertical position from an overhead conveyor and inverted in a dumper. The crate is moved through a tunnel with spray jets from all sides of the crate. The machine creates a space between each crate in order to clean the leading and lagging surfaces. Cleaning is done in three stages, pre spray, detergent spray and final spray. The crate travels upside down through the tunnel. Adjustments are provided to handle the various sizes of crates.

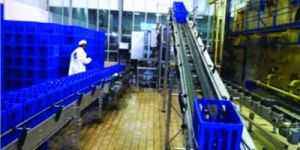

The crate conveyor belt are designed to transfer plastic cases.Their size is designed to guarantee optimal unloading and infeed to machines.Making the best use of the available space.The crate conveyors are of two chain design.Customized moduler belt.

Salient Features Modular Design Energy Saving-Heat/Stream/Water/Power No Toppling of Bottles Occupying Less Space PLC Based-Download real Time data via Scada System Structure has been sand blasted for asthetics and increase life of structure. Energy Saving Overflow and Buffer System.

Salient Features High attention to product quality. Low Noise Level. Correct accumulation time for improved line effeciency. Latest software to calculate and design the accumulation time for both bottles and crates between two machines to achieve plant efficiency up to 95%. The drive and the idler end modules are separately assembled from the main conveyor and bolted to the main conveyor for easy assembly and maintenance. The design of drive motors is based on selection and load calculated by means of highly accurate software to avoid any under-sizing or extra cost of power by over sizing. Friendly interface.

Glass Size 200ml to 1000ml, Output 7200 to 46200 BPH.Minimum floor space requirement for the given capacity.Swift bottle handling and transportation system ensures no bottle breakage.Minimum fresh water consumption per bottle.Quick change over for different bottle sizes.Precise temperature control of caustic soak tank.Provision for steam condensate recovery system.

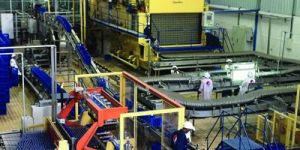

Dynatron System Engineering area of responsibility would include the integration and co-ordination of any third party machines included in the line, pre-existing machines and system components as well as sub contracting activities. The main objective of the system integration is to meet the requirements of the customer for Noise reduction, Reducing down time, increase of line efficiency and reduction of personal assigned to the line.
