Pneumatic Tube Cleaner Dealers in Thane

The portable pneumatic tube cleaners use hollow shafting of different diameters as per tube I.D. to be cleaned which can be coupled together to form lengths as per the length of the tube to be cleaned. Water flows through the hollow tube and washes out deposits that are dislodged by the cleaning tools attached to the driven shafts. Typical cleaning tools used are carbide drills for severely clogged tubes, brushes for light deposits and buffing tools for final polishing of tubes. The water flow is independently controlled allowing the user to determine how much water is needed in the application. Model C-10 is typically used on oil coolers, small heat exchangers and condensers. Model CP-315 is typically used on larger diameter tubes of process vessels, heat exchangers and condensers.

Industrial Tube Cleaners or Tube Cleaners required by Industries are essential to clean efficiency robbing deposits and maintain the heat exchange performance of tubes maximum in a variety of heat exchange environments. Tube Cleaning Applications include Fire Tube Cleaning, Boiler Tube Cleaning or Water Tube Cleaning, HVAC Chiller Tube Cleaning, Shell Heat Exchanger Tube Cleaning and Tube Heat Exchanger Tube Cleaning, Steam Condensers Tube Cleaning and Surface Condensers Tube Cleaning. We provide Industrial Tube Cleaning Equipment's Industrial Tube Cleaners and accessories for all Industrial Tube Cleaning Applications. Our Tube Cleaners are very easy to operate and user friendly, We offer Variety of Tube Cleaners according to different applications, Our range of Tube Cleaning Equipment's includes Boiler or Sugar Mill Tube Cleaners, Pneumatic Tube Cleaners, Portable Pneumatic Tube Cleaners, Electric Tube Cleaners, Hand Held Pneumatic Tube Cleaner, Sugar Factory Tube Cleaner, Pneumatic Choked Tube Cleaning Machine, Pneumatic Tube Cleaners for Boiler, Condenser Tube Cleaners, Heat Exchanger Tube Cleaners Etc.

Portable pneumatic tube cleaners used hollow air craft quality shaft of different diameters s per tube I.D. to be cleaned which can be coupled together to form length of the tube to be cleaned. Water flows through the hollow tube & flushes out deposits that are loosened by the cleaning tools attached to hollow shaft. Tools used for cleaning are carbide drills, for severely clogged tubes, brushes for light deposits & buffing tools for final polishing. The rotation of air motor & the water flow are controlled independently. Note: Model BC-20 is generally used for oil coolers, small heat exchanger and condensers. Model BC-750 is generally used for large diameter tubes of process equipment condensers and heat exchangers.

In this system of tube cleaning different type & diameter’s of shaft as per tube I.D. of h hollow air craft quality is used. The different type & diameter of shafts are coupled together to form required length of tube to be cleaned. A cleaning tool is attached to the hollow shaft & water flows through the tube & flushes out deposits loosened by the cleaning tools. For hard & chocked tubes carbide drills is been used, for light deposits brushes & for polishing buffing tools are used in the end. In this system the air motor’s rotation & water flow is controlled individually.

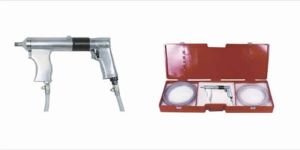

Build your own kit by adding Price of Drive (TC - 10 or TCP - 3075), Hollow Drive Shaft, Shaft Coupling, Price Coupling based on Length of Tube to be Cleaned and Cleaning Tools (Brushes, Carbide Drills and Buffing Tools)We will supply all the above in a Handy Metal Box at No Extra Charge. The Box will accommodate Maximum One Drive, 8 Hollow Shaft, 5 Coupling, 16 Cleaning Tools (12 Brushes, 2 Carbide Drill and 2 Buffing Tools).

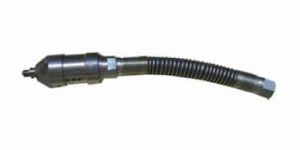

Powerful short design of Air Motor is ideal for negotiating short radius bends when cleaning curved tubes.Precision slip-fit motor construction means no special tool required for assembly& disassembly.Thrust plate motor packs plenty of power to operate all types of cleaning heads. Shown with forward swing arm type cleaner head & universal joint.   6300 SERIES AIR MOTORThirst plate type motor specially designed for straight tubes motor parts slip-fit together for easy assembly without special tool. The motor operates at full power for high speed, heavy duty performanceFEATURES» The safe way to remove tough deposits from curved or straight tubes.» Standard models available for 19 to 140 mm I.D. On request, BHARTIYA can supply heads for up to 500 mm I.D. Tubes.» Recommended for all places where danger of explosion exits.» Air driven rotary motor 3000-6000 RPM under no load. No overheating Efficient. Very durable.» Automatic cut-out with torque overload prevents tube wall damage.» Self-cleaning heads. Air blast clears away loose scale, cools cutters heads.» Versatile range of standard cutters.» Air motor have a simple design with few moving parts, which provide trouble free operation with minimum   of maintenance..

excellent for application where using electric equipment is hazardous, stainless steel cover and chassis for long life, simultaneous water flush to remove deposits from tubes
