Press Room Automation and Feed Fixtures Pvt Ltd. Anand Nagar, Thane, Maharashtra

Material : MS

Usage : Industrial

Finishing : Polished

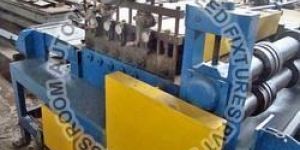

We offer a Wider Width Cut To Length Line designed for manufacturers, exporters, and suppliers in need of precision cutting for industrial applications. This new, automatic-grade machine operates on single-phase power, with a thickness range of 0.5-2.0 mm. Achieve efficient production with a line speed of 20-30 MPM and handle coils weighing up to 10 tonnes effortlessly. Ideal for businesses seeking to streamline their production processes and enhance output quality. Invest in this reliable solution to boost your manufacturing capabilities and stay ahead in the competitive market.

Application : Industrial

Condition : New

Automatic Grade : Automatic

Material : Metal

Application : Conveyor Use

Surface Finishing : Polished

Condition : New

Size : 100 mm

Material : Aluminium

Corrosion Resistance : Yes

Material : Aluminium

Width : 400 mm

Gross Weight : 2500X2 Kg

Material : MS

Power Consumption : 0.75x2

Features : Strongly built Impeccable performance Longer operational life   Other Details : All units are available in non motorized version with drag brake. Electro Magnetic / Pneumatic Brakes. Coil hold-down (hydraulic / pneumatics ) for springy materials. Hydraulic Jaws Expansion. Decoilers with Shafting & Key to load bobbin. Limit arm through limit Switches/Photo sensors.

Material : MS

Automatic Grade : Manual

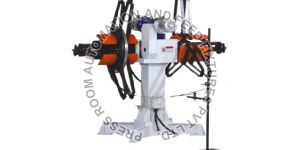

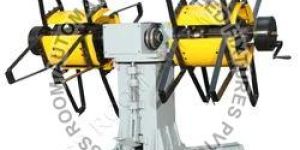

FEATURES Rigid Fabricated Structure. Three / Four Self Centering Coil-location jaws. With mechanical gear reducer for models above 2.5 Tonne. The Spindle & Coil holding heads housed in mechanical & precised machined housing & rotates on dust proofed sealed bearing element. All motorised decoilers are chain driven soft start & stop through mechanical torque limiter & friction drag brake. Drive System : A.C. Fixed Speed /A.C. Variable Speed (optional) Control Panel with Suitable loop control system to maintain loop of coil for the machine via Antenna Type loop sensors / limit arm through limit Switches / Photosensors In Twin Spindle Decoiler, two mandrels are housed on a Turret and Turret is supported on antifriction bearings for reducing friction while indexing. Turret is locked by spring loaded plunger & released by foot pedal. (This is for quick coil-changeover & saving coil loading time.) OPTIONS All units are available in non motorized version with drag brake. Electro Magnetic / Pneumatic Brakes. Coil hold-down (hydraulic / pneumatics ) for springy materials. Hydraulic Jaws Expansion. Decoilers with Shafting & Key to load bobbin. Limit arm through limit Switches/Photo sensors. Other Special features on request.

Number Of Flower : Decoiler

Availability : 100-1000kg

Country of Origin : 380V

Condition : New

Automatic Grade : Automatic

Driven Type : Mechanical

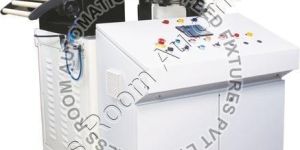

Our Transformer Lamination & Punching Machine has power rating of 3.3KW. For the production of our finished products, we source the raw materials only from the certified and trusted vendors after checking against numerous quality parameters. In order to pace with the technology, we have developed a payment procedure that allows us to make safe and secure transactions. Also, our system is verified by authority.

Country of Origin : India

Condition : New

Automatic Grade : Automatic

Warrenty : 1 Year

Material : MS

Power Source : AC

Thickness : Up to 20 Mm

Country of Origin : India

Material : Aluminium

Material : Aluminium

Country of Origin : India

Application : Industrial

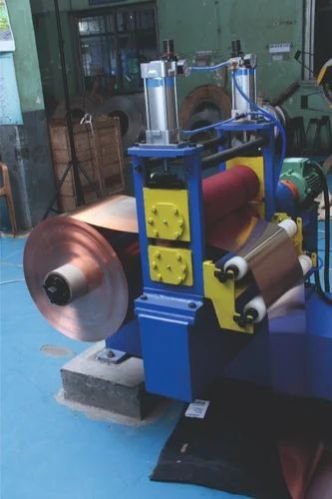

The units are fabricated from steel and the straightener rolls are properly fixed and aligned in machine and ground housing. * OneTwo sets of drive pinch rolls are provided as required. * All the feed Rolls & Bottom Rolls are driven, while Top Rolls have individual adjustments. * All the Rolls are made of Special Alloy Steel Material Hardened, Ground, Chrome plated & are housed into precision needle bearing sealed at both ends. * Upper straightening rolls are independently adjustable and once set, gang adjustment can be done for repeat operations. * Gang adjustment of top roller blank for straightener with more number of rolls & for straightener of lesser thickness range. * Roll setting scale on side platesDial gauges in some models. * Entry Guides. * Exit cascade rolls.

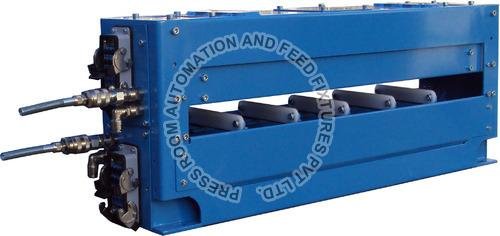

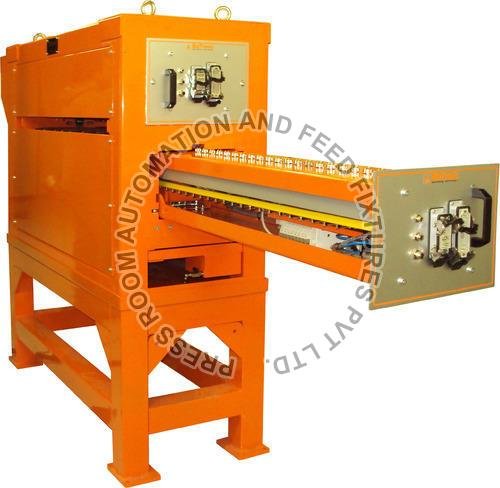

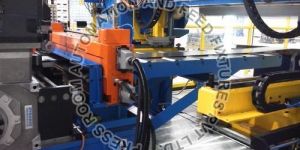

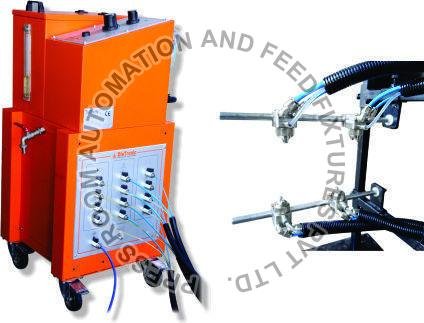

The Spray Lubrication System endure minimal lubricant consumption. With the aid of diligent professionals and smart packaging system, we can easily render bulk and customized packaging requirements of the patrons. Also, we ensure that the packed lot has shock sustainability to circumvent loss during transit. Made using superior grade materials, our products are quality assured and as per international industry standards.

Country of Origin : India

Application : Industrial

Condition : New

Driven Type : Electric

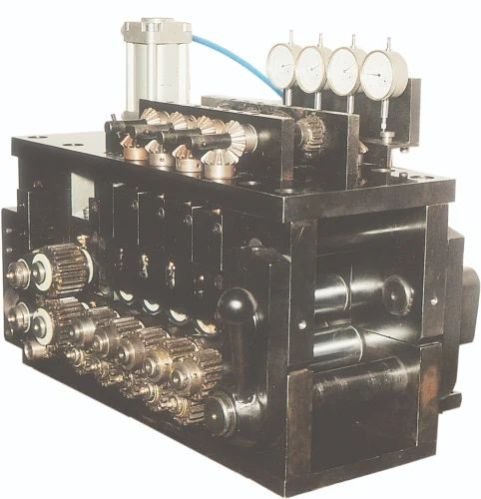

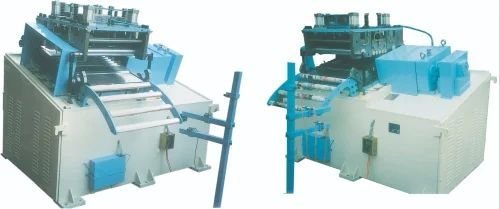

Application of parts Levelling Stampings Motor laminations Coil laminations Control panels Furniture panels Saw blade blanks Clutch plates Microfilm spools Brake plates Bi-metal Bearings Computer parts CNC Turret punch parts.   Standard Features: Four-high design. Manually adjustable back-up rolls Small work rolls, hardened/ground/polished All Straightening rolls are Powered. Integral universal geared drive. Dial gauge roll position indicator.. Oil bath gear case, sealed roll bearings, positive lubrication. Bolted rugged main frame in one torque resisting assembly. Main drive motor for 440 V, 3 ph, 50 cycle. “Run, Jog-Reverse, Stop” controls, Fusible disconnect.. Automatic central lubrication of work roll bearings. Adjustable side guide. Straightening accuracy+/- 0.01 to 0.05 is achieved Depending on input component conditions, Raw material & hardness, roll setting, thickness variation of components. 17/19/21 Straightening rolls. Straightening roll diameter from 8 mm to 200 mm to cover a wide range of jobs.   Optional Features: Five or six high configuration for one or two side special polished sheet stock, in place of four-high Chrome plated work rolls. Base for larger pass line Slant base for press coil feed operations. Variable speed drive and controls. Loop control system. Powered work roll positioning in place of manual. Remote work roll position indicators. Cascade rolls at entry or exit. Powered pinch rolls. Special features on request. Motorised adjustment of rolls with digital display. 25/31 Straightening rolls. CNC Controlled levellers offered.

Country of Origin : India

Number Of Flower : Component Leveller

Application : Industrial

Power Source : Electric

Material : Metal

Number Of Flower : Oil Lubrication System

Automation Grade : Automatic

Country of Origin : India

Material : Mild Steel

Driven Type : Pneumatic

Corrosion Resistance : Yes

Operating Type : Automatic

Finishing : Polished

Specialities : Superior Performance, Rust Proof, Durable, Easy Maintenance, Easy To Operate

Total Carbohydrate : 1 year

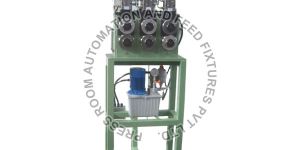

Mechanical Design Features The Servo Wire Feeder comes with a choice of 1, 2, or 3 Roller Modules Add a 2nd and 3rd module when more gripping/driving force is required - more contact points allow more force to be exerted without damaging the wire Rollers are easily replaced or changed for different wire shapes and sizes Two different grooves can be provided on each roll Rolls can be flipped to the opposite orientation and maintain the same center line Standard Eccentric Cam exerts roll clamp pressure - Optional Pneumatic or Hydraulic Cylinders available Precision Gear Box Ratio 1:10 fixed on lower rolls. Upper rolls synchronized by 4 gear at low gap.   Servo System Design Features Complete package of Servo Drive, Motor, PLC & HMI from Mitsubishi, Japan. High performance Servo Drive Low inertia, brushless AC Servo Motor with high energy. Digital Servo Drive Manages Roll Motion via Encoder Based Feedback System. Closed loop feed length controller automatically generates the velocity of accurate feeding. Operator Interface Terminal with Numeric Input Key Pad and LCD Display of feed length, speed and system parameter settings. Input power requirement 380VAC / 50Hz / 3 phase.     Control Panel Features The system can be operated in MANUAL / AUTO MODE The system can store 99 programs. The programming would have Feeding Speed of Material. Acceleration of Roll Feed. Length setting. Part No. (Recipe) Batch Quantity.

Number Of Flower : Wire Feeder

Material : Metal

Application : Industrial Wire Feeding Applications

Material : Metal

Corrosion Resistance : Yes

Rust Proof : Yes

Usage : Industrial Use

Specialities : High Acurace, Heat Resistant, Hard Structure, Fast Signal Stength

Features: Precisely engineered High operational fluency Reliable operation   Other Details: Tension winding arrangement by set of rollers for tight winding. Electro Magnetic / Pneumatic Brakes. Coil Hold-down (Hydraulic / Pneumatic) for Springy materials. Jaw Expansion by Hydraulics. Coilers with Shafting & Key to load Bobbin. Special Purpose Winding Machine. Centrally Expandable Jaws. All Jaws have fully covered drum for best stability. Pneumatically operated hold-down with potentiometer for speed variation & holding the coil with varying pressure with hand-lever. Mandrel rotating on bearings. Precision Tension Coiler & Winders for Strip Casting & Rolling Mills The Spindle would be driven by D.C. Variable Drive with gear-reducer & brake mechanism. D.C. Drive is in constant tension. Speed reduces automatically with diameter build-up for tight winding. The Control Panel would have following standard parameters ; Forward / Reverse Selector. Start / Stop Button. Emergency Shut Off & Hold-down. Speed / Tension Selector. In-built Transformer. Potentiometer to set the Tension manually. Hand-Lever operation for low tension in starting high tension in working.

Number Of Flower : Motorized Decoiler

Condition : New

Automatic Grade : Fully Automatic

Driven Type : Electric

We have a good rapport with the leading e-commerce merchants who work for us and assure safe and secure transaction of money. Also, we facilitate our clients to make a transaction in both online and offline modes. In our well-constructed warehouse, we store the entire lot under safe conditions and away from various damaging factors such as direct sunlight, moisture, dust, rain, and others.   Features : Precisely engineered High operational fluency Reliable operation Other Details: Tension winding arrangement by a set of rollers for tight winding. Electro Magnetic / Pneumatic Brakes. Coil Hold-down (Hydraulic / Pneumatic) for Springy materials. Jaw Expansion by Hydraulics. Coilers with Shafting & Key to load Bobbin. Special Purpose Winding Machine. Centrally Expandable Jaws. All Jaws have fully covered drum for best stability. Pneumatically operated hold-down with a potentiometer for speed variation & holding the coil with varying pressure with hand-lever. Mandrel rotating on bearings. Precision Tension Coiler & Winders for Strip Casting & Rolling Mills The Spindle would be driven by D.C. Variable Drive with gear-reducer & brake mechanism. D.C. Drive is in constant tension. Speed reduces automatically with diameter build-up for tight winding. The Control Panel would have following standard parameters: Forward / Reverse Selector. Start / Stop Button. Emergency Shut Off & Hold-down.  Speed / Tension Selector. Inbuilt Transformer. Potentiometer to set the Tension manually. The hand-lever operation for low tension in starting high tension in working.

Country of Origin : India

Material : Mild Steel

Driven Type : Pneumatic

Operating Type : Automatic

Finishing : Polished

Usage : Industrial

Specialities : Superior Performance, Rust Proof, Durable, Easy Maintenance, Easy To Operate

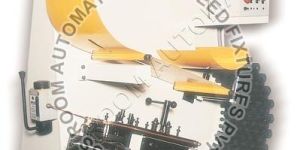

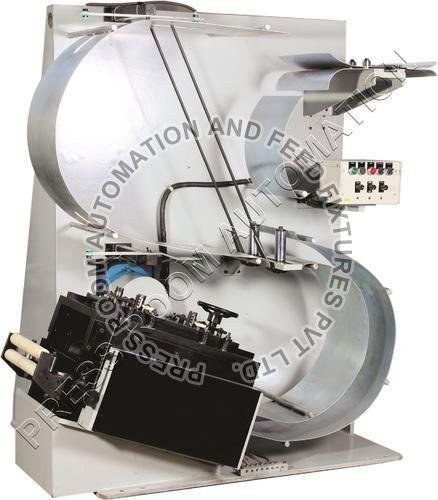

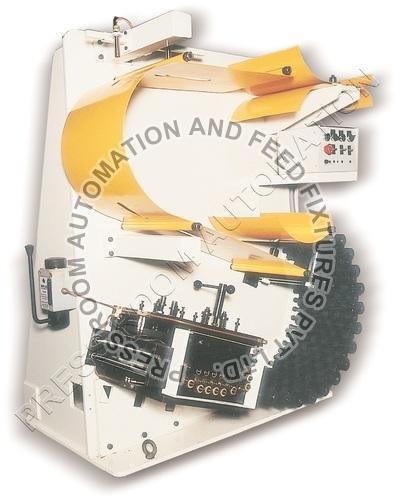

Our S-Loop Straighteners are reckoned for their sturdy make and long service life. In order to provide faultless products to the clients, we make sure that the inputs we use are of excellent quality. Thus, our experts keep a stringent check over the same. Our organization is highly concerned towards providing excellent quality products to the customers and thus check them at all stages.

Application : Industrial

Condition : New

Driven Type : Electric

Automation Grade : Automatic
