Separation Equipment Dealers in Thane

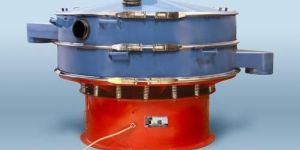

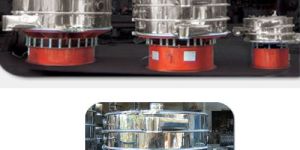

High Speed, Noiseless maintenance and durability are some of the attributes of our Vibro Sifter. We make available sifter inn different capacities, screen sizes and other specifications to suit the varied requirement of buyers. Vibro Sifter that we offer is manufactured as per the set industry standards to ensure superior quality. We believe in delivering Vibro Sifter within stipulated time frame. Our sifter is portable and compact. Highlights : MOC : SS 304, SS 316, SS 316L Capacity : 12", 18", 24", 30", 36 " & 48" Double and triple deck unit with different screen size Portable and Compact Wide Range of Screen Sizes Noiseless Maintenance Free & High Speed

Graded among the top suppliers of Gyro Screen, we can deliver the product at inexpensive prices. From marketplaces of Thane(India) to all the others, our organization is capable of providing the product to purchasers as per requirement.

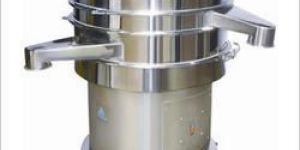

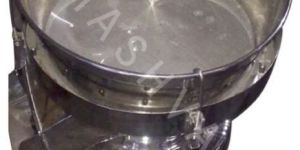

The company is the foremost Manufacturer and Supplier of Vibro Sifter, based in Maharashtra. Vibro Sifter is extensively used in Chemical, Pharmaceutical, Food and several other industries. Vibro Sifter is thoroughly examined by the quality auditors before the final delivery. Moreover, we hold expertise in bulk production of Vibro Sifter as per the requirement of the clients.

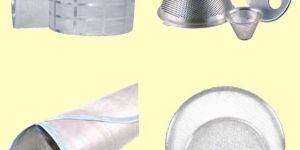

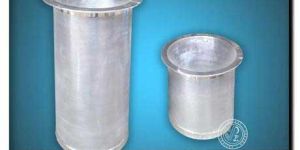

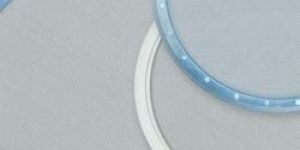

We offer an exclusive range of Lead Free Sieves for various granulation machines. These Lead Free Sieves are available in various sizes and dimensions for lab and production model. Moreover, Lead Free Sieves provided by us are used as Silicon Moulded Screen. Furthermore, our clients can avail from us a wide range of Lead Free Sieves at an extremely affordable cost. Used in Machines Like : Fluid Bed Dryer Fluid Bed Processor Vibro Shifter Multi Mill Co-Mill

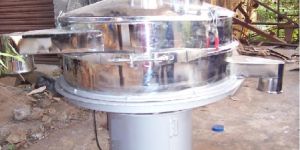

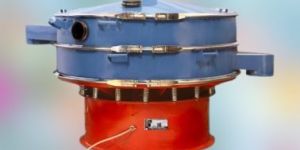

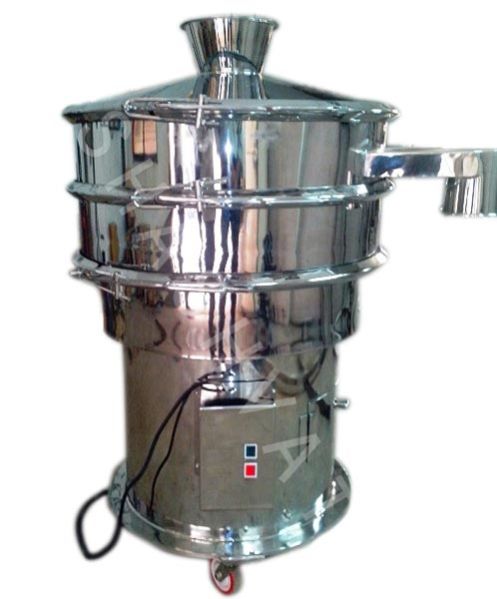

  Vibro Sifter works on gyro principle. The required gyratory motion is obtained from specially designed gyro motor, which is fitted underneath the vibrating assembly. The complete vibrating assembly is isolated from the base by means of specially designed rugged springs. Gyro-motor is fitted with top & bottom eccentric weights designed as per required centrifugal force. This whole assembly is covered by SS plate. The deck hopper is fabricated from SS 316 sheet. To collect the discharge tangential, discharge port is provided on the hopper.       Conical shape top lid is provided with charging port. Screen is fitted in between the hopper & top lid. The machine inner & outer surfaces are mirror polished.   CONSTRUTION AND OPERATION :       Vibro separators are circular unitary gyratory screens used to separate mass composition of solids from solids. Liquids from solid and for gradation of materials as per particle size, having a very wide range of applications. This is accomplished by vibrating the screens in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft. The top weight causes vibration in the horizontal plane which causes the material to move across the screen towards the periphery. The lower weight acts to tilt the machine which causes vibration in the vertical tangential axis . The angle of lead of the lower weight with relation to the upper weight provides variable control of the screening pattern. Thus the material moves across the screens and also in the vertical and tangential planes enabling maximum screening. Vibrosifter are available with a wide range of possible screen sizes (mesh) option for multiple deck separation is also possible.       The unit consist of specially designed vibratory motor to run on 400/440V , HP, 3 phase, 50 cycles electric supply, with adjustable eccentric weights at the top and bottom of the motor shafts mounted vertically at the center of the base plate of screening unit. Screening unit consists of SS 304 screen sandwiched between SS 304 hopper and bowl with the help of special clamp with gasket. This in turn is clamped to the base plate. Rugged springs placed over the circular motor base amplify the vibration and at the same time restrict the vibration from being transferred to the floor.           SALIENT FEATURES:       Noiseless, Maintenance free & high speeds. Portable and compact. Electric power requirement less than other machine of the kind in the industries & lower energy consumption compared to reciprocating vibratory system. Standard machine are with TEFC motor explosion proof/flame proof motor material. All contact parts and screen of SS 316 material. & Non Contact Parts in SS 304. Special requirement like brushing arrangement. SS lid with charging port and spring loaded outlets. Easy dismantling and cleaning facility for contact parts. Wide range of screen sizes 4-00 Mesh. Double & triple deck screens with outlet and hopper for bottom deck available on request..   Amplitude of Vibratory Motion adjustable through moveable eccentric weight. SS 316 Hood with 200 mm dia Nozzle for dust free charging of Powders. The machine can easily be dismantled, cleaned & assemble through quick opening SS 316 clamps. Portable mounted on sturdy Castor Wheels. The Vibrating assembly is isolated by rugged springs.   Finish: Inside - 0.3 Ra. Mirror Polish. Outside - 0.3 Ra. Mirror Polish. Independent Jacks for lifting the machine off the floor for effective sifting. Dust free docking station for loading and Unloading. Silicon Bonded Integrated Mesh. Silicon Balls for Lump Breaking & Mesh cleaning.           Salient Features :   Design is cGMP - Current Good Manufacturing Practices compliance. All contact parts AISI 316 & non contact parts AISI 304. Powerful vibration by gyratory motion by special Vibro motor. Side outlet & fines discharge. Easy movable & clean. Noiseless operation. Lead free and Silicon seal sieve.           Optional Features :   Inline loading/Milling process and transfer to bin/Blender by Vacuum transfer system. Double or triple deck sifting system     APPLICATION :       Vibro Sifter is used for screening, sieving, grading for solid-liquid separation, process to separate the desired elements and the undesired elements from the combination of solid to solid (where two solids are generally having different properties) and solid to liquid material.   It used in various industries such as   Pharmaceutical Chemicals Cosmetics Plastics Paints Minerals Rubber Compounds Metal Powders Detergents Pesticides Fertilizers Dyestuff Pigments

Gyro Vibratory Sieve separators are self-contained, compact, production machines which make precise mechanical separations according to particle size through efficient use of multiplane inertial vibrations techniques. These sieve separator are designed and built to solve the most difficult classifying, separating and dewatering problems. Material to be screened is fed to the top screen. Oversize particles are moved by the multiplane motion to the screen periphery where it gets discharged. Undersize particle or liquid passes rapidly through the screen. Gyro Vibratory Sieve Separators are equipped to handle up to five screens. The 3 dimensional inertial vibration of Gyro Vibratory Sieve Separator is based on a principle in which motor rotation imparts vibration to an entire screen assembly in both vertical and horizontal planes. The top eccentric weight of the double extension shaft motor operates in a plane which is close to the center of the mass of the assembly. This generates a horizontal throw to the screen assembly. The bottom eccentric weight rotates below the center of mass, which creates a high frequency tilt on the screen. The third dimension is a tangentile component produced by the combination of the horizontal and vertical movements. The tangential components moves oversize material laterally across the screen while encouraging undersize particles to flow through the screen. Both top and bottom eccentric weights are independently variable of mass and angular relationship, giving a great degree of control over all vibration components. This results in the ability to obtain optimum conditions for screening nearly any material.

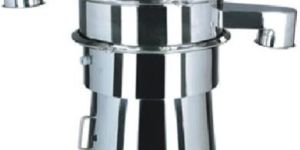

•  Vibro sifters are circular gyratory screens used to separate  •  Mass composition of solids, liquid form solid and for  •  Gradation of materials as per particle sizes.  •  Vibration is generated in three different planes along the  •  Vertical axis by means of a specially designed vibratory  •  Motor having off centered weights at the top and bottom  •  End of the motor shaft. •  The angle of lead of the lower weight to the upper  •  Weight provides variable screening pattern & output.  •  Model Available - 20”, 30”, 48”, 60”  •  Available in standard and GMP models with contact parts in stainless steel 304 or 316 quality.  •  Double and triple deck unit with different screens can be provided easy to dismantle for cleaning screens.  •  Noiseless, maintenance free unit.

[Unimax Multicyclone are a matrix of small cyclones] with common inlet, outlet and dust discharge. [They are available in] a range of 6" to 10" diameter, our multi cyclones are known for their efficiency which is up to 8 microns. We have designed our product in a unique way with respect to Inlet/Outlet proportions, collection cyclones spacing and discharge silos to facilitate uniform gas distribution and proper flow to each individual collecting cyclone for maximum design efficiency. The inlet guide vanes are specifically designed to ensure maximum centrifugal action for the gas entering the cyclone on its spiraling path down the cyclone towards the dust discharge points resulting in an increase in the collection efficiency of the Multi Cyclones. Unimax also specializes in customizing design features to suit specific customer demands.

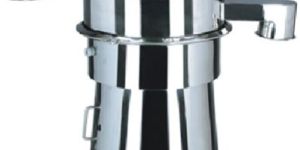

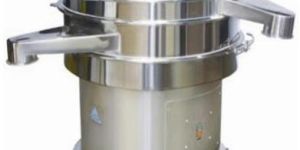

In Vibro Sifter the material to be screened is fed on to the centre of top screen. The undersize material passes rapidly though the screen during its travel to the periphery. The over size material is continuously discharged through a tangential outlet. Vibro Sifter sare equipped to handle multiple screens one on top of the other with feed trays in between to give several precise sized fractions in a single screening operation. Special designs with up to seven screens are also available for grading. The top weight on the motor shaft rotates in a plane close to the centre of mass of the assembly. Rotation of the top eccentric weights create vibration in the horizontal plane which causes the material to move across the screen cloth to the periphery. Increasing the top eccentric mass increases the horizontal throw causing oversize material to discharge at a faster rate. The bottom eccentric weights rotate below the centre of the vibrating mass creating tilt on the screens giving vibration in vertical and tangential planes. Increasing the vertical component of motion promotes turn over of material on the screen surface helping maximum quantity of undersize material to pass through the screen. The effective vertical motion helps in minimizing blinding of screen. The tangential component of motion is controlled by the angle of lead given to bottom weights with relation to top weights. Variation in lead angle controls the spiral pattern of material travel over the screen cloth. Speed and Flow pattern of material travel over the screen cloth can be set by the operator for maximum through-put and screening efficiency.

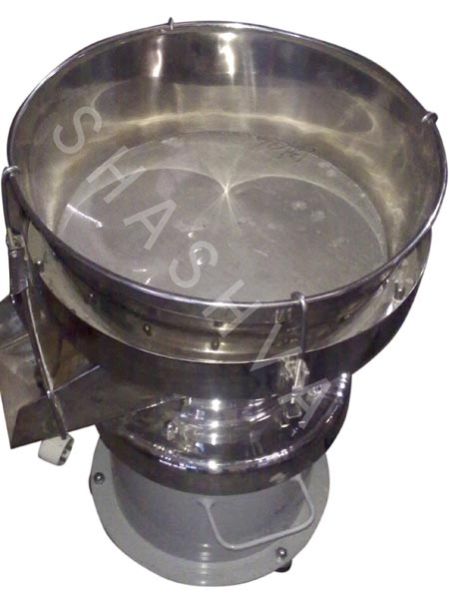

Vibro Sifter works on gyro principle. The required gyratory motion is obtained from specially designed gyro motor, which is fitted underneath the vibrating assembly. The complete vibrating assembly is isolated from the base by means of specially designed rugged springs. Gyro-motor is fitted with top & bottom eccentric weights designed as per required centrifugal force.

Cent star series Moisture Separator is used for removing bulk water from the compressed air line. No electricity is used. Can mount inline. Particle separation by centrifugal action. No replacement of cartridges over the period.

We are one of the distinguished Manufacturers and Suppliers of Industrial Oil Skimmers in India. Our Oil Skimmers are used in leading Oil companies of India. They are used to separate oil from the surface of the liquid solvents. The Floating Weir Oil Skimmers are efficiently designed to offer the purpose of their work in the best manner. Easy to operate and maintain, our Oil Skimmers are cost effective that is an added advantage. We ensure quick delivery and safe handling of the Oil Skimmers in due time. We also render unmatched after sales service to the clients.

Vee-Wire Screens are fabricated in Pipe Form from Wires. All Welded Wedge Wires Screen is made from two elements - Outside V-shape wire and Inside Longitudinal Rods. The V-shaped Wire is spirally wrapped on a Cage made of Longitudinal Rods. The intersecting of shaped wire and rod is welded through each other by resistance welding. Due to resistance welding the weld joined is very strong. "Vee-Wire Screen Filter" is a Highly Acceptable Modern Technology in Rain Water Harvesting. It eliminates conventional filtration system, SAVES -Precious Space, Construction Cost and Construction Time for Filtration Tank. Scientific Design helps Cleaning Very Easy and SAVES Maintenance Cost.

Vibro sifters are circular gyratory screens used to separate Mass composition of solids, liquid form solid and for Gradation of materials as per particle sizes. Vibration is generated in three different planes along the Vertical axis by means of a specially designed vibratory Motor having off centered weights at the top and bottom End of the motor shaft.
