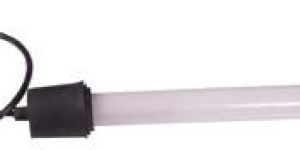

Silica Heater
Silica immersion heaters are made out of imported fused silica Tubling which itself is a non conductor of electricity. Heat and chemical resistive special rubber moulded cap ensures high efficiency of the heaters.
Silica Heater
The general carbide heating element is a kind of non-metal high temperature electric heating element. It is made of selected super quality green silicon carbide as main material, which is made into blank, solicited under high temperature and recrystalized. Compared with metal electric heating element, this kind of element is characterized by high-applied temperature, anti- oxidization, anti-corrosion long service life, little deformation, easy installation and maintenance. Therefore it is widely used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass metallurgy and machinery etc.
SILICA & GLASS CASED IMMERSION HEATERS
Length : 12" , 18" , 24" , 30" & 36
Capacity : Volts – 240
Watts : 1000 to 4000
Terminal wire length : 1.5 Mtrs
APPLICATION To heat-up various acidic solutions where no metal withstands. Generally this heater is used in electroplating industries. The heater is operated vertically only. CONSTRUCTION Sheathing–This type of heaters have quartz silica tube sheathing, closed from bottom. Rubber cap with terminal wires are mounted on the top. Heater terminals are fixed very firmly with the outer wires. It consist of non-sinkable heating element, as the heater is suitable for vertical installation only. ADVANTAGE This heater is designed to heat-up the solutions rapidly as the same have more watt density than the rod type heater. This heater is also available with built in thermostat.

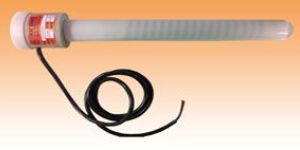

Silica Heaters
Made of imported fused silica tubing with removable heating elements inside provided with heat resistant rubber cap and a connecting cable. For vertical use at higher temparature in all acids, ferric chlorideetching Baths anodizing, bright dip baths, except hydrofluoric and phosphoric. Â
Silica Heater
Sheathing: This type of heaters has quartz silica tube closed from bottom. Bobbin heaters are inserted through the tube and terminal wires are mounted on the top and encased in a Rubber cap for Electrical safety. It issuitable for vertical installationonly.
Silica Heater
The general carbide heating element is a kind of non-metal high temperature electric heating element. It is made of selected super quality green silicon carbide as main material, which is made into blank, solicited under high temperature and recrystalized. Compared with metal electric heating element, this kind of element is characterized by high-applied temperature, anti- oxidization, anti-corrosion long service life, little deformation, easy installation and maintenance. Therefore it is widely used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass metallurgy and machinery etc.
