Tube Heaters Dealers in Thane (8 products available)

Operating Temperature : 900° C

Response Time : Around 1 Minute

IR Wavelength Between : 2-4 M

Verage Working Life Up To : 10000 Hours

Dimensions : 11 x 23mm and 15 x 33mm

Max. Overall Length : Up to 3mm

Twin-tube IR heater  the operating temperature of 900 degrees celsius. 10000 hours of working hours.

We would like to introduce ourselves as a leading supplier for Short Wave Infrared Lamps. These IR Lamps are available in different sizes and specifications as per the catalogue enclosed. The same can be supplied along with the module i.e with the mounting assembly if required .In addition to the above we can also supply you Ceramic Infrared Heaters, Medium Wave Quartz heaters in single or twin tube with or without Gold coating, Band heaters in Ceramic and Mica, Cartridge Heaters, Tubular Air Heaters, Temperature Controllers and Thermocouples from single Roof. Short Wave IR heaters are used in stretch blow moulding machine, paints shops, powder coating ovens, screen printing, curing, printing ink drying in offset machines, stentors and many more applications where the attainment of high temperature in shortest possible time is what count. We can depute our engineer for further discussion. Awaiting for our Valuable enquiry. Thanking you and assuring our best services at all times.

Gold plating is done on quartz tube over 180°. These heaters reflect the radiant energy through the opening area only, improving element efficiency by as much as 20% compare to without gold plating heater. Energy cost savings are realized. Reflectors are often not needed. Surrounding work area tempratures are cooler. These heaters are also available with a without gold plating.

lengths : 3.5 meters.

The unique twin tube design offers high radiation power and very good mechanical stability allowing emitters of lengths up to 3.5 meters. Emitters are available in Short Wove, Medium Wave, or Long Wave versions. That gives you the possibility to select the optimum wavelength for the material to bo hooted. Dimensions and filaments are matched to requirements.

length : 200 mm.

sizes : 11 mm x 23 mm & 15 mm x 32 mm.

Our Twin Tube MW IR Heater is made up of 8-shape high-purity clear quartz twin tube, with each tube having Ni-Chrome heating coil that runs in U Shape in the tube. The outer rear side of the tube of the reflector has the gold coating.

Brand Name : Diligent

Voltage : 230 V

Frequency : 50 - 60 Hz

Phase : Single

Size : 212 - 1600 mm(Length)

Power(Watts) : 500 - 6000 W Approx

Usage : Industrial

Brand Name : Diligent

Voltage : 230 V

Frequency : 50 - 60 Hz

Phase : Single

Application : Industrial

Size : 212 - 1600 mm(Length)

Power(Watts) : 500 - 6000 W Approx

diameters : 8,10,12,15,19 mm

length : 300 to 1500 mm

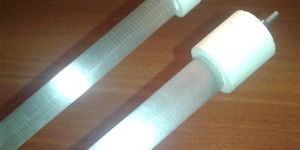

Medium Wave Infrared (Quartz) Heaters consist of a helically wound resistance coil housed in a pure vitreous silica fused quartz tube. The Quartz tubing is terminated with specially designed insulating caps, which are securely fastened to the quartz tube with high temperature cement providing excellent support to the power connecting termination. Quartz Heaters are designed to be used in a horizontal position only. Quartz Heaters are available in various diameters like 8,10,12,15,19 mm & length 300 to 1500 mm.
