Wrapping Machines Dealers in Thane

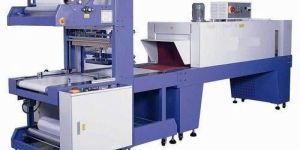

Infeed section The products are fed to the infeed conveyor of the machine . As the products collate at pusher area, the line stopper stops the product and the line sensor get actuated. Once the system assures enough accumulation of products, signaled by the product accumulation sensor, the gate valve actuates and holds the upcoming products and clear the infeed gate. After a delay the pusher pushes the collation through the curtain of film to make the sleeve. Sealing and Film Feeding Section The Sleeve Wrapper uses two rolls of single wound. The film unwinding is by motorised with dancing bar arrangement. The sealing system consists of a Special sealing system suitable for P.E.films. Once the product reaches sealing zone, the top hold down plate will come down and holds the product and then the vertical sealing arm will get actuated to seal the film and completes the wrapping operation. Once the seal is made, the sealing arm get retracts. The product is pushed into the infeed conveyor of the Shrink Tunnel by the driven outfeed conveyor. Shrink Tunnel The shrink tunnel is used to circulate hot air around the pack as it moves on the conveyor. The air from inside of the tunnel is sucked and blown on the heater (finned type). This re-circulated air comes on the pack from all sides, top bottom thereby giving a uniform shrink to the pack. During the first quarter of the tunnel, the film gets hot air only from the bottom and then from all sides. This helps in shrinking PE film well and helps to pull the seal to bottom of unit. Once the unit moves out of the hot chamber, then cool air is thrown on the unit to achieve a tight cling on the unit and it cools the unit.

Place the bottle with the printed sleeve inserted on it, on the roller of the machine. This roller will take the bottle inside the shrink wrapping tunnel. Here the label/ sleeve will be shrink wrapped to the bottle by using the heating principle. After which the bottle will out of the machine from the other side.   SALIENT FEATURES : *   Over backed heat resistant power coated used. *   Heavy duty turbo blower for effective and efficient hot air circulation. *   Teflon mash conveyor idol for group shrink wrapping.(Bottle,box,etc) *   Auto temperature control. *   Fully Heavy duty power coated tunnel covers and electric panel board. *   Class insulation provided with glass wool and asbestos/calcium silicate, sheet for machine panel and silicon tubing for conveyor rods. *   Lading and cooling zone provided as standard feature as outlet. *   Specially designed S.S Tubular finned heater for heater for minimum power consumption and maximum heat transfer. TECHNICAL SPECIFICATIONS : APPROXIMATE M/C DIMENSION :   1.6 L X 1m W X 1.2m H POWER REQUAIREDMENT :   1HP/380V/3PH TURN TABLE GEARED MOTOR :   0.25HP Non-flameproof MAIN DRIVE GEARED MOTOR :   0.5HP Flameproof AIR REQURIED :   80PSI/6KG BAR MOC :   ALL Contact Parts made out of S.S304 l and other by S.S304 PRODUCTION CAPACITY :   35-40 BPM APPROXIMATE TOTAL WEIGHT :   200KG. CAPING MOTOR :   Pneumatically Operated FILLING CAPACITY :   2-25ml OPERATORS REQUARIED :    3 person a) One person for placing empty on turn table &    collect Ready bottles.b) One person for ball placing.c) One person for cap placing.

Machine Features Roller Conveyor Accurately Controlled Tunnel Temperature Compact Size Fixed/Varible Conveyor Speed Suitable for SHRINK PVC / LDPE ect film   Application Pesticide Bottles Pharmaceutices Bottles Textile Yarn / Cones / Cheese & Fabric Rolls Sewing Thread Plastic House-holdware

Salient Features :   Shrink wrapping machine is majorly used to wrap objects with film Shrink tunnels are of different sizes to apply on various product sizes Shrink wrapping machine is consited of shrink tunnel of 8 to 36 “ tunnel size in width. Shrink tunnels are widely used to wrap objects with shrink sleeves. Shrink warpping machine can be used as sleeve labelling machine to apply sleeves on packaged drinking water,glass bottles. Shrink sleeve labelling is major use of shrink tunnel to get better labelling machine accuracy. Different types of shink tunnels can be designs to apply sleeves on bottles with various shrink wrapping machines. Shrink packaging is a method of applying skin tight labelling on bottles. Shrink wrapping equipments are widely used in food packaging & pharmaceutical packaging. PVC shink labelling machine and Pvc shrink sleeve applying is similar machine applications. Shink tunnel is suitable for PVC shink labelling and Pvc shrink sleeve applying .   Applications :   Boxes, jewel boxes, bottles, jars, metal components, stationary, can etc.

as a dependable name from mumbai(india), we make available our products to every nook and corner ensuring complete customer satisfaction. We are staffed with a team of professionals who hold immense knowledge in this domain. They are capable enough to rendering standard as well as tailored packaging requirements of the clients.features : flawless performance industry proven design high efficiency rigidity robust construction easy to operate

We are engaged in offering a comprehensive range of Shrink Tunnel that offers superior performance, easy operation and precise functioning to our clients.

Model : DST 10CD  Capacity :200 PPM  Applications : Chocolate, Cake, Soap, eWe are the manufacture of Candy Pillow pack Machine which is a high speed machine specially designed for hard boiled candy. These machines are durable, efficient, reliable and is easy to operate.

The fully automatic shrink-wrap machine is such a machine using such shrink-wrapping machine the products can be collect and can make proper matrix for the products manufactured in Pharma , non-pharma such as food and FMCG companies. The Fully automatic shrink wrapping machines are more applicable and are suitable for the high speed production filling and packing lines to complete the packing activities in short period. As the welding bar ascends, the pusher advances to transfer the new collation into the welding position, at the same time displacing the previously wrapped collation onto continuously moving shrink tunnel conveyor.

The Flow Wrapping Machine, we manufacture and export, is a completely safe and user-friendly equipment. The range we offer to the customers are stringently packed and delivered as per the customers' requirement and convenience. We have superior storage capacity to safely store the extensive product range that we offer. Our massive and well-maintained storage space is well-connected with the shipping unit.

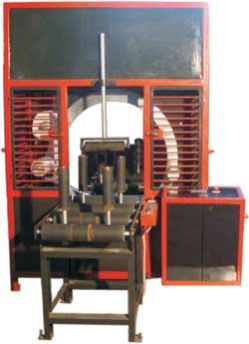

Spiral Banding Machine Semi-automatic machine to wrap and bind long length products like aluminium profiles, carpet rolls, pipes, wooden planks etc. Manufactured to size specifications in terms of width x height Compatable for use with LLDE/LDPE/BOPP films Automatic Infeed arrangement with automatic film clamping & cutting feature Also available with Dual Roll feeding system for wrapping with two different types of material in tandem

Sleeve Wrapping Machine, Packaging Machine, Shrink Wrapping Machin

Horizontal Flow Pack Wrapping Machine, Chocolate Bar Packaging Machin

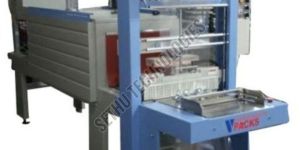

We are engaged in manufacturing and supplying of automatic shrink wrapping machine.

We have positioned ourselves as a major manufacturer, supplier, and exporter of a wide range of toffee cut and wrap machine in India.

Selvedge Wrapping Machine, Textile Machine, Packaging Machin

Biscuit Wrapping Machine, Soap Packaging Machines, Rusk Packing Machin

The Wrapping Machine is used in various industries for efficient packaging and storing purposes. We bring forth the high-quality Wrapping Machine for the clients across the globe. The company is a foremost Wrapping Machine Manufacturer, Exporter, and Supplier, based in India.

Wrapping Machines, Volumetric Filler Machines, Automatic Cup Filling Machin
