Temperature Scanner Dealers in Udaipur

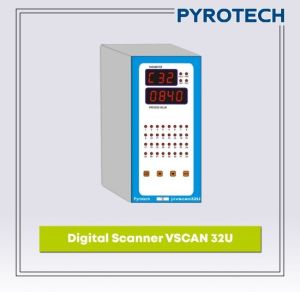

We are offering temperature scanners, temperature controller. micro controller based multi channel scanner cum controller, which can measure, indicate and control temperature at different locations using the control outputs. It is available in different models, to suit the no. Of channels requirement and the various sensors like rtd, thermocouple etc., and the no. Of channels varies from 2/4/8 /16/24/32. It ensures excellent linearity through smart linearization technique. Front panel programmable set value generates the necessary control output by scanning process temperature. The individual or grouped channel control output through relay outputs as per requirement & alarm indications available on front panel. The control action one for alarm and another for trip are maintained. It supports serial communication to take periodical print outs of process parameters and the necessary data logging for analysis.

• Accuracy: +/- 0.25% FS
• Input: mADC, VDC, RTD PT-100, T/c
• Output: 4-20mAdc (optional); RS 232/RS 485 (optional)
• Supply: Smps (90-270)VAC/VDC
• Display: 0.5"
• Channels: Available upto 32 Channels
• Mounting: Flush Panel
• Size: 192(W) X 92(H)mm

Pyrotech microprocessor/ micro controller based digital scanner is widely used in industry . Temperature scanner is a multi-channel indicator that measures and displays signals of each channel one-by-one up to last channel and then returns to first channel and continue. Temperature of multiple points can be measured in a single unit thus saving cost and space. Alarm & trip set point for each channel programmable through keyboard For Temperature, Pressure, Flow, Level, RH, Conductivity, etc. Software calibration through keyboard Memory retension EE-PROM (More than 5years) Major application is Multi Point On/Off control
