Special FeaturesWater Cooling Or Air Purging Housing, Withstands Up To 900°C

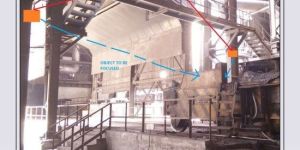

In industries there are many places such as hot plate mill, furnace, conveyor belt, hot plate rolling mill etc, where temperature ranges from 80°C to 900°C. At these places one can not stand to view the process, and monitoring of process is not possible by normal cameras and housing. Solution Pyrotech provides water cooling or air purging housing which can withstand temp. upto 900°C Air, nitrogen or water flow is used through housing to reduce temp. upto 42°C inside the housing Features of Pyrotech make housing: Weather proof standard IP65/ IP66 Material of construction: SS304 Use of toughened glass for temp up to 120°C Use of tempered glass for temp up to 290°C Use of quartz glass for temp up to 400°C Air purging housing is used for dusty area.
In industries there are many places such as hot plate mill, furnace, conveyor belt, hot plate rolling mill etc, where temperature ranges from 80°C to 900°C. At these places one can not stand to view the process, and monitoring of process is not possible by normal cameras and housing.
Solution
Pyrotech provides water cooling or air purging housing which can withstand temp. upto 900°C
Air, nitrogen or water flow is used through housing to reduce temp. upto 42°C inside the housing
Features of Pyrotech make housing:
Weather proof standard IP65/ IP66
Material of construction: SS304
Use of toughened glass for temp up to 120°C
Use of tempered glass for temp up to 290°C
Use of quartz glass for temp up to 400°C
Air purging housing is used for dusty area.
