Bromine Recovery Plant Dealers in Vadodara

(16 products available)
  • Premium
    Hot Process Bromine Recovery Plant

    Hot Process Bromine Recovery Plant

    Get Price Quote

    • ApplicationIndustrial
    • Automatic GradeAutomatic
    • Driven TypeElectric
    • Power SourceElectric
    • FinishingPolished
    • MaterialMetal
    • The acidified feed containing Bromide salts is preheated and fed to Reaction-cum-stripping tower, where Chlorine gas and steam are injected. The Chlorine gas liberates free Bromine which is stripped out by live steam in form of vapors.   These vapors are condensed in a series of condensers, and condensate is collected in phase-separator. The water phase is refluxed to the tower and separated Crude. Bromine goes for distillation to remove dissolved Chlorine. Pure Bromine after distillation is collected as bottom product. This Bromine is cooled and collected in product receiver/s.   A Vent condenser condenses most of the Bromine and recycles into the system. The non-condensibles are taken to the Vent scrubber.   The debrominated effluent from the stripping tower exchanges heat with the feed and is relatively cooled down. It may be taken for neutralization and effluent treatment.   Bromine finds its application directly and indirectly in the manufacture of pesticides, agrochemicals, pharmaceuticals, fire-retardants, photography chemicals, and many others. Bromine occurs in nature as Bromide salt present in seawater and in-land brine which is used for the grassroots production of Bromine. It is also recovered from industrial effluents/ byproducts where it occurs as different Bromide salts. Ablaze has a long and successful record of design and supply of several Bromine Recovery Plants – both grass-roots and from industrial effluents. Being manufacturer of Borosilicate Glass equipment, PTFE components and PTFE lined components, Ablaze is well qualified to handle such recovery systems as these are the major Material of Construction used in such systems. Custom made designs are offered for various Bromine Recovery Plants, depending on the source of Bromide and the end use of final product Bromine. Typical Product quality for Bromine recovered from such recovery plants is as follows: Bromine 99.5% w/w min Chlorine 0.3% w/w max Moisture 0.1% w/w max   However, the system can be designed to give the desired product quality as per the customer requirement. For eg. system can be designed to give dry Bromine if so required. There are two established Processes for the Recovery of Bromine from aqueous Bromide solutions.
    ...more
    www
  • Premium
    Bromine Recovery Plants

    Bromine Recovery Plants

    Get Price Quote

    • Number Of FlowerIndustrial Recovery Plant
    • MaterialMetal
    • FeatureCompact Design,Robust Construction
    • With our fast delivery network, we can easily meet expected delivery deadline of the clients. So, what are you waiting for, place orders now! We have an association with respected vendors from whom we source the raw inputs at very affordable charges. Additionally, the inputs are stringently checked before procurement.
    ...more
    www
  • Bromine Recovery Plant

    Bromine Recovery Plant

    Get Price Quote

    We are engaged in offering a high performing Bromine Recovery Plant that is widely demanded in various chemical industries. This Bromine Recovery Plant is recovered from industrial effluents (NaBr, KBr, HBr) and from sea-bittern. Moreover, we offer Bromine Recovery Plant that is integrated with advanced features that ensure superior performance.
    ...more
  • Bromine Recovery Plant +2

    Bromine Recovery Plant

    1,200,000 - 7,000,000 / set

    • MOQ1 Set
    • CertificationGood manufacturing practicea
    • ApplicationIndustrial
    • ConditionNew
    • TypeBromine Recovery Plant
    • Weight10000-15000kg, 230-750gm
    • FeatureReasonable Price
    • Automatic GradeManual
    • Driven TypeMechanical
    • Country of OriginIndia
    • Power SourceElectric
    • FinishingPolished
    • MaterialMetal
    • bromine in nature available in sea water in ppm levels.sea brine-bittern formed in salt farms after removal of salts contains bromine in 2-6 gpl level. highest bromine content available in the dead sea at israel and jorden. bromine is extracted from salt brines by reactive stripping. salient features production of 99,9% bromine from salt bittern-brines debromination of brines and waste bromide stream down to 0.1% bromine proven and state of the art process know how bromine recovery from industrial bromide glass and glass-lined steel as ideal highly corrosion and diffusion resistant material highly efficient hot process   bromine recovery from sea bittern ud technologies offers bromine production plants with the proven process know how. bromine is widely used in the manufacturing of fine chemicals, pharmaceuticals and fire retardant chemical bromine is available in nature as magnesium bromide in seawater in minute quantities say 0.065 gram /liter. with the solar evaporation of water in salt farms result in crystallization of salt. after removal of salt, remaining mother -sea bittern is rich in bromine content say 2.5-4 gpl. this content can be economically recovered using the hot process to produce elemental bromine as bromine itself is highly corrosive manufacturing process is at a higher temperature, ud technologies offers complete plant with special corrosion resistant material of construction with purity complies with indian government standard is 2142   brief process description :process divides into three steps: displacement of elemental bromine from sea bittern in oxidation reaction by chlorine steam stripping of bromine and condensation purification of bromine to remove chlorine and moisture.   main reaction column is combined reactive stripping column. first, two steps carried out in the same column. step 3 –purification involves separate distillation column.design of plant is carried out considering varied bromine content in feed ad varied flow rates. due to this design, it is possible to run the plant in different seasons with consistent purity.  product quality specification: strictly adheres with indian government standard is 2142 bromine –wt%: 99.5% chlorine- wt % > 0.05% -0.08%   bromine recovery from industrial solutions we design, supply and commissioned the glass plant for is quality bromine from industrial bromide solutiob aqueous bromide solution is reacted with chlorine gas in reaction or stripping column. the chlorine liberates elemental bromine from the dissolved bromide. this is stripped out by the live steam feed from the bottom of the column. crude bromine is then distilled to get bromine purity of minimum 99.5%. the solution is not always so simple though, as feeds are often contaminated with organic material from the process. these organic impurities have to be removed by pre-treatment before feeding to the plant.   overview of the systemthe system consists of stripping / reaction column – glass cooling / chilling heat exchangers phase separator – glass bromine purification column pure bromine condenser – glass vent / guard condenser – glass bromine reboiler – glass bromine product cooler – glasscrude / pure bromine collecting receiver – glass
    ...more
  • Bromine Recovery Plant

    Bromine Recovery Plant

    500,000 - 5,000,000 /

    • CertificationISO 9001:2008
    • ApplicationIndustrial
    • TypeBromine Recovery Plant
    • Weight10000-15000kg

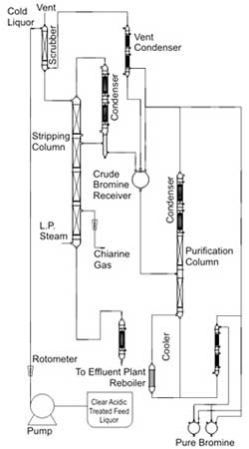

    • Bromine is available in the sea bittern, as well as Industrial waste e.g. Aq. HBr Aq. NaBr Aq. KBr. The Bromine concentration in the feedstock varies from 2 gpl to 300 gpl from industry to industry. Goel Offer suitable bromine recovery plant for the various feedstock based on his 20 years expertise in this field. Goel suggest cold process for bromine concentration below 3 gpl and Hot process above 3 gpl. Bromine Recovery considered is schematically shown in Drawing. enclosed herewith.
    ...more
  • Bromine Recovery Plant

    Bromine Recovery Plant

    1,000,000 / Piece

    • Frequency50 Hz
    • Automation GradeSemi-Automatic
    • Voltage220-240 V
    • TemperatureRT- 120 Degree C
    • Country of OriginMade in India
    ...more
  • Bromine Recovery Plant

    Bromine Recovery Plant

    Get Price Quote

    Bromine is available in the sea bittern, as well as Industrial waste e.g. Aq. HBr Aq. NaBr Aq. KBr. The Bromine concentration in the feedstock varies from 2 gpl to 300 gpl from industry to industry. bromine recovery plant for the various feedstock based on his 20 years expertise in this field. Goel suggest cold process for bromine concentration below 3 gpl and Hot process above 3 gpl. Bromine Recovery considered is schematically shown in Drawing. enclosed herewith.
    ...more
  • Bromine Recovery Plant

    Bromine Recovery Plant

    Get Price Quote

    Bromine industry is an important part of big chemical family. Bromine and bromine compounds have wide application in different fields. Primary using of bromine compounds are in flame retardants, drilling fluids, brominated pesticides (mostly methyl bromide), and water treatment. Bromine is also used in the manufacture of dyes, insect repellents, perfumes, pharmaceuticals, and photographic chemicals. Other bromine compounds are used in a variety of applications, including chemical synthesis, mercury control, and paper manufacturing Bromine is existing in the sea bittern, as well as Industrial effluents e.g. Aq. HBr Aq. NaBr Aq. KBr. The Bromine concentration in the feedstock varies from 2 gl to 300 gl from industry to industry.
    ...more
  • Bromine Recovery Plant

    Bromine Recovery Plant

    Get Price Quote

    The feed is acidified with 30% HCl acid and acidified feed is fed to the scrubber by pump to scrub uncondensed chlorine from vent condenser and return back to the reaction column. In some cases the part feed is preheated using effluent from the reaction column prior to the entry of reaction column and part feed is fed to the scrubber to conserve energy. Chlorine and Steam are also fed to the reaction column.In the reaction column the feed is reacted with chlorine gas & bromine is liberated instantly. This liberated bromine is stripped out of the solution by live steam. The bromine and water vapor stream leaves the top of the column and enters the condenser. Condensate falls into the Phase Separator where it forms two phases, the light aqueous phase (water) being returned to the column ,while the heavy phase(Bromine) being feed the purification column. Cooling Water & Chilled Water is used as cooling media in heat exchanger provided at the top of the column to condense water vapor & Bromine.
    ...more
  • Bromine Recovery Plant

    Bromine Recovery Plant

    Get Price Quote

    Bromine Recovery Plant, Sight Glasses, Glass Adapter, Distillation Apparatu
  • Bromine Recovery Plant

    Bromine Recovery Plant

    Get Price Quote

    Bromine Recovery Plant, Cylindrical Glass Reactor, Jacketed Reactor
  • Bromine Recovery Plant

    Bromine Recovery Plant

    Get Price Quote

    Bromine Recovery Plant, Glass Pilot Plant, Hydro Extracto
  • Bromine Recovery System

    Bromine Recovery System

    Get Price Quote

    Glass Heat Exchanger, Laboratory Glass Componen
  • Bromine Recovery System

    Bromine Recovery System

    Get Price Quote

    Sight Glass Sight Flow Indicato
  • Bromine Recovery Plant

    Bromine Recovery Plant

    Get Price Quote

    Bromine Recovery Plant, Glass Reactor, Shell and Tube Heat Exchange
  • Bromine Recovery Plants

    Bromine Recovery Plants

    Get Price Quote

    Bromine Recovery Plants, Glass Heat Exchangers, Mobile Gas Absorber
