Chromatography and Instruments Company. Makarpura, Vadodara, Gujarat

    Xenon – Krypton Determinator   XENON-KRYPTON DETERMINATORS have been designed for normal sample size as well as for large diameter sample size of 20 mm (To be specified in advance). This Determinator is different than the Oxygen-Nitrogen and Hydrogen Determinators as here Xe and Kr are trapped at -60°C, and absorbed at 400°C, with temperature span of 460°C covered within 4 – 8 seconds.       Xenon – Krypton Determinator XENON-KRYPTON DETERMINATORS have been designed for normal sample size as well as for large diameter sample size of 20 mm (To be specified in advance). This Determinator is different than the Oxygen-Nitrogen and Hydrogen Determinators as here Xe and Kr are trapped at -60°C, and absorbed at 400°C, with temperature span of 460°C covered within 4 – 8 seconds.   Xenon – Krypton Determinator Innovative  &  Advanced Features Compact and Modular design for ease in operation & Maintenance. It has a large ¼" VGA Touch Screen for the complete control of the system. There is no keypad or other controls visible on the front panel as the complete operation is through the touch screen panel including / excluding current setting for out gas and analyze mode. The complete system is under modulus RTU protocol for connectivity through other SCADA & supervisory systems.Data acquisition is through software using a PC system so that unlimited files can be stored. All the timers are user settable (Via Supervisory password) thereby making the instrument ideal for routine analysis as well as R & D application. The timers for all the modes are set using the touch screen as well as through the H PPC Determinator control software. On line display of the current mode in progress as well as the time left for mode completion displayed on the touch screen. On line fault diagnosis and stepwise guidance for any fault condition on the Touch Screen console. On line Manual, On line Method Development and On line Fault Diagnosis software in case the H PPC Determinator control software is procured. On line Manual, On line Method Development and On line Fault Diagnosis software in case the H PPC Determinator control software is procured. Three stage flow control system to prevent accidental change of values. Alarms and safety interlocks. Closed loop coolant circulator (Optional). Furnace is Glove Box adaptable(Optional)

Brand Name : CIC

Automation Grade : Automatic

Material : SS + MS + Peek - Depending upon application

Country of Origin : Made in India

The Carbon – Sulphur analyzer body is designed of module integration idea. Power supply system composes twin modules which are dust-preventive, simple and reliable; connection cables use flat wire connectors instead of old slot mode which can upgrades whole circuit reliability.

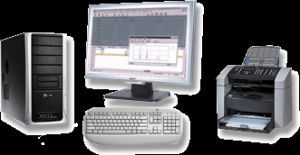

Windows based Single / Dual Channel Software-Hardware Charomatography Data processor systems. Single Channel & Dual Channel   Features Data acquisition of all chromatographs for up to 2 Nos. Multi channel and Multi-Tasking On-line HELP system Use spread-sheet type table for user keyboard input 3D compare or 2D overlay view Zoom in and zoom out on specific data point at any time with mouse Show baseline, retention times, peak start/end, peak top, axis labels Show peak names to verify proper peak identification   GLP Compliant with GUI facility software (Hardware For The Software) 24 Bit A/D Converter at all sampling rates Dynamic range is > 10e6 Analog signal Range is from ± 1.25 VDC

Process Plant Version Of Online Gas Chromatograph Rugged On-Line Gas Chromatograph systems based on TCD,PDHID and FID detectors in 19" Rack enclosures. Single / Multi Stream On-Line Gas Chromatograph systems based on Micro controller / Microprocessor technology. Customized GC systems can be manufactured using Hear cut, Back Flush, Fore Flush, column switching etc.. techniques for the most difficult applications. Multi stage sample processing. Remote indication of results on Process indicators up to 900 meters away. Choice of RS 232 C / RS 485 / Ethernet control. All components used are industrial grade or MIL grade from approved sources with certification from LCSO/BIS/NPCIL/ECIL/EIL/CE/UL etc. Various approvals for EMI, RFI, Temperature, Humidity, Voltage variation, insulation, leakage conforming to MIL, IEC, IS and NPCIL-ECIL standards. Traceability records and 100 % incoming QC as per PTS and QAP.   Applications: Defence Applications Nuclear Power Plants Industrial Applications

The PAS-PDGAï¼Â� Portable Dissolved Gas Analyzer represents a new generation of test equipment for analysis the dissolved gas in oil.Dissolved Gas Analysis (DGA) and moisture measurement of insulating fluids are recognized as the most important tests for condition assessment of fluid-insulated transformers. Every year asset owners deploy field crews to take thousands of fluid samples from transformers as part of periodic health checks and for immediate operational decisions. These samples are sent to offsite laboratories for analysis. Transport X² is a portable ‘lab in a box’ delivering detailed analysis with dramatically reduced turnaround times. In critical situations, the ability to perform DGA in less than 30 minutes on the spot, empowers asset owners to determine a transformer’s condition onsite and thereby allow operational decisions to be made at the earliest opportunity.

Number Of Flower : Portable Dissolved Gas Analyzer

Availability : 5-10kg

Brand Name : Kelman GE

Application : Mission Critical Industrial Transformers

Power : 115-230 V AC

    Pilot Plant Version   Pilot Plant Version Of On-Line Gas Chromatograph A superb space saver on-line Gas Chromatograph system employing all the techniques and processes of OLGC for process plants. All specifications are almost as per On-Line for Process Plants with wider application area and provision for multi dimensional analytical setup. Can be used with high sensitivity TCD , FID , ECD, DID & PDHID Detectors in solo or in multiple configurations. Systems can be designed for high temperature applications using satellite oven with MIL grade components. The electronic panels are specially designed proprietary 17" rack panels with modular structures. The systems are used for controlled environment and with electronic components be of industrial grade with CE/UL/CSA/LCSO/EQDC certification. Can be configured for single stream or multi stream operation All the features of an advance Gas Chromatography system as well as On-Line GC system at a very affordable price. Remote indication of results on Process indicators up to 900 meters away. Choice of RS 232C/RS 485/Ethernet control.   Applications: Manufacturers of  UHP Gases Certification for Gas Purity Air Gases, Doping Gases, Chemical Gases Environmental applications Defense applications Pilot plants & other industrial applications Nuclear Industry Reactor studies Other specifications similar to the base model selected for the application.

Model Number : TS-ON

Brand Name : CIC

Application : Steel and Steel Alloy Analysis,Refractory Metal Analysis,Ceramics,Superconductors,Rare Earths

Number Of Flower : Oxygen Nitrogen Determinator

Power Supply : 230 V AC

Purity : Data acquisition is through software using a PC system so that unlimited files can be stored

Automation Grade : Automatic

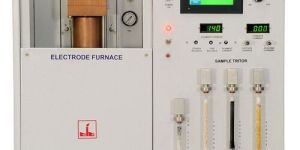

The Determinator is capable of Nitrogen & Oxygen determination with great simplicity using latest technology and menu driven software. The operation of the analyzer is simplified with the use of Touch Screen based control systems which make the programming of all functions of the determinator extremely simple. Oxygen Nitrogen Determinator use two or single Detector system at a very high sensitivity Macro Thermal Conductivity Detector &/or Infra red detector capable to detect from 1 ppm to 2000 ppm using a nominal sample size of 1 gram for Oxygen and 1 ppm to 2000 ppm for Nitrogen using nominal weight of 1 gram.   Innovative & Advanced Features Compact and Modular design for ease in operation & Maintenance. It has a large ¼" VGA Touch Screen for the complete control of the system. There is no keypad or other controls visible on the front panel as the complete operation is through the touch screen panel including / excluding current setting for out gas and analyze mode. The complete system is under mod bus RTU protocol for connectivity through other SCADA & supervisory systems. Data acquisition is through software using a PC system so that unlimited files can be stored. All the timers are user settable (Via Supervisory password) thereby making the instrument ideal for routine analysis as well as R & D application. The timers for all the modes are set using the touch screen as well as through the H PPC Determinator control software. On line display of the current mode in progress as well as the time left for mode completion displayed on the touch screen. On line fault diagnosis and stepwise guidance for any fault condition on the Touch Screen console. On line Manual, On line Method Development and On line Fault Diagnosis software in case the H PPC Determinator control software is procured. Three stage flow control system to prevent accidental change of values. Alarms and safety interlocks. Closed loop coolant circulatory (Optional). Furnace is Glove Box adaptable(Optional).

Country of Origin : 100-240 V

The MGA2000-6 is a new generation of On-line DGA equipment giving essential insight into the condition of transformers. Two Gas, Four Gas, Six Gas and Eight Gas models are available.

We have pleasure in informing you that we have once again successfully manufactured an ionization detector based gc system. This system has been manufactured against order from barc, mumbai for analysis of hydrogen in low levels (1 -10 ppm range) in helium background. The system has it's own very sophisticated sample handling system commiserate with the application and system requirements. we are pleased to attach some photographs of the system along with results taken for the analysis of indian helium of grade 1( total impurities less than 2 ppm certified). We will be pleased to work with you for any of your applications involving ionization based systems. Please feel free to contact us if you need any more information or have any queries for your application.

Brand Name : CIC

Application : Laboratory Use

Availability : Approx. 16 Kg

Automation Grade : Automatic

Frequency : 50 Hz

Country of Origin : 230 V

Material : Mild Steel

Power : 4 Amperes

Country of Origin : Made in India

This equipment can be used to detect the incipient fault in the transformer  and  arrest deterioration/damage to the transformer insulation by analyzing gases dissolved in the transformer oil and adopt preventive measures. The P Micro DGA/TOGA is capable to detect PPM & Sub PPM gases in transformer oil and can b configured for analysis as per IS10593 IEC 60567 Section 7.3 or Section 7.5 Manual Variant ASTM D 3612 Section A or Section C Manual Variant The P-Micro is a microprocessor based system with no moving parts specially designed for mobile labs & easy portability. The system utilizes specialized heating techniques for the column and methanizer achieving precsion using PID control action.

Application : Industrial

Lab Version On-Line Gas Chromatograph Micro controller based system with choice of operating controls. Can be built using GC Dhruva or GC 2011 as main frame. Can be configured for single stream or multi stream operation with Heart Cut, Column Switching, Back Flushing, Fore Flushing etc., operations, i.e. basically a multi dimensional analytical setup. All the features of an advanced GC system for On-Line applications at a very affordable price. Can be configured with TCD, FID , DID, PDHID ,ECD or multiple detectors in series or parallel. Remote indication of results on Process indicators up to 900 meters away. Choice of RS 232C/RS 485/Ethernet control.   Lab Version Online Gas Chromatograph   Applications: Manufacturers of  UHP Gases Certification for Gas Purity Air Gases, Doping Gases, Chemical Gases Environmental applications Research applications Industrial applications Coolant Gases for Nuclear Industry Reaction studies

Analyzers for Analysis of Dissolved Gases in Transformer Oil - Single Injection DGA System – TOGA - Single / Dual injection transformer oil gas analyzers as per IS 10593 / ASTM D 3612 / IEC 60567   Innovative & Advanced Features A fully micro controller GC configured for single injection analysis of transformer oil gas analysis. Totally automated system with FID, TCD and Methanizer controlled through auto timer of GC. Multi column system with automatic gas sampling valve from VICI Valco for column switching, detector switching as well as trap and purge events. Choice for PC control using RS 485 protocol. Can be built using GC Dhruva or GC 2011 or GC 2010 as base module with all features of GC Dhruva, GC 2011 or GC 2010 as standard depending upon the mainframe selected. Various models of TOGA are available as per the budget requirements. variations include single injection, dual injection, single injection with imported valve, single injection with Indian valve, single injection with dual channel DAS system…

Number Of Flower : inductively coupled plasma mass spectrometer

Certification : CE Certified, ISO 9001:2008

Application : Laboratory Use

Country of Origin : 220-240V

Condition : New

Display Type : Digital

Power : 2kw

Power Source : Electric

Focal Length : 100-200mm

Automation Grade : Automatic

These Hydrogen Storage Systems are imported from abroad and are based on the Rare – Earth Metal Alloys (AB5) which are used to store Hydrogen in the form of Metal Hydride. The hydrogen safe storage system keeps the Hydrogen chemically bonded in the Metal Hydride, thus even gunshot strike and engulfing it a burning environment will not result in explosion reaction. Even if there is any leakage occurring in the outer tube, this storage will release Hydrogen very slowly in many hours, hence, any risk of explosion is removed.The Hydrogen storage cum purifier is very convenient to use as it can function at normal room temperature & normal pressures without any additional power supply for its functioning. These systems require no maintenance & can be recharged for over 3000 times which is equivalent to a life span of over 30 years. These Hydrogen Storage & Purification Systems can be very useful for high precision Chromatography, On-line (Portable) GC, GC-Mass Spectrometry, VOC, THC Station & Laboratories where high purity hydrogen is required. As the systems weigh only around 0.2 – 7-kg they are highly transportable and can be placed at most unlikely locations. Besides the above applications these systems can be utilized for strategic applications in various sectors for storage of gases as well as portable gas supply systems in the field areas.

Availability : 7 Kgs To 200 Kgs

Country of Origin : Made in India

Purity : 99.995%to 99.999%

The analyzer is capable of the determination of Hydrogen Gas (H2) in metals and alloys with great simplicity using latest technology and menu driven software. The operation of this Hydrogen Gas Determinator analyzer is simplified with the use of Touch Screen based control systems which make the programming of all functions of the determinator extremely simple. Detection of Hydrogen gas is done using a very high sensitivity Macro Thermal Conductivity Detector capable to detect from 0.01 ppm to 5000 ppm using a nominal sample size of 1 gram for Hydrogen.       Innovative & Advanced Features Compact and Modular design for ease in operation & Maintenance. It has a large ¼" VGA Touch Screen for the complete control of the system. There is no keypad or other controls visible on the front panel as the complete operation is through the touch screen panel including / excluding current setting for outgas and analyze mode. The complete system is under modbus RTU protocol for connectivity through other SCADA & supervisory systems. Data acquisition is through software using a PC system so that unlimlited files can be stored. All the timers are user settable (Via Supervisory password) thereby making the instrument ideal for routine analysis as well as R & D application. The timers for all the modes are set using the touch screen as well as through the H PPC Determinator control software. On line display of the current mode in progress as well as the time left for mode completion displayed on the touch screen. On line fault diagnosis and stepwise guidance for any fault condition on the Touch Screen console. On line Manual, On line Method Development and On line Fault Diagnosis software in case the H PPC Determinator control software is procured. Three stage flow control system to prevent accidental change of values. Alarms and safety interlocks. Closed loop coolant circulator (Optional). Furnace is Glove Box adaptable(Optional).

The Touch Screen GC System Model Dhruva  S2TS (NTPC & ERDA Approved) is configured For Dissolved Gas Analysis of transformer oil. It Can Be Built To  Meet The Specification / Standards As Per ASTM D 3612  Section A or C or IEC 60567, 2005 Section 7.3 or 7.5 as required by the user. This equipment can be used to detect the incipient fault in the transformer  and  arrest deterioration/damage to the transformer insulation by analyzing gases dissolved in the transformer oil and adopt preventive measures. Gas Chromatography method is used for detection for the dissolved gases and identification of incipient faults. The most significant gases generated by decomposition of oil deterioration, of paper insulation on the conductor are hydrogen, methane, ethane, ethylene,  acetylene, CO , Carbon di-oxide, Oxygen & Nitrogen. The quantities of these gases dissolved in transformer oil vary depending upon the type and severity of fault condition such as arcing, partial discharge, overheating, low-high temperature hot spot etc. The process involved is separation, identification and quantitative determination of gases.The Dhruva S2TS analyzes the fault gases in a single injection with gases analysed depending upon user ordering.   Innovative & Advanced Features : Color Touch Screen control with optional control over TCP-IP using FTP protocol Meets  ASTM D 3612  Section A or C or IEC 60567, 2005 Section 7.3 or 7.5 as required by the user. 10 or 40  Vial Head Space Auto Sampler (Choice of Manual Head Space Sampling as per Section C / 7.5) . Auto tuning PID temperature control for up to 8 channels with 2 programmable zones & 6 isothermal zones. EPC for up to 8 channels with 2 programmable zones & 6 single set point control with 0.25% FSD accuracy. Up to 12 auxiliary device control with 4 step programming for control of GSV, Solenoids, Pumps, trigger, signals etc. Input status for Pressure, Remote start, Remote Stop, Door open along with 4 additional spare inputs. Programmable FID (Gain, Off Set, and Sensitivity – low, high) with time based sensitivity settings. Programmable TCD (Sensitivity – Low, Medium, High) with superb current stability & repeatability. Extensive Auto diagnostics & user friendly system control with User settable password protection. Multi mode screens with 6 pages of current status giving complete GC status with option for continuous looping of the system.

Touch Screen based Advanced Gas Chromatography Systems which can be configured for online and offline applications.

Auto tuning PID temperature control for up to 8 channel with 2 programmable zones & 6 isothermal zones. EPC for up to 8 channel with 2 programmable zones & 6 single set point control with 0.25% FSD accuracy. Up to 12 auxiliary device control with 4 step programming for control of GSV, Solenoids, Pumps, trigger, signals etc. Input status for Pressure, Remote start, Remote Stop, Door open along with 4 additional spare inputs. Programmable FID (Gain, Off Set, Sensitivity – low, high) with time based sensitivity settings. Programmable TCD (Sensitivity – Low, Medium, High) with superb current stability & repeatability.
