Goel Scientific Glass Works Ltd Ajwa Road, Vadodara, Gujarat

Rotary Evaporator is essentially a thin film evaporator also called rotary vacuum evaporator. Working Of Rotary Evaporator: The rotating flask continuously covers a large surface area with a thin film which is ideal for rapid heat transfer. Fortuitously, the thin film also ensures uniform heat distribution without local heating. The facility to work the unit under full vacuum further facilitates evaporation at as low temperature as possible. That is to say, both boiling point and residence time are significantly reduced. These features combined, renders rotary film evaporator to be ideally suited for evaporation of heat sensitive material. It is equally successful for evaporation of suspension in crystallization processes, drying of powder granules etc.

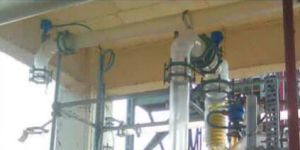

1. Absorption systems for gases such as HCl, Cl2, SO2, HBr. NH3, Br2, NOx etc. 2. Anhydrous HCl Gas Generation Unit by different routes viz. - Sulphuric Acid Route - Boiling Route - Calcium Chloride Route - Cyclic Route 3. HBr Gas Generator (By Boiling Route) 4. Sulphuric Acid Dilution Units. 5. Hypochlorite Manufacturing Units 6. MCA Condensation Assembly 7. Distillation - Conversion of Batch Process to Continuous Process. 8. Solvent Recovery 9. Iodine Recovery 10. Raw DCB Plant. KNOW-HOW WITH PLANT for the following products : 1. Bromine recovery from industrial waste salt bittern 2. Nitric Acid Concentration. 3. Sodium Hypochlorite.

Glass plants and pipeline should be supported correctly. To prevent inducing undesirable stresses in the glass, support should be rigid. When supported, glass should be in compression. Generally, glass plant and equipment are supported in a rectangular tubular structure. This structure is formed of galvanised mild steel tubing with the cast iron fittings which are described in this catalogue. This type of structure provides enough flexibility for future modifications and is strong enough to support a glass unit.

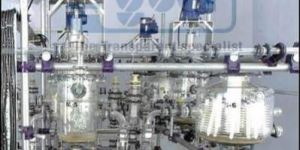

1. Stirrer material of construction: Glass, Stainless Steel or PTFE Lined. 2. Stirrer Design: Impeller stirrer with blades, Vortex stirrer, Propeller Stirrer & anchor Stirrer. 3. Stirring Drive: Non-flameproof or Flameproof stirrer drive, 192 RPM with Variable Frequency Drive. 4. Stirring Assembly: Stirring Assembly with bellow seal or with mechanical seal. Stirrers are assembled in a vessel using a chuck, seal and a reducer. A typical arrangement of stirrer fitted in a vessel is shown in the diagram.

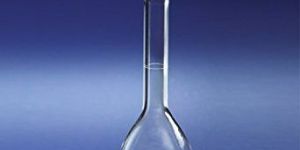

Volumetric Flask, Capacity Ml : 1,2,5, 10, 20, 25, 50, 100, 200, 250, 500, 1000, 2000, Tolerance ±ml : 0.015, 0.01, 0.025, 0.04, 0.06, 0.1, 0.15, Stopper size : 1015, 1415, 1920, 2425, per case : 4

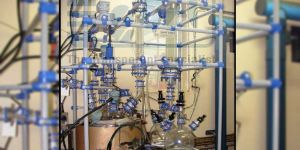

We are offering STANDARD DISTILLATION UNIT.

These vessels are used in Circulatory Boiler System and are to be supported on a vessel holder. More nozzles can be provided on the equator on request for special requirements. Cyclones can be used for the separation of droplets and solids from gases and vapours. Cyclones are to be supportd on a vessel holder. A dip pipe should be used on the top neck.

This operation involves preferential solublising of one or more soluble constituents (solutes) of a solid mixture by a liquid solvent. The unit described here is for a semi-batch operation. The solid to be extracted is put inside a glass fiber bag and placed in an extraction vessel. Solvent from the reboiler is continuously evaporated,condensed and circulated through a reflux divider by means of piping network and valves. When desired steady concentration of solute is achieved in the solution the operation is discontinued. The solution is drained off and collected for further use. After charging fresh solid in fiber bag and solvent in reboiler, the cycle can be restarted again. Solvent Extraction units are available in vessel sizes of 10, 20, & 50L and is suitable for operation under atmospheric pressure.

Goel introduce Sintered Glassware of a porous glass disc as a filter media mainly used for the filtration of liquids,gases,gas washing,dispersion and absorption.

Goel introduce Sintered Glassware of a porous glass disc as a filter media mainly used for the filtration of liquids,gases,gas washing,dispersion and absorption.

Standard Units Assemblies are multi-purpose units having flexibility of utility. These units have been standardized by incorporating all basic & essential features such as heating, stirring, condensation, fractionation, cooling etc. for multi-purpose use. Therefore, though termed “Standard Units” from constructional view point they actually serve as “Flexi Units” from utility point of view. These units find use in educational institutions, R&D centers and industries. They can be conveniently and quickly modified according to specific process needs due to modular construction. Borosilicate glass offers additional benefits of universal corrosion resistance, visibility and cleanliness.

A sight glass consists of one glass pipe section, one metal frame, a pair of PTFE bushes and washers and an acrylic cover. Borosilicate pipe section is highly heat resistant, has excellent chemical resistance and has low thermal expansion. Metal frame is composed of two flanges which are welded with studs so that the stresses and vibrations of the pipeline do not transfer to the glass pipe section. Its check nut keeps the glass pipe section in compression and provides ease in replacement. PTFE bushes on both sides of glass pipe section ensures that liquid in the pipeline does not come in contact with metal frame. PTFE washers are used as gaskets while fitting the sight glass in the pipeline. Acrylic cover covers the glass pipe section and protects it from outer damages.

The rotating flask continuously covers a large surface area with a thin film which is ideal for rapid heat transfer. Fortuitously, the thin film also ensures uniform heat distribution without local heating. The facility to work the unit under full vacuum further facilitates evaporation at as low temperature as possible. That is to say, both boiling point and residence time are significantly reduced. These features combined, renders rotary film evaporator to be ideally suited for evaporation of heat sensitive material. It is equally successful for evaporation of suspension in crystallization processes, drying of powder granules etc. Rota Evaporator vacuum evaporator finds wide use from small scale laboratory set-ups to industrial operation. Goel Rotary Film Evaporator (GRFE) is preferred by both research and production facilities and has been used by laboratory and chemical, pharmaceutical and biotechnological industries.

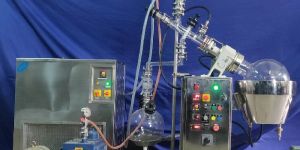

Rotary Evaporator is essentially a thin film evaporator also called rotary vacuum evaporator. Working Of Rotary Evaporator: The rotating flask continuously covers a large surface area with a thin film which is ideal for rapid heat transfer. Fortuitously, the thin film also ensures uniform heat distribution without local heating. The facility to work the unit under full vacuum further facilitates evaporation at as low temperature as possible. That is to say, both boiling point and residence time are significantly reduced. These features combined, renders rotary film evaporator to be ideally suited for evaporation of heat sensitive material. It is equally successful for evaporation of suspension in crystallization processes, drying of powder granules etc.

Number Of Flower : Rotary Evaporators

Material : Stainless Steel

Certification : ISO9001:2008

Condition : New

Finishing : Polished

Automatic Grade : Fully Automatic

Brand Name : Goel

500 ml and 1000 ml kettles have interchangeable covers with four 2429 interchangeable joints. 2000 ml and 4000 ml kettles have interchangeable covers with three 2429 and one 3435 interchangeable joints.

to minimize the transfer of vibrations from the rotating equipments which are connected to the glass assembly. These are similar to the bellows to accommodate the thermal expansion of any metallic (non-glass) equipment which are connected to the glass pipeline.for glass-to-glass in construction, but having a adaptor bellow flange at one end. Generally this adaptor flange is supplied undrilled so that it can be drilled as per the configuration of mating flange. However, this adaptor bellow flange can be supplied drilled AS per "Table E", "Table F" or "ASA 150" standards, if Specified.

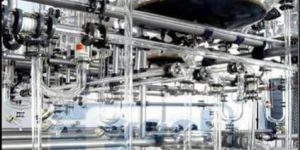

Borosilicate glass 3.3 pipeline offer many advantages for its use in chemical, pharmaceutical industries together with precious metal refining, dye works & electroplating because of its following characteristics. Inert to almost all chemicals, hence no risk of contamination and no unwanted flavors or colours are imparted into product. Transparency allows visual monitoring of the process, flow patterns, colour changes etc. Almost universal resistance to corrosion. A long service life is guaranteed. Smooth surface permits easy cleaning and prevents fouling.

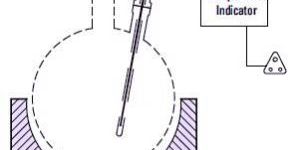

These are generally used as headers of shell and tube heat exchangers and columns. This instrument is mainly used to monitor the temperature of liquid in a glass vessel in a typical glass distillation unit. The instrument consists of a Temperature indicator and a Resistance Temperature Detectors (RTD). The instrument works on 230V, 50Hz power supply. This displays the temperature in degree Centigrades in three and half digits of 12.5mm character height.

Bottles, Capacity Ml : 250, 500, 1000, 2000, Approx OD mm : 65, 85, 105, 130, Approx. Ht. mm : 147, 172, 200, 265, I.D. Neck mm : 18, 23, 28, 33, Qty per case : 20, 12, 8, 4.

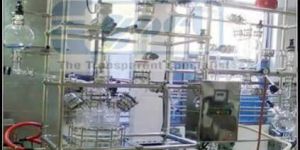

Glass Reactors Kilolab are multi-purpose pilot plant units having flexibility of utility. Glass Reactordistillation unit have been standardized by incorporating all basic & essential features such as heating, stirring, condensation, fractionation, cooling etc. for multi-purpose use. Therefore, though termed Kilolab from constructional view point they actually serve as Flexi Units from utility point of view, also known as Glass Reactor and distillation unit. These glass reactor kilolab are used in educational institutions, R&D centers and industries. Distillation unit can be conveniently and quickly modified according to specific process needs due to modular construction. Borosilicate glass offers additional benefits of universal corrosion resistance, visibility and cleanliness.

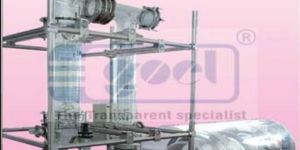

Rotary Film Evaporator is a very regular usage product in the R & D of chemical & Pharmaceutical industry. It is also being used nowadays for manufacturing purpose for high value pharmaceutical & specialty chemical products. The existing rotary film evaporators, which are used are with spherical evaporating flasks. What happens is when the requirement of volume for process it is practically very difficult to handle the size beyond 50 liters. Chemical reactors are cylindrical in shape with a perticular LD ratio in general, which are given for a particular reaction surface area. The cylindrical vessel has a higher surface area spherical vessel. This prompted us to think in the direction; why only spherical vessel is used when we can exploit the advantage of cylindrical shape evaporation flask in a rotary film evaporator.

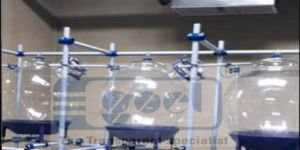

For special applications, cylindrical vessels can be supplied with a jacket for heating or cooling. Jacket is sealed to the vessel with Viton 'O' ring and other sealing compositions. The seal prevents high stresses between vessel and jacket by allowing the movement flexibility between two due to thermal expansion. Glass Jacket can be used for a maximum operating pressure of 0.5 bar and a maximum o operating temperature of 130 C in jacket. The temperature difference between jacket & vessel 0 should not be exceed than120 C.

In most of the glass plants, vessels are used as reactors, receivers, separators, measuring or feed vessels. Glass Reactor are available in Spherical Shape from 5 to 500 liter and in Cylindrical Shape from 5 to 500 liter capacity. Cylindrical vessels can be supplied with metalglass jackets too. We have a variety of vessel option to choose from our standard range. Beside the manufacturing of our Standard Vessels Rectors, we specialize in producing reactors as per customer's requirement. We can fabricate the reactor as per drawing or picture.

Country of Origin : India

Number Of Flower : Glass

Brand Name : Goel
