Gururaj Engineers Makarpura, Vadodara, Gujarat

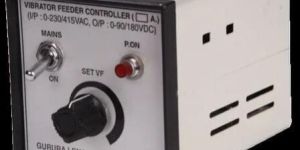

GE presents Vibrator feeder controllers which are used to control the feeding of various materials for further processing. Solid state circuit, no wear & tear Stepless control of vibrations & hence the feed. Automatic reduction in vibration feed with increase in main motor current or the temperature or any other parameter is possible. Different models to suit vibrator feeders. Low cost manual units are available.

Country of Origin : Made in India

VersaMax IP is designed to offer the ruggedness and reliability of a standard IO system installed in a NEMA 4 cabinet, without the cost and effort to build the cabinet. VersaMax IP is IP67 rated so it can be bolted right to the equipment it controls without the need for an enclosure. IO, communications, and power connections are made to the blocks with off-the-shelf cordsets – reducing design and installation time and possible wiring errors. Once installed, VersaMax IP’s diagnostics make troubleshooting a snap. In the event of a failure, the connectorstyle wiring interface comes into play once again, greatly reducing replacement time and the possibility of wiring errors.

Alarms. Used For Alarm Annunciation Used where No PLC is there and Multiple Faults have to handled and acknowledged. 1224 Potential Free Inputs for Fault Gives 2 Potential Free Outputs Outputs can be used for Audio & Visual Alarms Audio Alarm Can be Muted With Acknowledge Command Visual Alarm can be reset once the Fault is Cleared LED indication for easy diagnostics Easy to Wire and use.

Country of Origin : 440V AC

Phase : Triple Phase

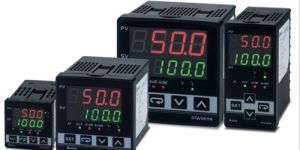

Brand Name : Delta

Temperature Range : All temperature controllers adopt an isolated switching power supply

Power : 100 to 240 VAC

Number Of Flower : Digital

Size : 96*96 mm

This is a unique solution that is being developed for Ms Pioneer Furnaces, V.U. Nagar A source of high frequency electricity is used to drive a large alternating current through a coil. This coil is known as the work coil. The passage of current through this coil generates a very intense and rapidly changing magnetic field in the space within the work coil. The work piece to be heated is placed within this intense alternating magnetic field. With proper design, this type of inverter circuit becomes very flexible in its operation and therefore it is ideally suited as a-general purpose variable frequency static-power generator for induction heating loads.

Unique Heat Spreader Technlogy Product Available With Heat Sink Solid State Circuit, No Wear and tear Optically Isolted Circuit Available in 124 Channels Compact in Size Compared to Contactors LED indication for easy diagnostics Operating Temperature -20 to 80 C Model For 110 V AC Load available Longer Life Roughly 10 to the power 8 Operates even in area of High Vibration & Noise

Current : Max 16 Amps

Usage : -Plastics Extruder Machines - Plastic Bag Making Machine - Injection Moulding Machine - Temperature

Ge presents ratio card unit which are used for getting single or multiple variable ratio outputs as per variable master input voltage. Power on indication different ranges of input voltage like 0-24v dc or 0-10v dc or 0-5v dc or 4-20 ma available multiple outputs to control different drives possible one master and multiple ratio outputs available each ratio output can be set independently pot for each ratio output for easy setting & operation green channel mount unit with acrylic cover for protection plc analog op interface possible low cost inbuilt fuse for protection operating temperature -20 to 50 c model for 110 v ac supply available

These timers are used for cleaning the bag filters by passing air in the bag filters for a very short time (pulse) This is done in a sequential manner to clean all bag filters in a cyclic fashion The number of bag filters decides the stage channel of timer The solenoid valves can be energized with the help of electromagnetic relays or through solid state relays Both the ON time and INTERVAL time (between two stages) are adjustable from the front panel LEDs are provided to indicate energisation of each solenoid stage and the interval time is indicated by the clock LED 128 clock LED ON OFF cycles completes the interval time enabling the user to set the interval time accurately Since the environment around the unit is dusty, the unit is housed in a double enclosure suitable for wall mounting

Brand Name : gururaj engineering

Material : Stainless Steel

Application : Industrial

Proficy Process Systems is a state-of-the-art, scalable, fully-integrated system for process automation and control. It provides the hardware and software needed for a complete process control system. Whether your business has continuous or batch oriented process control needs, Proficy Process Systems will deliver results. Based on contemporary, yet well proven technologies, Proficy Process Systems combines the power of traditional DCS systems with the flexibility, freedom and affordability of a PLC-based approach. Architecture Overview The Proficy Process Systems architecture is designed to provide a modular and expandable system to meet your most demanding process control needs. Proficy Process Systems can uniquely range from a small, one-machine architecture to a large, multi-machine architecture. This approach means you can start small and expand your system over time, at your pace. The system consists of several layers

n today’s competitive marketplace, the need to do more with less is more pertinent than ever before, as complex programs need to interface with many different aspects of the entire production system. Engineering resources have become increasingly constrained, and integrating different programming languages requires a significant investment in development, debugging and maintenance. Faster time to solution through increased efficiency Improved productivity to configure, develop, commission, and maintain applications Decreased development and maintenance costs Seamless migration path to the latest technologies Reduced training time with one software package for all controllers, operator interface, and motion

UPTO 5 KVA – CAN BE SET ACCORDING TO CUSTOMER REQUIREMENTS EFFICIENT AND RELIABLE OPERATION BY PLC . ACCURATE AND LINEAR FEEDBACK BY HALL EFFECT SENSORS. EASY TO OPERATE. OPTIONAL COMPUTER INTERFACE FACILITY AVAILABLE. RELEVANT INDICATIONS LIKE LAMPS, METERS, HMI etc. ARE ON FRONT OF PANEL VERY RELIABLE - USED IN INDUSTRIES FOR C.T. TESTING, BUS BAR TESTING, TRANSFORMER TESTING. DATA MANAGEMENT BY SOFTWARE LIIKE SCADA, LABVIEW IS POSSIBLE. EFFICIENT AFTER SALES SERVICE.

GE presents GE-636, a very stable, reliable and optically isolated Compact D.C. Drive, which can be used up to 2 HP D.C. motor. This can accept different type of inputs like Start, Stop, Inch, 0-5 V 0-10 V 4-20 mA as reference. The compact thyristor controller D.C. Drive can work with permanent magnet DC motors. The speed of a DC motor is directly proportional to the armature voltage. To vary the speed of a PMDC motor the armature voltage has to be varied from zero to the rated voltage of the armature. LED indication for quick fault finding status indication Soft start Field fail protection Armature current limit Trip Fuse Protection 1 hp 2 hp selection through link Normal PMDC motor selection through 1 link RUN (start) stop, inch selection through optical isolator so that command from PLC external source can be given to the drive

Panel Type : PLC

Display Type : Digital

GE Presents Photo Cell Unit which are used for Sensing of Variation in Light intensity. Power On Indication On Off Toggle Switch For Easy Operation Solid State Circuit Stepless Variation of Setting Available Easy To operate Low Cost Inbuilt Fuse for Protection Operating Temperature -20 to 50 C Model For 110 V AC Load available Operates even in area of High Vibration & Noise Compact Size (72x72) Panel Mount.

One of the key technologies that GE now offers is PAC8000 SafetyNet – a costeffective functional safety system that meets the safety needs of today’s Emergency Shut Down, Fire & Gas and Burner Management applications. Certified as suitable for use in SIL 2 safety functions by TÜV Rheinland, PAC8000 SafetyNet incorporates the latest design techniques to achieve compliance with IEC 61508 and IEC 61511. PAC8000 SafetyNetis rugged, reliable and open, and has been used worldwide in many different process applications, including power generation, gas plants, chemical and petrochemical industries, pipelines and in all sectors of the oil and gas industries. SafetyNet can handle the harshest environments and has received Lloyd’s Register approval for marine, offshore and industrial use in Lloyd’s environmental categories ENV1, ENV2 and ENV3. With this environmental capability, SafetyNet can be remote mounted in the world’s toughest environments – for Alaskan pipelines, Saharan well heads and deep sea FPSOs.

GE Presents Over Load Unit Which are used for Sensing of Current and tripping as per set current limit. Initial Surge Current Bypass time Available Bypass Time is Settable. Current Limit Setting Available Stepless Variation of Current Setting Available Internal Or External Current Setting Potentiometer Available Easy To operate Din Rail Mount Low Cost Inbuilt Fuse for Protection Operating Temperature -20 to 50 C Model For 110 V AC Available For Higher Rated Loads External CT can be used.

Country of Origin : 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)

GE Presents Motor Controller for Control of Speed of Small AC Motors by Variable AC Voltage Solid State Circuit Stepless Speed Control Power On Indication OnOff Switch For easy operation Potentiometer For Changing Speed Inbuilt Fuse For Protection Compact in size (72x72)

For more precise motion applications, GE Intelligent Platforms offers the VersaMotion line of servo amplifiers and motors. The VersaMotion family of servo amplifiers, ranging in power rating from 100 W to 3 kW and a continuous torque range from 0.3 Nm to 19.1 Nm (2.7 to 169 in-lb), offers a cost effective solution for a broad range of motion applications. The VersaMotion amplifiers have many user options that can be configured using the VersaMotion software tool included in the Proficy Logic Developer software

iFIX 5.0 comes with a completely new look and feel for the Workspace and Database Manager, based on a Microsoft-fluent User Interface (UI) technology. The new UI follows the Ribbon Bar concept, which allows you to easily access your tools during application development and configure Quick Access Toolbars for frequently used tools. The new UI also organizes all the configuration tools in the form of alleries that allow you to view all available options “on the go” and reduces the time to access these tools. iFIX 5.0 is packed with innovative new features and advanced capabilities such as enhanced failover that supports database and alarm synchronization, bundled and integrated Historian, a new charting tool that supports SPC and logarithmic charts, advanced alarm escalation, filtering and display, and a Microsoft-fluent UI with more than 500 new dynamos and thumbnail support. Better than ever, iFIX 5.0 enables you to drive better analytics and leverage more reliability, flexibility and scalability across your enterprise
