Process Control Equipment Dealers in Vadodara

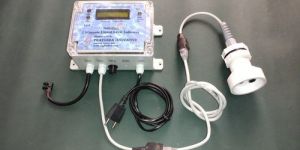

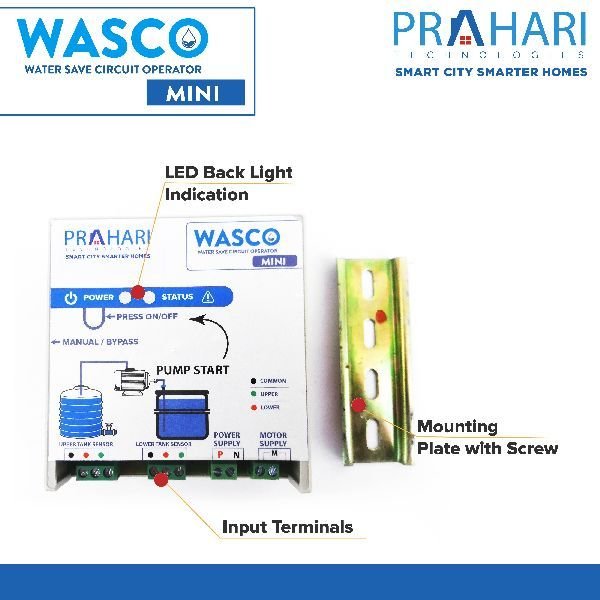

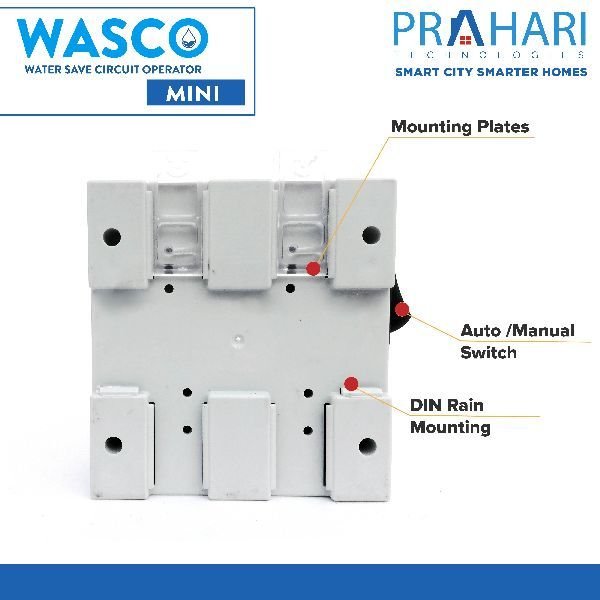

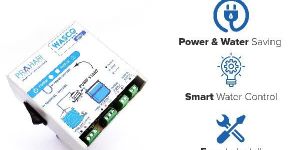

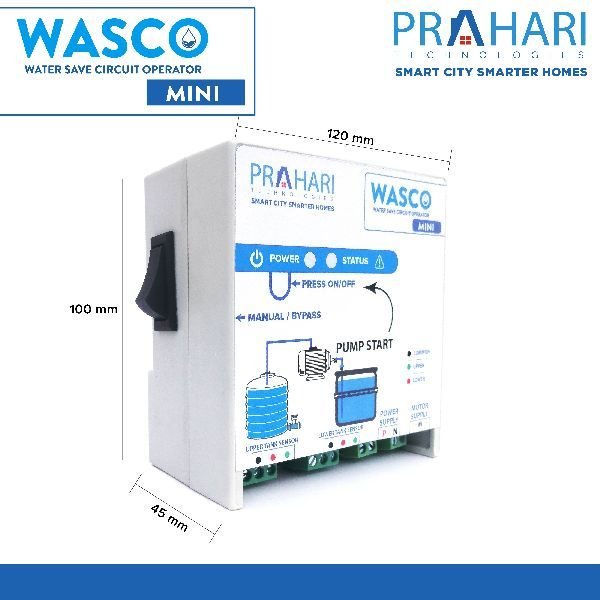

The world is facing water crisis, so it is very essential to save every drop of water. The maximum amount of wastage is seen when the water overflows from over head water tanks. We offer Automatic Water Level Controller that checks the overflow of water and also prevents the pump from running dry. Our Automatic Level Controller has various specialized features : SS sensors that ensure safety Central unitMicroprocessorsOver riding switchTest switch for self testingSpecial Sensors for use in effluents/ sewage It is a simple user friendly system that can be fitted by any local electrical technician. Our system can be operated with pumps connected to single phase or three phase motor.

 [ Pneumatic Level Controllers (Model: PLC-19) ] PNEUMATIC LEVEL CONTROLLER (Pneumatic Controller) works on the buoyancy principle. The force applied is propotional to the volume of liquid displaced. Change in the liquid level produces a change in the position of flex tube end. This causes movement of the flex tube shaft to which carrier assembly is connected. Carrier assembly opens or closes the nozzle to give pneumatic output from the pilot valve.   PNEUMATIC CONTROLLER Introduction Pneumatic Level Controller consists of a displacer mounted to the flex tube. The Pilot Valve and carrier assembly are housed in weather proof IP65 housing. The exhaust gas is vented inside the enclosure and then to the atmosphere through a vent hole. The instrument is known for its simplicity, reliability and ease of maintenance. Reverse action can be obtained Nozzle assembly by 180°.     Connection 4" NB CS, ASTMA 105 Flange as standard in 150 # , 300 # , 600 # Enclosure Die Cast Alluminium, weather proof to IP 65 Flex Tube Material SS 304 / SS 316 / SS 410 Displacer Options Vertical (S.Steel) 75mm x 355 mm Long (+ 2mm)   Vertical (S.Steel) 42mm x 200 mm Long (+ 2mm)   Vertical (Phenolic) 90mm x 115 mm Long (+ 2mm)   Horizontal (S.Steel) 75mm x 152mm Long (+2mm) Differential 10 to 30 mm depending on size of displacerr & S.G. (Horizontal Float)   20 mm depending on size of displacer & S.G (Vertical Float) Inlet & Outlet connection ¼" NPT Exhaust Screwed vent connection Max Working Pressure 60Bar / 60Kg / cm2 Temperature 150 Deg C with Stainless Steel Float & 100 Deg with Phenolic Float.   70 Deg with Acrylic / PP float Supply Pressure 1.4 Kg/cm2, 3 Kg/ cm2 Output 0.2 1Kg/cm2, 3Kg/cm2, higher on request Mode of Operation Pneumatic, On-off Direct or Reverse

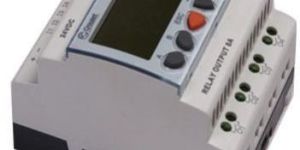

Selec Programmable Logic Controllers have a compact structure with built-in HMI and a configurable LED display, it has 10 digital inputs and 6 relay outputs, it is provided with user friendly windows based software for Ladder programming and HMI configuration. It has a maximum scan time of 200 micro seconds. The product has a growing customer base. We supply the controllers at a reasonable price to both retailers and wholesalers.   Essential Points User configurable PLC       PLC with 4 line x 16character LCD display        I/O configurable as per user requirement        Maximum 45I/Os and Expandable to 150I/Os Support        IO expansion with Mod-bus Protocol RS485 Master/Slave Communication

µP Based Power, full & highly reliable controller. Universal Input (Rtd , tc, 4-20 mA ,0-10 v dc. 46812162024 channel Indicator available. RS-485232 communication is available for option.

To protect our entire range of products from external factors that can be damaging, we have a state-of-the-art packaging unit equipped with the latest secure packaging technologies and materials. Our organization is renowned as reliable distributor in the industry and based in the well-connected state of Gujarat(India).

We are one of the leading manufacturers and designers of high quality PLC Control Systems. We manufacture a quality tested range of PLC Based Control System Design that includes PLC based systems and plant automation systems together. These are resistant to vibration and are specially designed for multiple inputs and output arrangements. Our precisely engineered range is energy efficient and is also offered in various specifications to suit specific requirements of clients. Attributes : It reduces the extent of generation equipment needed by tactical systemsImproves equipment utilizationReduces fuel consumption and operating costIt also improve system reliability/availabilityHelps in better management of equipment operation Applications : InstrumentationAutomationBiotechnologyPharmaceutical Industries

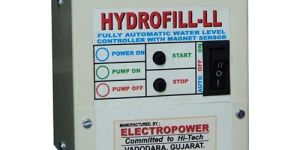

Product Specification   WATER LEVEL CONTROLLER MAKES WATER PUMP AUTOMATIC Automatic start & stop of Water Pump as per upper & lower tank(s) level. Advance Magnet Sensor Level sensing technology is used in which there is no possibility of rust, salt deposition or electric shock. ARE YOU USING WATER PUMP ?THEN MANY A TIMES..... - Tank gets overflow.... which is a wastage of water and electricity. - Tank gets totally empty if you have forgotten to switch ON the pump. - Pump runs DRY..... because Ground level tank is empty. - You have to climb up above to the terrace to see the level of water in the tank. ..... TO GET RID OF ALL THESE..... JUST USE....HYDROFILL:  FULLY  AUTOMATIC  WATER  LEVEL CONTROLLER  WITH  MAGNET  SENSOR. MAGNET SENSOR MEANS MOST ADVANCE TECHNOLOGY. MAGNET SENSORS  USED TO CHECK THE LEVEL OF WATER ARE SHOCK PROOF, RUST FREE & THERE IS NO POSSIBILITY OF SALT DEPOSITION ON  IT. * Automatic Start & Stop of Water Pump. * Facility of Fully Automatic Semi Auto & Manual Control. * Most advance Magnet Sensor level sensing technology. * Led display for Power ON, Pump ON & Pump OFF. * Avoids water wastage. * Reduces electric bill & Saves Electricity. ......LET YOUR WATER PUMP RUN AUTOMATICALLY AND FORGET THAT YOU HAVE A PUMP....... MODELS: MODEL AVAILABLE: a) NORMAL PUMP up to 1.5 HP b) NORMAL PUMP from 1.5 to 3.0 HP c) 3 phase pumps with direct on line starters d) 3 phase pumps with star delta starters.

BATCH CONTROLLERS FLOW INDICATORS – Predefined Universal type MODEL 855 ( Microprocessor based & Fully Configurable ) Introduction Pantech Instrument’s Model 855V represents BATCH CONTROLLERS FLOW INDICATORS AND TOTALIZRS for flow applications where single flow signal is available. Model 855 is an ideal instrument for controlling amount of material flow in every batch. The input signal can be a currentvoltagelinear signal from a flow transmitter or pulses from turbine meters. It can also be UNIVERSAL input type, where user is allowed to select and configure the input signal. The analogue signal is square rooted if required, and similarly for digital pulses LitrePulses ratio ( i.e. K factor )can be adjusted to achieve precise measurement of flow and hence batching. The desired counts or the BATCH VALUE(S) are set through push button switches given in front of instrument. The relay(s) isare energised to start the flow and batch counter starts. When set batch counts are reached, relay(s) get de energised as per the batch-relay settings and the flow is stopped. The cycle repeats when start button is pressed again. The flow can be interrupted during the working cycle by pressing stop button and again started by pressing start.

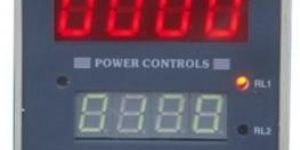

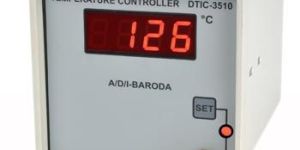

We are manufacturer and supplier of Micro Processor Based Temprature Controller to our clients.

Applications   Process Industries. Laboratories. Heat Treatment Plants. Plastic Industries.     Features   Bright digital display for easy viewing. Excellent accuracy and repeatability. Dual slope integrating technique with auto zero and auto polarity. Automatic cold junction and line resistance compensation. Minimum effects on performance against temperature, humidity and power flactuations. Digitally linearised scale available optionally. Control setting by push to set method to avoid any error. ON/OFF or proportional control available with multiple relay / control output. S.S.R. output provided optionally for trouble free reliable operation.

Features Model No. : FTC 3000 Range : -50 TO 400 for RTD 0 TO 1200 for Thermocouple Input : RTD-PT-100 Thermocouple Supply : 230V AC Output : RELAY- 1C O, 2 CO,SSR

Marsh Bellofram Type 3510 single and Type 3520 double loop electro-pneumatic servo pressure controllers combine the advantages of reliable solenoid valves and digital control, housed in a rugged, weatherproof enclosure. Available with a local keypad programming option or RS-485 digital communications for PLC or PC control, these precision controllers allow the user the ability to set and extract data directly from the transducer with a PC or automation system, making for some of the most precise, accurate, and reliable devices available on the market. With a forward flow of 1.25 SCFM at 100 psi, Types 3510 and 3520 can be used alone for many applications or combined with a volume booster for flows in excess of 2,000 SCFM. Various pressure output ranges are available from 29″ Hg vacuum to 600 psig. Standard accuracy is ±0.5% full scale or better. Enhanced accuracy version is ±0.25% full scale or better. A four-digit display of the output pressure is available with the keypad model.

Amee Calibration provide Lab as well as On-site Calbration Services. Our Specialized field > Thermal Calibration > Pressure Calibration > Electro-Technical Calibration
