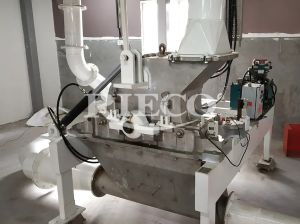

Hammer Mill Dealers in Vadodara

Hammer Mill is mainly used to disintegrate the product to desired size to have the proper Expelling. The MITSUN Hammers are rectangular for efficient grinding & are made from hardened alloy steel. Hammer Mill is mainly used for Copra, Palm Kernel & Soya bean processing. It is also mainly use for making resizing of the cake for sunflower oil mill cake, cotton oil cake, groundnut oil mill cake.

Capacity : 1 TPH ( sieve size 2.5/3mm - groundnut/Maize, etc)RPM : 3000 Directt coupled to Milling RotorCoupling : Flexible Tyre CouplingSize of Beaters : 120x50x6Material : 8 mm Thk Ms Base Frame self supporting with AVMDrive : Electric Motor 15 HP/3000RPM/415V/50 Hz

Our Hammer mill is basically all purpose grinder which can be used for grinding wide range of feed stuff, Such as Oil Cakes, Extraction meal, Broken rice, Roots, Dry Herbs, Oat, Hulls and maize. The matter to be ground is subjected to the beating action of Hammers until is reduced to the fineness necessary to pass through the sieve. Hammer mill is constructed for high speed continuous grinding. It consists of fabricated body. The grinding chamber is usually formed by a series of steel plates build up on a shaft and separated sufficiently to allow the beaters to be mounted between them upon transverse spindles or pins with pass through the beaters are made from alloy steel (hardened). The rotor is dynamically balanced and mounted on two self aligned bearings. The grinding chamber and the motor are directly coupled and are mounted on a common base frame. Vibration dampers are provided to check any sort of vibrations occurring due to the running of the machine. Features :- High Capacity Stable Performance Easy to Handle/Maintain Handy Gap Adjusting Mechanism for Course/Fine Grinding Heavy Duty Structure Heavy Bearing Housing M – Shaped Beaters for Higher Capacity Air vent/Discharge Provision for Heat Dissipation generated during grinding. Installed with Special Purpose Bearing Designed for Higher RPM/Continuous Working with Grease Lubrication. Pneumatically Operated Mechanism provided at Inlet to remove Iron Particles

It is used for grinding Cereals, Spices, Chemicals, Minerals and many other applications. The Grinding chamber consists of the top half serated liner and at the bottom is fitted with a detachable perforated screen. At the centre  there is rotating rotor, which are fitted with either fixed or swinging hammers.The rotor rotates between 2000 and 4000 rpm depending upon the grinding equipment model selected. After the powder is grinded it can be collected by gravity or pneumatically conveyed by blower which pushes the material into a Cyclone. From the cyclone the super fines pass into a dust collector and the grinded powder is discharged from the cyclone.

Full Circle Hammer Mill, Auto Batching System, Batch Mixer, Feed Mill Plan

Pics hammer mills are durable utility grinders capable of grinding most free-flowing materials. Hammer mills operate on the principle that most materials will grind or crush upon impact with the hammers. Pics hammer mill are designed for fine crushing of soft up till medium hard, non abrasive and non adhesive materials, such as bituminous coal, limestone etc.

Full Circle Hammer Mill, Electromagnetic Vibrating Feede

Hammer Mills, Animal Feed Plant, Horizontal Mixer

Hammer Mill, Bagging Machines, Industrial Elevator

Hammer Mill, Cone Crusher, Impact Crusher, Jaw Crushe

Hammer Mill, RCC Hume Pipe Making Machine, RCC Pipe Mould

Hammer Mills, Feeders, Shredders Machine, M-sand making machin

Hammer Mill is used for breaking the oil seeds, copra chips, cake meal, etc. into very small pieces of size nearest to 18 inches for oil extracting purpose in Expellers Screw Presses Crushers, etc. We offer best industrial hammer mill and hammer mill machine.

Hammer Mill, Screw Conveyors, Rotary Airlock Valve, Shredder Machin

Hammer Mill, Cone Crusher, FEEDER, Horizontal Shaft Impactor, Jaw Crushe

Hammer Mill, Jaw Crushe

Hammer Mill, Rotary Screens, Vibrating Screens, Screening, Grizzly Feeder

Hammer Mills, Primary Vibrating Screens, Industrial Vibrating Screen

Hammer Mill, Animal Feed Plant, Pellet Counter Flow Cooler, Storage Bin

Hammer Mill, Vibrating Screen, Hopper Magnets, Chain Conveyor

Hammer Mill, Animal Feed Plants, Mineral Mixer, Jute Remove
