IFuture Technology Waghodia, Vadodara, Gujarat

Availability : N/A

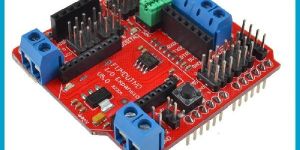

IO expansion board is evolving, this latest V5 IO expansion shield is now supporting Xbee. It combines our popular Xbee shield with IO expansion shield(V4). It even supports SD card which provides the ultimate functional expansion for Arduino so far. As its predecessor, it supports RS485, APC220, Bluetooth communication, servo control. Specification Support RS485 Support Xbee (Xbee pro) Support Bluetooth Support APC220 Support SD card read/write 1. extension of 14 digital IO ports (12 servo interface) and power; 2.6 analog IO ports and power; 3.1 digital external power port terminal; 4. Digital-port external power supply and an onboard power supply automatic switching; 5.1 External power input terminal and an input pin; 6.RS485 interface; 7. reset button; 8.xbee/Bluetooh Bee Bluetooth wireless data transmission interface; 9.APC220/Bluetooh V3 Bluetooth wireless data transmission interface; 10.IIC/I2C/TWI interface; 11.3.3V output port; 12.SD card module interface;

These Nylon Made Worm gear can be used in many robotic applications.Basically they are used to increase torque.This Worm gear when used in combination with the spur gear has a center distance of 27mm in between them and the gear ratio is 1:25.

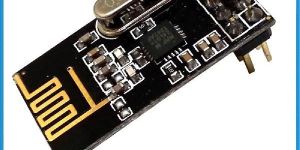

The real GFSK monolithic transceiver chip Built-in hardware and link layer Automatic response and automatic retransmission function Address and CRC check function Wireless rate: 1 or 2 MBPS SPI interface rate: 0 ~ 8MBPS 125 optional channels work Channel switching time is very short, can be used for frequency hopping Fully compatible with nRF24XX series I/O can accept 5v level of input ±60ppm 16MHz crystal Low working voltage: 1.9 ~ 3.6 V The global open ISM frequency band, the maximum 0dbm transmitted power, free license to use Transmission distance up to 100 meters in outdoor open occasions Applications: Vehicle monitoring, remote control, telemetry, small wireless network, wireless access control systems, residential short range paging, industrial data acquisition systems,wireless tags, identification, non-contact RF smart card, a small wireless data terminals, security, fire systems, wireless remote control system, bio-signal acquisition, hydrological and meteorological monitoring, robot control, wireless 232 data communications, wireless digital audio, digital image transmission.

Frequency : 433mHZ

This is a set of 315Mhz Wireless RF Transmitter and Receiver. The transmitter includes an inbuilt battery, 4 buttons and comes in a small package and can also be used as a keychain. The receiver has 4 output pins. The four output pins on the receiver change from 0V to 5V when the corresponding button on the transmitter is pressed. The receiver works on 5V and its output can be used to control LEDs, Buzzers, Relay Boards(to switch high power loads – motors, 240V Applicances, etc) directly without the need for any additional circuits. The receiver outputs can also be connected to an Arduino, Raspberry Pi or any other micrcontroller to read the status of the buttons on the transmitters. The receiver also has an additional output pin which goes high when any one of the four buttons on the transmitter are pressed. This can be connected to the interrupt of the micrcontroller to read the button status faster. This remote is great for building wireless DIY Projects, home automation projects, etc. Specifications Transmitter Operating voltage: DC12V (27A/12V battery x1) Receiver Operating Voltage: 5V Range: 10-100m(varies based on surrounding interference ) Operating Current: 10mA @ 12V Radiated power: 10mw @ 12V Modulation mode: ASK (Amplitude Modulation) Transmitting frequency: 315MHZ Transmission distance :50-100M (Open field, the receiver sensitivity of -100dbm) Encoder types: fixed code

Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

The XBee XB24-Z7WIT-004 Series 2 improves on the power output and data protocol.   Series 2 modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware.

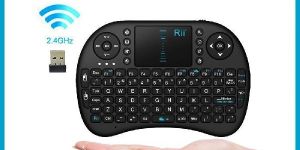

This 2.4GHz Mini Wireless Keyboard lets you control your device without leaving sofa, couch or bed. With touchpad function, you can move the cursor on your screen freely, and with left/right mouse buttons, a perfect combo of keyboard and mouse. The remote control distance is 5-10m(Appx.). It will bring much enjoyment and convenience for your life. Features Multifunction design, can be used as remote control, mouse, keyboard and touchpad. Adopts 2.4GHz wireless technology, working distance is up to 5-10m without obstacles. Convenient to operate in the dark. Support multi-finger functions: single finger click as left mouse function, two-finger click as the right mouse and two-finger drag as the rolling screen. The sensitivity of touchpad is with 2 speeds for your adjustments. Ergonomically handheld design, easy to carry and operate. Powered by rechargeable BL-4C lithium battery, convenient to change. Perfect for PC, tablet, Android TV box, Google TV box, Xbox 360, etc.

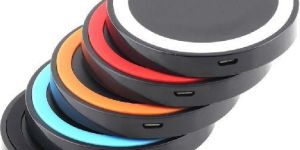

Easy to assemble and disassemble 1. Take off the back cover –plug in the micro usb head–put on the back cover. 2. Energy card can be attached at the phone all the time without removing it frequently and would not interrupt the        normal use. 3. There are two types of charger receivers for you to choose     A type  (narrow-interface up)     B type  (narrow-interface down)

This is a basic wire nipper. It can be used for both breadboarding and for general purpose prototyping.

Wheels for roboRobo application High quality Plastic Tracked Wheel for DC motors with 6 mm diameter. 10×2 wheel

Material : Plastic

Shape : Round

Packaging Type : Multicolor

Width : 100-120mm

Feature : Crack Proof, Light Weight, Tensile Strength

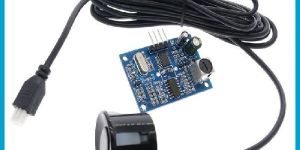

Electrical parameters: JSN-SR04T-2.0 Operating voltage: DC 5V Quiescent current: 5mA Total current work: 30mA Acoustic e frequency: 40khz Farthest distance: 4.5m Blind: 25cm Wiring: + 5V (positive power supply) Trig (control side) RX Echo (the receiver) TX GND (negative) Module size: 41mm * 28.5mm Resolution: about 0.5cm Angle: less than 50 degrees Working temperature: -10 ~ 70 ° Storage temperature: -20 ~ 80 ° Product Features: 1, small size, easy to use; 2, low voltage, low power consumption; 3, high accuracy; 4, strong anti-jamming; 5, integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions.

This is a pre-wired and waterproofed version of the DS18B20 sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125°C the cable is jacketed in PVC so we suggest keeping it under 100°C. Because they are digital, you don’t get any signal degradation even over long distances! These 1-wire digital temperature sensors are fairly precise (±0.5°C over much of the range) and can give up to 12 bits of precision from the onboard digital-to-analog converter. They work great with any microcontroller using a single digital pin, and you can even connect multiple ones to the same pin, each one has a unique 64-bit ID burned in at the factory to differentiate them. Usable with 3.0-5.5V systems. The only downside is they use the Dallas 1-Wire protocol, which is somewhat complex, and requires a bunch of code to parse out the communication. If you want something really simple, and you have an analog input pin, the TMP36 is trivial to get going. We toss in a 4.7k resistor, which is required as a pullup from the DATA to VCC line when using the sensor. We don’t have a detailed tutorial up yet but you can get started by using the Dallas Temperature Control Arduino library which requires also the OneWire Library.

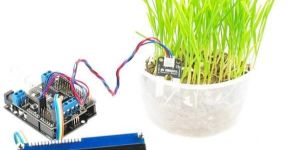

I is a simple system, using controller to automate the irrigation and watering of small potted plants or crops. This system does the control of soil moisture, doing indications via LEDs and in case of dry soil emitting a alarm beep. In case of dry soil it will activate the irrigation system pumping water for watering plants. The system uses a LCD display to notify all actions that are taking place and a real time clock.

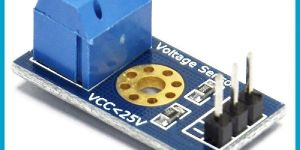

Input range: DC 0-25 V Detection range: DC 0.02445 V  to 25 V Analog resolution : 0.00489 V Output Interface : “+ ” connected 5/3.3V, “-” connected GND, “s” connected Arduino AD pins DC input interface: red terminal positive with VCC, negative with GND You can also use the IICLCD1602 LCD to display voltage. By 3P connector, connect this module with the expansion of board Arduino, not only makes it easier for you to detect voltage battery. Voltage Detection Sensor Module 25V module is based on the principle of resistive voltage divider design, it can make the red terminal connector input voltage to 5 times smaller.Arduino analog input voltages up to 5 v. The voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V). It has the limit of Arduino analog input  5 VDC only. So if you wish to measure higher voltages,  you will need to resort to another means.  One way is to use a voltage divider.    The one discussed here is found all over Amazon and eBay. It is fundamentally a 5:1 voltage divider using a 30K and a 7.5K Ohm resistor.

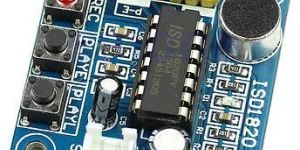

The working voltage: DC 3 ~ 5V Loudspeaker: 8Ω, 0.5W Features: 1. An easy to use 10 seconds of voice recording 2. High-quality, natural voice restored 3. Can be used as propaganda module 4. with looping, jog playback, single-pass play function 5. Available single-chip control 6.This module can directly drive a small speaker 8 ohm 0.5W REC button: Hold button for recording, release the button to stop recording; RLAYE key: Trigger mode playback, Click on button will play this whole recording; PLAYL key: jog mode playback, press and hold until playback, release to stop playback; RPL Jumper: loop mode control, loop playback; FT Jumper: direct control, microphone voice through the speaker can playback;

Support for AVRDude from version 5.2 onwards Allows you to to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits Support for Linux, Mac OS X and Windows (will work on vista) 5 KB/sec maximum write speed Software controlled SCK option to support targets with low clock speed (< 1.5MHz) 10 pin ISP interface These programmers are a perfect companion to the Protostack 28 pin AVR Development Board or the Protostack ATMEGA8 Development Kit.
