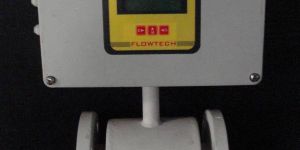

Liquid Flow Meter is a micro-controller based full-bore type electromagnetic water flow meter, used for various industrial applications. Liquid Flow Meter is designed to measure the flow rate of conductive liquids & slurries in closed pipes. Based on 'Pulsed DC' technology, Liquid Flow Meter ensures accurate measurements in the form of electrical signal 4-20 mA DC linearly proportional to volumetric flow. Liquid Flow Meter is based on Faraday's law of electro-magnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity. Corresponding electrical output is provided with respect to measuring voltage. Liquid Flow Meter has robust metal structure, which makes it easy to maintain and compatible with high-pressure working environment. Working Principle : Liquid Flow Meter is based on Faraday's law of electro-magnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity. Corresponding electrical output is provided with respect to measuring voltage.Other Information :
Indication through LED / LCD
Full Bore type
Microprocessor based
Simple & cost effective construction
Provides wide flow ranges.
Operates over wide ranges of temperature & pressure
Easy maintenance as no moving parts
Pulsed DC coil excitation
Flame-proof, IP-65, IIA, IIB CMRI certified housing
We are offering liquid flow meters.

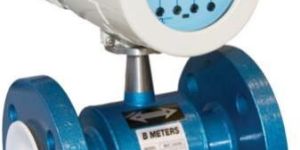

Electro magnetic flow meter
description:
addmas full bore meter is a cost effective flow meter for conductive liquids such as raw water, effluents, potable water and industrial chemical. Using time proven electromagnetic flow metering principle, addmas flow meters are available for pipes from ½” nb to 6” nb. Since there are no moving parts, the flow meter gives years of maintenance free service. Its performance is independence of temperature, pressure, density and viscosity of medium. The flow meter is obstruction less and hence the pressure drop is almost negligible.
addmas has all the features required in field mountable metering equipment. These include-weather proof / flame proof enclosure, rs485 communication option , with 4 to 20 ma isolated current output for flow signal transmission option for process control. The converter is available as field mounted – ip65 protection category. An optional batching controller also available on request.
it works on faraday’s law of electromagnetic induction. A magnetic field is generated by magnetic coil. The fluid flowing through this magnetic field generates emf (voltage) which is proportional to the flow velocity. This emf is measured by the electrodes giving corresponding output.
Used for precision measurement of any conducting liquid or slurry that is flowing in closed pipes.
High accuracy flow metering
optional digital transmission
2 line alpha numeric back lit display
no pressure drops in process.
Line size 15 nb to 300 nb
accuracy = 1% of reading
flow range 0.5 to 10 m/s
easy maintenance as no moving parts
min.conductivity : 5 us/cm
output :4-20 ma,relay and rs485
protection : cast aluminum lp65 field / wall mounted
process temp: + 150 degree max.
Lining : ptfe / rubber / pp
