Side Mounted Magnetic Level Switches
1 Piece(s) (MOQ)
Level Switch : Level Sensor
Magnetic level switch : Side and Top Mounted Level Switch
We are offering side mounted magnetic level switches. “kabir” make magnetic level switches is specially suitable for high and low level signalization or automatic level control (by starting & stopping pumps or opening & closing of valves) in vessels. Horizontal mounting type directly on vessel or on external chamber. Compact & rugged construction consisting of a free moving pivoted float assembly and a switch enclosure in non - magnetic material to achieve undisturbed magnetic flux. It employs dual magnets, one carried by the float arm and other by the contact carriers housed in the switch enclosure. A change in liquid level brings the like poles of dual magnets opposite to each other and resulting repulsion force ensures a changeover of contacts with snap action. The magnetic transmission is glandless, leaving no scope for leakages from vessel into switch housing. These switches are manufactured in various materials, enclosures & special features to suit broad range of media applications. They are designed to provide high repeatability and to minimizes effects of shock, vibration & pressure. Installation:- mounted internally or externally through a chamber. External mounting is resorted to, where space is a limiting factor or mechanical devices like stirrers operate within the tank. Besides, in applications like boilers, reaction kettles etc., with external mounting, isolating is possible for regular servicing. The switch is normally side-mounted, however for applications like slurry, top installation is preferred. The switch can be wired directly "to make or break electrical circuits", of burners, heaters, motor pumps, alarms and other such electrically operated devices. Wetted parts: moc : s.s.316s.s.304 p.p switch : reed switch micro switch having no+nc+c 230 vac connection : flanges , screwed
magnetic contact switch
LTMR consists of nonmagnetic sealed stem containing series of reed switches and resistors, float carrying magnet and enclosure containing electronics. As the float travels through the Indicating distance, the magnet located within it tap off The reed switches there by varying the resistance fed to the electronics (as shown in figure below), which in turn converts the change in resistance to industry standard analog output
Displacer Type Magnetic Level Switch
We offer high quality Displacer Type Magnetic Level Switch, which operates on the principle of Force Balance. Ideally suited to handle liquids upto specific gravity of 0.5, the Displacer Type Magnetic Level Switch provided by us, has become the most popular level switch available in the market. Working : Equipped with a displacer with suspended springWhen it liquid level rises in the covers the displacer, the spring is releasedThis leads to upward movement of the rod assembly in the caseThis further leads to automatic activation of magnetically operated micro switchUltimately leads to glandless connection that can ensure a leak free design Attributes : Can handle high temperaturesAvailable with option of two or four displacers for pump control Technical Specification : Mounting : Min. 50 NB to 300 NB.Pressure : Vacuum to 40 Kg cm2Level Height upto 20 Mtr Ideal for : Deep tankSump for low alarm

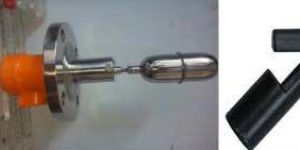

Side Mounted Magentic Level Switch
"KiT" Magnetic Level Switch (side mounted 1ype) is float-operated working on magnetic repulsion principle. Simple in design and robust in construction together with strict quality control makes the switch a very reliable product. This can be used for initiating high or low audio-visual signals or automatic level control of liquids in pressurized or open tanks. containers, hot water service, sterilizing equipment and a variety of process control fluid tanks.
Magnetic Float Switch
3,370 Per
1 Piece (MOQ)
Voltage : 220 V AC
Media Type : Liquid
Country of Origin : Made in India
Material : SS
Mounting Options : Top Mount
Temperature Range : -20 to 100 degree C
Pressure : 5 bar
Usage/Application : Industrial
Brand : Veksler
Magnetic Reed Switch
Material : NBR, Nylon, PVDF
Type : Magnetic Contact Reed Switch
Application : Magnetic Use
Voltage : 200VDC, 230VAC
Frequency : 50HZ, 60Hz
Power : 0-5Amp, 10-15Amp, 5-10Amp
Temperature : 0Dig C To + 60Dig C
Hole Diameter : 0-20mm, 20-40mm
Setting Range : 0-1500pF, 1500-3000pF
Side Mounted Magnetic Level Switches
Side Mounted Magnetic Level Switches work on the principle of magnetic repulsion and therefore they are glandless and leak proof instruments. A permanent magnet fitted in the tail piece of the float repels another magnet inside the switch housing which in turn operates an SPDT MICROSWITCH. Microswitch contacts can be utilized for initiating audio-visual signals or pump control.
