Mechanical Seals Dealers in Nandesari, Vadodara

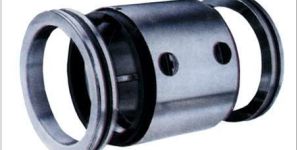

We are engaged in offering Multi Spring Mechanical Seal that is developed for Universal High pressure application. Torque Transmission from Retainer Shell to Dynamic Ring is done through Drive lugs. The compact design of Multi Spring Mechanical Seal makes them apt to be used in all types of Centrifugal Pumps. All Components of Multi Spring Mechanical Seal are held together by a Snap Ring, which helps in Easier Installation & Removal. Raw Material Used Face Materials : (Dynamic Ring & Stationary Ring )Carbon, Ceramic (99.5%)Silicon Carbide, Tungsten Carbide, Chrome Cast Steel, which are suitable for fluid.Secondary SealU81 & B81 : Viton, EPDM, Silicon, Aflas, EPR, Kalrez, TCV.U86 & B86 : GFT, PTFE, FEP, Grafoil.Hardware : SS 316, SS 304, Hast - C, Monel, Alloy -20. Features Independent of direction of rotationDouble & Single ActingInside Mounted Unbalanced Applications Light Hydrocarbon, Dirty Water & Slurry Media. PetrochemicalsPetroleum RefineryGeneral Chemicals Our Multi Spring Mechanical Seal Is Serving Chemicals, dyes & intermediates Organic/inorganic chemicalsOil extraction and waste oil refineries Hydrocarbons / volatile liquidsBulk drugs & pharmaceuticalsDyes & intermediates Effluent treatment plants Water treatment & distribution systemHeating & air conditioning plantsThermic fluid / hot oilCooling towers corrosive / abrasive liquids Sizes Available Shaft Diameter : 12 mm to 100 mm (0.5" to 4.0")Pressure : 10 Bar (kg/cm 2 ) & Balance upto 35 bar (kg/cm2 ) Temperature : -60oc To 200ocShaft Speed : Upto 6000 RPM According to Shaft Size & Pressure

Double Mechanical Seals, Metal Rubber Seal, Non Metallic Pump
