Process Vessel Dealers in Vadodara

Limpet Coil Reactor construction is same as of the Jacketed Reaction vessel except instead of Jacket on the Shell of Reaction vessel Limpet Coil is welded on it. LimpetCoil Reaction Vessel consists of a Cylindrical vertical shell with a standard torospherical dish on both ends. Limpet Coil is Half round Pipes welded on the outer surface of the shell and also in the bottom dish of the Limpet Coil Reaction Vessel. Limpet coil vessel's limpet coil is made of either Mild Steel Or Stainless Steel. It is either Double end double start for both heating and cooling through limpet coil or Normal Single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade filler rods depending on MOC of the Limpet Coil to withstand design pressure. We offer high quality Limpet Coil Reaction Vessel in different capacities ranging from 50 liters to 15,000 liters. Fabricated from superior grade of stainless steel, these vessels can be provided with different types of agitators such as anchor type, propeller type, paddle type, pitched blade turbine type of high-speed homogenizer. The unique design of our reaction vessels to allow the conditions to be controlled for fastest possible chemical reaction.

Ascent undertakes design, detailed engineering, manufacture, testing, certification and code stamping of pressure vessels to ASME Sec VIII Div 1, Div 2 etc.. Pressure vessels for various applications such as air receivers, columns, reactors, towers, digesters, pig launchers - receivers etc. can be manufactured and / or repaired. Also, pressure vessels under Indian Boiler Regulations, 1950 such as boiler steam / mud drums, blow down tanks, HP Heaters, Deaerators, headers for various applications such as waterwall headers, economizer / superheater / reheater headers etc. can be manufactured and IBR stamped. We also manufacture pressurized transportable tanks for hazardous chemicals with Code Stamp. Ascent has a team of competent design engineers, design associates and draftsmen experienced in the field. Generally PV Elite supplemented with custom developed spread sheets is used for mechanical design and latest version of Autocad for drafting. Finite element analysis, stress analysis etc. can also be carried out by our design associates. In case process design or design of vessel internals is required, we can establish arrangements with well known European engineering companies operating from India or Europe. Materials of construction range from carbon steel, alloy steel through stainless steel including SMO (6% Mo) and Duplex / Super Duplex Stainless Steel and exotics such as Incolloy, Hastelloy, Monel, CuNi, Titanium etc. For material preparation, we have a oxy fuel torches. We can roll shells up to 25 mm thick and 2 M wide. Cold working is maximized with band saw, Universal Steel Worker etc. We have the entire range of welding gear viz., SAW and SMAW welding machines. We also have BugO Speed Weaver welding oscillator for GTAW / FCAW. There are also baking and holding ovens for welding electrodes and flux, apart from portable quivers for welders and welding operators. For stainless steel and exotics, there is a purpose built, segregated area. We have a well equipped machine shop with radial drill and 3 gap bed centrelathes.We also have a magnetic drill up to 50 mm diameter and 50mm thickness. We also have a Broach cutter. We carry out post weld heat treatment / stress relieving in temporary purpose built temporary furnaces within our facility or in gas fired furnaces at a specialist subcontractor’s premises. Semi automatic and manual FCAW is used for welding of saddles, supports and stiffeners. Hydro testing up to 600 bar can be done with or without chart recorders. Pneumatic testing and / or helium leak testing could also be done at our workshop by 3rd party. Country specific compliance certification such as that for Malaysia, Singapore, Australia etc. can also be arranged through authorized third party inspection agencies such as Bureau Veritas. This would facilitate seamless integration of our pressure vessels into the project in the country of installation. We have an extensive range of WPQRs to ASME Sec IX and EN ISO 15614 covering a wide range of materials, thicknesses, processes and other variables. All our WPQRs are witnessed and certified by third party inspection agencies such as Bureau Veritas, TUV Nord etc. Welders could also be qualified in presence of third party inspection agencies if it is a requirement. If Client requires us to appoint an independent third party inspection or certification agency, it could be arranged. If rubber / PTFE / PPE lining is required for pressure vessels, these could be arranged through specialist subcontractors. Non destructive testing such as radiography, ultrasound etc. and material testing at NABL accredited testing facility is available within reach. Management team has extensive experience in the heavy engineering industry within and outside India, especially with multi national companies, EPC global contractors, service providers etc. We have competent QC Inspectors, AWS/CSWIP 3.1/3.2 Certified Welding Inspectors, API 510 Pressure Vessel Inspectors and BGAS Grade II Painting Inspectors. In short, you are assured of a truly world class service within India. For a list of pressure vessel projects recently executed / in progress,

We are engaged in providing an exclusive variety of Pressure Vessel to the patrons. These products are closed containers that are designed to hold gases or liquids at a pressure, which is substantially different from the ambient pressure. An engineering authority, which is backed up by laws is responsible to consequently regulate the design, manufacture and designs.

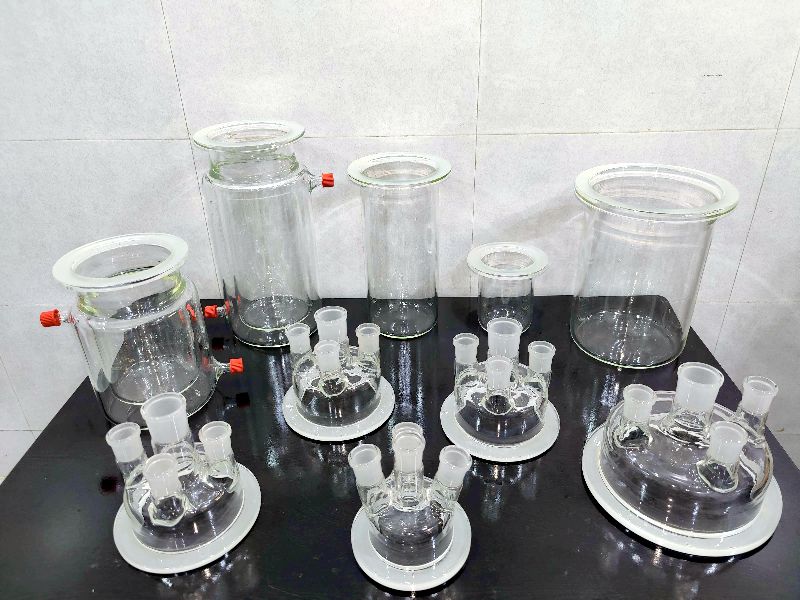

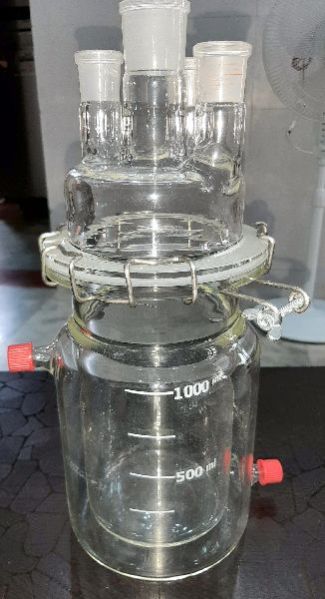

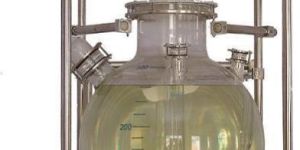

Stirrers Baths Measurement & Control Glass Spherical Vessel Glass Cylindrical Vessel Glass Jacketed Vessel Dip Pipe In the most of chemicals & pharmaceutical plant vessel are used as reactor, receivers, separator, measuring, feed and etc. Vessels can be operate under full vacuum as per given working pressure rating in our technical information.   Vessels are available in spherical & cylindrical shape form 5 to 500 liter capacity.  All vessels are provided with bottom outlet nozzle for which is a suitable valve can be selected form the range of valves. Cylindrical vessel can be supplied with glass / metal jacketed also.

Supported by a team of engineers, we have been able to bring forth the highly efficient Industrial Pressure Vessel. Our team precisely designs Industrial Pressure Vessel maintaining sync with the defined quality parameters of the industry. Industrial Pressure Vessel is used to keep gases or liquids at a particular pressure significantly different from the ambient pressure. Highlights Made of stainless steel and carbon steel Non-corrosive housing Efficient performance Used in pharmaceutical and oil and gas industries

Pressure Vessels We are engaged in designing detailing as per ASME SEC.VIII-DEV.1 manufacturing and supplying an extensive range of Pressure Vessels such as air receivers. These air receiver tanks are developed for full vacuum service or air storage. The standard material used to manufacture them in normally carbon steel. But on client's demands we also offer stainless steel made air receiver tanks. These tanks are also used for trains, trucks, ships and different types mobile equipment. Mentioned below are the specifications of this product: • Available in 456 standard sizes. • Diameters ranging from 10" to 120" • Pressures up to 1000 psi • Conformed under ASME, CE and CM certifications • Useful for custom OEM, industrial and process applications

Applications: MAX-FLASH, flash vessels are used for separation of flash steam from high pressure condensate thereby generating useful low pressure steam totally free of cost. IndoAnushka make MAX-FLASH is supplied with all standard accessories like safety valve, pressure gauge, Valve, double window sight glass, steam trap and strainer. Limiting conditions: Maximum Working Pressure: 10.5 kg/cm2 Maximum Working Temperature: 180 o C. Installation: IndoAnushka make MAX-FLASH come totally assembled and mounted on a skid for a ‘fit it and forget it’ installation. Material of Construction: Vessels are of M.S. construction mounted on a M.S. skid.

We involve in providing a qualitative range of Pressure Vessels and Reaction Vessels that are used in various industries.These are utilized for processing of liquids, gases or vapour at different levels of Temperatures & pressures in varied Industries.As per Design Data & Detail Engineering Drawing, we manufacture by Carbon Steel, Alloy Steel & Stainless-Steel material. MATERIAL : Carbon Steel, Alloy Steel & Stainless Steel etc.SIZE : Max. Weight 10 Tons.SERVICE OFFERED : Engineering Solution, Design calculation, Detail Engineering, Raw material Procurement, Fabrication work, Testing Performed as per QAP, Documentation

Applications: MAX-FLASH, flash vessels are used for separation of flash steam from high pressure condensate thereby generating useful low pressure steam totally free of cost. IndoAnushka make MAX-FLASH is supplied with all standard accessories like safety valve, pressure gauge, Valve, double window sight glass, steam trap and strainer. Limiting conditions: Maximum Working Pressure: 10.5 kg/cm2 Maximum Working Temperature: 180 o C. Installation: IndoAnushka make MAX-FLASH come totally assembled and mounted on a skid for a ‘fit it and forget it’ installation. Material of Construction: Vessels are of M.S. construction mounted on a M.S. skid.

FRP tanks and vessels can be largely used in many areas of the light industry, petroleum, chemical, food brewing, transportation and so on. Such product can resist the corrosion of various acids, alkalis and salts.   High mechanical strength High mechanical inertness Resistance to weathering Low thermal and electrical conductivity Long life Non-toxicity No need for maintenance Light weight

We are involved in providing qualitative range of Pressure Vessel, Reaction Vessel & Storage Tank that are used in various Industries.   These are utilized for Storing liquids, gases or vapor at different levels of Temperatures in varied Industries.   Manufactured using by Carbon Steel & Stainless Steel as per Design Data & Fabrication Drawing.   MATERIAL: Carbon Steel & Stainless Steel etc.   SIZE: Max. Weight 10 Tons.   SERVICE OFFERED: Raw material Procurement, Fabrication work, Testing Performed as per QAP, Documentation etc.

Our product range includes air receivers, surge tanks, accumulators, blowdown tanks, flash tanks, expansion tanks, filter vessel, distillation columns, hot water generators, hydropneumatic tanks, nitrogen storage tanks, LP heater assembly, propane tanks, propane dispenser tanks, pressure vessels, refrigeration vessels, horizontal ammonia receivers, vertical ammonia receivers, oil pots, scrubbers, separators and more.

We manufacture lead lined equipments with lead purity up to 99.95 %. We have developed specific testing techniques for homogenous lead bonding. Testing techniques such as Ultrasonic de-bonding tests and ultrasonic thickness measurement are first time adopted by us. This ensures longer life of lead bonding with minimum failures. We supply lead bonded tanks and equipments used for bromine and other chemicals, globally

GMP Model Cylindrical with slop bottom Inner Vessel   :   16 Gauge S.S. 316 Sheet Outer Jacket   :   10 Gauge M.S. Sheet Insulation   :   40 m.m. thick Fiber Glass Insulation with S.S. 20 Gauge Sheet Cover Lid   :   Loosed Lid 18 Gauge S.S. 304 Sheet Heater   :   Water Heater with Thermostat Controller, Contactor and Indicating Lamp Connections   :   Side outlet Ball valve, Jacketed provided with water inlet drain, air vent etc. on Jacket. Vessel mounting on four S.S. legs with Castor Wheel to make unit movable
