Veksler Instruments Makarpura, Vadodara, Gujarat

Switching Range Range(Bar) Min. - Max. Differential (Bar) Min. - Max. 0 to 3 0.25 to 1.5 0 to 6 0.6 to 3 0 to 10 1 to 3` 3 to 16 1 to 4 5 to 20 2 to 5 5 to 30 5 to 12

VIBRATING FORK LEVEL SWITCHE work on vibration damping principal and are used for material with low densities where rotary paddle switches can not be used. The vibrations also provide self cleaning action, so these level switches can easily be used for materials that stick to probe and tank wall. The electronically stimulated fork vibrates at it’s mechanically resonance frequency of 125 Hz when the fork is free of the service material. The resonance is caused by the piezoelectric crystals. One of the Piezo crystals produces a small voltage which is transmitted to the switching amplifier. If the fork is covered by the bulk material, a damping effect is produced and the Piezo crystal does not produce the voltage and the amplifier will be switched on and a corresponding signal output is actuated. Small depositions on the container wall do not affect the operation of our switch. The switches are supplied with integral electronics and are available in lengths from 250 to 3000 mm. The Vibrating Fork Level Switches are extensively used in building, cement, food dairy, plastic, timber, chemical and mining industries. The operating temperature for standard model is 150 Deg C and can be custom made to suit temperature up to 200 DegC. These switches are supplied with heavy duty SS316 forks and can be successfully used for most applications like - bins and hoppers requiring minimum and maximum level detection of solids, powders, granules, pellets, flakes, etc. These are not affected by incoming material. They are highly sensitive, reliable, easy to install, require no calibration, economical and suitable for highly dusty environment. The vibrating fork level switches are extensively used in building, cement, food, dairy, plastic, timber, chemical and mining industries.   Vibrating Fork Level Switch Manufacturer, Exporter and Supplier Vibrating Fork Level Switch is the Main Product of VEKSLER INSTRUMENTS. VEKSLER INSTRUMENTS is pleased to introduce themselves as the most Preferred Manufacturer and Supplier of Vibrating Fork Level Switch in India. We are also a one of the leading exporters of Vibrating Fork Level Switch from India. Our Vibrating Fork Level Switch is easy to use and cost effective. Our product range is Vibrating Fork Level Switch and Vibrating Fork Liquid Level Switch.   Back to Top

ULTRASONIC LEVEL TRANSMITTERS manufacturer, exporter and supplier Ultrasonic Level Transmitter consists of a sensor and a separate wall Mounted Programmable display unit. Sensor can be fitted on top of the tank and display can be mounted in safe area. Sensor can be provided with threaded/Flanged connection as per customer’s requirement.The instrument is economical, easy to install, user friendly and offers excellent non contact method to measure Level of Liquids in applications like storage tanks or where physical contact with liquid is not advisable. Transmitter has a local LCD display and a user-friendly compact programmer modulated for range calibration, relay set up, display of parameters by push buttons. Transmitter is equipped with temperature compensation through out the measuring range and gives 4 – 20 mA current output and optional relay outputs. With reliant performance, intellectual signal treatment technology, efficient ultrasonic wavelength, LCD display, high accuracy, and easy programming this version is all packed for excellent performance.   ULTRASONIC LEVEL TRANSMITTERS Principle   It functions on the principle of measuring Liquid Level by ultrasonic waves. Transmitter generates and launches a continuous band of powerful ultrasonic waves aimed towards the surface of liquid. These ultrasonic waves of certain wavelength hit the liquid surface and get reflected back towards the transmitter’s receiver sensor. Reflected signals are received by trans-receiver of the sensor, which processes them to interpret the liquid level on the basis of generation, reflection and time receiving of ultrasonic waves.   ULTRASONIC LEVEL TRANSMITTERS Features Protected against excessive voltage and current. Fully Temperature Compensated. LCD Display is easy to calibrate and observe. Intellectual Signal Treatment Technology. 4 – 20 mA current isolated output. Dual Relay output for having Alarms at High and Low Level. Construction meets all operating conditions. Easy range and calibration programming. Strong Wavelength generator and trans receiver

Number Of Flower : Split Version Level Transmitter

Output : 4 – 20 mA

Frequency : 43 KHz

Ultrasonic Level Transmitter consists of a sensor and a separate wall Mounted Programmable display unit. Sensor can be fitted on top of the tank and display can be mounted in safe area. Sensor can be provided with threadedFlanged connection as per customer’s requirement. Protected against excessive voltage and current. Intellectual Signal Treatment Technology. 4 – 20 mA current isolated output. Dual Relay output for having Alarms at High and Low Level.

Frequency : 43 KHz

Material : PP, MS,SS, Teflon lined

The VEKSLER TOP MOUNTED FLOAT LEVEL SWITCH (TLS-19) is highly reliable and a low cost instrument. It can be used for small tanks as well as large vessels depending upon individual customer's requirement.It consists of a guide pipe made from SS 304/SS 316, a magnetic float of SS 316 that moves on the tube with rise and fall of level. Hermetically sealed reed switches are housed in the guide pipe. The switches can be fixed at any position through out the length of the pipe. But the position should be defined at the time of order as it cannot be changed at site. The factory set accuracy is +/-5mm. Since it works on magnetic principle, there is no mechanical connection and hence the chances of any wear/tear, fluid contamination are eliminated.The process connection is 3” NB Flange as per ASA 150# or any other standard as per individuals requirement. The Floats are hydro tested to work at 15 Kg/cm2. Floats for higher pressure can also be supplied. The working temperature is 90 Deg C.These are very useful for Diesel/Furnace Oil Day tanks and are supplied with IP65/EX-PROOF Gr 11A & 11B enclosures. The other applications include vending machines, small tanks, pumping stations, water tanks. Optional Relay units are available for higher current ratings.It can be wired with low load; however high resistive/inductive loads should be connected in series through control unit. This instruments is PC/PLC < DCS, Alarm Annunciator configurable. Very reliable yet a low cost instrument +/- 5mm accuracy Available in Single & Multiple Floats Hermetically sealed magnetic switches at pre fixed positions in the guide pipe Reed Switch Operation, 1, 2, 3 or 4 different positions 2" / 3" MS Flanged connection as per ASA 150# or as per customer's requirement Can be wired directly with low load, use control (Relay) unit for high resistive/inductive loads Available in Ex-Proof Gr IIA & IIB/Weather proof connection box Max. Pressure Upto 20 Kg/cm² and 80 Deg C temperature Custom designed to your exact guide length and float dimensions Side mounted bracket available for easy installation in open tanks / sumps PC/PLC/DCS, Alarm Annunciator configurable Also Available in External Cage Type Flame Proof/Weather Proof Connection Box Guided Tube : SS 304/ SS 316

Temperature Range : 0 to 1950 degree C

Country of Origin : Made in India

Material : Stainless Steel

Brand Name : Veksler

Thermocouples and RTD’s manufactured by us are available in different metallurgies like SS304, SS316, SS310, SS446, Ceramics 610, recrystalized alumina (Ceramics 710), nickel, Inconnel 600 or any other. These can be used for a wide range of temperature from 0 to 1950 deg C. The diameter starts from 1.5 mm to 22 mm and more depending upon the process requirements. Sensors are supplied with/without Thermowells. The Thermowells are made from drilled bar stock or fabricated from tube/pipe with threaded or flanged connection. The shank of Thermowell may be straight or tapered.

MERCURY / GAS FILLED DIAL THERMOMETER Filled in Dial Thermometer operates on the basis of expansion of mercury in the bulb which in turn deflects bourdon tube. This deflection is transmitted to the pointer through the movement mechanism .In these thermometers a linear scale is obtained which makes system preferable to customers who require perfect reading of scale over the whole range.    Pointer Micrometer zero adjuster type. Capillary Types a) Inner steel capillary covered with copper tube.   b) Inner steel capillary covered with AISI 304 ss tube.   c) Inner steel capillary covered with AISI 316 ss tube.   d) Flexible Armouring.   e) PVC Cover. Standard Ranges 0-50, 60, 100, 120, 150, 200, 250, 300, 400, 500, 600°C & Compound Maximum Measurement on Negative Side - 38°C.

Number Of Flower : Rigid Stem, Every Angle & Distant (Capillary-Maximum up to 15 meters).

Connection : 1/2" BSP/NPT Adjustable, Others Optional

SIDE MOUNTED MAGNETIC LEVEL SWITCH manufacturer, exporter and supplier SIDE MOUNTED MAGNETIC LEVEL SWITCH is an economical, maintenance free and a very reliable device used for high, low or intermediate point level switching. It is ideal for tanks with inaccessible tops or bottoms and where insertion depths of top mounted models are exceeded. The construction is compact & rugged with a free moving pivoted float assembly. The Switch assembly is mounted in a non-magnetic material to achieve undisturbed magnetic flux. It employs dual magnets, one linked with the float arm and other by the contract carriers housed in the switch enclosure. Change in the liquid level brings the like poles of dual magnets opposite to each other & resulting repulsion force ensures a changeover of contacts with snap action. The magnetic transmission is glandless so there is no scope of leakage from vessel into switch housing. These switches are manufactured in various materials and enclosures to suit broad range of media/applications. They are designed to provide high repeatability and to minimize effects of shock, vibration & pressure. Most economical, maintenance free and a very reliable device for point level switching Dual permanent Alnico magnets +/-2 mm repeatability 40/50/65/80 or 100 NB Flange drilled to ASA 150# Cast Al, weatherproof to IP 56/IP65 or ex-proof Gr. IIA & B or II C Enclosure 3/4" ET / 1/2" NPT Electrical connection SS 304/SS 316/SS 316L/PP/PTEE Float & Wetted Parts 0.6 min Sp. Gr Depending upon float material and dimensions Micro switch rated at 5 Amp, 220 VAC, SPDT/DPDT/ Air break type also available Load /Insulation: Resistive, 150 Mega ohms at 1.5KV Internal and External mounting through a chamber/Cage 20 KG/cm2 max pr at ambient temp. Special design available for higher pressures 150oC max temp for standard model & upto 350oC depending upon float material, switch elements and mounting Side Mounted Magnetic Level Switch Installation   These can be mounted internally or externally through a chamber. External mounting is preferred where space is a limiting factor or mechanical devices like stirrers operate in the tank. In applications like boilers, reaction kettles etc., external mounting ensures isolation for servicing. The switch can be wired directly "to make or break electrical circuits" of burners, heaters, motor-pumps, alarms and other such electrically operated devices.

RF LEVEL SWITCHES (Radio Frequency Level Sensors) manufacturer, exporter and supplier RF (Radio Frequency) Level Sensors are designed considering characteristics and behavior of different materials - Solids (in their granular form), Fluids and Liquids. The important conditions that are taken into consideration include: Coating, Temperature, Suspended particles and mechanical damage. Comprises of two parts - a sensing probe and an electronic controller Designed considering characteristics and behavior of different materials - Solids (in their granular form), fluids and liquids. Resistant to Coating, Temperature, Suspended particles, splashing, mechanical damage 220/110/24 VAC 50/60 Hz Power Supply Electronic Controller in a dust proof enclosure and suitable for outdoor duty Should be connected through a coaxial cable to the sensing probe SPDT/DPDT relay output, rated 5 Amp. 220 VAC Fail safe, high or low level Local LED indications - 'Normal', 'Alarm', 'Healthy Probe' Remote installation upto 100 feet from Probe. Cable Entry - ½" ET for probe connection…. Or as specified Cable Entry - ¾" ET for power/control cable…Or specified Our level Sensor are unaffected by coating and accumulation of material on the sensor, sensing element or on side walls. Sensor does not have element sensitive to temperature. Level Sensor is unaffected by suspended particles, splashing or turbulence. Extraction or filling of material exerts various mechanical forces on anything that protrudes inside the vessel. Long insertions of sensors from the sides of the vessel are prone to damage. The sensing probe head is Explosion proof to cover the terminals of the Rƒ signal cable. The probe contains no electronics or any other sensitive element. The Electronic Controller may be inbuilt/separately housed in a dust proof enclosure and is suitable for outdoor duty. It can be mounted at a convenient location near the sensor. It contains the main circuitry and should be connected through a coaxial cable to the Sensing Probe.

Reflex Level Gauge (RLG-19) Reflex Level Gauge is designed for measurement of liquid level in vessels under high pressure & temperature conditions. It is a flat glass gauge, which has precision Mounded prismatic grooves cut on its inner side coming in contact with the medium. Light striking the glass covered by liquid is refracted (absorbed) into the liquid making this portion appear black, whereas light covering the vapor space is reflected back towards the viewers, making it appear silvery-white. Thus, a sharp clear line marks the liquid, eliminating all possibilities of errors in reading.   Technicals Designed for liquid level indication in vessels under high pressure & Temperature conditions. PP, CS, MS, SS 304, SS 316, SS 316L Chambers and isolation valves. Chamber machined from 40 mm square bar with 1/2" BSP drain & Vent plugs. Tempered borosilicate glass (Indigeneour/Klingerite), resistant to chemicals, thermal & mechanical shocks. Working pressure 65 kg/cm2 max and 4500 C temperature. Graded Alloy Steel U Bolts, Nuts and Studs as std and SS on demand. Flanged connection drilled to ASA 150# or as per customer's requirement. Choice of medium and high pressure designs in various body & gaskets materials to suit process media and temperature. Trouble – free operation, except for occasional cleaning. Large chamber construction available for boiling, foaming, flashing or surging liquids. Weld – Pad construction available for liquids containing suspended solids, or for situations, where piping is not acceptable or space is a limiting factor. Isolating valves, safety ball check, scale, illuminator, frost free, heating/cooling arrangement are optional. Variety of accessories & special features like isolating valves, safety ball check, scale illuminator, frost free heating/ cooling arrangements. Transparent Level Gauge (TPLG-19) Transparent Level Gauge is designed for measurement of liquid level in tanks under high pressure and temperature conditions. It consists of double flat glass mounted opposite to each other on a chamber. The glasses are held together by studs through cover plates. It is used for interface services or when the process is dirty or viscous. The chamber is available in a variety of metallurgy i.e. PP, CS, MS, SS304, SS316, SS 316L etc. The isolation valves can also be supplied in different metallurgy depending upon process fluid.   Features Tempered borosilicate glass, resistant to chemicals, thermal & mechanical shocks Choice of medium and high pressure designs is available in various body & gaskets materials to suit process conditions. Trouble – free operation, but requires occasional cleaning. Large chamber construction available for boiling, foaming, flashing or surging liquids. Weld – Pad construction is also available for liquids containing suspended solids, or for location where piping is not acceptable or space is limited. Internal Mica/ Plastic Shields for glass protection from services like caustic, hydrofluoric acid & steam drums above 250 psig. Accessories & special features like isolating valves, safety ball check, scale, illuminator, frost free, heating/ cooling arrangements are available.

Application : Industrial

Current Rating : 6 Amp

Switch Positions : 1

Power/Voltage : 220 V AC

Certification : CIMFR

Country of Origin : Made in India

Electrical Rating : 5A / 15A 250V AC ,

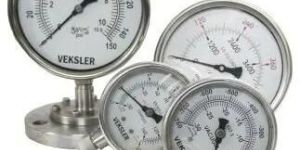

Pressure Range : 0 to 1000 Kg/cm2, -760 mm Hg to 0 (Vacuum)

Connection Size : 1/2 inch

Display Type : Analog

Packaging Type : Box

Connection Type : BSP

Application : Gas

Pressure Type : Gauge Pressure

Country of Origin : Made in India

Material of casing : Stainless Steel

  The sensor element consists of a Bimetal combination having different thermal expansion coefficient. This difference in their thermal expansion coefficient produces a mechanical motion. The sensing element of the Controller is installed directly in the process vessel. The temperature changes inside the process will result in the following Incase of a rise in temperature, the inner metal rod will expand and will contract incase of a decrease in temperature. The change in length is proportional to the change in temperature. The outer metal tube has a low expansion coefficient and thus change in length is negligible. But since one end is attached to the inner metal tube, the inner rod moves as the outer tube changes length. The opposite end of inner rod pushes against a floating link. It is held concentric with a spring loaded inner valve. When the temperature decreases, the inner rod applies pressure on the floating link, it causes pivot to move around the adjustment fulcrum point which tilts the inner valve plug thus the output signal increases. The temperature can be adjusted by moving the knob on the fulcrum.   PNEUMATIC TEMPERATURE CONTROLLERS Introduction   The instrument is provided with two adjustments (a) temperature set Point control and (b) Proportionality control. The temperature can be adjusted and where between - 50° F to + 750° F. The proportionality control is given to set the desirable temperature span. The proportionality control, calibrated from 5 to 60° F corresponds to produce 0.2 - 1 Kg / cm2 output.The orifice in the seat is eccentrically drilled so that while rotating the seat it moves the rifice with respect to the adjusting serew. This regulates the orifice opening with respect to temperature changes.

Temperature Range : -50 to 750 Deg F

 [ Pneumatic Level Controllers (Model: PLC-19) ] PNEUMATIC LEVEL CONTROLLER (Pneumatic Controller) works on the buoyancy principle. The force applied is propotional to the volume of liquid displaced. Change in the liquid level produces a change in the position of flex tube end. This causes movement of the flex tube shaft to which carrier assembly is connected. Carrier assembly opens or closes the nozzle to give pneumatic output from the pilot valve.   PNEUMATIC CONTROLLER Introduction Pneumatic Level Controller consists of a displacer mounted to the flex tube. The Pilot Valve and carrier assembly are housed in weather proof IP65 housing. The exhaust gas is vented inside the enclosure and then to the atmosphere through a vent hole. The instrument is known for its simplicity, reliability and ease of maintenance. Reverse action can be obtained Nozzle assembly by 180°.     Connection 4" NB CS, ASTMA 105 Flange as standard in 150 # , 300 # , 600 # Enclosure Die Cast Alluminium, weather proof to IP 65 Flex Tube Material SS 304 / SS 316 / SS 410 Displacer Options Vertical (S.Steel) 75mm x 355 mm Long (+ 2mm)   Vertical (S.Steel) 42mm x 200 mm Long (+ 2mm)   Vertical (Phenolic) 90mm x 115 mm Long (+ 2mm)   Horizontal (S.Steel) 75mm x 152mm Long (+2mm) Differential 10 to 30 mm depending on size of displacerr & S.G. (Horizontal Float)   20 mm depending on size of displacer & S.G (Vertical Float) Inlet & Outlet connection ¼" NPT Exhaust Screwed vent connection Max Working Pressure 60Bar / 60Kg / cm2 Temperature 150 Deg C with Stainless Steel Float & 100 Deg with Phenolic Float.   70 Deg with Acrylic / PP float Supply Pressure 1.4 Kg/cm2, 3 Kg/ cm2 Output 0.2 1Kg/cm2, 3Kg/cm2, higher on request Mode of Operation Pneumatic, On-off Direct or Reverse

We are experienced Level Switch manufacturer in India. We preffered as Level Switch Manufacturer in India. In PADDLE TYPE LEVEL SWITCHES, a small electric motor drives the paddle, which rotates freely in the absence of material. When it is impeded by material the motor will be turned within the housing thus loading a spring and triggering two switches. One of them is a dry electric contact of control and alarm functions while the other is to cut off the power of motor. When the material level drops, the loaded stretched tension spring returns the motor to its original position and the unit is reactivated.Our Rotary Paddle Switches are heavy duty and suitable for level detection of dust granules and free flowing solids upto the size of 10 mm. These can be mounted in bins, hoppers and silos and are useful to control level, filling and emptying. Applications areas include Agriculture industries, chemical industries, Food industries etc.     Paddle Switch, Level Switch and Paddle Type Level Switch manufacturer, exporter & Supplier India We are wellknown Level Switch manufacturer in India. Paddle Switch, Level Switch and Paddle Type Level Switch are main product of our company Veksler Instruments which manufactures, exports and supply Industrial Measuring Instrument. We are pleased to introduce ourselves as the most preferred Manufacturer and Supplier of Paddle Switch, Level Switch and Paddle Type Level Switch in India. We have been manufacturing Paddle Switch, Level Switch and Paddle Type Level Switch from since long which are easy to use, cost effective and result oriented.

Output : 1 SPDT 230 V AC, 10 A, (standard) 2X SPDT (Optional)

Material : Stainless Steel

Size : 600 NB

Packaging Type : Box

Application : Industrial

Country of Origin : Made in India

Shape : Round

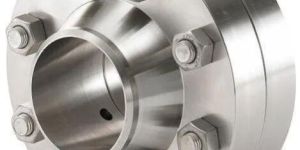

Orifice plate, The Plate is machined from SS 304SS 316Monel. Flanges can also be of different material like ASTM A 105, A 182, SS 304, SS 316 and Monel. The Flange rating may be 150#300#600# or more as per customer's and process requirement.

Line Size : 15NB to 600 NB

Micro Valve Level Controllers (Model:MVLC-19)   MICRO VALVE LEVEL CONTROLLERS This is a snap-acting float operated level controller with a 3 way MICRO VALVE. When the level rises and raises the float, it is actuated by two adjustable york-type pusher arms. The pusher arms can be adjusted to accurately control the range of level desired.The valve is in low level position when the liquid level is below the float and it remains the same until the float rises to the pre-set high level. The Micro Valve then reverses the positions until the float drops to the pre-set low level position. instrument is supplied with Flange & Grooved Coupling for mounting on to the vessel. it is mounted from side of the tank.Standard instruments are supplied with a three way Micro Valve and three ¼" NPT ports and the working pressure is 2 Kg/cm2. Connections to the ports also depend on the control action desired.

Magnetic Level Indicator manufacturer in India. These Level Indicators are flanged to the tank for indicating level of liquids and liquefied gases in open or closed tanks. These can be used in high temperature and pressure applications or if sight glasses and similar indicating glass parts cannot be used for safety reasons. This instrument is preferred because there is a safe pressure and gas tight separation between measuring and indicating parts. Thus the MAGNETIC LEVEL INDICATOR is suitable for a wide range of applications for the chemicals, pharmaceutical industries, petrochemical industries, refineries, oil and fuel tanks etc.

We are experienced Magnetic Level Indicator Manufacturer In India. We preffered as Magnetic Level Indicator manufacturer in India. These Level Indicators are flanged to the tank for indicating level of liquids and liquefied gases in open or closed tanks. These can be used in high temperature and pressure applications or if sight glasses and similar indicating glass parts cannot be used for safety reasons. This instrument is preferred because there is a safe pressure and gas tight separation between measuring and indicating parts. Thus the MAGNETIC LEVEL INDICATOR is suitable for a wide range of applications for the chemicals, pharmaceutical industries, petrochemical industries, refineries, oil and fuel tanks etc.The cage is flanged to the tank & the level is indicated on a Strip which consists of magnetic bi-colour rollers. The floats are available in various metallurgies like SS316, Titanium, PVDF, Polypropylene and PVC.   Used for high temp and pr applications or if glass parts cannot be used for safety reasons. Applications in Chemicals, Pharmaceutical, petrochemical, refineries, oil and fuel tanks etc. Available in side and top mounting versions Capsule Indicator in glass tube or magnetic bi-colour rollers SS 304, SS 316, PTFE, PP, PVC & PVDF Float & Cage Material Max. C.C. Distance: 5000 mm, greater lengths on request. Flanged connection drilled to ASA 150# or other on demand Pr 20 Kg/cm2 for SS & 3 Kg/cm2 for PP, PVC & PVDF, Higher Pr rating on demand Temp 450oC for SS, 80oC for PVDF, 60oC for PVC, 50oC (Max) for PP Specific Gravity : Min 0.5 AI/SS etched scale in cm +/- 5 mm accuracy These models consists of Red or Black/white magnetic rollers equipped with small rod magnets which are rotated one after another at an angle of 180º by the magnetic field of the permanent magnet put inside the float. The rollers change from white to red on rising level and red to white on falling level. Plastic rollers are suitable for liquid temperature upto 100ºC & Alluminium rollers for temperature upto 250ºC and ceramic rollers for temperature upto 450ºC.The level in a tank or agitating machine is permanently indicated as a Red or Black column even in the case of power failure.In addition, Level Sensing elements can be fixed directly to the float cage, so that-simultaneous, contact less sensing is measured electrically. Electronic Level Indicator with set point can be connected with the sensor to have reading in remote. Single or double set point relays can also be provided in the Electronic Indicatorfor control purposes.
