VELIYATH SCIENTIFIC INDUSTRIES Umbergaon, Valsad, Gujarat

"VS 302" Series are rectangular shaped water baths, supplied with lid and concentric rings. It has stainless steel contact surfaces with Double wall construction and glass wool insulation . PID microcontroller for accurate temperature control.

Temperature Range : Ambient to 95°C. Accuracy: ± 0.5°C

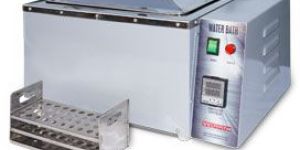

"VS 301" Series are Serological water baths with high grade stainless steel contact surface, double wall construction and glass wool insulation. PID microcontroller for accurate temperature control.

Temperature Range : Ambient to 95°C. Accuracy: ± 0.5°C

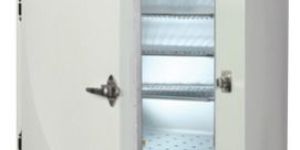

VS 141 and VS142 Series are vacuum ovens with rectangular and round shaped working chamber respectively, made of stainless steel 304 grade material. It has a rugged construction with strong bracing and is designed to with stand a vacuum pressure of 760 mm. Hg. At 200°C. Toughened glass door fixed on rigid frame gives a clear view of the chamber. It is sealed with silicon rubber gasket. A special heating pad is wrapped around the chamber which transfers heat to the material by radiation. Widely used in various applications such as moister determination, aging tests, chemical resistance studies, drying of paper, rubber and textiles, desiccating, dry sterilization, vacuum storage and electronic process control.

"VS511" Series are Stability Chambers designed and manufactured in accordance with ICH guidelines for stability testing. They have a superior accuracy and uniformity of temperature and humidity. Used for Conditioning of samples, Accelerated shelf life studies, Stability testing for drugs and pharma industries, Climate conditioning, etc. It works on CFC free refrigerant and hermetically sealed compressor. Digitally controlled evaporative humidifier, RH Microcontroller with PID algorithm and advanced RH sensor gives precise humid conditions inside the chamber. Steam injection system has a stainless steel boiler and reservoir. It has a clear view glass inner door. Motorised blower develops air recirculation system which ensures uniform temperature and humidity inside the chamber. Poly-Urethane is used for efficient insulation.

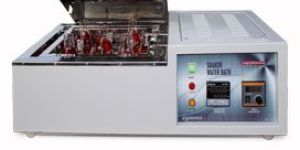

"VS 311" Series are water baths with robust shaking mechanism. The mechanism has a variable speed ranging from 40 to 120RPM. Contact surfaces are of stainless steel and exterior body is of MS, finished with epoxy powder coating. Double wall construction with glass wool insulation. PID microcontroller for accurate temperature control.

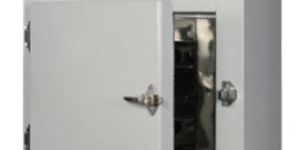

"VS103" series are precision lab oven with Forced air circulation. It incorporates a heating system with motorised blower unit at top side of oven. The blower sucks air from working chamber and blows through the heater zone, enabling hot air re-circulation and creating uniform temperature through out the chamber. The excess hot air with fumes and moisture flows out through an adjustable ventilation. Forced air re-circulation system gives better temperature uniformity in the chamber. Used for pre heating, drying, sterilizing, baking, aging, etc.

It works on CFC free refrigerant and hermetically sealed compressor. Digitally controlled evaporative humidifier, RH Microcontroller with PID algorithm and advanced RH sensor gives precise humid conditions inside the chamber. Steam injection system has a stainless steel boiler and reservoir. it is Used for Conditioning of samples, Accelerated shelf life studies, Stability testing for drugs and pharma industries, Climate conditioning, etc.

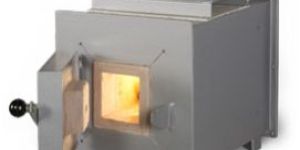

"VS 201" and "VS 202" series are muffle furnace designed to suit Laboratory and Industrial use. It has a muffle type ceramic heating chamber. It is extensively used for soil and aggregate testing, cement testing, ashing organic and inorganic sample, gravimetric analysis, loss on ignition test, etc. It is also used in industries for heat treatment, annealing, curing, etc at high temperature.

"VS101" series are lab hot air oven with Natural convection heating. It incorporates a heating system with fine air stream creating uniform temperature due to natural convection within the chamber. The hot air with fumes and moisture flows out through a controlled ventilation system. Ideally used for pre heating, drying, sterilizing, backing, aging etc.

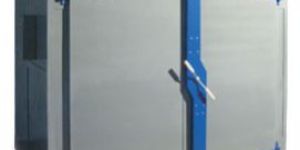

Industrial ovens are an absolute solution to industrial heavy duty heat processes. Abrasive baking, composite material polymer curing, tray drying and more such varied applications, the system is designed and tuned to suit your specific process.The most important aspect of an industrial oven is the strength and dynamics of its body. We have a dedicated sheet metal engineering and manufacturing facility and our team of enthusiast professionals is at disposal to design and develop solutions for your advanced processes.

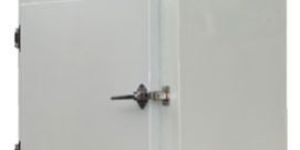

Incubators are available in three models.   •  VS 131 ( Natural Convection )    •  VS 132 ( Forced Air Draft )   •  VS 133 ( Forced Air Circulation )   These series represent modern laboratory Incubators.   Precise and gentle temperature control with uniform    temperature within the cell makes it best suited for    laboratory incubation

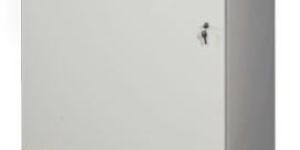

"VS501" Series are humidity ovens with electronically controlled evaporative humidifier and temperature micro controller. With advanced RH sensors it gives precise humid conditions. Steam injection system is incorporated with stainless steel boiler and reservoir. It has a clear view glass inner door. Motorised blower recirculates air which ensures uniform temperature and humidity inside the chamber. Poly-Urethane is used for efficient insulation. Widely used to test performance of samples in humid atmosphere.

Temperature Range : 5°C above ambient to 60°C

"VS401" are a range of hot plate with grooved & machined cast iron top and are hydraulic thermostat controlled. Heating element is electrically insulated with porcelain beads and embedded in the grooves under the top plate. It resists high corrosive environment and durable overa long period of operation. Available in Round and Rectangular shapes. Automotive, Pharmaceutical and Chemical are a few of the industries where our Hot Plates are used.

It incorporates a heating system with motorised blower unit at top side of oven. The blower sucks air from working chamber and blows through the heater zone, enabling hot air re-circulation and creating uniform temperature through out the chamber. The excess hot air with fumes and moisture flows out through an adjustable ventilation. Forced air re-circulation system gives better temperature uniformity in the chamber. Used for pre heating, drying, sterilizing, baking, aging, etc.

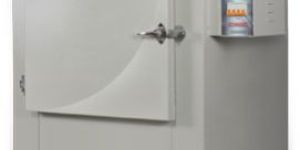

"VS112" series are high temperature lab oven with Forced air convection heating. Its heating system is equipped with motorised blower unit at bottom side and a heater platform made out of spiral type heating coils of nichrome wire. The blower blows fresh air through the heating platform and enables hot air draft in the working chamber creating uniform temperature through out the chamber. The excess hot air with fumes and moisture flows out through an adjustable ventilation. High temperature forced air draft system is ideal for wet and moist materials. Used for pre heating, drying, sterilizing, baking, aging, etc.

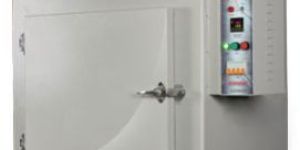

Model "VS113" series are high temperature lab oven with air re-circulation. The blower is positioned above the top baffle wall of working chamber and is mounted on a motorised shaft. The shaft and blower is driven by a motor through a "V" belt drive and is supported on heavy duty pedestal bearing. This mechanism protects the motor from heat, makes it durable and runs smoothly. Specially designed tubular air heaters are fit on either sides of working chamber. Its terminals are extended out side the oven body for better durability. The blower sucks in air from the top of the chamber and blows to the bottom of the chamber through the heater zone, re-circulating air and creating uniform temperature through out the chamber. Used for pre heating, drying, sterilizing, baking, aging, etc.

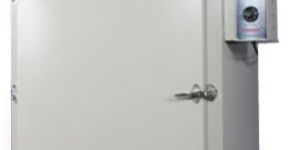

Model "VS122" series are Industrial cum Laboratory oven with Forced air convection heating. It incorporates a heating system with motorised blower unit at bottom side of oven. The blower blows fresh air through a heating platform and enables hot air draft in the working chamber creating uniform temperature through out the chamber. The excess hot air with fumes and moisture flows out through an adjustable ventilation. Forced air draft system is ideal for wet and moist materials. Used for pre heating, drying, sterilizing, baking, aging etc.

Motor : 1/12 HP,TEFC, F - Class insulation.

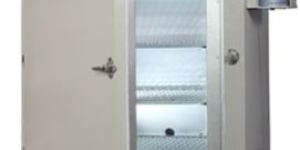

Model "VS123" series are Industrial cum Laboratory oven with Forced air circulation. It incorporates a heating system with motorised blower unit at top side of oven. The blower above the top baffle wall enables re-circulation of air in working chamber. The blower sucks air from working chamber and blows through the heater zone, enabling hot air re-circulation, creating uniform temperature through out the chamber. The excess hot air with fumes and moisture flows out through an adjustable ventilation. Forced air re circulation system gives better temperature uniformity in the chamber. Used for pre heating, drying, sterilizing, baking, aging etc.

Motor : 1/12 HP, TEFC, F - Class insulation.

"VS102" series are lab hot air oven with Forced air convection heating. It incorporates a heating system with motorised blower unit at bottom side of oven. The blower blows fresh air through a heating platform and enables hot air draft in the working chamber creating uniform temperature through out the chamber. The excess hot air with fumes and moisture flows out through an adjustable ventilation. Forced air draft system is ideal for wet and moist materials. Used for pre heating, drying, sterilizing, baking, aging, etc.

"VS401" are a range of hot plate with grooved & machined cast iron top and are hydraulic thermostat controlled. Heating element is electrically insulated with porcelain beads and embedded in the grooves under the top plate. It resists high corrosive environment and durable overa long period of operation.

"VS521" Series are BOD incubators designed to suit various tests and storage needs in laboratories at temperatures below ambient. Used for Biological Oxygen Demand tests, Storage of sensitive cultures, vaccines, culture of bacteria, microorganism, Serum incubation, seed germination etc. It works on CFC free refrigerant and hermetically sealed compressor. Auto tuneable microcontroller with PID logic gives accurate heating and cooling conditions inside the chamber. It has a clear view glass inner door. Motorised blower develops air re-circulation system which ensures uniform temperature inside the chamber. Poly-Urethane is used for efficient insulation.

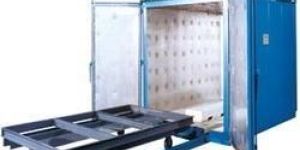

Batch Type Oven are designed to be utilized in processes where thro ughput is unitized in "batches", whereas conveyor industrial ovens are generally utilized in a continuous process. Industrial batch ovens offer the flexibili ty of intermittent product flow, with the ability to start and stop production as required. I ndustrial batch ovens also offer the flexibility of processing a single large parts, or a significant number of smaller parts in a single process run. However, there is a throughput volume where the batch process becomes less economical than the conveyor process. Bench and cabinet industrial ovens are used for small batch production requirements, where as walk-in industrial ovens are used for large batch production requirements
