Jami Hydraulics Private Limited Auto Nagar, Visakhapatnam, Andhra Pradesh

We are offering tilting machine

OVERVIEW A tie-rod cylinder uses the threaded steel rods to hold two end caps to the ends of the cylinder barrel. A strong advantage of the tie rod design is that it can be easily disassembled & examined for repair. This type of cylinders provides long life and reliable operation attributed to the use of high quality materials plus many features included in this design. Jami Hydraulics is an ISO 9001:2015 certified manufacture of Tie Rod Type Hydraulic cylinders designed to deliver long, efficient service with low maintenance requirements, guaranteeing high productivity with low cost of ownership. A Safety Factor of 2.5 or better is built into cylinder. The Safety Factor is a function of The critical buckling load determined basically by the length of the cylinder and cylinder extensions Forces. Every tie rod cylinder is individually tested before leaving our plant to assure proper and leak free operation.   FEATURES   HIGH TENSILE STEEL TIE RODS SINGLE AND DOUBLE ROD DESIGNS EASY REMOVAL OF ROD GLAND FOR SEAL REPLACEMENT HARD CHROME PLATED ROD WHICH INCREASE THE SEAL &CYLINDER LIFE MODERNISTIC SEALING TECHNOLOGY IDEAL FOR SINGLE ACTING & DOUBLE ACTING APPLICATIONS A WIDE RANGE OF FLUID SPECIFICATIONS AND TEMPERATURE RANGES FROM -20°C TO 60 °C CUSHIONING SOLUTIONS, AVAILABLE AT EITHER OR BOTH ENDS WIDE RANGE OF MOUNTING AND ROD END ACCESSORIES SPECIAL FEATURES, E.G. STROKE ADJUSTER, ROD BELLOW, GLAND DRAIN, PROXIMITY SWITCHES OR INTEGRATED LINEAR TRANSDUCERS CUSTOM DESIGNS ON REQUEST. APPLICATIONS   Die Casting Roll mills Assembly Line Paper Machinery Cement Industry Factory Automation Entertainment Automation Packaging Machinery SPECIFICATIONS   GENERAL SPECIFICATIONS Maximum Working Pressure (bar) 240 Bore Diameter (mm) Min. 25 to Max. 200 Rod Diameter (mm) Min. 16 to Max. 140 Maximum Stroke (mm) 5000 Minimum Working Temperature (°C) -20 Maximum Working Temperature (°C) 140 Mounting Styles 7 Cylinder Action Single/Double Acting Port Type BSPP, Metric. NPTF MATERIAL SPECIFICATIONS Cylinder Barrels Carbon Steel Alloy Pistons Carbon steel alloy Rods High quality alloy steels with tensile strength Base Castings & Rod Clevises High Tensile structural steel Cylinder Heads High Tensile structural steel Guiding bushes Brass, Bronze alloys Seals Polyurethane, Pom-Ptfe-Bronge compound, Ptfe, NBR, VITON.

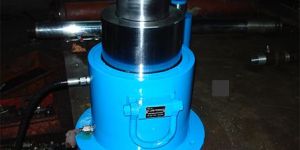

Telescopic hydraulic jack is a special design of jack which provide an long output travel from a very compact retracted length. Telescopic jacks are typically used for shop work, rather than as an emergency jack to be carried with the vehicle. This type of jack is not designed for a specific vehicle, requires more than the usual care in selecting ground conditions, the jacking point on the vehicle, and to ensure stability when the jack is extended. Jami Hydraulic is an ISO 9001:2015 certified manufacturer of Telescopic Hydraulic Jacks designed on the basis of total stroke & buckling load to attain durability & flawless operation with low construction height to long stroke A Safety Factor of 2.5 or better is built into cylinder. The Safety Factor is a function of the critical buckling load determined basically by the length of the cylinder and cylinder extensions Forces. Every cylinder is individually tested before leaving our plant to assure proper and leak free operation   FEATURES BASE FRAME TO FIT THE PIT RIGIDLY HARD CHROME PLATED ROD WHICH INCREASE THE SEAL & CYLINDER LIFE MODERNISTIC SEALING TECHNOLOGY IDEAL FOR SINGLE ACTING & DOUBLE ACTING APPLICATIONS A WIDE RANGE OF FLUID SPECIFICATIONS AND TEMPERATURE RANGES FROM -20°C TO 60°C PROVIDED WITH INTEGRAL HANDLE FOR EASY HANDLING CUSTOM DESIGNS ON REQUEST APPLICATIONS   REPAIR WORKS AUTOMOBILES HEAVY MACHINERIES FORKLIFTS EXCAVATORS LOAD LIFTING MACHINERIES APPLICATIONS   REPAIR WORKS AUTOMOBILES HEAVY MACHINERIES FORKLIFTS EXCAVATORS LOAD LIFTING MACHINERIES

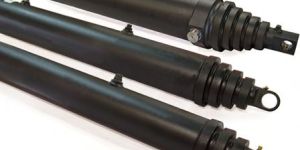

For some cylinders , they must possesses an ability of providing a large stroke with exceptionally compact initial package, in these cases telescopic cylinders provide an great advantage.As it name indicates telescopic cylinders are constructed in the form of a telescope where the cylinders will be extended up to 20-40, of its collapsed lengths Jami Hydraulic is an ISO 9001:2015 certified manufacture of Telescopic Type Hydraulic cylinders designed specifically for reliable, trouble free operation, by considering many factors like fitting height, inclination angle, buckling load, external atmospheric conditions, etc., A Safety Factor of 2.5 or better is built into cylinder. The Safety Factor is a function of the critical buckling load determined basically by the length of the cylinder and cylinder extensions Forces. Every cylinder is individually tested before leaving our plant to assure proper and leak free operation.   FEATURES   SEALS ARE MADE FROM VERY HARD SUBSTANCES LIKE GLASS REINFORCED NYLON TO RESIST FROM ABRASION WEAR SINGLE AND DOUBLE ROD DESIGNS HARD CHROME PLATED ROD WHICH INCREASES THE SEAL & CYLINDER LIFE MODERNISTIC SEALING TECHNOLOGY IDEAL FOR SINGLE ACTING & DOUBLE ACTING APPLICATIONS A WIDE RANGE OF FLUID SPECIFICATIONS AND TEMPERATURE RANGES FROM -20°C TO °C CUSHIONING SOLUTIONS & ADJUSTMENT OF THE CUSHION LENGTHS AVAILABLE AT EITHER OR BOTH ENDS WIDE RANGE OF MOUNTING AND ROD END ACCESSORIES SPECIAL FEATURES, E.G. STROKE ADJUSTER, ROD BELLOW, GLAND DRAIN, PROXIMITY SWITCHES OR INTEGRATED LINEAR TRANSDUCERS CUSTOM DESIGNS ON REQUEST. SPECIFICATIONS   Cylinder Barrels Carbon Steel Alloy Pistons Carbon steel alloy Rods High quality alloy steels with tensile strength Cylinder Heads High Tensile structural steel Seals Polyurethane, Ptfe, NBR, VITON

In some cases it necessary to take the job to high height & to hold the job for certain amount of time, in these cases screw jack satisfies the necessity , these are similar to general purpose jacks in the working principle but differ in the size & shape where the plungers are screwed to the cylinder which has to be operated manually & are taken ground as a base. With the aid of this Hydraulic screw jack one can lift job to a certain height & can do his work solely without any aid of labour, cranes or lifts. Jami Hydraulics is an ISO 9001:2015 certified manufacturer of Hollow plunger type hydraulic Jacks designed specifically for reliable, trouble free operation, making it ideal for heavy duty applications & are built to withstand Heavy Loads A Safety Factor of 2.5 or better is built into cylinder. The Safety Factor is a function of the critical buckling load determined basically by the length of the cylinder and cylinder extensions Forces. Every cylinder is individually tested before leaving our plant to assure proper and leak free operation   FEATURES   LIGHT WEIGHT MODERNISTIC SEALING TECHNOLOGY A WIDE RANGE OF FLUID SPECIFICATIONS AND TEMPERATURE RANGES FROM -20°C TO 60°C PROVIDED WITH INTEGRAL HANDLE FOR EASY HANDLING CUSTOM DESIGNS ON REQUEST APPLICATIONS   ASSEMBLING LINE AUTOMOBILES HEAVY MACHINERIES FORKLIFTS HOUSE HOLD APPLIANCES LOAD LIFTING MACHINERIE SPECIFICATIONS   GENERAL SPECIFICATIONS Maximum Working Pressure (bar) 600 LOAD CAPACITY (TONNE) Min 11.7 to Max 188 Bore Diameter (mm) Min 50 to Max 200 Rod Diameter (mm) Min 49 x 4P to Max 19 x 4P Minimum Working Temperature (C) -20 Maximum Working Temperature (C) 140 Cylinder Action Single/Double Acting Port Type BSP, Metric. NPT MATERIAL SPECIFICATIONS Cylinder Barrels Carbon Steel Alloy Pistons Carbon steel alloy Rods High quality alloy steels with tensile strength Cylinder Heads High Tensile structural steel Seals Polyurethane, Ptfe, NBR, VITON.

HIGH TENSILE STEEL TIE RODS HARD CHROME PLATED ROD & BARREL WHICH INCREASE THE SEAL & CYLINDER LIFE MODERNISTIC SEALING TECHNOLOGY IDEAL FOR SINGLE ACTING & DOUBLE ACTING APPLICATIONS CUSHIONING SOLUTIONS, AVAILABLE AT EITHER OR BOTH ENDS SPECIAL FEATURES, E.G. STROKE ADJUSTER, ROD BELLOW, GLAND DRAIN CUSTOM DESIGNS ON REQUEST APPLICATIONS   Food processing Sliding equipments Packing machinery Light weight moving equipments SPECIFICATIONS   GENERAL SPECIFICATIONS Maximum Working Pressure (bar) 24 Bore Diameter (mm) Min 63 to Max 355.6 Rod Diameter (mm) Min 25 to Max 101.6 Maximum Stroke (mm) 1000 Minimum Working Temperature (C) -20 Maximum Working Temperature (C) 140 Mounting Styles 5 Cylinder Action Single/Double Acting Port Type BSP, Metric. NPT MATERIAL SPECIFICATIONS Cylinder Barrels Carbon Steel Alloy ,ALUMINIUM Pistons Carbon steel alloy, ALUMINIUM Rods High quality alloy steels with tensile strength Base Castings & Rod Clevises High Tensile structural steel Cylinder Heads High Tensile structural steel Guiding bushes Brass, Bronze alloys Seals Ptfe, NBR, VITON.

FEATURES ROD SCREW THREAD, NON-TOLERANCED DIMENSION,POSITION AND SIZE OF THE CONNECTIONS ETC, CAN BEIMPLEMENTED ACCORDING TO CUSTOMER PREFERENCE SINGLE AND DOUBLE ROD DESIGNS HARD CHROME PLATED ROD WHICH INCREASE THE SEAL & CYLINDER LIFE MODERNISTIC SEALING TECHNOLOGY IDEAL FOR SINGLE ACTING & DOUBLE ACTING APPLICATIONS A WIDE RANGE OF FLUID SPECIFICATIONS AND TEMPERATURE RANGES FROM -20°C TO 60°C CUSHIONING SOLUTIONS & ADJUSTMENT OF THE CUSHION LENGTHS AVAILABLE AT EITHER OR BOTH ENDS WIDE RANGE OF MOUNTING AND ROD END ACCESSORIES SPECIAL FEATURES, E.g. STROKE ADJUSTER, ROD BELLOW, GLAND DRAIN, PROXIMITY SWITCHES OR INTEGRATED LINEAR TRANSDUCERS. APPLICATIONS   Lifting Roll Mills Paper Machinery Cement Industry Factory Automation Metal forming Packaging Machinery SPECIFICATIONS   GENERAL SPECIFICATIONS Maximum Working Pressure (bar) 240 Bore Diameter (mm) Min 50 to Max 200 Rod Diameter (mm) Min 32 to Max 140 Maximum Stroke (mm) 5000 Minimum Working Temperature (C) -20 Maximum Working Temperature (C) 140 Mounting Styles 5 Cylinder Action Single/Double Acting Port Type BSP, Metric. NPT MATERIAL SPECIFICATIONS Cylinder Barrels Carbon Steel Alloy Pistons Carbon steel alloy Rods High quality alloy steels with tensile strength Base Castings & Rod Clevises High Tensile structural steel Cylinder Heads High Tensile structural steel Guiding bushes Brass, Bronze alloys Seals Polyurethane, Pom-Ptfe-Bronge compound, Ptfe, NBR, VITON

These type of cylinder has the cap end welded to the barrel on one side & head end threaded on the other side . This type of cylinder provides the power of tie rod cylinder in a compact , long lasting design that handles continuous loads & these can serve as a direct replacement of tie rod cylinders in most applications Jami Hydraulic is an ISO 9001:2015 certified manufacture of one side welding & other side Threading Type Hydraulic cylinders designed specifically for reliable, compactable & long lasting operation, making it ideal for medium & heavy duty applications A Safety Factor of 2.5 or better is built into cylinder. The Safety Factor is a function of the critical buckling load determined basically by the length of the cylinder and cylinder extensions Forces. Every cylinder is individually tested before leaving our plant to assure proper and leak free operation   FEATURES   ROD SCREW THREAD, POSITION AND SIZE OF THE CONNECTIONS ETC, CAN BE IMPLEMENTED ACCORDING TO CUSTOMER PREFERENCE SINGLE AND DOUBLE ROD DESIGNS HARD CHROME PLATED ROD WHICH INCREASE THE SEAL & CYLINDER LIFE,MODERNISTIC SEALING TECHNOLOGY IDEAL FOR SINGLE ACTING & DOUBLE ACTING APPLICATIONS A WIDE RANGE OF FLUID SPECIFICATIONS AND TEMPERATURE RANGES FROM -20°C TO °C CUSHIONING SOLUTIONS & ADJUSTMENT OF THE CUSHION LENGTHS AVAILABLE AT EITHER OR BOTH ENDS WIDE RANGE OF MOUNTING AND ROD END ACCESSORIES SPECIAL FEATURES, E.g. STROKE ADJUSTER, ROD BELLOW, GLAND DRAIN, PROXIMITY SWITCHES OR INTEGRATED LINEAR TRANSDUCERS APPLICATIONS   Lifting Roll Mills Paper Machinery Cement Industry Factory Automation Metal forming Packaging Machinery   SPECIFICATIONS   GENERAL SPECIFICATIONS Maximum Working Pressure (bar) 240 Bore Diameter (mm) Min. 25 to Max. 200 Rod Diameter (mm) Min. 16 to Max. 125 Maximum Stroke (mm) 5000 Minimum Working Temperature (°C) -20 Maximum Working Temperature (°C) 140 Mounting Styles 7 Cylinder Action Single/Double Acting Port Type BSPP, Metric. NPTF MATERIAL SPECIFICATIONS Cylinder Barrels Carbon Steel Alloy Pistons Carbon steel alloy Rods High quality alloy steels with tensile strength Base Castings & Rod Clevises High Tensile structural steel Cylinder Heads High Tensile structural steel Guiding bushes Brass, Bronze alloys Seals Polyurethane, Pom-Ptfe-Bronge compound, Ptfe, NBR, VITON.

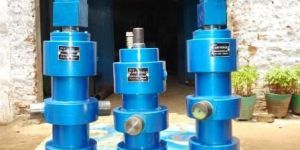

MILL TYPE- BOLTING & BOLTING These types of cylinders have end flanges welded or threaded to the barrel and the end caps are attached to each flange. End caps are secured in place by bolts that go through holes in each end cap and thread into tapped holes in each end flange. This construction is lighter and more compact than the standard tie-rod type. In some cases cylinders having thick barrel walls, end caps will be directly bolted to the barrel Jami Hydraulics is an ISO 9001:2015 certified manufacturer of Both Sides Bolting Type Hydraulic cylinders designed specifically for reliable, trouble free operation, making it ideal for heavy duty applications & are built to withstand the buckling under compressive loads A Safety Factor of 2.5 or better is built into cylinder. The Safety Factor is a function of the critical buckling load determined basically by the length of the cylinder and cylinder extensions Forces. Every cylinder is individually tested before leaving our plant to assure proper and leak free operation FEATURES   HIGH TENSILE STRENGTH BOLTS OF CLASS 8.8,10.9& 12.9 SINGLE AND DOUBLE ROD DESIGNS HARD CHROME PLATED ROD WHICH INCREASE THE SEAL & CYLINDER LIFE MODERNISTIC SEALING TECHNOLOGY IDEAL FOR SINGLE ACTING & DOUBLE ACTING APPLICATIONS A WIDE RANGE OF FLUID SPECIFICATIONS AND TEMPERATURE RANGES FROM -20°C TO 60°C CUSHIONING SOLUTIONS & ADJUSTMENT OF THE CUSHION LENGTHS AVAILABLE AT EITHER OR BOTH ENDS WIDE RANGE OF MOUNTING AND ROD END ACCESSORIES SPECIAL FEATURES, E.G. STROKE ADJUSTER, ROD BELLOW, GLAND DRAIN, PROXIMITY SWITCHES OR INTEGRATED LINEAR TRANSDUCERS CUSTOM DESIGNS ON REQUEST   APPLICATIONS   Marine Die casting Off shore Roll mills Paper Machinery Cement Industry Factory Automation Metal forming Packaging Machinery   SPECIFICATIONS   GENERAL SPECIFICATIONS Maximum Working Pressure (bar) 240 Bore Diameter (mm) Min 30 to Max 320 Rod Diameter (mm) Min 18 to Max 200 Maximum Stroke (mm) 5000 Minimum Working Temperature (C) -20 Maximum Working Temperature (C) 140 Mounting Styles 5 Cylinder Action Single/Double Acting Port Type BSP, Metric. NPT MATERIAL SPECIFICATIONS Cylinder Barrels Carbon Steel Alloy Pistons Carbon steel alloy Rods High quality alloy steels with tensile strength Base Castings & Rod Clevises High Tensile structural steel Cylinder Heads High Tensile structural steel Guiding bushes Brass, Bronze alloys Seals Polyurethane, Pom-Ptfe-Bronge compound, Ptfe, NBR, VITON.

HYDRAULIC TEST BENCH FOR TESTING OF HYDRAULIC CYLINDERS (RANGE UPTO 550mm BORE & 2MTR STROKE) & HYDRAULIC PUMPS (RANGE). By using different circuits and pressure gauges our research group was able to analyze the effects of pressure reducing valves, directional control valves, load testing, Hydraulic motors, and sequence valves. Our test benches are designed for general shop testing of Hydraulic pumps, valves, motors, and cylinders as individual components. Utilization of a test bench enables the operator to conveniently simulate a component’s function in its circuit and perform a realistic test, thereby providing the necessary quality control before any repaired component is replaced on a machine. Component performance is determined by comparing test results of the component loaded with a manufacturer’s specifications to an unloaded condition.   FEATURES   Easy to install Longer service life Easy handling APPLICATIONS   High Volume Cylinder Yield Test Units Pump testing unit Cylinder endurance test

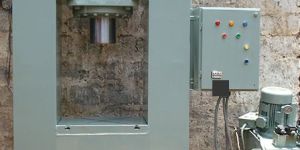

FEATURES Rugged design Corrosion resistance Flawless finish APPLICATIONS   Cold & warm forging Blanking & Punching Riveting Stamping & Pressing Powder Compacting For removal and fitment of bearings, sprockets, gears and straightening of shafts. SPECIFICATIONS   Capacity : 75 – 450 tonnes. Stroke : 200 – 700 mm. Daylight : 300-1500 mm. Table Size : 300 x 300 to 1200 x 1200 mm. Control: Plc Control/Manual On Request.

The main purpose of jack is to lift heavier load higher, these are compatible & can be carried & fixture easily where an Hydraulic cylinder cannot fit. Jami Hydraulics is an ISO 9001:2015 certified manufacturer of General Purpose Jacks designed specifically for reliable, trouble free operation, making it ideal for heavy duty applications & are built to withstand Heavy Loads. A Safety Factor of 2.5 or better is built into cylinder. The Safety Factor is a function of the critical buckling load determined basically by the length of the cylinder and cylinder extensions. Forces. Every cylinder is individually tested before leaving our plant to assure proper and leak free operation. FEATURES   LIGHT WEIGHT HARD CHROME PLATED ROD WHICH INCREASE THE SEAL & CYLINDER LIFE MODERNISTIC SEALING TECHNOLOGY IDEAL FOR SINGLE ACTING & DOUBLE ACTING APPLICATIONS A WIDE RANGE OF FLUID SPECIFICATIONS AND TEMPERATURE RANGES FROM -20°C TO 60°C PROVIDED WITH INTEGRAL HANDLE FOR EASY HANDLING FOR SINGLE ACTING IT IS PROVIDED WITH A SPRING RETURN CUSTOM DESIGNS ON REQUEST APPLICATIONS   AUTOMOBILES HEAVY MACHINERIES FORKLIFTS EXCAVATORS HOUSE HOLD APPLIANCES LOAD LIFTING MACHINERIES SPECIFICATIONS   GENERAL SPECIFICATIONS Maximum Working Pressure (bar) 600 Load Capacity (Tonne) Min. 4 To Max. 188 Bore Diameter (mm) Min 30 to Max 200 Rod Diameter (mm) Min 25 to Max 140 Maximum Stroke (mm) 200 Minimum Working Temperature (C) -20 Maximum Working Temperature (C) 140 Cylinder Action Single/Double Acting Port Type BSP, Metric. NPT MATERIAL SPECIFICATIONS Cylinder Barrels Carbon Steel Alloy Pistons Carbon steel alloy Rods High quality alloy steels with tensile strength Cylinder Heads High Tensile structural steel Seals Polyurethane, Ptfe, NBR, VITON.

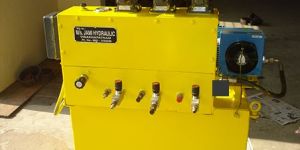

We design our Hydraulic power pack units in accordance to customer’s flow & pressure requirements. The control devices, configured in our Hydraulic power pack units, viz. pressure & flow control valves, solenoid valves, accumulators, oil tank accessories & pipe line fittings. The accessories used in our Hydraulic power pack units are of high quality, to ensure smooth and trouble free operations. FEATURES   Easy to install Longer service life Easy handling   APPLICATIONS   Injection moulding machine Oil filtration units Hydraulic presses Hydraulic jacks SPECIFICATIONS   Working Pressure 350 Bar Flow range Up to 300 Lpm Power Up to 60 Hp

These Four Pillar Hydraulic Presses are fabricated from optimum quality components that impart strength and durability. These have the ability to bear heavy loads. Our Four Pillar Hydraulic Presses can be operated either manually or with the help of push buttons. Sometimes Ejection cylinder is used to eject the components that are manufactured on this press. FEATURES   Durability High efficiency Corrosion resistance Easy operation APPLICATIONS   Blanking Molding Deep Drawing Coining Forming Compacting SPECIFICATIONS   Capacity : 40 – 630 tonnes Stroke : 200 – 600 mm Daylight : 300-1000 mm Table Size : 300 x 300 to 1200 x 1200 mm Control: Plc Control/Manual On Request

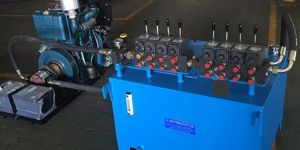

We are extremely proud to offer incredible diesel driven power packs. Our Hydraulic System fitted with tank top return filter lines, visual indicators and Oil level and temperature indicator. Our range of high-powered diesel engine driven power units is available in a range of specifications, to make certain that it meets the exact requirements of your Hydraulic system, to ensure that your system component will enjoy a long and productive lifetime. One of our areas of expertise is the engine driven hydraulic power pack and its integration with hydraulic systems in a variety of industries including manufacturing, renewable energy and construction industries. The main benefit of engine powered Hydraulic power pack is the ability to deliver Hydraulic power to areas where electricity is limited, unavailable or unsafe to use. Engine packs are driven from either a petrol or diesel engine usually at a fixed speed at its optimum speed for power and torque delivery. A range of pumps can be fitted depending on the flow and pressure required with the common control being manual single or multi lever valve banks.   FEATURES   Easy to install Longer service life Easy handling Compact design APPLICATIONS   Hydraulic power for various construction related machinery. Log splitters on forestry machinery. Raising & lowering of wind turbines masts for maintenance. Recovery of locomotives and rail stock following derailment. SPECIFICATIONS   Working Pressure 350 Bar Flow range Up to 300 Lpm Power Up to 100 Hp

We are offering Cylinder Rods

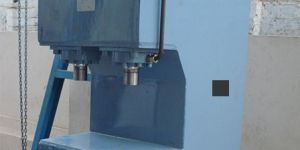

Our C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame. In case of die cushion, die cushion cylinder with other system will be provided. According to the speed of the press, the motor capacity can be changed. These Throat type presses are compact with high operating speeds. These require low maintenance & are offer smooth functioning. FEATURES   Easy to install Robust structure Longer service life Easy handling Heavy Duty APPLICATIONS   Pressing Coining Stamping Bending Straightening SPECIFICATIONS   Capacity : 5 to 200 tonnes Stroke : 200- 600 mm Daylight : 300-1000 mm Table Size : 300 x 300 to 1200 x 1200 mm

      These cylinders are mainly used in Medium and Heavy Duty applications. The Factor of Safety usually been maintained is minimum 3.   FEATURES   Single/Double Acting Cylinders Single/Double Rod Cylinder Cushioning can be provided APPLICATIONS   Heavy Press Heavy Material Handling   SPECIFICATIONS   Bore : 60 to 300 Diameter Pressure : upto 350bar category : Medium & Heavy Duty
