Shri Shyam Enterprises Baltana, Zirakpur, Punjab

Table Size : 250 X 500

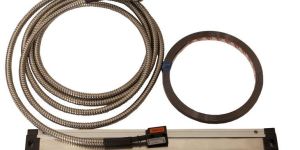

Having shielded metal enclosure, high resistance to wear and tear and contact-less system make this Magnetic Linear Encoder  the best and easy to mount. Manufactured using the cutting-edge technology, this Magnetic Linear Encoder has a compact design, having trusted reading transducer. Highlights : Protection class IP67 Use with MLS 1 Sensor Head Tape in flat and rugged aluminum profile Stainless steel cover protect High vibration and knock resistance Resistant to humidity Highly accurate

Brand : ELGO/OK_LINE

Condition : New

Feature : High Accuracy

Display Type : Digital

Number Of Flower : Linear Magnetic Scale

Country of Origin : India

Country of Origin : 5V

Non Contacting Incremental system Very small measuring head (metal enclosure) Protection class IP67 Measuring length are up to 100 meter Resistant to humidity Wide mounting tolerance Robust to humidity Incremental out put A. /A, B, /B, and Z Reference signal (without or one reset signal by start or every 5 mm Output signal Push-pull, TTL or RS422 line driver Application uses 1. milling machine 2.Lathe machine 3. Horizontal Boring machine 4. Planner machine 5. Floor Boring machine 6. V.T.L 7. SPM Machine

Number Of Flower : Magnetic Scale

Material : Metal Enclosure, Aluminium Profile

Feature : Non Contacting Incremental System,Very Small Measuring Head,Protection Class IP67,Measuring Length Up To 100 Meter,Resistant To Humidity,Wide Mounting Tolerance,Robust To Humidity,Incremental Output A. /A, B, /B, Z Reference Signal,Output Signal Options:

This Magnetic Linear Encoder (MLS 01) is suited for measuring linear displacements that occur on automation systems and industrial machinery. Having high accuracy and exceptional resistance to humidity, this Magnetic Linear Encoder is manufactured using advanced technology. The sturdy metal case and shielded metal enclose of this Magnetic Linear Encoder make it durable. Specialty : Best technology in compact size Easy to mount by gluing Contact-less and wear free system High resistance to vibrations and knocks Reliable reading transducer Single processing as standard with encoders

<p>Having quality components and materials, this <strong>Hercules Vertical Turret Milling Machine</strong> is appreciated for its low maintenance cost, ease-of-use, simple installation and long, hassle-free performances. We are amongst the reliable Suppliers of this Hercules Vertical Turret Milling Machine based in Chandigarh (Punjab). <br /> <br /> <strong>Specifications :</strong></p> <ul> <li><strong>Table size :</strong> 254&nbsp; x 1270 mm (10 x 50)</li> <li><strong>Longitudinal travel(X) :</strong> 760 mm</li> <li><strong>Vertical travel (Y) :</strong> 430 mm</li> <li><strong>Cross travel (Z) :</strong> 405 mm</li> <li><strong>Spindle Taper :</strong> R8 or NT30</li> <li><strong>Quill Travel :</strong> 127 mm</li> <li><strong>Spindle nose to table :</strong> 0-440 mm</li> <li><strong>Speed step number :</strong> 16</li> <li><strong>Spindle Speed :</strong></li> <ul> <li>U Low speed-70, 100, 180, 270, 600, 975, 1540 and 2310</li> <li>U High speed-140, 220, 360, 540, 1200, 1950, 3080, 4620</li> </ul> <li><strong>Quill Feed :</strong> 0.04, 0.08, 0.15</li> <li><strong>T-slot :</strong> slot no.&nbsp; Width: 3 x 16</li> <li><strong>Pitch :</strong> 63</li> <li><strong>Motor :</strong></li> <ul> <li><strong>Voltage :</strong> 380 V</li> <li><strong>Frequency :</strong> 50 Hz</li> <li><strong>Power :</strong> 3 HP</li> </ul> <li><strong>Overall dimension (L x W x H) :</strong> 1500 x1680 x 2100 mm</li> <li><strong>Max load on table :</strong> 300 kg</li> <li><strong>Net weight :</strong> 1200 kg</li> </ul> <p><br /> <strong>Standard Accessories :</strong></p> <ul> <li>Plastic cover</li> <li>Organ board cover</li> <li>Electrical box</li> <li>Controller</li> <li>Draw bar</li> <li>Tool box</li> <li>Tools</li> <li>Instructions</li> </ul> <p><br /> <strong>Optional Accessories :</strong></p> <ul> <li>Power Feed</li> <li>Vise</li> <li>Work lamp</li> <li>Collet set</li> <li>Clamping kits</li> <li>Digital readout system</li> <li>Collet</li> <li>Pump</li> <li>Chip pan</li> </ul>

Total Carbohydrate : 1year

Packaging Type : Other

Certification : Other

Condition : New

Country of Origin : 440V

Number Of Flower : Vertical Milling Machines

Power : 1-3kw

Automation Grade : Manual

 LINEAR SCALE Specification    Glass thick 3mm,Protection IP54,, Grating Pitch 20 um, Power supply 60mA  Max Repeatability +/-  1 increment Operating temperature 00 - 500 ,Resolution 1 micron , 5 micron Storage ,temperature -200 -800 Out Put type TTL/EIA 422, Humidity 100% not condensed, Max acceleration 20 m/s2 ,Accuracy +/-    10 micron per meter   MADE IN INDIA PRODUCT

Brand Name : OK_LINE

Shape : Rectangular

Condition : New

Length : 100 MM TO 950 MM

Feature : Durable, High Accuracy, Stable Performance

Country of Origin : 5VTTL

Display Type : Digital

Number Of Flower : Linear Glass Scale

Resolution : 0.005MM/ 0.001MM

Country of Origin : India,MOHALI

SINGLE AXIS DRO  Advantages Easy to Install Easy to store Machine Error compensation Easy to operate Suitable for All type of machines

Country of Origin : 220V

Condition : New

Total Carbohydrate : 1year

Automation Grade : Manual

Country of Origin : India

This Digital Readout System (DC-3000) exhibits matchless efficiency in 2D data processing. This Digital Readout System is the best for measuring system using video and digital liner scales. This Digital Readout System is appreciated since it is easy to be connected with measuring microscope, optical comparator, video measuring system and other equipment for getting exact readouts. Specifications : Hardware Specifications : Input Voltage : AC 90V - 240V Power Consumption : Max. 15W Dimension : 295 mm x 185 mm x 68 mm Weight : 1.49 kg Linear Scale Signals : Orthogonal TTL square wave, frequency 2 MHZ Current : 1mA Settable Resolution : 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm. Software Functions : Conveniently axis skew and coordinate shift, Quick data retrieval by foot-switch and edge detector, Print out user program, graphic elements and displayed three-axis coordinates, Transfer current linear scale positions to PC by RS232, graphic element, Storage : 100 permanent and 10 temporary, Record the measuring steps and the measure the same work pieces in batch quantity, Various coordinates Displaying Ways : Polar, Cartesian, INC and ABS coordinates in metric units or imperial units measure, preset and construct the graphic elements such as : point line circle angle distance, rectangle thread and so on correction for : linear error and segmental linear error, Connect with linear scale or rotary encoder with Z-axis

D100 digital readout Product application: It is installed on straight line platforms of machine tools and works with grating linear scale to measure and position the machine tools. Features : Independent touch-button is adopted with long service life. High-light nixie tube is adopted to show the figure clearly. High-frequency power supply is adopted with the functions of short circuit protection, overload protection and over-voltage protection.  Memorize current position without battery  Full-diction turning rest, facilitating operation  Fully integrated circuit design with small size, light weight and high stability. Functions :  Reset coordinates  Circumferential hole  100 groups of SDM manufacture coordinates  Oblique lines hole  Mm/inch  Resetting and setting at any point  Power-off memory  ABS/INC coordinate  Linear error correction  Parting in the middle of coordinate  Radius/diameter transformation  Adjustable transformation of resolution ratio  Arc processing Calculator function Specification parameters for D100

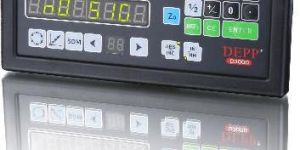

Digital Readout System (SW-4000) is easy to operate and comes with multiple functions for metrology and position. This Digital Readout System is best suited for various machine tools. We are ranked among the reliable Suppliers of this Digital Readout System. Specifications : Hardware Specifications : Input voltage : AC 90V - 240V Power Consumption : Max. 15W Dimension : 295 mm x 185 mm x 45 mm Weight : 1.45 kg Linear Scale Signals : Orthogonal TTL square wave, frequency 2 MHZ, Current : 1 mA Resolution Selection : 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm, 20µm, 50µm Software Functions : Coordinate zero setting ½ calculation to locate work piece center Error Compensation : linear compensation ABS/ INC conversion, diameter/ radius selection Shrink function DIR : Setting the coordinate direction, Rotary Encoder : 10.0001 Instant power failure memory, RI Detection : setting and recalling a datum for machining Multiple machining functions bolt circle machining R-angle divide holes on an oblique line machining on an oblique line Order number : Arc Machining, Ramp machining (SW4000-2, SW4000-3), EDM machining (SW-4000-E), Edge detecting, Lathe function (optional)

BED SIZE- 10 X 50, 10 X 54" TRAVEL- 850X400X450 MM WITH DRO 2 AXIS OK_LINE (Made in india) vice 6',collet set, clamping kit

Brand Name : China Fullton

Driven Type : Electric

Condition : New

Power : 1-3kw

Usage : Automotive Industry, Cutting Tools Industry, Steel Industry

Packaging Type : open

Drilling Capacity : 12 mm

Feature : Long Life, High Performance, Easy To Operate

Number Of Flower : Metal Milling

Machine Weight : 1000-2000kg

Phase : Three Phase

Total Carbohydrate : 1 Year

Accuracy : +/- 10 micron with dro

After-Sales Service Provided : yes

Country of Origin : India

Spindle Speed : double speed

Corrosion Resistance : No

Machine Structure : Vertical

Reverse Rotation : Yes

Compressed Air Required : no

Is It Variable Speed : No
