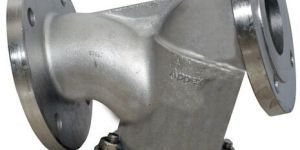

Y type strainers are designed as per larger filtration area and minimum pressure drop to obtain desired flow rate in process industries. Wide variety of screen materials as well as mesh size can be offered for fine filtration. Drain plug is provided in larger sizes to drain off the foreign particles accumulated in the strainer. End connection can be compliance as per ASME B 16.5, CLASS 150 or 300 / DIN / BS 10 table D/E/F standards. Fabricate strainers are also being manufactured against customers requirement for special application.   Available Option : With or without drain plug Jacketed arrangement Special alloy steel Any special size mesh

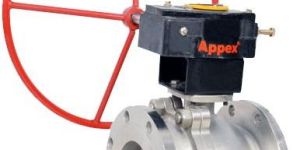

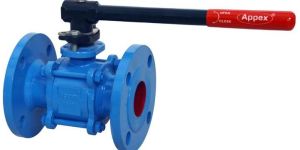

Appex” gland type two piece / three piece / single piece design flange end ball valves are being constructed with all genuine working parts and giving guaranteed performance of 100 % tight shut off working. These super finished products ensure long life performance, low operating torque and striking performance. Design data of “Appex” gland type ball valves comply with latest relative international standards. All accurate and precise working through machining and assembly drawings are making really good and preferred quality products. Wide variety of materials of constructions can be offered for “Appex” gland type ball valves for particular range described in this catalog. These unique design valves have taken reputed place to many process industries due to some significant features like : ISO 5211 MOUNTING PAD : “Appex” ball valves bonnet is provided with an integral cast ISO 5211:2008 mounting pad for ease of automation. Pneumatic actuator or gear box unit can be fitted on actuator mounting flange with drilled and tapped hole without any modification in fitted valves. Gland : Investment casted gland is fitted with bolts on ISO 5211 mounting pad. 100 % fugitive emission free results can be obtained by tightening gland. Well tightened gland compressed gland packing uniformly at specific elasticity point and ensures desired long life air tight sealing . Gland also supports to reduce thrust loads as well as operating torque. Locking arrangement : Sheet metal cutting stopper plate is designed for dual purpose. One, it turns quarter from open to close position while operate valve. Second it can be locked with gland or ISO pad to prevent valve operating without permission or unauthorized operating. Square stem and lever : Close integrity between stem and lever is obtained by square design. Without thread heavy duty stainless steel stem gives easy operating with lower torque. Accurate made square insertion on lever provides desired integrity. Long life operating cycles can obtain with this unique design and removes chances of deformation in lever and stem.

“Appex” make sand casted or induction casted or investment casting two piece design ball valves are proven for best performing products in its segment. Latest manufacturing practices & stringent policy of following quality assurance system deliver best quality and highest level of satisfaction to users. Superior finished casted body can be availed in wide variety of materials of constructions as well as seating materials like PTFE / GFT / CFT / Polyfill for fulfilling application depended upon pressure and temperature rating 150 # / 300 #. Significant features like mirror polished ball, top class quality soft seats, ISO mounting pad, blow out proof stem, anti static device etc are making “Appex” make two piece design ball valves versatile products. All 100 % pressure tested and visual inspected valves are finished with two coat of epoxy primer and Sharvil blue auto paint.

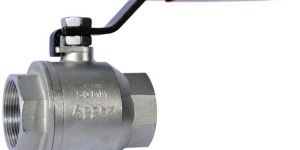

Appex  make durable and long life performing single piece and three piece design screwed end ball valves are available with size ranges from 08 NB to 80 NB in full bore design only. 100 % inspected each and every screwed ball valves are giving long operating hassle free life & low operating torque. All genuine and interchangeable working parts deliver outstanding performance in various application. End connection threading compliance to BSP / NPT / BSPT and being checked by go – no go gauges. Due to stringent policy of following relative standards of ball valves, sufficient wall thickness can be availed even in socket weld end ball valves also.

“Appex” gland type two piece / three piece / single piece design flange end ball valves are being constructed with all genuine working parts and giving guaranteed performance of 100 % tight shut off working. These super finished products ensure long life performance, low operating torque and striking performance. Design data of “Appex” gland type ball valves comply with latest relative international standards. All accurate and precise working through machining and assembly drawings are making really good and preferred quality products. Wide variety of materials of constructions can be offered for “Appex” gland type ball valves for particular range described in this catalog. These unique design valves have taken reputed place to many process industries due to some significant features like : ISO 5211 MOUNTING PAD : “Appex” ball valves bonnet is provided with an integral cast ISO 5211:2008 mounting pad for ease of automation. Pneumatic actuator or gear box unit can be fitted on actuator mounting flange with drilled and tapped hole without any modification in fitted valves. Gland : Investment casted gland is fitted with bolts on ISO 5211 mounting pad. 100 % fugitive emission free results can be obtained by tightening gland. Well tightened gland compressed gland packing uniformly at specific elasticity point and ensures desired long life air tight sealing . Gland also supports to reduce thrust loads as well as operating torque. Locking arrangement : Sheet metal cutting stopper plate is designed for dual purpose. One, it turns quarter from open to close position while operate valve. Second it can be locked with gland or ISO pad to prevent valve operating without permission or unauthorized operating. Square stem and lever : Close integrity between stem and lever is obtained by square design. Without thread heavy duty stainless steel stem gives easy operating with lower torque. Accurate made square insertion on lever provides desired integrity. Long life operating cycles can obtain with this unique design and removes chances of deformation in lever and stem.

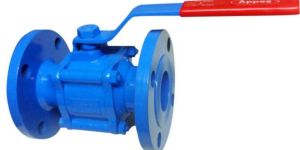

  3 PC design “Appex” make investment casting ball valves are initial innovative products which have been designed as per latest standards and norms. 1 body and 2 side pieces are being connected with stud and nuts for making these universally accepted design ball valves. This design offers unique advantage of maintenance in its class. These floating or trunion mounted ball valves are perfectly suitable for maximum flow capacity with minimum pressure drop. These high performance full bore ball valves are available in 15 NB to 300 NB sizes with committed to quality and in wide variety of materials of construction, working parts and testing procedure. All third party inspection or customers’ direct inspection is accepted without any obligation. Necessary documents subjected to consigned materials will be furnished on demand.

Spherical Disc Type Butterfly Valves are giving extremely high performance at very lower operating torque with some significant features like lower weight, compact design, replaceable seat and easy maintenance. PTFE seat ensures smooth working life under temperature up to 210° centigrade. For higher size, these valves are strongly recommended.

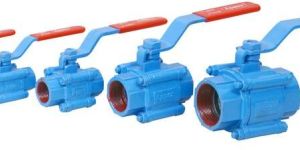

Appex” make durable and long life performing single piece and three piece design screwed end ball valves are available with size ranges from 08 NB to 80 NB in full bore design only. 100 % inspected each and every screwed ball valves are giving long operating hassle free life & low operating torque. All genuine and interchangeable working parts deliver outstanding performance in various application. End connection threading compliance to BSP / NPT / BSPT and being checked by go – no go gauges. Due to stringent policy of following relative standards of ball valves, sufficient wall thickness can be availed even in socket weld end ball valves also.

“Appex” gland type two piece / three piece / single piece design flange end ball valves are being constructed with all genuine working parts and giving guaranteed performance of 100 % tight shut off working. These super finished products ensure long life performance, low operating torque and striking performance. Design data of “Appex” gland type ball valves comply with latest relative international standards. All accurate and precise working through machining and assembly drawings are making really good and preferred quality products. Wide variety of materials of constructions can be offered for “Appex” gland type ball valves for particular range described in this catalog. These unique design valves have taken reputed place to many process industries due to some significant features like : ISO 5211 MOUNTING PAD : “Appex” ball valves bonnet is provided with an integral cast ISO 5211:2008 mounting pad for ease of automation. Pneumatic actuator or gear box unit can be fitted on actuator mounting flange with drilled and tapped hole without any modification in fitted valves. Gland : Investment casted gland is fitted with bolts on ISO 5211 mounting pad. 100 % fugitive emission free results can be obtained by tightening gland. Well tightened gland compressed gland packing uniformly at specific elasticity point and ensures desired long life air tight sealing . Gland also supports to reduce thrust loads as well as operating torque. Locking arrangement : Sheet metal cutting stopper plate is designed for dual purpose. One, it turns quarter from open to close position while operate valve. Second it can be locked with gland or ISO pad to prevent valve operating without permission or unauthorized operating. Square stem and lever : Close integrity between stem and lever is obtained by square design. Without thread heavy duty stainless steel stem gives easy operating with lower torque. Accurate made square insertion on lever provides desired integrity. Long life operating cycles can obtain with this unique design and removes chances of deformation in lever and stem. Standards :

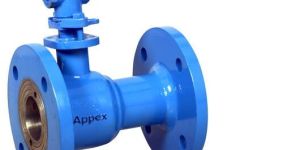

Appex: make single piece design flange end full bore ball valves are only made by investment casting processes. 1 body and 1 check nut are used for manufacturing this without joint ball valves. When passing media are extremely critical and should not be taking any chance of leakages then this universally expected design are used. Because of body side area are very closed to flange, bolting problem can be eliminate by choosing higher size PCD which can be get in BS 10 table ‘F’. That’s why mostly single piece design ball valves are made with flange standard BS 10 table ‘F’. Sharvil engineers proudly offer full range of single piece design flange end full bore ball valves like 25 NB to 100 NB with all significant features which is provided in three piece and two piece design full bore ball valves.

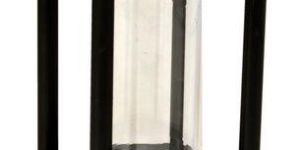

Sight Glass or View Glass or Tubular Sight Glass   Sight glass or flow indicator or view glass is a device which is used for observing flowing media in process pipe lines. “Appex” flange end sight glasses are available in borosilicate glass tube & specially designed soft seats to provide desired working life & safety under pressure, temperature and thermal shocks. Our own manufacturing designed these products are being made with size wise specific face to face for easiness of changing of any sight glass in pipe line. This practice eliminates trouble & it is affected to all profile cut, forging or investment casting made sight glasses. Every sight glass is supplied with hydro test up to 5 kg / cm ².

Packaging Type : Customized

Material : MS/SS-304/316/CF8M/CF8

Size : 25nb - 100nb

Brand Name : Appex

“Appex” Casted body in flange end safety valves – angle type and screwed end body in bar stock made straight pattern and angle pattern are very reliable products to control pressure at desire requirements. Every safety valves are being made with fine accuracy as well as pressure adjustable provisions.

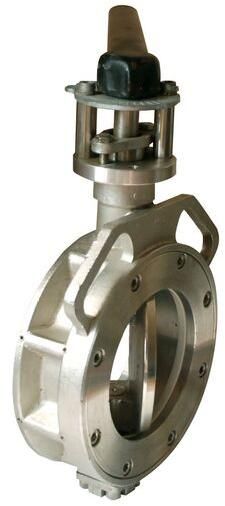

PTFE Seat Butterfly Valves are giving extremely high performance at very lower operating torque with some significant features like lower weight, compact design, replaceable seat and easy maintenance. PTFE seat ensures smooth working life under temperature up to 210° centigrade. For higher size, these valves are strongly recommended.

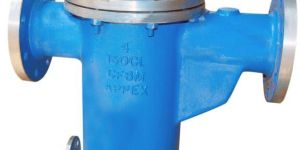

POT type strainers are designed as per larger filtration area and minimum pressure drop to obtain desired flow rate in process industries. Wide variety of screen materials as well as mesh size can be offered for fine filtration. Drain plug is provided in larger sizes to drain off the foreign particles accumulated in the strainer. End connection can be compliance as per ASME B 16.5, CLASS 150 or 300 / DIN / BS 10 table D/E/F standards. Fabricate strainers are also being manufactured against customers requirement for special application.   Available Option : With or without drain plug Jacketed arrangement Special alloy steel Any special size mesh

ADVANTAGES OF DIRECT MOUNT ACTUATOR OPERATED BALL VALVE: No need of bracket and coupler: Actuator can mount directly on ISO 5211 integral flange on valve body. ISO 5211 mounting pad is most reliable source for standard fitment. No vibration after long operating period: Even though long operating life, smooth and hassle free results can obtain by non use of bracket and coupler. Stem inserts directly in actuator without use of coupler or any jointing piece. Actuator will operate on actual torque: Stem inserts directly in slots of actuator gives 100 % positive engagements and operates valves on lower and constant operating torque throughout the entire cycle life. Easy to install or dismantling actuator: Actuator can be fitted on mounting flange directly by tightening of four bolts only. User friendly procedure can achieve during install or dismantling actuator on ball valves body. Increase production ration for fast delivery: This design removes unnecessary joints during automation of valves and increase productions with compact, reliable and more economical assemble unit.

Sharvil engineers presents more efficient, compact & fine finish Non slam check valves over the conventional valves to prevent reverse flow. It is also called disc type check valves. These valves are extremely successful for air. Water, oil, gas, steam, chemicals etc. These non slam check valves are being made by investment casting process only. So no material loss and compact design are making it cheaper with good finishing. Flow rate can get optimum & reverse flow stops positively.

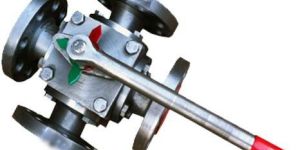

“Appex” 3 way or 4 way ball valves are available with vide variety of material of construction and working parts. Mainly known as diverting valves or mixing valves, these multiport ball valves at our end are being manufactured for divert flow at desired direction. 100 % guaranteed performing 3 way of 4 way ball valves are giving outstanding performance.

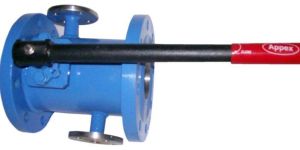

For heating or cooling purpose of media in process pipe lines, “Appex” fully or half jacketed ball valves are promising reliable product to serve industry better. Mainly single piece design jacketed ball valves In cast or fabricate construction are being used with significant features like ISO mounting pad, gland type design, locking arrangement, square design stem and lever etc. 2 to 3 coupling are welded on jacket for circulating external media and procuring desired temperature. In matter of size, jacketed ball valves are manufactured with bigger size of flange than body size. This cause because of jacket takes place towards drilled holes of flanges with sufficient clearance for circulating media. Therefore to provide proper space for bolting, jacketed ball valves are preferable in sizes like 25 * 40 NB, 40 * 50 NB, 50 * 80 NB, 80 * 100 NB, 100 * 150 NB etc.

Material : SS-304/316/304l/316L

Brand Name : appex

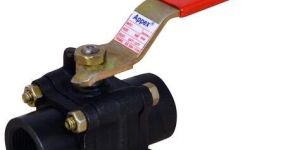

Appex make drop forged high performance forged steel ball valves gives outstanding performance in various applications like oil, gas, petrochemicals, steam, water etc. These valves are extremely reliable for high pressure application due to its best physical characteristics like refined grain structure and close molecules. These valves are being designed taking into consideration of online maintenance. Whenever any changes or maintenance require, Valves body can be removed from pipe line without dismantling valve.

Flush bottom valves ( bottom tank valves ) are being manufactured with size ranges 25 NB to 250 NB in austenitic stainless steel as well as alloy steels as per users’ requirements and with GMP finished. Y type designed fabricated flush bottom valves can be used where materials at bottom is chocked or clogged or suspended particles to be removed with external pressure from the bottom & receive direct flow at time. Advantages of using “Appex” Flush bottom valve : Specific angular cut bonnet bush allows all flowing media to pass through delivery line without any storage at bonnet. This design prevents unnecessary corrosion or wear inside body. Hard faced seat and plug give outstanding performance and make our valve very reliable when flowing media contain any hard particles.

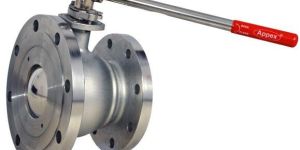

We take pride by offering exclusive range of die cast one piece design flush bottom ball valves with some significant features which are provided in “Appex” gland type ball valves. All “Appex” make flush bottom ball valves has been designed as ball comes maximum outside to inlet flange & towards bottom pad of reactors. Inbuilt construction of both side flange end body ensures 100 % tight shut off in any type of chain reaction in reactors. Thus, in most critical application, these valves can be offered as most reliable product in various metals like WCB / CF8 / CF8M / CF3 / CF3M / CN7M / HASTE ALLOY B & C etc.

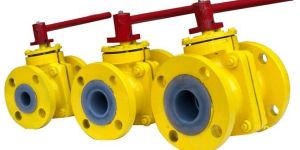

Fluorinated lined products are giving successful performance where media is extremely corrosive and as wetted parts, metal is not being suggested to use.
