CHAMUNDA PHARMA MACHINERY PVT LTD Vatva, Ahmedabad, Gujarat

This machine is equipped with an oscillating rotor suitable to manufacture wet granulates of various granule sizes. Sieves are easily interchangeable. Rotor, sieve and all parts coming into contact with the materials are constructed of stainless steel. Each apparatus is supplied with one sieve each of 1.0 and 1.6 mm mesh size.The following mesh sizes are available for the wet granulator type WGS on request. 0.315, 0.63, 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, and 3.15 mm. The capacity of the machine depends on the material and the mesh sizes of the sieve and is maximum 20-25 Kg*. per hour. The wet granulator is suitable for screwing on main Motor drive. The output depends on the material and the mesh size of the screen.

An ideal mixer for creams, ointments, pastes, and liquids, but also for wetted powders. The sturdily constructed planetary gear can be equipped with various mixing and kneading attachments, made of stainless steel. Depending upon type of the material to be processed, a dough arm, a mixing paddle. Any material, which sticks to the walls of the kettle, is scraped continuously by the Teflon scrapper, which is shaped to fit exactly the kettle wall. Therefore, homogeneous mixing results in the shortest time. The Vacuum planetary mixer is suitable for screwing on main motor drive.

Vacuum tablet press loading systems are furnished as complete, ready-to-operate systems for mounting on customers’ presses. Available for single or dual hopper tablet presses The loader eliminates manual scooping of product and messy dumping or mishandling. Draw material directly from drums, boxes, storage containers, process vessels.Thus Vacuum Loading reduces the manual labor intensity,to eliminate the dust pollution to ensure the production line with GMP. appreciation for following merits: Compact design receiver package with rates of 100-300 Kg. per hour**. Eliminate manual scooping of product and messy dumping or mishandling. Draw material directly from drums, boxes, storage containers, process vessels. Dust-tight connection of receiver to press hopper provides maximum cleanliness and product integrity. Easy to clean. Four quick-acting heavy duty clamps facilitate disassembly for cleaning and service. No tools required! Automatic pulse jet filter cleaning ensures peak operating performance. Sanitary construction. Furnished in ASTM SS 316 ,USFDA accepted. Level sensor automatically starts conveying cycle when material level reaches low level in the tablet press hopper. Powered by Vacuum Pump Minimum maintenance – few moving parts. Butterfly valve with actuators provides full opening discharge valve assures complete discharge of material. Complete package includes: receiver, power unit, vacuum pump, hose****, conveying wand****, and control panel. Mounting lugs for easy installation.

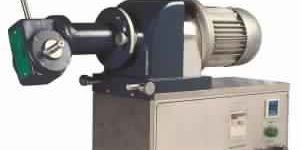

The Universal Gear is required for adjusting the operating angle & for the speed reduction of various attachments. The gear allows infinitely variable adjustment of angle of operation from (0 to 60) degrees. The Gear is common to the following attachments (it is not necessary to purchase an individual gear for each attachment, they are interchangeable).- Miniature Ball Mill.– Coating Pan.– Cube Mixer.– Polishing Drum.– Double Cone Mixer.

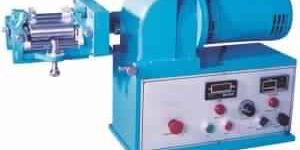

This machine is used in the preparation of ointments, salves, pastes, doughs and similar products. The hourly production is from 2 Kg. To 12 Kg. depends upon the consistency of the material. The rolling action is produced by three hard stainless steel rollers, which are 110 mm long, and 50 mm diameter. The two outer rollers are spring supported to eliminate the possibility of damage to the rollers or to the operating mechanism. Space between rollers is regulated by turning one thumbscrew. The roller mill is suitable for screwing on main drive

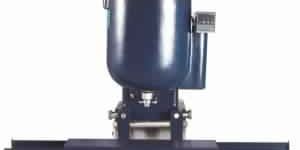

This apparatus is used for moulding suppositories, lipsticks and similar products. This equipment permits melting, agitation and mixing during the filling operation. Stainless steel kettle and agitator are heated by a glycerin bath and 1000 watt heating element. Thermostat permits adjustment of temperature of kettle contents from 20o to 100o C by 1 graduations.The sled, below the filler nozzle, holds any type of mould. It is adjustable in all directions and controlled by a hand wheel. Capacity of kettle is 3.5 liters. Heating jacket requires 2.75 Kg. of glycerin. Production varies with material, moulds etc., but production rates up to 4,000 moulds per hour are not unusual. The pot for filling and moulding suppositories and lipsticks is suitable for screwing on all main motor drive units. The mould as per the requirement of customer can be designed at extra cost.

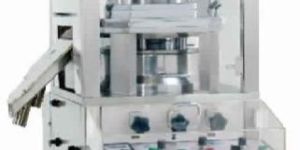

IOTA Ci4208 is a premium machine typically designed to cater to Research and Development sections of the pharmaceutical companies. This Single Rotary Tableting Machine confirms to the cGMP norms and is packed with all desired features required by the scientists of today. To meet all the international standards the machine is equipped with features like Supervisory Control and Data Accusation System (SCADA). It can also be provided as PLC controlled machine with limited features. While designing the machine all the major facets like operator safety, ease of operation and cleaning, minimum changeover time for tool and product were taken into consideration. The machine confirms to all the required regulatory require-ments like cGMP Norms/Schedule M Requirements/US FDA Regulations in case of Automated Machines. FEATURES In compliance with cGMP guidelines Out put upto 19,200 Tablets/hour. Combination Tooling ‘B’ & ‘D’ available to suit the R & D requirements Force Feeding System AC variable frequency drive for Main Motor and Force Feeder Motor Main compression of 40 kN/4 Ton Pre-compression of 10 kN/1Ton Adjustable upper punch penetration Upper guard interlocking Lower cam for two different filling depth Available in dial-less model also Monitoring of individual Punch Force Data with graphical representation (optional) Audit trails and summary reports (optional) Batch data reporting and printing (optional)

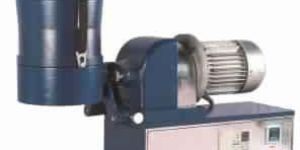

The MSS operates on the rotating cam principal. The intensity of the vibration can be adjusted by changing the speed of the drive unit. The shaker can be fitted with various stainless steel sieve sets according to the customer’s requirement. Sieve Shaker is suitable for screwing on main Motor Drive

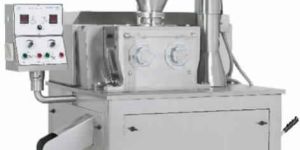

FEATURES In compliance with cGMP guidelines Contact parts are made of S.S. 316 except rollers All covers are designed to obtain dust-free operation Feed screw is steplessly driven through variable frequency drive. Hard chome plated & mirror finished compacting rolls made of tools steel Pre-compaction chamber guides the product to rolls without any slippage or leakage. Electrical interlocking beetween main roll drive and feed screw drive Water Jacketing arrangement (optional) Hydraulic Power Pack system (optional) ACVF Drive for rolls (optional) PLC system as per 21 CFR part 11 (optional)

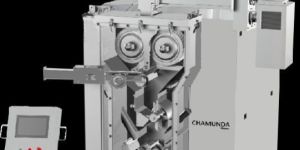

Roll Co FEATURES Cantilever roll design Comply with all cGMP requirements Contact parts SS 316 without roll Feed Screw and roll speed through ACVF Drive Technical and production Area Separate Water Jacketed (optional) Flame Proof Controls (optional) WIP Systems with tank equipped with heating arrangement. (optional) Vertical & Horizontal Feed Screw with De aeration system to avoid air trapping (optional) PLC with touch screen (optional) PLC with touch screen (with Automation Features) (optional) 21 CFR Part 11 Compliance. (optional) Pneumatic powder loading (optional) Inline milling & / or shifting arrangement (optional)

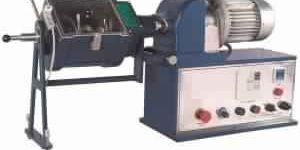

The Powder Mixer having horizontal half round bowl open on upper-side with acrylic cover and specially designed mixing blade having two stages both right and left hand, ribbon type mixing blades. The left and right hand spiral with upper and lower blade is rotated to circulate the material to be mixed. The half round bowl and spiral mixing blade made out of stainless steel. Within few minutes, it can be empty by tilting. Top cover provided with electro-magnetic interlock, which stops the motor of the Drive Unit automatically. The power mixer is suitable for all main drive units.

The felt-lined drum is designed for polishing coated tablets. The covers, which locks quickly into places with three snap closures, as well as the bottom of the drums are lined with felt. All felt parts are easily exchangeable. The cover is fitted with acrylic sheet window, which permits the observation of the polishing process. The polishing drum is suitable for screwing on all main motor drive units through Universal gearing (UD).

Dimension : 275 x 275 x 318 mm

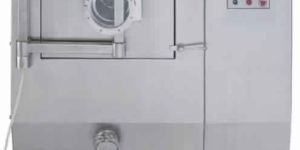

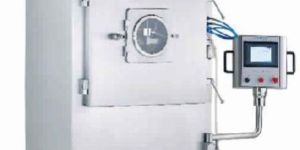

Pearlcoat Ci auto coating systems are intelligently innovated for consistency, simplicity and flexibility in coating. It is a system that operates for any kind of coating automatically by process integrated control system. Ci – Auto coating system stands testimony to the fact that a precisely controlled process is best achieved with matched system components in keeping with the desired coating objectives. A highly efficient pan design, solution spray system and process control provides accurate batch consistency with high production efficiency. System also provides all the professional disciplines necessary to design, test, manufacturer and install a tailor-made system to suit your need. cGMP legislations are the minimum acceptable standards in manufacturing. FEATURES In compliance with cGMP guidelines Modular Design Accurate batch consistency with high production efficiency & effective spraying with special design anti bearding type guns Accurate temperature control within ± 2° C In-built WIP system Quick accessibility for maintenance & cleaning Quick release of Plenums for cleaning of Pan and Plenums. Effective sealing of doors. Fully Automatic Operation through Programmable Logic Controller Sugar Coating System (optional) Interchangeable Pans upto ci 900 model (optional) Flameproof Construction (optional)

Multi Mill is widely used for wet and dry granulation, pulverization etc., in Pharmaceuticals, Chemicals, Cosmetics, colors, Dyestuff, Food product etc. it also finds application in Pesticides, Spices, Detergents, Insecticides, Plastic and Resins Industries.

Rotor Speed : 750/1500/2300/3000 RPM

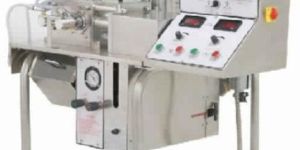

CM Mini Roll Compactor is totally based on method of Dry Granulation. The powder charged in the feed hopper is predensified and fed between two counter rotating rolls. As the volume decreases through the region of maximum pressure, the material is formed into a solid compacted sheet. The densified sheets can then be granulated to any desired mesh size with use of CM Granulator or CM Communiting Mill. CM Mini Roll Compactor is designed to the same principle and mode of operation as that of production size CM Roll Compactor.

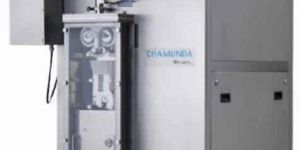

Cantilever type Roll Compactor with cake Crusher & Two Stage Oscillating Granulator This high end model operates in completely enclosed manner to comply with highest standard of cGMP guidelines by optimum utilization and at minimal operating cost and wastage. FEATURES Cantilever rolls design In line roll compactor with cake crusher & 2 stage granulator Comply with cGMP requirements WIP Provision Water jacketed Contact parts S.S.316 without roll Machine mobility PLC system 21 CFR part 11 compliance. (Optional)

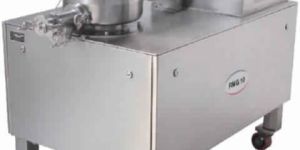

FEATURES In compliance with cGMP guidelines Modular Design Mixing of substances uniformly and homogeneously with special design Mixer & Chopper blades. Electro-Pneumatic Operated Discharge Quick Interchangeable Pots (2 Ltr, 5 Ltr, 10 Ltr, 15 Ltr.) Easy to clean machine Fully Automatic Operation through Programmable Logic Controller – PLC (Optional) Binder addition system (Optional) Flameproof Construction (Optional)

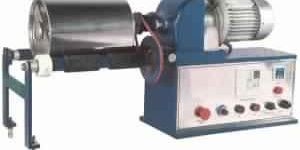

The mini ball mill is suitable for preparing small samples for analysis / for grinding or mixing small quantities of powdery substances. The ball mill is attached to the main motor Drive through Universal Gear Type (UD).The miniature ball mill utilizes Ø 5/8” mm diameter S.S. balls.

features Interchangeable pan 12″ with trolley

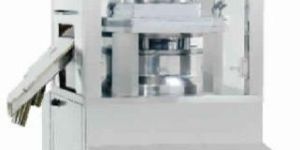

The Single sided rotary tableting machine has been designed to use for tablet making of product ofPharmaceuticals and any other similar process industries. FEATURES In compliance with cGMP guidelines Out put upto 19,200 Tablets/hour. Combination Tooling ‘B’ & ‘D’ available to suit the R & D requirements Force Feeding System AC variable frequency drive for Main Motor and Force Feeder Motor Main compression of 40 kN/4 Ton Pre-compression of 10 kN/1Ton Adjustable upper punch penetration Upper guard interlocking Lower cam for two different filling depth Available in dial-less model also Monitoring of individual Punch Force Data with graphical representation (optional) Audit trails and summary reports (optional) Batch data reporting and printing (optional)

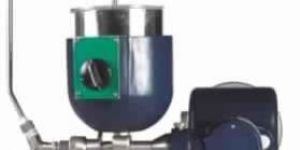

Used in the preparation of oil-in-water and water-in-oil construction in quantity upto 15 Ltr. per hour. A piston pump produces homogenization. Materials may be fed to pump either from a hopper, having a capacity of 1.5 litters, or a screw nozzle may be attached with a suction filter, which sucks the premixed materials from a storage container. Homogenization takes place by the forward and backward movements of the piston. A vacuum is created during the backstroke of the piston, which sucks the liquid back. During the forward movement of the piston, the liquid is pushed against the tip of the nozzle. Adjustment of the nozzle determines the fineness of the homogenization. Homogeniser is equipped with a graduated scale. Hopper, piston and nozzle are made of stainless steel. The homogeniser is suitable for screwing on all main drive units. Accessories: 1. Heat able Funnel.Made of stainless steel supplied with electrical heating unit to maintain temperature to 60o C (140o F).2. Filler and CirculatorTo speed bottle filling permits filling directly, into bottle and recirculates overflow material to hopper for re-homogenization.

Dimension : 500 X 240 X 400 mm

Packaging Type : 660 X 380 X 460 mm

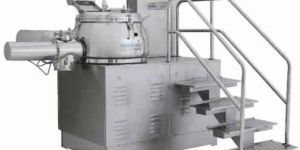

RMG Series” has been designed, manufactured, tested and certified to achieve optimal solution for wet mixing and granulation. This is not just a claim; it is our commitment to customer satisfaction. The RMG Series is the answer for industry wide concern regarding uniformity of the granules, consistent product quality and operation, cleaning & maintenance in lesser time, We have been successfully able to address and solve these and many other area of concern. This is the result of the integrated & cohesive efforts of our R&D team, Manufacturing Engineers, Application Specialist to challenge the emerging need of customized and specific solution in the process technology. This series meets the highest cGMP standards. FEATURES In compliance with cGMP guidelines Modular Design Mixing of substances uniformly and homogeneously With special design Mixer & Chopper blades. Electro-Pneumatic Operated Discharge Effective sealing Easy to clean machine Fully Automatic Operation through Programmable Logic Controller (optional) Binder addition system (optional) Inline co-mill for uniform granules. (optional) Flameproof Construction (optional)

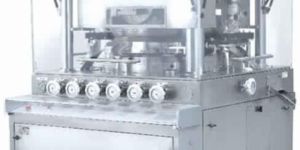

A high output (suitable for large batch production more than half a million tablets/hr. max.) double sided tablet press with pre-compression and hydraulic power pack and auto lubrication, designed and engineered such that it adheres to the latest cGMP standards. Ability to incorporate so many customized functions and features. The GIGA PRESS is available with a choice of turret having 51,61,75,81 stations to give higher output. The basic objectives while designing/producing this Ulti Press are what our customers i.e. You want and Customization Philosophy. WYWYG=What You Want You Get And this reflects our own F-6 Technology Features Advanced Double Sided High Speed Tableting machine for large batch production In compliance with cGMP guidelines Higher output up to 583,200 Tab/hr*. (max) Excellent accessibility for quick cleaning Front controls Main motor & force feeder motor driven through ACVFD Force feeder drive from bottom Improve tablet quality due to pre-compression system Hydraulic Power Pack system Auto Lubrication Upper punch penetration Safety interlocking for upper guards PLC system (optional) SCADA system with computer interface (optional) Hydro-Pneumatic system (optional)
