EOT Crane Dealers in Vastral, Ahmedabad

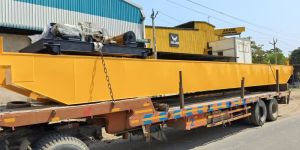

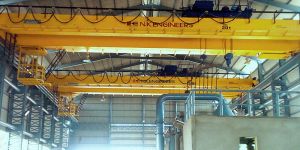

The Double Girder Cranes are generally used when heavy loads and wide spans are required. Double Girder Cranes consists of two torsion-free box Girders consists and load lifted by Crab which is running on the Top of two Girders. Platform with hand railing for easy, simple and safe maintenance of the crane extended partially or totally along the girder width. Span: 5 mtrs. to 80 mtrs. S.W.L: 500 kgs. to 1,50,000 kgs.   Crane Girder:   Crane Girders are of plate box type / standard rolled steel / compound beams. All the main butt weld joints of the web are strong and rigid structure thus 100% reliability of welded joints is ensured. The material of conforms to IS: 2062-1992.   Motors:   The motors are used specially crane duty (S4) Squirrel Cage & Slip Ring Motors suitable for frequent starting, reversing and braking in accordance with IS: 325. Motors are totally enclosed in dust proof & fan cooling (TEFC) construction, insulation class ‘F’, IP54 protection, foot / flange / face mounted.   Brakes:   Electromagnetic single – dual AC disc type / electromagnetic shoe type / Electro Hydraulic Thruster brakes are provided in all three motions. These brakes are “FAIL TO SAFE” type means automatically release when the motor circuit it  on and applied when motor circuit is off. DC brakes are also provided on request.   Gear Box:   The entire gear boxes are made of accurate hob cut helical spur gears & pinions having hardness 250 to 300 BHN made from carbon-alloy steel. All gears & pinions running on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication. The helical / spur gear designed for adequate strength and optimum wear resistance for smooth operation and long life.   Wheel Assembly:   Long travel wheels are straight treaded double flanged forged steel wheels. Wheels are supported on antifriction ball or double row self aligned spherical roller bearings in special blocks of ‘L’ type design for easy maintenance.   Speed:   Selected depending on client specifications / applications / shed dimensions.   Crane Control:   From floor through pendant push buttons, optionally through radio remote control / cabin with master control (depending on customer’s choice and application)   Power Supply System:   To Hoist and cross travel through trailing cables / Drag Chain to crane through shrouded bus bars / Trailing cable / M.S. Angle iron Conductors / Bare Copper conductors (depending on customer’s choice and application)   Electric Panel:   Modular Design ease to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.   Limit Switch:   Safety limit switches for stoppers will be provided to prevent over traveling in all motions.   Painting:   Two coats of primer before assembly and Two coats of synthetic enamel after testing.

EOT Crane, Cable Trolley, End Carriage, Gear Box, Electric Wire Rope Hois

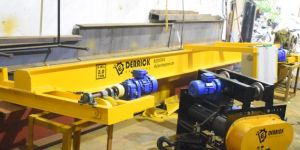

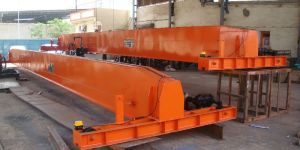

We offer 5 Ton Eot Crane, Single Girder EOT Crane etc.. Specifications - Single girder eot crane - Capacity:1-20t - Lifting height: 6-30m - Span:6.5-31.5m - Easy to install and operate 5 Ton Eot Crane, Single Girder Eot Crane - Single Girder Eot Crane brief information: - Single girder eot crane is improved and designed on the basis of ld model. - It is characterized by more reasonable structure and higher strength steel as a whole. - Used together with cd1 model, md1 model, hc model electric hoist as a complete set. - This product is widely used in plants, warehouses, material stocks to lift goods or materials. - It is prohibited to use the equipment in the combustible, explosive to corrosives environment, capacity: 1-20t, - Easy operate and usage. - Single girder eot crane safety feature: - Weight overload protection device - Top quality long time bearing polyurethane materials buffer - Crane traveling limit switch - Voltage lower protection function - Emergency stop system - Current overload protection system Single girder eot crane control method: Pendent line with press button or remote control or both Single Girder EOT Crane Girder: The crane girder is of welded girder construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and small wheel loads being transmitted to the crane runway! - Single girder eot crane painting: - Primer and finishing paint - Color: according to your demand. - Average thickness: about 100 microns Single girder eot crane technical parameters: - Lifting capacity (T) 1,2,3,5,10T 16,20T - Span(M) 7.5-22.5M - Crane travelling mechanism Travelling speed(mmin) 20, 30, 45, 60, 75, 20, 30, 45, 60,75 - Reducer ratio 58.78, 39.38, 26.36, 19.37, 15.88, 58.78, 39.38, 26.36,19.37, 15.88 - Power(kw) 2×0.8,2×1.5, 1.5×2, 2.2×2, 2.2×2, - Rotation (mmin) 1380, 1380, - Lifting mechanism (Electric Hoist)&Electric Hoist Travelling Mechanism - Electric hoist model : Branded Company - Lifting speed (mmin) 8,80.8 7,70.7 3.5 3.50.35 - Lifting height (m) 6 ,9 ,12, 18, 24, 30, 12,18,24,30 - Travelling speed (mmin) 20(30), 20(30), - Motor; Taper Squirrel-cage type - Taper Squirrel-cage type - Work duty A3-A5 - Power supply 380V 50HZ three phase or according to your demand - Wheel diameter 270mm, 370mm, - Width of trail ; 37-70mm, 37-70mm There are some details to need when we give you the quotation as follows: - Capacity: - Span (rail center to center distance): - Lifting height (or workshop height): - Working environment: - What kind of goods are the crane used to lift? - Industrial voltage Contact us: Provide us with accurate measurement requirement upon ordering and we can offer the design and manufacture standard products of various capacity and spans of crane according to your special requirement. Welcome contacts us online or by E-mail, you will receive our prompt and careful reply.

We offer efficient eot cranes with a drive system comprising crane duty electric motors, gearboxes and brakes. Sheet metal fabricated dust proof control panel houses contactors for all motions, transformer, mcb and other electrical components arranged logically.

e offer efficient EOT Cranes with a drive system comprising crane duty electric motors, gearboxes and brakes. Sheet metal fabricated dust proof control panel houses contactors for all motions, transformer, MCB and other electrical components arranged logically. For control and safety purpose, Limit Switches are provided. These help in preventing problems like over hoisting and over travelling. Rubber buffers are provided at the four ends of end carriages and crab for shock absorption. Range : Single Girder EOT Crane Double Girder EOT Crane

Accurate Engineers Manufacturer and Supplier Of Single Girder Crane in Ahmedabad. Compact and light weight design ensures lower building space, most optimum utilization of floor space and lower building loads.Special Features of modular cranes : Light Weight and compact construction minimizing building loads and space savingSuitable for Light and Medium duty workshop applicationsAll motors are TEFC with class F insulationHeavy duty cast steel rope guideUpper and Lower hook travel limit switchAdditional Counter weight operated over hoist limit switch as option
