EOT Crane Dealers in Navi Mumbai

We are offering eot cranes, "hercules" eot cranes •i-beam box type construction for bridge girders. •a tapered plate design is incorporated for joining the end carriages to the griders thereby ensuring smooth flow of stresses. •the end carriages are incorporated with l.t.wheels machined out of en-8 forged blanks and mounted on "l" type bearing housings with anti-friction bearings.

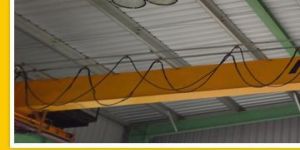

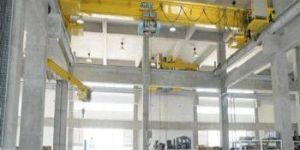

Aditya make Single Girder cranes are modular in construction and are available in two verities – Electric Overhead Travelling (EOT) and Under slung type.The cranes are of modular design using standard wire rope hoist. Compact and light weight design ensures lower building space, most optimum utilization of floor space and lower building loadsSpecial Features of Modular Cranes : Light Weight and compact construction minimizing building loads and space saving Suitable for Light and Medium duty workshop applications All motors are TEFC with class F insulation Heavy duty cast steel rope guide Upper and Lower hook travel limit switch Additional Counter weight operated over hoist limit switch as option VVVF drives are available as an option Compact and lightweight festoon cable system Pendent and Radio remote control operation The EOT Crane moves over the rails placed on the top of crane runway or Gantry Girders. The crane mainly comprise of bridge girder made from rolled sections such as I beams/ U beams or fabricated box section. The bridge girder is supported on two end carriages, each housing a pair of wheels. The wheels are driven by motor gearbox units. A wire rope hoist is suspended below the bridge girder. The crane can be operated through pendent station hanging from wire rope hoist or through radio remote control. The pendent station can be made to move independent of hoist movement as per customer’s choice.The wire rope hoist comprise of rope drum made from seamless tube. Grooves are machined on rope drum for proper support to the wire rope. Cast Iron rope band and guide prevents wire rope jumping from grooves. The hoisting drive arrangement comprises of motor coupled to an oil lubricated, spur/helical gearbox that in turn provides the motion to the rope drum. An electromagnetic fail safe brake prevents accidental lowering of load in the event of power failure. Limit switch is provided to prevent over hoisting of hook block. Additional limit switch can also be provided to prevent over lowering of hook block.The cross movement of hoist is achieved through the movement of wheels supported on the beam/ box flange. The drive to the wheels is provided through an electric motor-gearbox unit. Fail safe brake and limit switch are provided as additional features is so desired by customer.Power supply to the wire rope hoist is through festoon cable system. The flexible cables are supported by cable hanger or cable trolleys that move on either taught wire or enclosed C track depending on customer choice.The Under slung single girder crane is very similar to overhead travelling crane except for the fact that the end carriages are hung below the gantry girders made of I section.The single girder cranes find their application mainly for capacities up to 20 MT and Span up to 25 Meters. These are commonly used for light and medium workshop duty applications. However, in rare cases the single girder cranes are also used for hot metal ladle handling as well as with grab bucket.

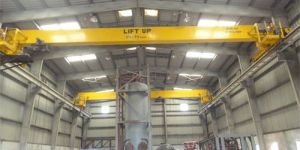

Double girder EOT cranes are rugged in construction and find their use in a wide range of hoisting capacities and applications. Double girder EOT cranes mostly find their applications in steel plants, power plants, coal fields, cement plants, engineering industries and so on. In double girder EOT crane the trolley housing hoisting and cross traversing machinery move on the top of two bridge girders. The bridge girders are of box construction made from rolled plates. They also facilitate multiple hoisting capacities with auxiliary lifting mechanism.   Features Maximum stability due to double girder box design. Geometrically reliable during assembly owing bolted design. The gearbox is driven by electric motor either sq. cage induction type or slip ring type Fail safe hydraulically operated thruster brake or DC brake Multiple speed selection option for all motions using VVVF Drive or slip ring motors Ideal for operator by using optional cabin control. Easy maintenance with walkways and assembly platforms Full length walkway platforms are provided along the LT drive side girders for heavy and extra heavy duty cranes. Platform/ Walkways are provided on all other cranes as per customer’s specifications. Power is supplied to trolley through flexible festoon cable system. The girders are supported at ends by rigid end carriages that house long travel wheelsOptional: Cabin or Radio control

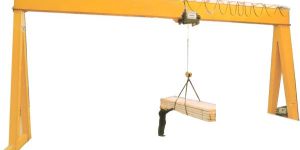

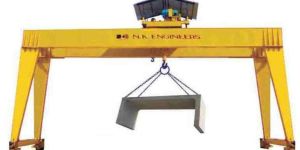

The company is a well-established Exporter and Supplier of Goliath Cranes in Navi Mumbai. The Power-Mater Gantry/ Goliath Cranes are designed in accordance to IS-807 & IS-3177 and are essentially the same as the regular overhead cranes except that the bridge for carrying the trolley or trolleys is rigidly supported on two or more legs running on fixed rails or other runway. These "legs" eliminate the supporting runway and column system and connect to end trucks which run on a rail either embedded in or laid on top of the floor. The Goliath Cranes have a hoist with trolley which runs horizontally along gantry rails, usually fitted underneath a beam spanning between uprights which themselves have wheels so that the whole crane can move at right angles to the direction of the gantry rails. Range : Electrically Operated Goliath/Gantry Crane Hand Operated Goliath/Gantry Crane Single Girder Goliath/Gantry Crane Double Girder Goliath/Gantry Crane

We are involve in manufacturing Single Girder Bridge Cranes in different configurations. These are mainly used for the industrial lifting purpose, we also manufacture an under slung version. Decision regarding the configuration is made depending upon the shed dimensions and lifting requirements of the client. We also provide Lifting Equipment Repair & Maintenance Services. The purpose of single girder crane is to serve our customers keeping their business profitability and the crane's efficiency and reliability in mind. We manufactures Single Girder Overhead cranes in SWLs ranging from 1MT up to a SWL of 20MT. Features : *    Unique design *    High performance low maintenance cost *    Ease of operation along with rigid and compact steel structures *    Less consumption of electricity *    Low noise levels make our cranes more user friendlyB

The goliath crane move on rails supported on floor level instead of rails placed at elevated level as in case of EOT Cranes. This eliminates the need for workshop building and hence reduction in capital cost. Goliath crane find major application in outdoors. However, the goliath cranes can also be installed inside a closed building. Special protection is provided for outdoor duty cranes depending on application and agreement with buyer. These special features may include – corrosion allowance in design of main load bearing structural members, drilled holes on walkway to avoid accumulation of rain water, localized full cover for trolley, covers for Long travel motor/ brake, additional parking brake for Long travel motion, special paint etc   Outdoor duty goliath cranes are also checked for stability under storm condition. Special storm anchors are provided to prevent toppling of crane under storm condition. The cross travel and long travel motor gearbox unit is designed to overcome wind resistance opposing the crane movement in addition to the power required to accelerate and move the safe working load at full speed. Power supply to the crane is provided through DG Set, Cable Reeling drum or shrouded bus bar.

We are known for providing our customers with highly functional EOT Cranes. Cranes offered by us find widespread application in factories and industries. In this range, we also offer single as well as double girder cranes at most competitive prices. Premium quality components and hi-tech technology utilized to manufacture our cranes help us ensure these cranes’ compliance with international standards. Specifications: Double Girder Cranes: Up to 150 ton capacity Tailor-made end carriages Twin drive (geared brake motors) Sturdy hoisting crabs Conical rotor hoists 100 % fail proof brakes Panels with genuine Siemens switches VVF (Ac) drives for soft start (optional) Remote control (optional) Desired DSL systems Single Girder Cranes: Up to 20 ton capacity Tailor-made end carriages Twin drive (geared brake motors) Sturdy hoisting crabs Under slung conical rotor hoists 100 % fail proof brakes Panels with genuine Siemens switches VVF (Ac) drives for soft start (optional) Remote control operation (optional) Desired DSL systems

EOT Crane, Manual Hoists, Material Handling Equipment, Electric Hois

Our ladle handling eot cranes are used to transport ladles filled with molten material to the continuous casting machine from the furnaces. Our ladle cranes could also be used for teeming and casting processes. Our ladle cranes are designed as per class iv (extra heavy duty) of is 4137 (indian standards).

EOT Crane, Container Handling Cranes, Gear Box, Goods Lift, Hois

EOT Crane, Jib Cranes, Wall Mounted Jib Cranes, Gantry Crane

EOT Cranes, Industrial Cranes, Wire Rope Hoists, Crane Spare Part

Girder EOT Cranes, Hydraulic Hand Pallet Truc

EOT Cranes, Gantry Cranes, Pot Cranes, Semi Gantry Crane

EOT Crane, Steel Allo

EOT Cranes, APFC Panels, Electrical Control Panels, EOT Hois

EOT Crane, Transfer Trolley, HOT Crane, Jib Cran
