Feeding Machine Dealers in Ahmedabad

Cement Feeding Systems are constructed of mild and structural steel, and mounted on a base. FS pumps are equipped with pedestal blocks that support a pump screw which helps to provide a smooth, balanced operation. The screw is dynamically balanced and areas of this screw, along with other parts of the pump in direct contact with the material to be conveyed, are made of hardened, wear-resistant material and special hard surfacing where required. The screw is directly coupled to the driving motor but can be v-belt driven.Standard equipment on FS pumps includes a pressurized seal and bearing assembly that extends the service life of the discharge seals by preventing the material being handled from entering the bearing area. Each pump system includes the pump, drive motor and compressed air source.It is the most versatile and speedy method of transferring bulk material from one point to another within a defined area.

The conveying rate achieved is 30 - 32 Tons per hour. When cement fly ash is received at site in Bags, then they are manually taken to a hopper. Bags are slit and loose material is dumped in to the hopper. A specially, designed screw feeder and low pressure air insertion ensures measured flow of material in to the discharge pipe line The cement fly ash dropped in discharge pipe are pushed ahead to main silo with the pressure of 1 KgCm2. The transfer rate achieved is 12 to 15 Tons Hour forthis mode The same operational procedures remain common for lime handling systems also.

Timely execution of mega-projects in construction Industries has led to paradigm shift with introduction of Batching plant and its product viz; RMC However two basic inputs to RMC viz cement and Fly ash are received at site in Bulkers or in bags The optimum productivity of Batching plant depends on how fast the cement fly ash is received at site and is transferred to Batching Silo. PNEUCON has designed, manufactured and supplied user friendly system mounted on a skid; it will have options to both modes of Cement fly ash input i.e. loose in Bulkers or material received in Bags. Conveying from Bulker to Main Silo is achieved by diverting the voluminous air flow at around 1 Kg Cm2 Pressure. The bulker is aerated and pressurized. Opening of Bottom Valve allows cement fly ash to fall directly in dispatch pipe. The air flow carries the material to the main Silo.

Stecofab offers cement feeding system and fly ash feeding system with its effective and efficient outstanding innovation. Concrete batching plant, in close vicinity of any rmc / mega project site is a vital facility. The transfer of cement / fly ash to the main silo determines the productivity and efficiency of these batching plants. This transfer is achieved through cement & fly ash feeding system scfs-i / scfs-ii designed, manufactured and serviced by stecofab. It is the system to help in achieving set target in cost and time. The system consists of two-in-built options for conveying material directly from the special bulker of 30 ton (which has integrated piping) to the silo and for manual dumping of material into the feed hopper and pumped through screw to a material reservoir, where the material is fluidized and conveyed to the silo.

Applications :: The KHODIYAR Screw Pumps are heavy-duty, screw-type pneumatic pumps. These pump systems are most commonly used to convey dry, free-flowing, pulverized materials from grinding mills, transfer materials from silo to silo, transfer dust from collectors, and load and unload railcars, ships and barges. The materials are conveyed literally anywhere a pipeline can be run and to any number of delivery points. Description :: It is the most versatile and speedy method of transferring bulk material from one point to another within a defined area. KHODIYAR are engaged in offering wide range of Cement feeding system which is used for feeding the cement feed the cement in construction sites. These Cement feeding systems are manufactured by using supreme grade of raw material and are highly demanded in various production industries. General Specifications :: KHODIYAR Screw Pumps are constructed of mild and structural steel, and mounted on a base. PS pumps are equipped with pedestal blocks that support a pump screw which helps to provide a smooth, balanced operation. The screw is dynamically balanced and areas of this screw, along with other parts of the pump in direct contact with the material to be conveyed, are made of hardened, wear-resistant material and special hard surfacing where required. The screw is directly coupled to the driving motor but can be v-belt driven Standard equipment on PS pumps includes a pressurized seal and bearing assembly that extends the service life of the discharge seals by preventing the material being handled from entering the bearing area. Each pump system includes the pump, drive motor and compressed air source Operation :: The materials to be conveyed enter the hopper by gravity or dumped by any means. The material is compacted as it is advanced. Its density is further increased in the space between the terminal flight of the screw and the face of the non-return valve to form a seal against the transport line pressure, thus preventing blowback. The material then enters the discharge body, is fluidized by compressed air, and is conveyed into the transport line

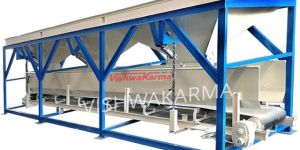

Automatic Feeding System With Weighing Attachment     With sincerity and hard work of our professionals, we have carved a niche for ourselves in this domain by offering Automatic Weighing System. Designed with utmost precision, the offered weighing system is manufactured using high quality components and innovative technology. In addition to this, our provided weighing system is stringently checked under the supervision of quality experts in order to ensure its flawless performance. Our esteemed clients can avail this weighing system from us at market-leading prices.   Features: Power saving features Precisely designed Easy to operate

The worlds first and finest fully computerized automatic raw cotton feeding system for Double Roller Gins. The System Is logic controlled and programmable This system has eliminated the need of manual labors which was the main drawback of Double Roller Gins vis-à-vis saw gins.   Features: › Reduction in labor force possible. Only 3 laborers are required to run a ginnery having 24 Double Roller Gins wherein "Raw Cotton" is conveyed from Raw   Cotton heap to Double Roller Gin Stands.› Contamination Particles like dust, pebbles, stone, threads, human hair, bangles, bindis, gutka, pouches etc. are almost eliminated.› The output of the Double Roller Gin is increased. The life of fix knife, moving knife , leather roller washers installed in Double Roller Gins also increases    significantly and enhances the working efficiency of the Double Roller Gin Stands.› Instead of reduction in labor force we can say with use of Janki Rath , the labors  require to feed  Individual Double Roller are totally or 100% eliminated.   There by reducing contamination in cotton & increase in output as the consistent supply of Raw cotton is ensured.

We have expertise in offering a wide range of Feeder Machine for Soda & Silica Sand. These machines are fabricated using high grade raw material and meet international standards in quality and performance. This feeder is fitted with Stainless Steel Solid Screw without welding design. It can be available with 8.MM to 25.MM Thickness Screw in any Material. Our machines offer advanced features for easy installation and usage. The feeder has a hopper fitted to it for enhanced efficiency.
