flowjet valves pvt ltd Kathwada, Ahmedabad, Gujarat

Material : ASTM Specifications

We are the leading supplier of this products.

Application : Industrial

Material : CS;SS;ALLOYS

Brand Name : FLOWJET

Application : Industrial

Material : CS;SS;ALLOYS

Flowjet Offer a wide range of globe valves in a variety of sizes, pressure ratings and materials. Globe valves are linear motion valves with rounded bodies, from which their name is derived. During the opening of the Globe Valve the fluid flows through the space between the Edge of the Disc & the seat. Globe valves are linear motion valves with rounded bodies from which their name is derived. During the opening of the Globe Valve the fluid flows through the space between the Edge of the Disc & the seat. These kind of valves are generally used in industry as fully open or fully closed valve, but they may be used for throttling as long as fine adjustments are not required. Globe valve are ideal choice tocontrol the gases such as steam. A user can use it for throttling with little modification in plug & seat Being a linear operation, and requiring a low operating force to open, globe valves can be readily actuated for remote operation. Globe valves can be straight through, angle or oblique pattern. the oblique pattern increases the flow coefficient to reduce the pressure drop. When selecting a globe valve, it is important to consider operating temperature and pressure, media properties, flow requirements, duty requirements, physical limitations and suitability for the environment. When installing it is vital to ensure that the valve is positioned so that the flow is from the bottom of the valve to the top.   SPECIAL FEATURE Anti-frictional Ball bearings in higher sizes and classes.Outside screw and yoke constructionvalves with backseat arrangementgland is of self aligningDeep stuffing boxThe Body to Bonnet is male and female joint and ring joint is used in higher classes.

Type : Globe Valve

Material : PART NAME

Finishing : Polished

End Connection : Flange & Butt Weld

Country of Origin : India

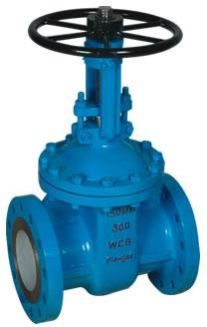

Flowjet have a wide range of GATE VALVES in variety of types, sizes, pressure ratings and materials, with wafer type, screwed, welded or flanged connections. Flowjet Manufacture Gate valves in every size ranging from the smallest to the largest size Gate Valve name is derived from the operation of the Gate valve. The Valve Acts like a Gate to stop or allow the flow through the valve. The valve can be opened by lifting the wedge out of the path of the flow Gate valves are actually designed for closing & opening full , so they are not suitable for the Throttling purpose. When the Gate valve is fullyopen, there is no Obstruction in the Flow path, resulting in very low pressure drop, & they are often suitable for the Hot Tapping & Pigging.  Gate Valves are actually designed for use with the flow of liquids and Gases but there are variation to cope with the specific requirements. For example, one problem with wedge gate valves in steam service is that when the valve is closed and steam is brought into the system, the metal wedge expands and can get stuck, making opening the valve difficult or impossible. Knife-gate valves are used when deposit may block a normal wedge gate. The gate is a narrow plate with a shaped edge to cut through solids. They are ideal for applications with a high suspension of solids or fibrous content such as powders, slurry, ash and pulp. Care should be taken when specifying knife gate valves to state whether flow is uni- or bi-directional.   SPECIAL FEATURE Anti-frictional Ball bearings in higher sizes and classes.The strength of Stem to Gate connection is stronger than the strength of the Stem at the root of the operating threadOutside screw and yoke constructionvalves with backseat arrangementBi-directional shut-offGland is of self aligningDeep stuffing boxLow Pressure Drop & Lower ErosionThe Body to Bonnet is male and female joint and ring joint is used in higher classes

Material : No.

End Connection : Flange & Butt Weld

A check valve or non-return valve which normally allows to flow through it in only one direction.Check valves are two-port valves, means they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are various types of check valves used in a wide variety of applications. Although they are available in a wide range of sizes and costs, Check valves work automatically and most are not controlled An important concept in check valves is the cracking pressure which is the minimum upstream pressure at which the valve will operate.   A swing check valve or tilting disc check valve is check valve in which the disc, the movable part to block the flow, swings on a hinge or trunnion, either onto the seat to block reverse flow or off the seat to allow forward flowA lift-check valve is a check valve in which the disc, can be lifted up off its seat by higher pressure of inlet or upstream fluid to allow flow to the outlet or downstream side. A guide keeps motion of the disc on a vertical line, so the valve can later reseat properly. When the pressure is no longer higher, gravity or higher downstream pressure will cause the disc to lower onto its seat, shutting the valve to stop reverse flow

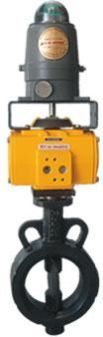

Flowjet Butterfly Valve is one of the most compact and light-weight valves. Used for a wide range of applications, the choice of seat, lining and disc options has increased significantly over recent years making the valve a popular choice. A wide range of materials, sizes and pressure ratings gives reliable positive isolation and moderate flow control capability over a wide range of applications throughout the industry. The metal seated valve is well established in petrochemical and oil industries being lightweight, fire safe and suitable for actuation.Butterfly valves offer a number of advantages when used for the proper application. They may be used in a wide variety of chemical services, they are available with small dimensions allowing for use in areas where space is limited, and they allow a high coefficient of flow.Butterfly valves are quick opening valves that consist of a metal circular disc or vane with its pivot axes at right angles to the direction of flow in the pipe, which when rotated on a shaft, seals against seats in thevalve body. They are normally used as throttling valves to control flow. Unlike ball valves, butterfly valves do not     have any pockets in which fluids may become trapped when the valve is closed   Seat liner extending on to the contact faces ensures perfect sealing and eliminates the need for separate flange gaskets.   Unique triple sealing system for shaft sealing ensures zero leakage of the media past the shaft seals.   A truly line size body bore to ensure maximum flow capacity with the lowest pressure drop.   Both top and bottom shaft swiveling are guided by self - lubricated PTFE bearings. KEY FEATURES   Seat liner extending on to the contact faces ensures perfect sealing and eliminates the need for separate flange gaskets.Unique triple sealing system for shaft sealing ensures zero leakage of the media past the shaft seals.A truly line size body bore to ensure maximum flow capacity with the lowest pressure drop.Both top and bottom shaft swiveling are guided by self - lubricated PTFE bearings.

End Connection : Wafer Type, Lugs Type, Flange Type

Material : Body

End Connection : Wafer Type, Lugs Type, Flange Type

Material : Body

Sizes : 40 TO 1200 M.M.

Strainers come in several different styles based on the needs. A plate strainer is the simplest, in which water flows through a perforated plate. Often the plate is corrugated shape to increase surface area.A basket strainer is a design where the strainer is shaped like a basket and usually installed in a vertical system.The basket strainer is easier to clean, since debris is captured in the basket.    It can also sometimes offer more straining surface area than a plate strainer, improving flow rates, or decreasing pressure loss through the strainer.

Flowjet Offer a whole range of Ball valves in a variety of sizes, pressure ratings and materials, in wafer style, or screwed, welded or flanged connections A ball valve has a quarter turn spindle connected to a ball inside the valve. The ball has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked.The handle position lets you see the valve's position. On a floating ball type, the upstream pressure   presses the ball against the seat, giving a tight shut off. On a trunnion mounted type, the ball is fixed; seat sealing action is achieved by the thrust of springs acting on the seat rings, as the pressure increases the fluid pressure pushes the seat rings against the ball. Ball Valves are Strong enough & Usually work to achieve the perfect shutoff even after years of No use. Therefore Ball Valves are Perfect Choice for Shutoff Application & are often preferred to globe & Gate valve for this purpose, especially in smaller size. However, standard ball valves do not offer the fine control that may be necessary in throttling applications, but V ported ball variations are available for control purposes. The unrestricted bore in full bore ball valves make them ideal for hot tapping andpigging. Being a quarter turn from fully open to fully closed, and having a relatively low operating torque, ball valves can be readily actuated for remote operation   SPECIAL FEATURE Flexible lip seats compensate for wear and changes in pressureBlow out proof stem constructionAntistatic devices ensure electrical continuity between ball, stem & bodyTriple stem sealingISO 5211 top pad for simplified gear/actuator mounting
