Swing Check Valve Dealers in Ahmedabad

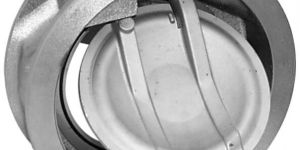

Wafer swing check valve its simple and compact design, it requires minimum installing space. It can be installed vertically or horizontally. We offer alternate materials for different applications. It is available with standard as well as customized configuration.

Wafer swing check valve Special Features Like Stelliting, Shorter overall length, mounting requires minimum space. Seat Leakage : Zero Leakage, Tight Shut Off.

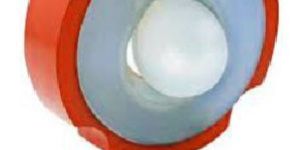

We are offering wafer type swing check valve. Technical specification design standard : bs en 593:2004 (formerly bs 5155) flange : as per ansi b16.5 b16.42 face to face : ansi b16.10 din 3202 k1 bs 5155 iso 5752 api 609 bs en 558 – 1&2 lining thickness : 3 to 5 mm testing standard : bs en 12266-1&2 (2003)

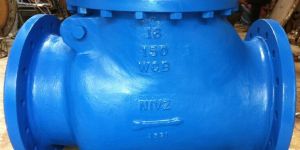

We offer swing type check valves, which are precision designed to provide satisfaction to our clients. These are manufactured from qualitative range of raw materials and are available in a broad spectrum of sizes and materials at most competitive prices. Features• Swing Check valve• Bolted Cap• Swing Type Disc• Metal Seat

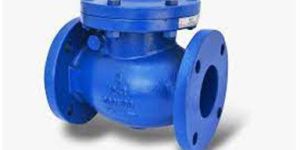

RangeSize 600 to 1200 Pressure up to PN 1.6 Conforming to IS : 5312 (Part-1)OverviewKirloskar Brothers Limited is a leading designer and manufacturer of centrifugal pumps and pumping systems for the Industry sector.FeaturesRigid and sturdy design Swing check type with minimum head loss Long service lifeApplicationsClear Water up to 45 C Water works Water / Effluent / Sewage treatment plants

Only qualitative raw material can result top-notch product range. Thus, we procure it from dependable names in the industry and that too after complete quality confirmation. We are assisted by a team of professional quality experts who check our products at different stages such as production, packaging and delivery.

Design Features : Design and Manufacturing : BS 1868 Inspection and Testing : API 598 , BSEN 12666 PART 1 & 2 End Flanges Dimension : ASME B 16.5(for NPS ≤ 24”) Series A & B (for NPS ≥ 24), MSS SP – 44 (for NPS ≥ 24) BW End Dimension : ASME B 16.25 Face to Face & End to End Dimension : ASME 16.10, BS 2080 Gasket Design : ASME B 16.20 Disk Design : Gravitational acceleration

Wafer swing Check Valves type combines a simple but robust construction with reliability. They are specially designed and developed for applications where a low pressure loss is essential. J.D. Wafer Type Swing Check Valve has short face to face dimensions and low weight allows a simple space saving installation between the companion flanges. The valves are suitable to mounting between weld neck or slip on plate type companion flanges of different standards. The short face to face dimensions and the low weight guarantee a simple and space saving installation between the bolts of the connecting flange.

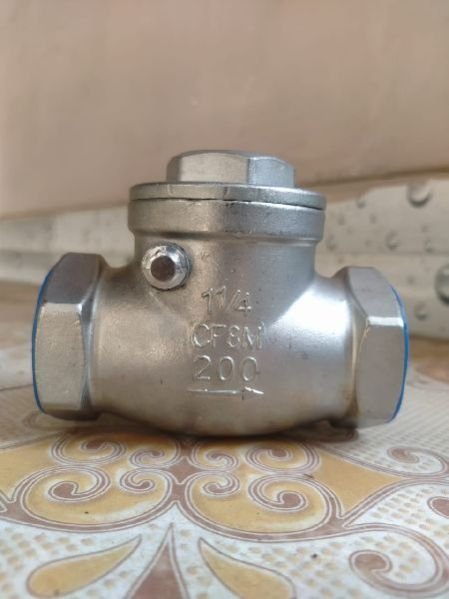

We are offering Swing Check Valve. Technical specifications : design : swing type for vertical position body material : cast iron, carbon steel (astm a 216 gr. Wcb, forged carbon steel (astm a 105), cf8 (ss 304), cf8m (ss 316), cf3m (ss 316l), ss 202, alloy steel & others.end connection : screwed (threded), socket weld, flanged end, butt weld end.pressure rating class : asa 150, 300, 600, 800, 900, 1500, 2500, bs 10 table d, e, f, h,size range : 15mm to 400mm

We are listed at the apex in the list of the most dependable Horizontal Swing Check Valve Manufacturers in India. The unmatched quality and inexplicable performance of the Swing Check Valve in respective applications has played a vital role in the enhancement of the demand. The use of optimum quality materials in the manufacturing of the Steel Swing Check Valve also ensure notable features like high durability, strength and resistance to corrosion. Additionally, customers are also ease with the availability of the Swing Check Valves in various sizes and dimensions.

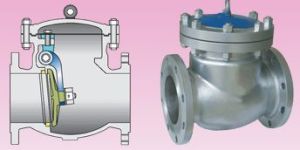

These types of valve (Non Return Valves) are used to stop back flow to the upstream side of the valve. The design of Check Valve (Non Return Valve) is very simple. A hinged door is placed inside the Swing Check Valve body. With the pressure coming upstream the door is held open; when pressure increases on the downstream side, it forces the door to valve close, stopping any back flow. Mostly all pump discharge line check valves being used. Swing type check valve is performing in vertical and horizontal both line. Lift check valve have have vertical and horizontal both type of design to suit as per line. Nivz Flanged End, 150# & 300# Check Valves are Swing Check type and the 800# class check valves are Piston Type Lift Check Valves. The piston type valve works up and down providing a strong, firm seal under high pressure conditions.Nivz all check valves are self actuating type. Nivz Valves & Automation manufacturing & exporterting of variety of Industrial Check Valve (Non Return Valve) to suit various industrial application and requirments. Our range also cover Steam Jacketed Swing Check Valve, Full Jacketed Non Return Valve for molten sulphur, asphalt, coltar, bitumen etc for any sticky and viscous media. Nivz make Double Flanged End Swing Type Check Valves - Non Return Valve are Swing type disc and Bolted cover design Construction. The one piece disc body construction is securely fastened to the hinge by means of a lock nut & pin. The Disc is free to rotating type to avoid any other wear. The hinge pin offers excellent wear resistance properties. Swing Check Non Retrun Valves also can be supplied with Titling disc design, Dash pot arrangement and outside lever & weight design for use where control of the disc is desires. Swing Non Return Valves can be mounted on Horizontol & Vertical both line. Nivz Valves & Automation also manufacturing P.T.F.E. (PFA / FEP) Lined Ball Type / ”Y” Type & Rubber Lined Flap Type Check Valves for high corrosive application. We have facility at our works for supplying of valves with 3rd Party Inspection i.e. Bureau Veritas  / BV, TUV, DNV, SGS, IRS, PDIL, LLOYDS, TATA and others on request. An ISO 9001 certified quality Swing Type Check Valve Manufacturer, NRV, Swing Type Non Return Valve, Exporter, Supplier, Stockist. Duplex Steel, Super Duplex Steel, Alloy 20, Hastelloy C22, C276, Austenitic Stainless Steel Material Check Valve Manufacturers. Salient Features of Swing Type Non Return Check Valve Body & Cover made from high quality casting with liberal sections. The castings are precision machined for high performance of valve. Bolted Cover design Body Seat Ring & Disc machined to close Tolerances providing smooth action and accurate seating. Seat Ring sealweld to the body Replaceable (Renewable) type Seat Ring & Integral Seat can also available on special request. Stellited Hard Face F6 Seat Ring & Disc also supply on requirement. All the disc have double lock nut or cotter pin fixed In built wear life for long duration of service.

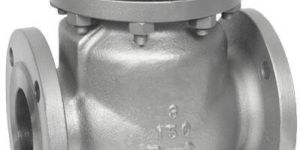

Design NU-TECH cast steel valves are designed and manufactured to provide maximum service life and dependability. ALL check valves meet the design requirements of American Petroleum Institute standard API600 & API 6D. BS EN 13709 and generally, Conform to American Society of Mechanical Engineers standard ASME B16.34. VaLves are available in a compLete range of body/bonnet materials and trims.   Available Modifications Fon "NU-Tech Cast Steel Valves Trim Changes End Connection Modifications Packing and Gasket Change Operator Mounting Handwheel Extensions Pressure Equalizing Customer Specified Coatings Weld End Bore Changes Oxygen & Chlorine Clearing & Packaging   Eyebolt For 150Lb-8', 300Lb-8" 600Lb-6" • 900Lb-1500Lb/2500Lb-4"& over. Bolted cover.   BC Welded cover & Pressure seal bonnet in services requiring frequent cycling or with high pressure/term perature variations.   End Connection A choice of flanged, WO flanged or butt welding end for piping flexibiLity.   Body to Cover Joint A male & female joint or tongue and groove joint is used 150Lb to 600Lb valves. Ring joint is used in the body to cover connection in 900Lb & higher rated valves.   Range Of Materials Standard body/bonnet materials include nine grades of carbon, low alloy & stainless steels. For special applications they can be supplied in other grades of alloy & stainless steeL Threre's a full range of trim materials to match any service optional packing S, gasket materiaLs are available for a fulL range of service conditions.   Outside Lever B Weigh All external hinge pin swing check valves 12" & smaller are available with an optional outside lever and weight, internal hinge available with all swing check valves.   Seat Rign Separate heavy duty fulL ported rings for easy maintenance, Screwed or welded connection into body.   Hcu Weighted Mechanical Accumulator This design can be used to either dampen or assist closing of the check valve disc depending on orientation. by using the hydraulic controL unit to buffer action the disc, the vaLve opens at lower flow rates.
