These types of valve (Non Return Valves) are used to stop back flow to the upstream side of the valve. The design of Check Valve (Non Return Valve) is very simple. A hinged door is placed inside the Swing Check Valve body. With the pressure coming upstream the door is held open; when pressure increases on the downstream side, it forces the door to valve close, stopping any back flow. Mostly all pump discharge line check valves being used. Swing type check valve is performing in vertical and horizontal both line. Lift check valve have have vertical and horizontal both type of design to suit as per line. Dharmi Engineers Flanged End, 150# & 300# Check Valves are Swing Check type and the 800# class check valves are Piston Type Lift Check Valves. The piston type valve works up and down providing a strong, firm seal under high pressure conditions. Dharmi Engineers all check valves are self actuating type. Dharmi Engineers manufacturer & exporter of wide range of Industrial Check Valve (Non Return Valve).

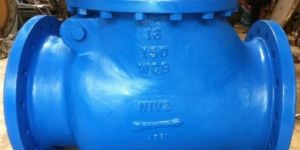

We offer Swing Check Valve. Model : CH-2-F-F-A1 (150#), CH-2-F-F-A2 (300#), CH-2-F-F-A3 (600#) Size : 40-400 mm Material : Carbon Steel, Stainless Steel& Alloy Steel Ratings : 150,300 & 600 Class Ends : Flanged& Butt weld on request Options : Stellite Trim, External Dashpot

VALTECH” robust design, Cast Steel Swing Check Valves are designed and manufactured with reference to Standard BS-1868 for Pipelines 50NB and above. They are available in Flanged and Buttweld ends. Hard Faced Trim material ensures perfect Sealing and longer life. If required, Valves can be offered under any THIRD PARTY INSPECTION. “VALTECH” Cast Steel Swing Check Valves are available in various materials like Cast Carbon Steel conforming to ASTM-A-216 Gr. WCB, Cast Alloy Steel like ASTM-A-217 Gr. WC-6 / WC-9; and Cast Stainless Steel like ASTM-A-351 Gr. CF-8, CF-3, CF-8M & CF-3M. Size range starts from 50 NB through 900NB and pressure rating from 600# to 2500#

We are offering swing check valve. swing check valves bolted cover design, flanged end suitable for horizontal & vertical line shakti valves [nrv] are swing type and bolted cover construction. The one piece disc construction is securely fastened to the hinge by means of a lock nut & pin. The disc is free to rotating type to avoid any other wear. The hinge pin offers excellent wear resistance properties. swing check valves also can be supplied with titling disc design, dash pot arrangement and outside lever & weight design for use where control of the disc is desires. shakti also offer p.t.f.e. (pfa / fep) lined ball type/y type & rubber lined flap type check valves for high corrosive application. swing type check valve [non return valve] bolted cover, suitable for horizontal & vertical line design standard: bs 1868 size range - 1" to 12" pressure rating - 125# / 150# / 300# end connection : flanged end lift type check valve [non return valve] bolted cover, suitable for horizontal line only design standard: bs 1868 / din size range - 1" to 12" pressure rating: pn 6 / pn 10 / pn 16 / pn 25 / pn 40 end connection : flanged end forged steel lift check valve (non return valve) bolted cover type design standard: bs 5352 pressure rating: 800# / 1500# end connection : screwed / socket weld / butt weld end salient features : • body & cover made from high quality casting with liberal sections. The castings are precision machined for high performance. • body seat ring & disc machined to close tolerances providing smooth action and accurate seating. • seat ring screwed in to the body are replaceable type. Seal welded type seat ring & integral seat cab also be offered on special request. • stellited seat ring & disc also be offered on special request. • in built wear life for long duration in service. material of construction: cast iron : is 210 gr fg 200 cast carbon steel : astm a 216 gr wcb cast stainless steel : astm a 351 gr cf 8/cf 8m forged carbon steel : astm a 105 forged stainless steel : astm a 182 gr f304 / f316 design type : swing type disc / piston lift type disc end connection : screwed as per bsp/bspt/npt socketweld : as per ansi b 16.11 flanged : as per ansi b 16.5 pressure rating : asa 125#, 150#, 300#, 600#, 800#, pn 16 & pn 40 engineering option : gear operated, electrical actuated, size range : 15mm to 300 mm design & testing international standard: valve design : bs 5351 / ansi b 16.34 / api 6d pressure testing : bs 6755-i face to face : ansi b 16.10 flange drilling : ansi b 16.5 / bs 10 table / din / is 6392 butt weld end : ansi b 16.25 socket weld end : ansi b 16.11 screwed end : ansi b 1.20.1(bsp/npt)
