Wafer Check Valve Dealers in Ahmedabad

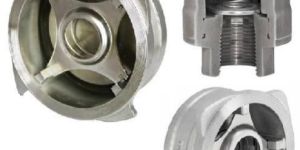

SEALMECH Check Valves are Bolted cover design up to 600# and above pressure seal design. SEALMECH Swing check valves are suitable for vertical and horizontal both line. A SEALMECH wide range of Check Valves (Non-Return Valves) available for oil, gas, water, refining, power and chemical applications, where the prevention of flow reversal is mandatory.

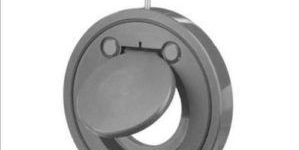

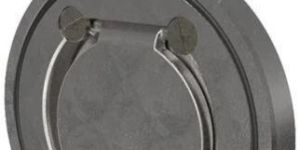

Wafer swing check valve its simple and compact design, it requires minimum installing space. It can be installed vertically or horizontally. We offer alternate materials for different applications. It is available with standard as well as customized configuration.

Design standard: API 6D & API 594Simple but robust construction with reliabilityPressure rating - PN - 10, PN - 16Range-DN-25 to DN - 700100% tight shut-offShort overall length-very short space required Suitable for flange standards- BS, ANSI, IS, API etc.Materia l- M.S./ CS/ CF8 / CF8M0 rings - Nitrile / EPOM / Viton / Silicon / PTFE .

We have parted our infrastructure into several units and one of them is storehouse. We update it on regular basis so as to meet stated industry standards. Superior transportation facilities, efficient workforce and on-time delivery of the products make us stand out from the crowd.

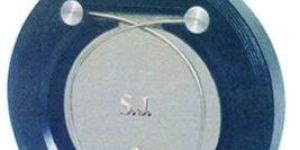

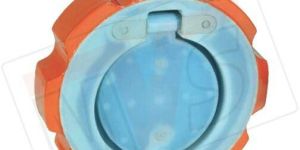

We are offering wafer type swing check valve. Technical specification design standard : bs en 593:2004 (formerly bs 5155) flange : as per ansi b16.5 b16.42 face to face : ansi b16.10 din 3202 k1 bs 5155 iso 5752 api 609 bs en 558 – 1&2 lining thickness : 3 to 5 mm testing standard : bs en 12266-1&2 (2003)

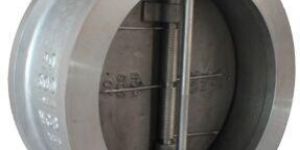

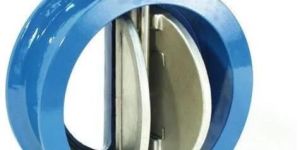

we are counted among the well-established pvc wafer check valve suppliers in ahmedabad, gujarat. Our dual disc wafer check valves are designed in such a manner that they easily get fitted between in between the flanges. The wafer check valve that we offer is made in different sizes in order to meet the demands of the clients. features made from fine grade pvc sourced from renowned manufacturers that assure their supreme quality they are highly durable and rust free can be obtained in customized specifications they are used in various industrial applications like hot water circuits, boiler feedlines, vacuum breakers, pipeline fitting application, etc.

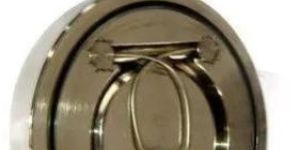

Size:2"-48" Class:150#-1500# Material:Carbon steel;Stainless steel;Duplex steel;Bronze;Inconel Medium:Oil;Gas;Water Design&Manufacture to API594 Face to face to ANSI B16.10 Ends to ANSI B16.5

Appiicarit Standards Steel Check Valves API 594/API 6D Steel Check Valves ISO 14313 Steel Valves ASME B16.34 IN Face To Face ASME B16.10 End Flanges ASME B16.5 ButtWelding Ends ASME B16.25 Inspection and Test API 598/API 6D   Design Descriptions One Piece Body Butterfly Swing Type Dual-plate Disc, Long-pattern Renewable Split Disc Horizontal Or Vertical Service Wafer Ends Available With Flanged Ends     Materials Of Parts S. No. Part Name Carbon Steel ASTM Material 1/1/4cr-1/2 mo Low Temp Carbon Steel 1 Body A216-WCB A351-CF8M A352-LCB 2 Plate A216-WCB+CR13 A351-CF8M+HF A350-LCB+CR13 3 Stop Pin A276-420 A276-304 A276-420 4 Back Spring A313-304 A313-316 A313-304 5 Hinge Pin A276-420 A276-304 A276420 6 Eye Bolt2   Carbon Steel     Dimensional Datas Of Ansi Class 150 LB NPS 2 2/1/2 3 0.4 6   10 12 14 16 in DN 50 65 80 100 150 200 250 300 350 400 mm L 2.38 2.62 2.88 3.12 5.38 6.5 8.38 9 10.75 12 in   60 67 73 79 137 165 213 229 273 305 mm D 4.38 5 5.75 7.5 10.38 12.5 15.62 17.88 19.25 22.12 in   110 128 147 191 264 318 398 455 490 562 mm d 2 2.5 3 4 6 7.88 9.88 12 13.25 15.25 in   51 65 80 102 152 200 250 305 337 387 mm D1 2.25 2.88 3.5 4.25 6.38 8.38 10.5 12.25 14 157.75 in   58 73 88 108 162 212 266 312 355 405 nun Wt 4 5 8 11 26 55 95 140 223 360 kg.   Dimensional Datas Of Ansi Class 300 LB NPS 2 2/1/2 3 4 6 8 10 12 14 16 in DN 50 65 80 100 150 200 250 300 350 400 mm L 2.75 3.25 3.25 4 6.25 8.12 9.5 11.5     in   70 83 83 102 159 206 241 292     mm D 5.5 6.38 6.5 8 11.25 14 17 19.5     in   140 162 165 204 286 356 432 495     mm d 2 2.5 3 4 6 7.88 9.88 12     in   51 62 80 102 152 200 250 305     mm D1 2.25 2.88 3.5 4.25 6.38 8.38 10.5 12.25     in   58 73 88 108 162 212 266 312     mm Wt 8 11 14 20 42 84 145 220     kg.

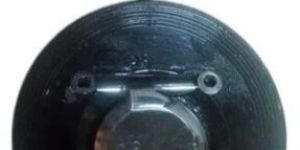

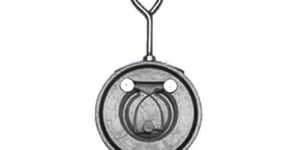

Under able guidance of our trained professionals, we are able to manufacture and export of Wafer-check-valve-non-return Valve all over the world. We manufacture these products from fine raw materials available in the market. It has a hook in the top to hang it and has a fine middle surface with opening. This is easy to use and can be in all kinds of factories. We offer this anti corrosive product at a competitive price.

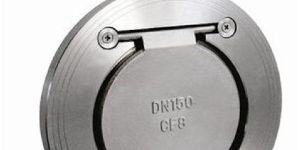

PURPOSE – JD  check valves are ideally suitable for vertical and horizontal application. A range of Check Valves (Non-Return Valves) suitable for oil, gas, water, refining, power and chemical applications where the prevention of flow reversal is mandatory. DESIGN & OPERATING PRINCIPLES :- DESIGN –JD Wafer Type Check Valve has short face-to-face dimensions and low weight allows a simple space saving installation between the companion flanges. The valves are suitable to mounting between weld neck or slip on type companion flanges of different standards.They are specially developed for applications where a low-pressure loss is essential. OPERATING PRINCIPLE-Opening and closing of the valve will take place at an extremely low-pressure difference over the valve disc. The eccentric disc shaft combination with the disc seat guarantees a positive shut off returning media. Wafer check valves are becoming the preferred type of check valve for most applications, due to their compact design and relatively low cost. MATERIAL OF CONSTRUCTION: Cast Iron                         : IS 210 Gr FG 200 Cast Carbon Steel           : ASTM A 216 Gr WCB Cast Stainless Steel        : ASTM A 351 Gr CF 8/CF 8M Seat                                     : Nitrile, Neoprene, PTFE End                                    : Wafer Type Pressure Rating               : ASA 125#, 150# Size Range                        : 50 mm to 300 mm   DESIGN & TESTING INTERNATIONAL STANDARD: Valve Design                    : API 6D Pressure Testing             : API 598 Face To Face                     : ANSI B 16.10 Mounting Between          : ANSI B 16.5 / BS 10 Table / DIN / IS 6392
